woss::Sediment Class Reference

Surficial sediment geoacoustic parameters definitions. More...

#include <sediment-definitions.h>

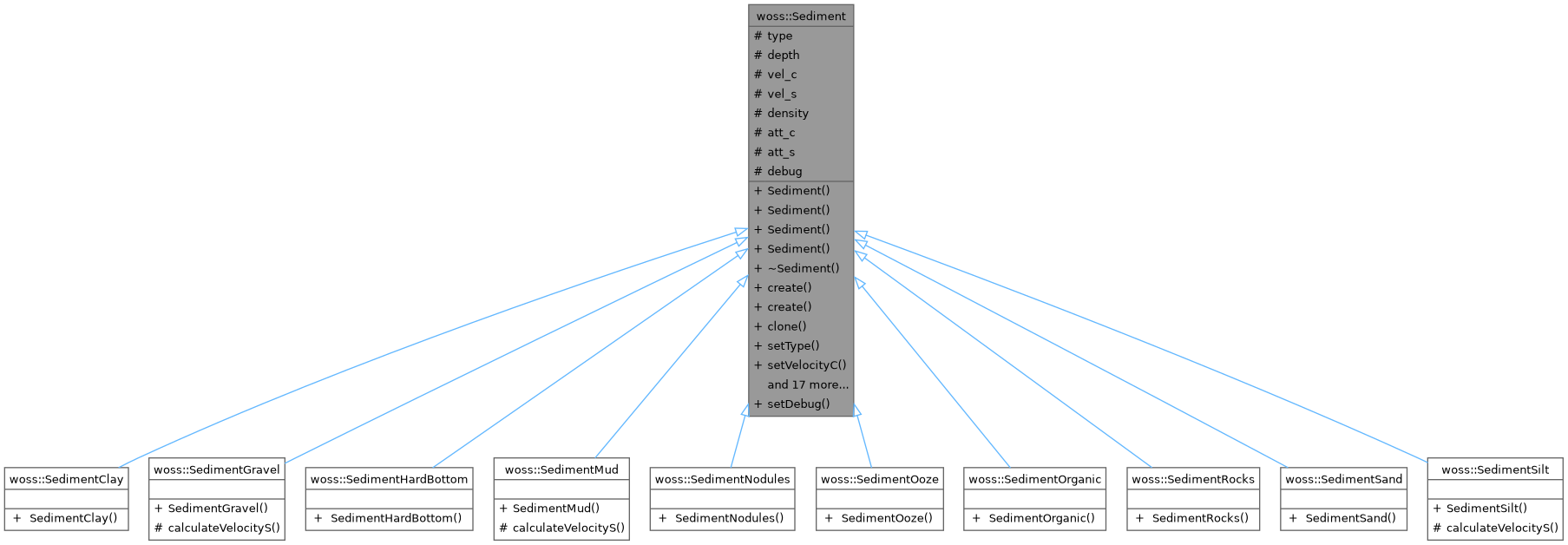

Inheritance diagram for woss::Sediment:

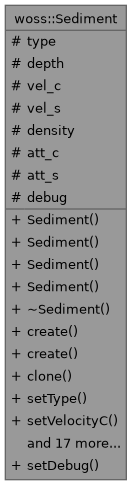

Collaboration diagram for woss::Sediment:

Public Member Functions
	Sediment ()
	Sediment (const std::string &name, double velc, double vels, double dens, double attc, double atts, double bottom_depth=1.0)
	Sediment (const Sediment &copy)=default
	Sediment (Sediment &&tmp)=default
virtual	~Sediment ()=default
virtual std::unique_ptr< Sediment >	create () const
virtual std::unique_ptr< Sediment >	create (const std::string &name, double velc, double vels, double dens, double attc, double atts, double bottom_depth=1.0) const
virtual std::unique_ptr< Sediment >	clone () const
Sediment &	setType (const std::string &name)
Sediment &	setVelocityC (double vel)
Sediment &	setVelocityS (double vel)
Sediment &	setDensity (double dens)
Sediment &	setAttenuationC (double att)
Sediment &	setAttenuationS (double att)
Sediment &	setDepth (double bottom_depth)
Sediment &	set (const std::string &name, double velc, double vels, double dens, double attc, double atts, double bottom_depth)
double	getVelocityC () const
double	getVelocityS () const
double	getDensity () const
double	getAttenuationC () const
double	getAttenuationS () const
double	getDepth () const
std::string	getType () const
virtual bool	isValid () const
virtual const std::string	getStringValues () const
Sediment &	operator= (const Sediment &sed)=default
Sediment &	operator= (Sediment &&tmp)=default

Static Public Member Functions
static void	setDebug (bool flag)

Protected Attributes
std::string	type
double	depth
double	vel_c
double	vel_s
double	density
double	att_c
double	att_s

Static Protected Attributes
static bool	debug = false

Friends
const Sediment	operator+ (const Sediment &left, const Sediment &right)
const Sediment	operator- (const Sediment &left, const Sediment &right)
const Sediment	operator/ (const Sediment &left, const Sediment &right)
const Sediment	operator* (const Sediment &left, const Sediment &right)
Sediment &	operator+= (Sediment &left, const Sediment &right)
Sediment &	operator-= (Sediment &left, const Sediment &right)
Sediment &	operator/= (Sediment &left, const Sediment &right)
Sediment &	operator*= (Sediment &left, const Sediment &right)
Sediment &	operator+= (Sediment &left, double right)
Sediment &	operator-= (Sediment &left, double right)
Sediment &	operator/= (Sediment &left, double right)
Sediment &	operator*= (Sediment &left, double right)
bool	operator== (const Sediment &left, const Sediment &right)
bool	operator!= (const Sediment &left, const Sediment &right)
const Sediment	operator+ (const double left, const Sediment &right)
const Sediment	operator- (const double left, const Sediment &right)
const Sediment	operator/ (const double left, const Sediment &right)
const Sediment	operator* (const double left, const Sediment &right)
const Sediment	operator+ (const Sediment &left, double right)
const Sediment	operator- (const Sediment &left, double right)
const Sediment	operator/ (const Sediment &left, double right)
const Sediment	operator* (const Sediment &left, double right)
std::ostream &	operator<< (std::ostream &os, const Sediment &instance)

Detailed Description

Surficial sediment geoacoustic parameters definitions.

The Sediment class provide an interface for creating and manipulating surficialg eoacoustic parameters.

Constructor & Destructor Documentation

Sediment() [1/4]

Sediment::Sediment

(

)

Sediment default constructor. The object created is not valid

References att_c, att_s, density, depth, type, vel_c, and vel_s.

Referenced by operator!=, operator*, operator*, operator*, operator*=, operator*=, operator+, operator+, operator+, operator+=, operator+=, operator-, operator-, operator-, operator-=, operator-=, operator/, operator/, operator/, operator/=, operator/=, operator<<, operator=(), operator=(), operator==, Sediment(), Sediment(), woss::SedimentClay::SedimentClay(), woss::SedimentGravel::SedimentGravel(), woss::SedimentHardBottom::SedimentHardBottom(), woss::SedimentMud::SedimentMud(), woss::SedimentNodules::SedimentNodules(), woss::SedimentOoze::SedimentOoze(), woss::SedimentOrganic::SedimentOrganic(), woss::SedimentRocks::SedimentRocks(), woss::SedimentSand::SedimentSand(), woss::SedimentSilt::SedimentSilt(), set(), setAttenuationC(), setAttenuationS(), setDensity(), setDepth(), setType(), setVelocityC(), and setVelocityS().

Sediment() [2/4]

Sediment::Sediment	(	const std::string &	name,
		double	velc,
		double	vels,
		double	dens,
		double	attc,
		double	atts,
		double	bottom_depth = 1.0 )

Sediment constructor

Parameters

name	textual name
velc	compressional wave velocity [m/s]
vels	shear wave velocity [m/s]
dens	sediment density [g/cm^3 or user defined]
attc	compressional wave attenuation [db/wavelength or user defined]
atts	shear wave attenuation [db/wavelength or user defined]
bottom_depth	bottom depth [m]

References att_c, att_s, density, depth, type, vel_c, and vel_s.

Sediment() [3/4]

woss::Sediment::Sediment ( const Sediment & copy )

default

References Sediment().

Here is the call graph for this function:

Sediment() [4/4]

woss::Sediment::Sediment ( Sediment && tmp )

default

References Sediment().

Here is the call graph for this function:

~Sediment()

virtual woss::Sediment::~Sediment ( )

virtualdefault

Member Function Documentation

clone()

virtual std::unique_ptr< Sediment > woss::Sediment::clone ( ) const

inlinevirtual

Sediment virtual factory method

Returns

std::unique_ptr to a heap-created copy of this instance

Referenced by woss::WossDbManager::setCustomSediment().

create() [1/2]

virtual std::unique_ptr< Sediment > woss::Sediment::create ( ) const

inlinevirtual

Sediment virtual factory method

Returns

a heap-created invalid Sediment object

create() [2/2]

virtual std::unique_ptr< Sediment > woss::Sediment::create ( const std::string & name, double velc, double vels, double dens, double attc, double atts, double bottom_depth = 1.0 ) const

inlinevirtual

Sediment virtual factory method

Parameters

name	textual name
velc	compressional wave velocity [m/s]
vels	shear wave velocity [m/s]
dens	sediment density [g/cm^3 or user defined]
attc	compressional wave attenuation [db/wavelength or user defined]
atts	shear wave attenuation [db/wavelength or user defined]
bottom_depth	bottom depth [m]

Returns

std::unique_ptr to a heap-created Sediment object

getAttenuationC()

double woss::Sediment::getAttenuationC ( ) const

inline

Gets compressional wave attenuation

Returns

attenuation [db/wavelength or user defined]

References att_c.

getAttenuationS()

double woss::Sediment::getAttenuationS ( ) const

inline

Gets shear wave attenuation

Returns

attenuation [db/wavelength or user defined]

References att_s.

getDensity()

double woss::Sediment::getDensity ( ) const

inline

Gets sediment density

Returns

density [g/cm^3 or user defined]

References density.

getDepth()

double woss::Sediment::getDepth ( ) const

inline

Gets bottom depth

Returns

depth [m]

References depth.

getStringValues()

const std::string Sediment::getStringValues ( ) const

virtual

Gets geoacoustic parameters in a formatted fashion

Returns

formatted string

References att_c, att_s, density, vel_c, and vel_s.

getType()

std::string woss::Sediment::getType ( ) const

inline

Gets sediment type name

Returns

type

References type.

Referenced by WossUnitTest::testSediment().

getVelocityC()

double woss::Sediment::getVelocityC ( ) const

inline

Gets compressional wave velocity

Returns

velocity [m/s]

References vel_c.

getVelocityS()

double woss::Sediment::getVelocityS ( ) const

inline

Gets shear wave velocity

Returns

velocity [m/s]

References vel_s.

isValid()

virtual bool woss::Sediment::isValid ( ) const

inlinevirtual

Checks the validity of geoacoustic parameters provided

Returns

true if Sediment is valid, false otherwise

References att_c, att_s, density, vel_c, and vel_s.

operator=() [1/2]

Sediment & woss::Sediment::operator= ( const Sediment & sed )

default

References Sediment().

Here is the call graph for this function:

operator=() [2/2]

Sediment & woss::Sediment::operator= ( Sediment && tmp )

default

References Sediment().

Here is the call graph for this function:

set()

Sediment & woss::Sediment::set ( const std::string & name, double velc, double vels, double dens, double attc, double atts, double bottom_depth )

inline

Sets all parameters at one.

Parameters

name	textual name
velc	compressional wave velocity [m/s]
vels	shear wave velocity [m/s]
dens	sediment density [g/cm^3 or user defined]
attc	compressional wave attenuation [db/wavelength or user defined]
atts	shear wave attenuation [db/wavelength or user defined]
bottom_depth	bottom depth ( > 0 ) [m]

Returns

reference to *this

References att_c, att_s, density, depth, Sediment(), type, vel_c, and vel_s.

Here is the call graph for this function:

setAttenuationC()

Sediment & woss::Sediment::setAttenuationC ( double att )

inline

Sets compressional wave attenuation

Parameters

att	attenuation [db/wavelength or user defined]

Returns

reference to *this

References att_c, and Sediment().

Here is the call graph for this function:

setAttenuationS()

Sediment & woss::Sediment::setAttenuationS ( double att )

inline

Sets shear wave attenuation

Parameters

att	attenuation [db/wavelength or user defined]

Returns

reference to *this

References att_s, and Sediment().

Here is the call graph for this function:

setDebug()

void woss::Sediment::setDebug ( bool flag )

inlinestatic

Sets debug for the whole class

Parameters

flag	debug value

References debug.

setDensity()

Sediment & woss::Sediment::setDensity ( double dens )

inline

Sets sediment density

Parameters

dens	density [g/cm^3 or user defined]

Returns

reference to *this

References density, and Sediment().

Here is the call graph for this function:

setDepth()

Sediment & woss::Sediment::setDepth ( double bottom_depth )

inline

Sets bottom depth

Parameters

bottom_depth

positive depth [m/s]

Returns

reference to *this

References depth, and Sediment().

Here is the call graph for this function:

setType()

Sediment & woss::Sediment::setType ( const std::string & name )

inline

Sets textual type name

Parameters

name	string name

Returns

reference to *this

References Sediment(), and type.

Here is the call graph for this function:

setVelocityC()

Sediment & woss::Sediment::setVelocityC ( double vel )

inline

Sets compressional wave velocity

Parameters

vel	velocity [m/s]

Returns

reference to *this

References Sediment(), and vel_c.

Here is the call graph for this function:

setVelocityS()

Sediment & woss::Sediment::setVelocityS ( double vel )

inline

Sets shear wave velocity

Parameters

vel	velocity [m/s]

Returns

reference to *this

References Sediment(), and vel_s.

Here is the call graph for this function:

Friends And Related Symbol Documentation

operator!=

bool operator!= ( const Sediment & left, const Sediment & right )

friend

Inequality operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

true if left != right, false otherwise

References att_c, att_s, density, Sediment(), vel_c, and vel_s.

operator* [1/3]

const Sediment operator* ( const double left, const Sediment & right )

friend

Scalar multiplication operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References Sediment().

operator* [2/3]

const Sediment operator* ( const Sediment & left, const Sediment & right )

friend

Multiplication operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References att_c, att_s, density, Sediment(), type, vel_c, and vel_s.

operator* [3/3]

const Sediment operator* ( const Sediment & left, double right )

friend

Scalar multiplication operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References Sediment().

operator*= [1/2]

Sediment & operator*= ( Sediment & left, const Sediment & right )

friend

Compound assignment multiplication operator

Parameters

left	left operand reference
right	right operand const reference

Returns

left reference after the operation

References Sediment().

operator*= [2/2]

Sediment & operator*= ( Sediment & left, double right )

friend

Compound assignment multiplication operator

Parameters

left	left operand reference
right	right operand const reference

Returns

left reference after the operation

References Sediment().

operator+ [1/3]

const Sediment operator+ ( const double left, const Sediment & right )

friend

Scalar sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References Sediment().

operator+ [2/3]

const Sediment operator+ ( const Sediment & left, const Sediment & right )

friend

Sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References att_c, att_s, density, Sediment(), type, vel_c, and vel_s.

operator+ [3/3]

const Sediment operator+ ( const Sediment & left, double right )

friend

Scalar sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References Sediment().

operator+= [1/2]

Sediment & operator+= ( Sediment & left, const Sediment & right )

friend

Compound assignment sum operator

Parameters

left	left operand reference
right	right operand const reference

Returns

left reference after the operation

References Sediment().

operator+= [2/2]

Sediment & operator+= ( Sediment & left, double right )

friend

Compound assignment sum operator

Parameters

left	left operand reference
right	right operand const reference

Returns

left reference after the operation

References Sediment().

operator- [1/3]

const Sediment operator- ( const double left, const Sediment & right )

friend

Scalar subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References Sediment().

operator- [2/3]

const Sediment operator- ( const Sediment & left, const Sediment & right )

friend

Subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References att_c, att_s, density, Sediment(), type, vel_c, and vel_s.

operator- [3/3]

const Sediment operator- ( const Sediment & left, double right )

friend

Scalar subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References Sediment().

operator-= [1/2]

Sediment & operator-= ( Sediment & left, const Sediment & right )

friend

Compound assignment subtraction operator

Parameters

left	left operand reference
right	right operand const reference

Returns

left reference after the operation

References Sediment().

operator-= [2/2]

Sediment & operator-= ( Sediment & left, double right )

friend

Compound assignment subtraction operator

Parameters

left	left operand reference
right	right operand const reference

Returns

left reference after the operation

References Sediment().

operator/ [1/3]

const Sediment operator/ ( const double left, const Sediment & right )

friend

Scalar division operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References Sediment().

operator/ [2/3]

const Sediment operator/ ( const Sediment & left, const Sediment & right )

friend

Division operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References att_c, att_s, density, Sediment(), type, vel_c, and vel_s.

operator/ [3/3]

const Sediment operator/ ( const Sediment & left, double right )

friend

Scalar division operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

a new const instance holding the operation result

References Sediment().

operator/= [1/2]

Sediment & operator/= ( Sediment & left, const Sediment & right )

friend

Compound assignment division operator

Parameters

left	left operand reference
right	right operand const reference

Returns

left reference after the operation

References Sediment().

operator/= [2/2]

Sediment & operator/= ( Sediment & left, double right )

friend

Compound assignment division operator

Parameters

left	left operand reference
right	right operand const reference

Returns

left reference after the operation

References Sediment().

operator<<

std::ostream & operator<< ( std::ostream & os, const Sediment & instance )

friend

<< operator

Parameters

os	left operand ostream reference
instance	right operand const Sediment reference

Returns

os reference after the operation

References att_c, att_s, density, Sediment(), type, vel_c, and vel_s.

operator==

bool operator== ( const Sediment & left, const Sediment & right )

friend

Equality operator

Parameters

left	left operand const reference
right	right operand const reference

Returns

true if left == right, false otherwise

References att_c, att_s, density, Sediment(), vel_c, and vel_s.

Member Data Documentation

att_c

double woss::Sediment::att_c

protected

Compressional wave attenuation [db/wavelength]

Referenced by getAttenuationC(), getStringValues(), isValid(), operator!=, woss::operator*(), woss::operator*(), operator*, woss::operator*=(), woss::operator*=(), operator+, woss::operator+=(), woss::operator+=(), operator-, woss::operator-=(), woss::operator-=(), woss::operator/(), woss::operator/(), operator/, woss::operator/=(), woss::operator/=(), operator<<, operator==, Sediment(), Sediment(), set(), and setAttenuationC().

att_s

double woss::Sediment::att_s

protected

Shear wave attenuation [db/wavelength]

Referenced by getAttenuationS(), getStringValues(), isValid(), operator!=, woss::operator*(), woss::operator*(), operator*, woss::operator*=(), woss::operator*=(), operator+, woss::operator+=(), woss::operator+=(), operator-, woss::operator-=(), woss::operator-=(), woss::operator/(), woss::operator/(), operator/, woss::operator/=(), woss::operator/=(), operator<<, operator==, Sediment(), Sediment(), set(), and setAttenuationS().

debug

bool Sediment::debug = false

staticprotected

Debug flag

Referenced by setDebug().

density

double woss::Sediment::density

protected

Sediment density [g/cm^3]

Referenced by getDensity(), getStringValues(), isValid(), operator!=, woss::operator*(), woss::operator*(), operator*, woss::operator*=(), woss::operator*=(), operator+, woss::operator+=(), woss::operator+=(), operator-, woss::operator-=(), woss::operator-=(), woss::operator/(), woss::operator/(), operator/, woss::operator/=(), woss::operator/=(), operator<<, operator==, Sediment(), Sediment(), set(), and setDensity().

depth

double woss::Sediment::depth

protected

Bottom depth. Used for shear wave velocity calculations [m]

Referenced by getDepth(), Sediment(), Sediment(), set(), and setDepth().

type

std::string woss::Sediment::type

protected

Sediment type name

Referenced by getType(), woss::operator*(), woss::operator*(), operator*, woss::operator*=(), woss::operator*=(), operator+, woss::operator+=(), woss::operator+=(), operator-, woss::operator-=(), woss::operator-=(), woss::operator/(), woss::operator/(), operator/, woss::operator/=(), woss::operator/=(), operator<<, Sediment(), Sediment(), set(), and setType().

vel_c

double woss::Sediment::vel_c

protected

Compressional wave velocity [m/s]

Referenced by getStringValues(), getVelocityC(), isValid(), operator!=, woss::operator*(), woss::operator*(), operator*, woss::operator*=(), woss::operator*=(), operator+, woss::operator+=(), woss::operator+=(), operator-, woss::operator-=(), woss::operator-=(), woss::operator/(), woss::operator/(), operator/, woss::operator/=(), woss::operator/=(), operator<<, operator==, Sediment(), Sediment(), set(), and setVelocityC().

vel_s

double woss::Sediment::vel_s

protected

Shear wave velocity [m/s]

Referenced by getStringValues(), getVelocityS(), isValid(), operator!=, woss::operator*(), woss::operator*(), operator*, woss::operator*=(), woss::operator*=(), operator+, woss::operator+=(), woss::operator+=(), operator-, woss::operator-=(), woss::operator-=(), woss::operator/(), woss::operator/(), operator/, woss::operator/=(), woss::operator/=(), operator<<, operator==, Sediment(), Sediment(), woss::SedimentGravel::SedimentGravel(), woss::SedimentMud::SedimentMud(), woss::SedimentSilt::SedimentSilt(), set(), and setVelocityS().

---

The documentation for this class was generated from the following files:

• woss/woss_def/sediment-definitions.h
• woss/woss_def/sediment-definitions.cpp
