Class that stores WossCreator parameters. More...

#include <woss-creator-container.h>

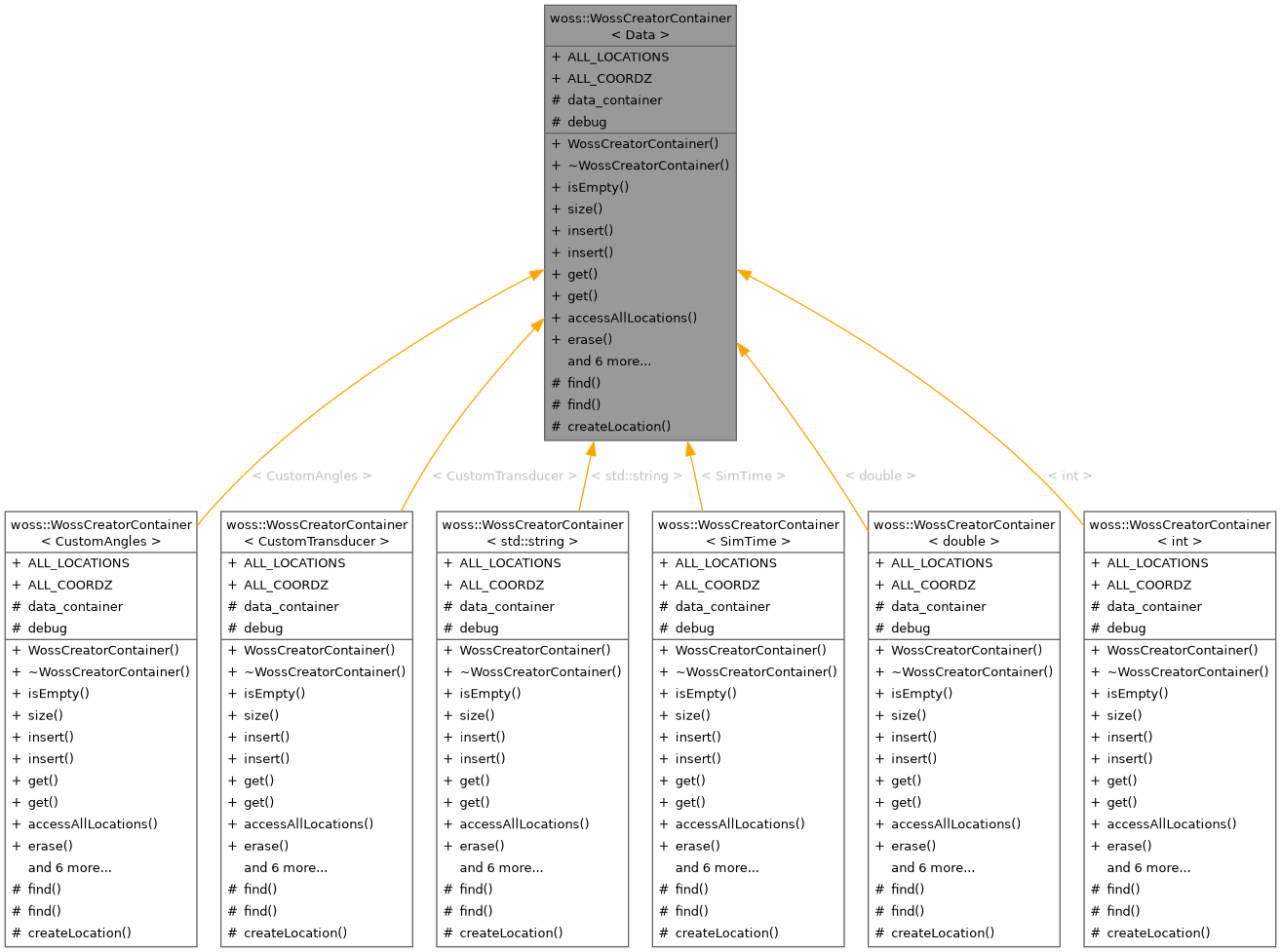

Inheritance diagram for woss::WossCreatorContainer< Data >:

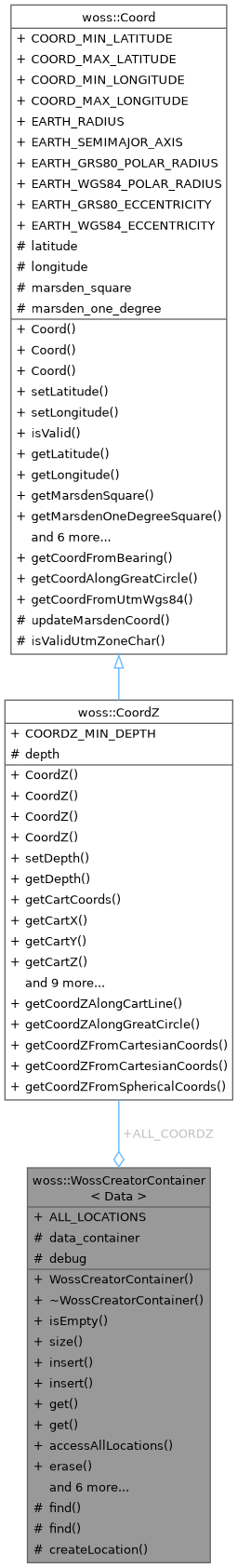

Collaboration diagram for woss::WossCreatorContainer< Data >:

Public Member Functions
	WossCreatorContainer ()=default
	~WossCreatorContainer ()=default
bool	isEmpty () const
int	size () const
bool	insert (const Data &data, const std::shared_ptr< Location > &tx, const std::shared_ptr< Location > &rx)
bool	insert (const Data &data, const CoordZ &tx, const CoordZ &rx)
Data	get (const std::shared_ptr< Location > &tx, const std::shared_ptr< Location > &rx) const
Data	get (const CoordZ &tx, const CoordZ &rx) const
Data &	accessAllLocations ()
void	erase (const std::shared_ptr< Location > &tx, const std::shared_ptr< Location > &rx)
void	erase (const CoordZ &tx, const CoordZ &rx)
void	replace (const Data &data, const std::shared_ptr< Location > &tx, const std::shared_ptr< Location > &rx)
void	replace (const Data &data, const CoordZ &tx, const CoordZ &rx)
void	clear ()
void	setDebug (bool flag)
bool	isUsingDebug () const

Static Public Attributes
static std::shared_ptr< Location >	ALL_LOCATIONS
static const CoordZ	ALL_COORDZ

Protected Types
using	InnerContainer = std::map< std::shared_ptr<Location>, Data >
using	ICIter = typename InnerContainer::iterator
using	ICRIter = typename InnerContainer::reverse_iterator
using	ICCIter = typename InnerContainer::const_iterator
using	ICCRIter = typename InnerContainer::const_reverse_iterator
using	DataContainer = std::map< std::shared_ptr<Location>, InnerContainer >
using	DCIter = typename DataContainer::iterator
using	DCCIter = typename DataContainer::const_iterator
using	DCRIter = typename DataContainer::reverse_iterator
using	DCRCIter = typename DataContainer::const_reverse_iterator

Protected Member Functions
DCIter	find (const CoordZ &coordinates)
ICIter	find (const CoordZ &coordinates, const DCIter &iter)
std::shared_ptr< Location >	createLocation (const CoordZ &coordinates)

Protected Attributes
DataContainer	data_container
bool	debug = false

Detailed Description

template<typename Data>
class woss::WossCreatorContainer< Data >

Class that stores WossCreator parameters.

WossCreatorContainer provides interface for storing and retrieving custom WossCreator data, indexed by transmitter and receiver std::shared_ptr<woss::Location>

Member Typedef Documentation

◆ DataContainer

template<typename Data>

using woss::WossCreatorContainer< Data >::DataContainer = std::map< std::shared_ptr<Location>, InnerContainer >

protected

The outer container. It associates a transmitter Location pointer to a InnerContainer object

◆ DCCIter

template<typename Data>

using woss::WossCreatorContainer< Data >::DCCIter = typename DataContainer::const_iterator

protected

◆ DCIter

template<typename Data>

using woss::WossCreatorContainer< Data >::DCIter = typename DataContainer::iterator

protected

◆ DCRCIter

template<typename Data>

using woss::WossCreatorContainer< Data >::DCRCIter = typename DataContainer::const_reverse_iterator

protected

◆ DCRIter

template<typename Data>

using woss::WossCreatorContainer< Data >::DCRIter = typename DataContainer::reverse_iterator

protected

◆ ICCIter

template<typename Data>

using woss::WossCreatorContainer< Data >::ICCIter = typename InnerContainer::const_iterator

protected

◆ ICCRIter

template<typename Data>

using woss::WossCreatorContainer< Data >::ICCRIter = typename InnerContainer::const_reverse_iterator

protected

◆ ICIter

template<typename Data>

using woss::WossCreatorContainer< Data >::ICIter = typename InnerContainer::iterator

protected

◆ ICRIter

template<typename Data>

using woss::WossCreatorContainer< Data >::ICRIter = typename InnerContainer::reverse_iterator

protected

◆ InnerContainer

template<typename Data>

using woss::WossCreatorContainer< Data >::InnerContainer = std::map< std::shared_ptr<Location>, Data >

protected

The innermost container. It associates a receiver Location pointer to the Data object

Constructor & Destructor Documentation

◆ WossCreatorContainer()

template<typename Data>

woss::WossCreatorContainer< Data >::WossCreatorContainer ( )

default

Referenced by get().

◆ ~WossCreatorContainer()

template<typename Data>

woss::WossCreatorContainer< Data >::~WossCreatorContainer ( )

default

Member Function Documentation

◆ accessAllLocations()

template<typename Data>

Data & woss::WossCreatorContainer< Data >::accessAllLocations ( )

inline

Returns a reference to the Data object associated to transmitter and receiver Location equal to ALL_LOCATIONS. If no keys were present, the Data object is default constructed and a reference to it is returned

Returns: a reference to a Data object

References ALL_LOCATIONS, and data_container.

◆ clear()

template<typename Data>

void woss::WossCreatorContainer< Data >::clear ( )

inline

Clears the container

References data_container.

Referenced by WossUnitTest::testWossCreatorContainer().

◆ createLocation()

template<typename Data>

std::shared_ptr< Location > woss::WossCreatorContainer< Data >::createLocation ( const CoordZ & coordinates )

inlineprotected

Creates a Location for a given CoordZ

Parameters

coordinates a const reference to a valid receiver CoordZ

Returns: a std::shared_ptr to a heap-allocated Location pointer

References ALL_COORDZ, createLocation(), and woss::Singleton< DefHandler >::instance().

Referenced by createLocation(), insert(), and replace().

Here is the call graph for this function:

◆ erase() [1/2]

template<typename Data>

void woss::WossCreatorContainer< Data >::erase	(	const CoordZ &	tx,
		const CoordZ &	rx )

inline

Erases an object into the container

Parameters

tx	const reference to a valid transmitter CoordZ
rx	const reference to a valid receiver CoordZ

References ALL_COORDZ, ALL_LOCATIONS, and data_container.

◆ erase() [2/2]

template<typename Data>

void woss::WossCreatorContainer< Data >::erase	(	const std::shared_ptr< Location > &	tx,
		const std::shared_ptr< Location > &	rx )

inline

Erases an object into the container

Parameters

tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

References data_container.

Referenced by WossUnitTest::testWossCreatorContainer().

◆ find() [1/2]

template<typename Data>

WossCreatorContainer< Data >::DCIter woss::WossCreatorContainer< Data >::find ( const CoordZ & coordinates )

protected

Returns an DataContainer iterators that points to the given transmitter coordinates. An iterator to the end of the DataContainer is returned if no coordinates are found

Parameters

coordinates a const reference to a valid transmitter CoordZ

Returns: a DataContainer::iterator

References ALL_COORDZ, ALL_LOCATIONS, data_container, and debug.

Referenced by get(), insert(), and replace().

◆ find() [2/2]

template<typename Data>

WossCreatorContainer< Data >::ICIter woss::WossCreatorContainer< Data >::find	(	const CoordZ &	coordinates,
		const DCIter &	iter )

protected

Returns an InnerContainer iterators for the DataContainter iterator that points to the given receiver coordinates. An iterator to the relative end of the InnerContainer is returned if no coordinates are found

Parameters

coordinates a const reference to a valid receiver CoordZ

Returns: a DataContainer::iterator

References ALL_COORDZ, ALL_LOCATIONS, and debug.

◆ get() [1/2]

template<typename Data>

Data woss::WossCreatorContainer< Data >::get	(	const CoordZ &	tx,
		const CoordZ &	rx ) const

inline

Returns an object into the container. If the keys are NOT found, a default constructed object is returned

Parameters

tx	const reference to a valid transmitter CoordZ
rx	const reference to a valid receiver CoordZ

Returns: a copy of the original object

References ALL_COORDZ, data_container, debug, and WossCreatorContainer().

Here is the call graph for this function:

◆ get() [2/2]

template<typename Data>

Data woss::WossCreatorContainer< Data >::get	(	const std::shared_ptr< Location > &	tx,
		const std::shared_ptr< Location > &	rx ) const

inline

Returns an object into the container. If the keys are NOT found, a default constructed object is returned

Parameters

tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: a copy of the original object

References ALL_LOCATIONS, data_container, debug, and find().

Referenced by WossUnitTest::testWossCreatorContainer().

Here is the call graph for this function:

◆ insert() [1/2]

template<typename Data>

bool woss::WossCreatorContainer< Data >::insert	(	const Data &	data,
		const CoordZ &	tx,
		const CoordZ &	rx )

inline

Inserts an object into the container. If the keys are already present, the object is NOT inserted

Parameters

data	const reference to a Data object to be inserted
tx	const reference to a valid transmitter CoordZ
rx	const reference to a valid receiver CoordZ

Returns: true if it's empty, false otherwise

References createLocation(), data_container, and find().

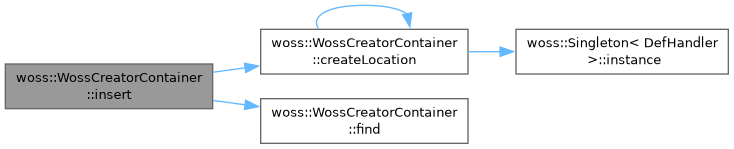

Here is the call graph for this function:

◆ insert() [2/2]

template<typename Data>

bool woss::WossCreatorContainer< Data >::insert	(	const Data &	data,
		const std::shared_ptr< Location > &	tx,
		const std::shared_ptr< Location > &	rx )

inline

Inserts an object into the container. If the keys are already present, the object is NOT inserted

Parameters

data	const reference to a Data object to be inserted
tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: true if it's empty, false otherwise

References data_container.

Referenced by WossUnitTest::testWossCreatorContainer().

◆ isEmpty()

template<typename Data>

bool woss::WossCreatorContainer< Data >::isEmpty ( ) const

inline

Checks if the container is empty

Returns: true if it's empty, false otherwise

References data_container.

Referenced by WossUnitTest::testWossCreatorContainer().

◆ isUsingDebug()

template<typename Data>

bool woss::WossCreatorContainer< Data >::isUsingDebug ( ) const

inline

Retuns the debug flag

Returns: true if is using the debug flag, false otherwise

◆ replace() [1/2]

template<typename Data>

void woss::WossCreatorContainer< Data >::replace	(	const Data &	data,
		const CoordZ &	tx,
		const CoordZ &	rx )

inline

Replaces an object into the container. If the key are not present, the object is still inserted

Parameters

data	const reference to a Data object to be inserted
tx	const reference to a valid transmitter CoordZ
rx	const reference to a valid receiver CoordZ

Returns: true if it's empty, false otherwise

References createLocation(), data_container, and find().

Here is the call graph for this function:

◆ replace() [2/2]

template<typename Data>

void woss::WossCreatorContainer< Data >::replace	(	const Data &	data,
		const std::shared_ptr< Location > &	tx,
		const std::shared_ptr< Location > &	rx )

inline

Replaces an object into the container. If the key are not present, the object is still inserted

Parameters

data	const reference to a Data object to be inserted
tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: true if it's empty, false otherwise

References data_container.

Referenced by WossUnitTest::testWossCreatorContainer().

◆ setDebug()

template<typename Data>

void woss::WossCreatorContainer< Data >::setDebug ( bool flag )

inline

Sets or unsets the debug flag

Parameters

flag	boolean flag

Referenced by WossUnitTest::testWossCreatorContainer().

◆ size()

template<typename Data>

int woss::WossCreatorContainer< Data >::size ( ) const

inline

Returns the size of the container

Returns: container's size

References data_container.

Referenced by WossUnitTest::testWossCreatorContainer().

Member Data Documentation

◆ ALL_COORDZ

template<typename Data>

const CoordZ woss::WossCreatorContainer< Data >::ALL_COORDZ

static

Pointer that represents the index for all possible coordinates

Referenced by createLocation(), erase(), find(), find(), get(), and WossUnitTest::testWossCreatorContainer().

◆ ALL_LOCATIONS

template<typename Data>

std::shared_ptr<Location> woss::WossCreatorContainer< Data >::ALL_LOCATIONS

static

Pointer that represents the index for all possible Locations

Referenced by accessAllLocations(), erase(), find(), find(), get(), and WossUnitTest::testWossCreatorContainer().

◆ data_container

template<typename Data>

DataContainer woss::WossCreatorContainer< Data >::data_container

protected

The Data container

Referenced by accessAllLocations(), clear(), erase(), erase(), find(), get(), get(), insert(), insert(), isEmpty(), replace(), replace(), and size().

◆ debug

template<typename Data>

bool woss::WossCreatorContainer< Data >::debug = false

protected

Debug flag

Referenced by find(), find(), get(), and get().

The documentation for this class was generated from the following file:

woss/woss-creator-container.h

Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ DataContainer

◆ DCCIter

◆ DCIter

◆ DCRCIter

◆ DCRIter

◆ ICCIter

◆ ICCRIter

◆ ICIter

◆ ICRIter

◆ InnerContainer

Constructor & Destructor Documentation

◆ WossCreatorContainer()

◆ ~WossCreatorContainer()

Member Function Documentation

◆ accessAllLocations()

◆ clear()

◆ createLocation()

◆ erase() [1/2]

◆ erase() [2/2]

◆ find() [1/2]

◆ find() [2/2]

◆ get() [1/2]

◆ get() [2/2]

◆ insert() [1/2]

◆ insert() [2/2]

◆ isEmpty()

◆ isUsingDebug()

◆ replace() [1/2]

◆ replace() [2/2]

◆ setDebug()

◆ size()

Member Data Documentation

◆ ALL_COORDZ

◆ ALL_LOCATIONS

◆ data_container

◆ debug
