AltimBretschneider supports Bretschneider wave model. More...

#include <altimetry-definitions.h>

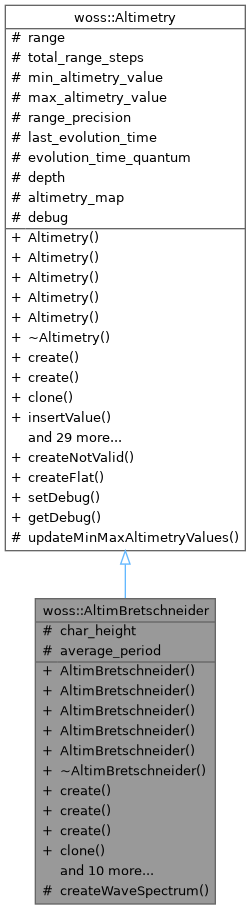

Inheritance diagram for woss::AltimBretschneider:

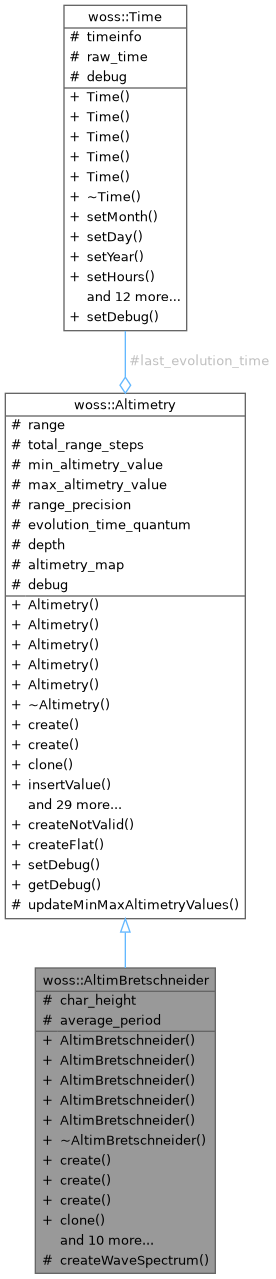

Collaboration diagram for woss::AltimBretschneider:

Public Member Functions
	AltimBretschneider ()

	AltimBretschneider (AltimetryMap &map)

	AltimBretschneider (double ch_height, double avg_per, int total_range_steps, double depth)

	AltimBretschneider (const AltimBretschneider &copy)

	AltimBretschneider (AltimBretschneider &&tmp)

virtual	~AltimBretschneider () override=default

virtual std::unique_ptr< Altimetry >	create () const override

virtual std::unique_ptr< Altimetry >	create (AltimetryMap &map) const override

virtual std::unique_ptr< Altimetry >	create (double ch_height, double avg_per, int total_range_steps, double depth) const

virtual std::unique_ptr< Altimetry >	clone () const override

AltimBretschneider &	operator= (const AltimBretschneider &copy)=default

AltimBretschneider &	operator= (AltimBretschneider &&tmp)=default

virtual bool	initialize () override

virtual bool	isValid () const override

virtual std::unique_ptr< Altimetry >	timeEvolve (const Time &time_value) override

virtual std::unique_ptr< Altimetry >	randomize (double ratio_incr_value) const override

AltimBretschneider &	setCharacteristicHeight (double h)

AltimBretschneider &	setAveragePeriod (double p)

double	getCharacteristicHeight () const

double	getAveragePeriod () const

Public Member Functions inherited from woss::Altimetry
	Altimetry ()

	Altimetry (AltimetryMap &map)

	Altimetry (double range, double altimetry)

	Altimetry (const Altimetry &copy)=default

	Altimetry (Altimetry &&tmp)=default

virtual	~Altimetry ()=default

Altimetry &	insertValue (double range, double altimetry)

Altimetry &	sumValue (double range, double altimetry)

AltCIt	findValue (double range) const

Altimetry &	eraseValue (double range)

virtual std::unique_ptr< Altimetry >	crop (double range_start, double range_end) const

AltCIt	begin () const

AltCIt	end () const

AltCIt	at (const int i) const

int	size () const

bool	empty () const

void	clear ()

Altimetry &	setEvolutionTimeQuantum (double quantum)

Altimetry &	setTotalRangeSteps (int r_s)

Altimetry &	setRange (double r)

Altimetry &	setDepth (double d)

double	getMaxRangeValue () const

double	getMinRangeValue () const

double	getMaxAltimetryValue () const

double	getMinAltimetryValue () const

long double	getRangePrecision () const

double	getEvolutionTimeQuantum () const

double	getRange () const

int	getTotalRangeSteps () const

double	getDepth () const

Altimetry &	operator= (const Altimetry &copy)=default

Altimetry &	operator= (Altimetry &&tmp)=default

Protected Member Functions
virtual AltimBretschneider &	createWaveSpectrum ()

Protected Member Functions inherited from woss::Altimetry
virtual Altimetry &	updateMinMaxAltimetryValues ()

Protected Attributes
double	char_height

double	average_period

Protected Attributes inherited from woss::Altimetry
double	range

int	total_range_steps

double	min_altimetry_value

double	max_altimetry_value

long double	range_precision

Time	last_evolution_time

double	evolution_time_quantum

double	depth

AltimetryMap	altimetry_map

Additional Inherited Members
Static Public Member Functions inherited from woss::Altimetry
static AltimetryMap &	createNotValid ()

static AltimetryMap &	createFlat (double altimetry=0)

static void	setDebug (bool flag)

static bool	getDebug (bool flag)

Static Protected Attributes inherited from woss::Altimetry
static bool	debug = false

Detailed Description

AltimBretschneider supports Bretschneider wave model.

AltimBretschneider wave model

Constructor & Destructor Documentation

◆ AltimBretschneider() [1/5]

AltimBretschneider::AltimBretschneider ( )

Default AltimBretschneider constructor

◆ AltimBretschneider() [2/5]

AltimBretschneider::AltimBretschneider ( AltimetryMap & map )

AltimBretschneider constructor

Parameters

map	custom time arrival map

◆ AltimBretschneider() [3/5]

AltimBretschneider::AltimBretschneider	(	double	ch_height,
		double	avg_per,
		int	total_range_steps,
		double	depth
	)

AltimBretschneider constructor

Parameters

ch_height	characteristic wave height [m]
avg_per	averate period [s]
total_range_steps	total range steps
depth	depth [m]

References woss::Altimetry::depth, and woss::Altimetry::total_range_steps.

◆ AltimBretschneider() [4/5]

AltimBretschneider::AltimBretschneider ( const AltimBretschneider & copy )

AltimBretschneider copy constructor

Parameters

copy	AltimBretschneider to be copied

◆ AltimBretschneider() [5/5]

AltimBretschneider::AltimBretschneider ( AltimBretschneider && tmp )

AltimBretschneider move constructor

Parameters

tmp	AltimBretschneider to be moved

◆ ~AltimBretschneider()

virtual woss::AltimBretschneider::~AltimBretschneider ( )

overridevirtualdefault

Member Function Documentation

◆ clone()

virtual std::unique_ptr< Altimetry > woss::AltimBretschneider::clone ( ) const

inlineoverridevirtual

AltimBretschneider virtual factory method

Returns: a std::unique_ptr to heap-created copy of this instance

Reimplemented from woss::Altimetry.

Referenced by randomize(), and timeEvolve().

◆ create() [1/3]

virtual std::unique_ptr< Altimetry > woss::AltimBretschneider::create ( ) const

inlineoverridevirtual

AltimBretschneider virtual factory method

Returns: a std::unique_ptr to a heap-created AltimBretschneider object

Reimplemented from woss::Altimetry.

◆ create() [2/3]

virtual std::unique_ptr< Altimetry > woss::AltimBretschneider::create ( AltimetryMap & map ) const

inlineoverridevirtual

AltimBretschneider virtual factory method

Parameters

map	custom time arrival map

Returns: a std::unique_ptr to a heap-created AltimBretschneider object

Reimplemented from woss::Altimetry.

◆ create() [3/3]

virtual std::unique_ptr< Altimetry > woss::AltimBretschneider::create	(	double	ch_height,
		double	avg_per,
		int	total_range_steps,
		double	depth
	)		const

inlinevirtual

AltimBretschneider virtual factory method

Parameters

ch_height	characteristic wave height [m]
avg_per	averate period [s]
total_range_steps	total range steps
depth	depth [m]

Returns: a std::unique_ptr to a heap-created AltimBretschneider object

References woss::Altimetry::depth, and woss::Altimetry::total_range_steps.

◆ createWaveSpectrum()

AltimBretschneider & AltimBretschneider::createWaveSpectrum ( )

protectedvirtual

References woss::Altimetry::altimetry_map, average_period, char_height, woss::Altimetry::clear(), woss::Altimetry::debug, woss::Altimetry::depth, woss::Altimetry::insertValue(), woss::Singleton< T >::instance(), woss::Altimetry::range, woss::Altimetry::range_precision, and woss::Altimetry::total_range_steps.

Referenced by initialize(), and randomize().

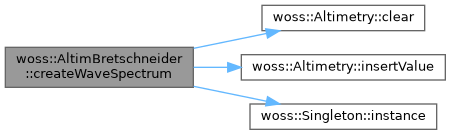

Here is the call graph for this function:

◆ getAveragePeriod()

double woss::AltimBretschneider::getAveragePeriod ( ) const

inline

Gets T - the wave average period [s]

Returns: h average period [s]

References average_period.

◆ getCharacteristicHeight()

double woss::AltimBretschneider::getCharacteristicHeight ( ) const

inline

Gets H - the characteristic height of the wave [m]

Returns: characteristic height [m]

References char_height.

◆ initialize()

bool AltimBretschneider::initialize ( )

overridevirtual

Initializes the altimetry vector. used if there is a matematical function that generates the whole vector.

Returns: true succeeded false otherwise

Reimplemented from woss::Altimetry.

References createWaveSpectrum(), isValid(), woss::Altimetry::range, woss::Altimetry::range_precision, and woss::Altimetry::total_range_steps.

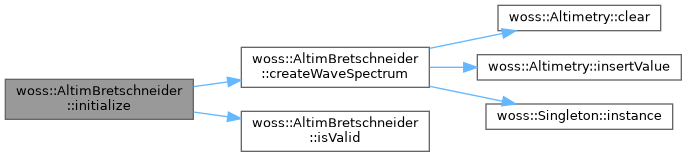

Here is the call graph for this function:

◆ isValid()

bool AltimBretschneider::isValid ( ) const

overridevirtual

Checks the validity of AltimBretschneider

Returns: true if it has at least one value, false otherwise

Reimplemented from woss::Altimetry.

References average_period, char_height, woss::Altimetry::debug, and woss::Altimetry::total_range_steps.

Referenced by initialize().

◆ operator=() [1/2]

AltimBretschneider & woss::AltimBretschneider::operator= ( AltimBretschneider && tmp )

default

Assignment operator

Parameters

tmp	rvalue reference to a AltimBretschneider object to be moved

Returns: AltimBretschneider reference to this

◆ operator=() [2/2]

AltimBretschneider & woss::AltimBretschneider::operator= ( const AltimBretschneider & copy )

default

Assignment operator

Parameters

copy	const reference to a AltimBretschneider object to be copied

Returns: AltimBretschneider reference to this

◆ randomize()

std::unique_ptr< Altimetry > AltimBretschneider::randomize ( double ratio_incr_value ) const

overridevirtual

Performs a random perturbation of altimetry values with given ratio

Parameters

ratio_incr_value perturbation ratio

Returns: a std::unique_ptr to a new Altimetry object

Reimplemented from woss::Altimetry.

References clone(), createWaveSpectrum(), and woss::Altimetry::debug.

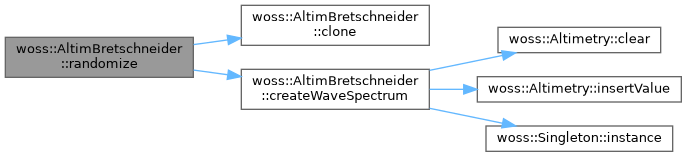

Here is the call graph for this function:

◆ setAveragePeriod()

AltimBretschneider & woss::AltimBretschneider::setAveragePeriod ( double p )

inline

Configures T - the wave average period [s]

Parameters

h	average period [s]

Returns: AltimBretschneider reference to this

References average_period.

◆ setCharacteristicHeight()

AltimBretschneider & woss::AltimBretschneider::setCharacteristicHeight ( double h )

inline

Configures H - the characteristic height of the wave [m]

Parameters

h	characteristic height [m]

Returns: AltimBretschneider reference to this

References char_height.

◆ timeEvolve()

std::unique_ptr< Altimetry > AltimBretschneider::timeEvolve ( const Time & time_value )

overridevirtual

Performs a time evoulion

Parameters

time_value const reference to a valid Time object

Returns: a std::unique_ptr to a new heap allocated AltimBretschneider object

Reimplemented from woss::Altimetry.

References clone(), woss::Altimetry::debug, woss::Altimetry::evolution_time_quantum, woss::Time::isValid(), and woss::Altimetry::last_evolution_time.

Here is the call graph for this function:

Member Data Documentation

◆ average_period

double woss::AltimBretschneider::average_period

protected

T - Model's average wave period [s] Refer to: G. J. Komen et al., Dynamics and modeling of ocean waves. Cambridge University Press, 1994.

Referenced by createWaveSpectrum(), getAveragePeriod(), isValid(), and setAveragePeriod().

◆ char_height

double woss::AltimBretschneider::char_height

protected

H - Model's characteristic height [m] Refer to: G. J. Komen et al., Dynamics and modeling of ocean waves. Cambridge University Press, 1994.

Referenced by createWaveSpectrum(), getCharacteristicHeight(), isValid(), and setCharacteristicHeight().

The documentation for this class was generated from the following files:

woss/woss_def/altimetry-definitions.h
woss/woss_def/altimetry-definitions.cpp
