NetCDF specialization of WossNetcdfDb for GEBCO database. More...

#include <bathymetry-gebco-db.h>

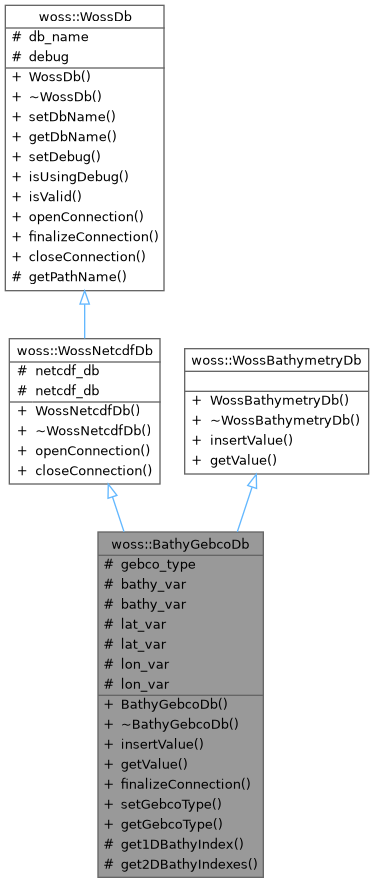

Inheritance diagram for woss::BathyGebcoDb:

Collaboration diagram for woss::BathyGebcoDb:

Public Member Functions
	BathyGebcoDb (const std::string &name)

virtual	~BathyGebcoDb () override=default

virtual bool	insertValue (const Coord &coordinates, const Bathymetry &bathymetry_value) override

virtual Bathymetry	getValue (const Coord &coords) const override

virtual bool	finalizeConnection () override

void	setGebcoType (const GEBCO_BATHY_TYPE &type)

GEBCO_BATHY_TYPE	getGebcoType () const

Public Member Functions inherited from woss::WossNetcdfDb
	WossNetcdfDb (const std::string &name)

virtual	~WossNetcdfDb () override

virtual bool	openConnection () override

virtual bool	closeConnection () override

Public Member Functions inherited from woss::WossDb
	WossDb (const std::string &name)

virtual	~WossDb ()=default

void	setDbName (const std::string &pathname)

std::string	getDbName () const

void	setDebug (double flag=true)

bool	isUsingDebug () const

virtual bool	isValid () const

Public Member Functions inherited from woss::WossBathymetryDb
	WossBathymetryDb ()=default

virtual	~WossBathymetryDb ()=default

Protected Member Functions
long	get1DBathyIndex (const Coord &coords) const

Gebco2DIndexes	get2DBathyIndexes (const Coord &coords) const

Protected Member Functions inherited from woss::WossDb
PathName	getPathName (const std::string &complete_path) const

Protected Attributes
GEBCO_BATHY_TYPE	gebco_type

netCDF::NcVar	bathy_var

NcVar *	bathy_var

netCDF::NcVar	lat_var

NcVar *	lat_var

netCDF::NcVar	lon_var

NcVar *	lon_var

Protected Attributes inherited from woss::WossNetcdfDb
std::unique_ptr< netCDF::NcFile >	netcdf_db = nullptr

std::unique_ptr< NcFile >	netcdf_db = nullptr

Protected Attributes inherited from woss::WossDb
std::string	db_name

bool	debug

Detailed Description

NetCDF specialization of WossNetcdfDb for GEBCO database.

NetCDF specialization of WossNetcdfDb for GEBCO database. It creates a NetCDF variable used to get requested bathymetry values

Constructor & Destructor Documentation

◆ BathyGebcoDb()

BathyGebcoDb::BathyGebcoDb ( const std::string & name )

BathyGebcoDb constructor

Parameters

name	pathname of database

◆ ~BathyGebcoDb()

virtual woss::BathyGebcoDb::~BathyGebcoDb ( )

overridevirtualdefault

Member Function Documentation

◆ finalizeConnection()

bool BathyGebcoDb::finalizeConnection ( )

overridevirtual

Post openConnection() actions. It create and initializes a NetCDF variable

Returns: true if method was successful, false otherwise

Implements woss::WossDb.

References bathy_var, woss::WossDb::debug, woss::GEBCO_1D_1_MINUTE_BATHY_TYPE, woss::GEBCO_1D_30_SECONDS_BATHY_TYPE, gebco_type, lat_var, lon_var, and woss::WossNetcdfDb::netcdf_db.

◆ get1DBathyIndex()

long BathyGebcoDb::get1DBathyIndex ( const Coord & coords ) const

protected

Returns the GEBCO 1D index corresponding the given coordinates. This index will be used to access the NetCDF variable and thus retrieving the bathymetry value

Parameters

coords const reference to a valid Coord object

Returns: index value

References woss::WossDb::debug, woss::GEBCO_1D_1_MINUTE_BATHY_TYPE, woss::GEBCO_1D_30_SECONDS_BATHY_TYPE, gebco_type, woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getValue().

Here is the call graph for this function:

◆ get2DBathyIndexes()

Gebco2DIndexes BathyGebcoDb::get2DBathyIndexes ( const Coord & coords ) const

protected

Returns the GEBCO 2D indexes corresponding the given coordinates. These indexes will be used to access the NetCDF variable and thus retrieving the bathymetry value

Parameters

coords const reference to a valid Coord object

Returns: Gebco2DIndexes value

References woss::WossDb::debug, woss::GEBCO_2D_15_SECONDS_BATHY_TYPE, woss::GEBCO_2D_1_MINUTE_BATHY_TYPE, woss::GEBCO_2D_30_SECONDS_BATHY_TYPE, gebco_type, woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getValue().

Here is the call graph for this function:

◆ getGebcoType()

GEBCO_BATHY_TYPE woss::BathyGebcoDb::getGebcoType ( ) const

inline

Returns which GEBCO version is in use #return GEBCO_BATHY_TYPE instance

References gebco_type.

◆ getValue()

Bathymetry BathyGebcoDb::getValue ( const Coord & coords ) const

overridevirtual

Returns the positive depth value ( bathymetry ) of given coordinates, if present in the database. If given coordinates are on land ( original retrieved value is positive ) HUGE_VAL is returned.

Parameters

coords const reference to a valid Coord object

Returns: positive depth value [m] if coordinates are found, HUGE_VAL otherwise

Implements woss::WossBathymetryDb.

References bathy_var, woss::WossDb::debug, woss::GEBCO_1D_1_MINUTE_BATHY_TYPE, woss::GEBCO_1D_30_SECONDS_BATHY_TYPE, woss::GEBCO_2D_15_SECONDS_BATHY_TYPE, woss::GEBCO_2D_1_MINUTE_BATHY_TYPE, woss::GEBCO_2D_30_SECONDS_BATHY_TYPE, gebco_type, get1DBathyIndex(), get2DBathyIndexes(), woss::Coord::getLatitude(), woss::Coord::getLongitude(), lat_var, and lon_var.

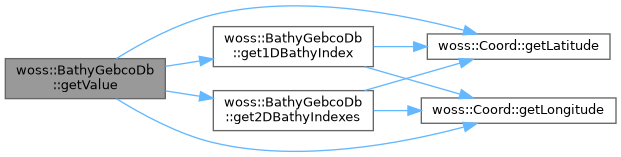

Here is the call graph for this function:

◆ insertValue()

bool BathyGebcoDb::insertValue	(	const Coord &	coordinates,
		const Bathymetry &	bathymetry_value
	)

overridevirtual

Inserts the given woss::Bathymetry value in the database for given coordinates

Parameters

coordinates	const reference to a valid Coord object
bathymetry_value	const reference to woss::Bathymetry value to be inserted

Returns: true if method was successful, false otherwise

Implements woss::WossBathymetryDb.

◆ setGebcoType()

void woss::BathyGebcoDb::setGebcoType ( const GEBCO_BATHY_TYPE & type )

inline

Notify the database which GEBCO version is in use

Parameters

type	GEBCO_BATHY_TYPE instance

References gebco_type.

Member Data Documentation

◆ bathy_var [1/2]

netCDF::NcVar woss::BathyGebcoDb::bathy_var

protected

NetCDF bathymetry variable

Referenced by finalizeConnection(), and getValue().

◆ bathy_var [2/2]

NcVar* woss::BathyGebcoDb::bathy_var

protected

◆ gebco_type

GEBCO_BATHY_TYPE woss::BathyGebcoDb::gebco_type

protected

GEBCO version in use

Referenced by finalizeConnection(), get1DBathyIndex(), get2DBathyIndexes(), getGebcoType(), getValue(), and setGebcoType().

◆ lat_var [1/2]

netCDF::NcVar woss::BathyGebcoDb::lat_var

protected

NetCDF latitude variable

Referenced by finalizeConnection(), and getValue().

◆ lat_var [2/2]

NcVar* woss::BathyGebcoDb::lat_var

protected

◆ lon_var [1/2]

netCDF::NcVar woss::BathyGebcoDb::lon_var

protected

NetCDF longitude variable

Referenced by finalizeConnection(), and getValue().

◆ lon_var [2/2]

NcVar* woss::BathyGebcoDb::lon_var

protected

The documentation for this class was generated from the following files:

woss/woss_db/bathymetry-gebco-db.h
woss/woss_db/bathymetry-gebco-db.cpp
