Class that stores the coordinates of moving entity. More...

#include <location-definitions.h>

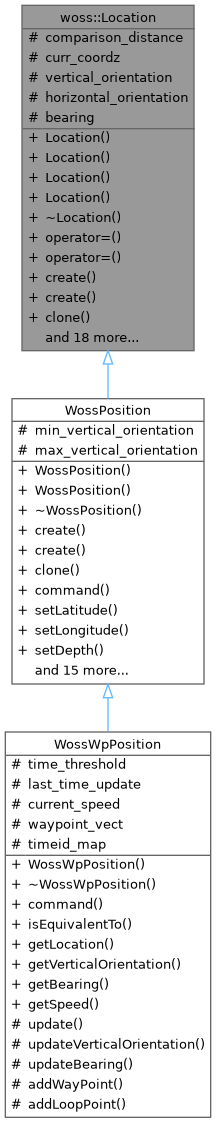

Inheritance diagram for woss::Location:

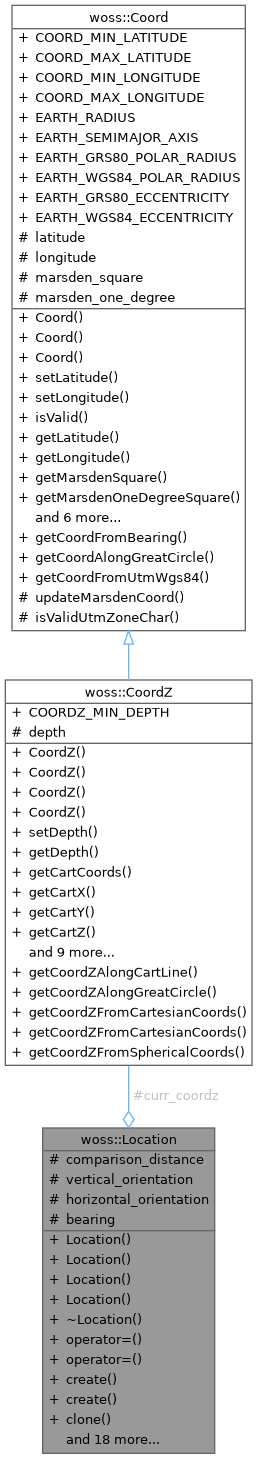

Collaboration diagram for woss::Location:

Public Member Functions
	Location (const CoordZ &coordz=CoordZ(), double dist=LOCATION_COMPARISON_DISTANCE)

	Location (double latitude, double longitude, double depth=0, double dist=LOCATION_COMPARISON_DISTANCE)

	Location (const Location &copy)=default

	Location (Location &&tmp)=default

virtual	~Location ()=default

Location &	operator= (const Location &copy)=default

Location &	operator= (Location &&tmp)=default

virtual std::unique_ptr< Location >	create (double latitude, double longitude, double depth=0, double dist=LOCATION_COMPARISON_DISTANCE) const

virtual std::unique_ptr< Location >	create (const CoordZ &coordz=CoordZ(), double dist=LOCATION_COMPARISON_DISTANCE) const

virtual std::unique_ptr< Location >	clone () const

virtual bool	isValid () const

virtual bool	isEquivalentTo (const woss::CoordZ &coordz)

virtual void	setLocation (const CoordZ &coordz)

virtual void	setLatitude (double lat)

virtual void	setLongitude (double lon)

virtual void	setDepth (double depth)

virtual void	setVerticalOrientation (double angle)

virtual void	setHorizontalOrientation (double angle)

virtual CoordZ	getLocation ()

virtual double	getLatitude ()

virtual double	getLongitude ()

virtual double	getDepth ()

virtual double	getX ()

virtual double	getY ()

virtual double	getZ ()

virtual double	getVerticalOrientation ()

virtual double	getHorizontalOrientation ()

virtual double	getBearing ()

Protected Attributes
double	comparison_distance

CoordZ	curr_coordz

double	vertical_orientation

double	horizontal_orientation

double	bearing

Friends
std::ostream &	operator<< (std::ostream &os, const Location &instance)

Detailed Description

Class that stores the coordinates of moving entity.

The woss::Location class has the task of storing the geographical coordinates of a moving entity

Constructor & Destructor Documentation

◆ Location() [1/4]

Location::Location	(	const CoordZ &	coordz = `CoordZ()`,
		double	dist = `LOCATION_COMPARISON_DISTANCE`
	)

Location default constructor

Parameters

coordz	coordinates
dist	distance comparison precision [m]

◆ Location() [2/4]

Location::Location	(	double	latitude,
		double	longitude,
		double	depth = `0`,
		double	dist = `LOCATION_COMPARISON_DISTANCE`
	)

Location constructor

Parameters

latitude	latitude value [decimal degrees]
longitude	longitude value [decimal degrees]
depth	depth value [m]
dist	distance comparison precision [m]

◆ Location() [3/4]

woss::Location::Location ( const Location & copy )

default

◆ Location() [4/4]

woss::Location::Location ( Location && tmp )

default

◆ ~Location()

virtual woss::Location::~Location ( )

virtualdefault

Member Function Documentation

◆ clone()

virtual std::unique_ptr< Location > woss::Location::clone ( ) const

inlinevirtual

Location virtual factory method

Returns: a std::unique_ptr to heap-allocated copy of this instance

Reimplemented in WossPosition.

◆ create() [1/2]

virtual std::unique_ptr< Location > woss::Location::create	(	const CoordZ &	coordz = `CoordZ()`,
		double	dist = `LOCATION_COMPARISON_DISTANCE`
	)		const

inlinevirtual

Location virtual factory method

Parameters

coordz	coordinates
dist	distance comparison precision [m]

Returns: a std::unique_ptr to heap-allocated Location object

Reimplemented in WossPosition.

◆ create() [2/2]

virtual std::unique_ptr< Location > woss::Location::create	(	double	latitude,
		double	longitude,
		double	depth = `0`,
		double	dist = `LOCATION_COMPARISON_DISTANCE`
	)		const

inlinevirtual

Location virtual factory method

Parameters

latitude	latitude value [decimal degrees]
longitude	longitude value [decimal degrees]
depth	depth value [m]
dist	distance comparison precision [m]

Returns: a std::unique_ptr to a heap-allocated Location object

Reimplemented in WossPosition.

◆ getBearing()

double Location::getBearing ( )

virtual

Gets current bearing in [-pi,pi]

Returns: bearing [dec degrees]

Reimplemented in WossWpPosition.

References bearing.

◆ getDepth()

double Location::getDepth ( )

virtual

Gets current depth

Returns: valid depth [m]

Reimplemented in WossPosition.

References woss::CoordZ::getDepth(), and getLocation().

Referenced by WossPosition::getAltitude(), and WossPosition::getDepth().

Here is the call graph for this function:

◆ getHorizontalOrientation()

double Location::getHorizontalOrientation ( )

virtual

Gets current horizontal orientation from reference line (0 degrees = parallel to direction of current movement ) positive values are counter-clockwise rotations, while negative ones are clockwise rotations

Returns: difference angle [dec degrees]

References horizontal_orientation.

◆ getLatitude()

double Location::getLatitude ( )

virtual

Gets current latitude

Returns: valid latitude [decimal degrees]

Reimplemented in WossPosition.

References woss::Coord::getLatitude(), and getLocation().

Referenced by WossPosition::getLatitude().

Here is the call graph for this function:

◆ getLocation()

CoordZ Location::getLocation ( )

virtual

Gets current coordinates

Returns: valid woss::CoordZ

Reimplemented in WossWpPosition.

References curr_coordz.

Referenced by WossChannelModule::computeCoordZPairVect(), getDepth(), getLatitude(), WossWpPosition::getLocation(), getLongitude(), getX(), getY(), getZ(), isEquivalentTo(), and ChEstimatorPlugIn::recvSyncClMsg().

◆ getLongitude()

double Location::getLongitude ( )

virtual

Gets current longitude

Returns: valid longitude [decimal degrees]

Reimplemented in WossPosition.

References getLocation(), and woss::Coord::getLongitude().

Referenced by WossPosition::getLongitude().

Here is the call graph for this function:

◆ getVerticalOrientation()

double Location::getVerticalOrientation ( )

virtual

Gets current vertical orientation from reference line (0 degrees = parallel to sea surface / bottom ). Negative values are towards the surface, while positive ones are towards sea bottom

Returns: difference angle [dec degrees]

Reimplemented in WossWpPosition.

References vertical_orientation.

◆ getX()

double Location::getX ( )

virtual

Gets current cartesian x-axis value

Returns: x value

Reimplemented in WossPosition.

References woss::CoordZ::getCartX(), and getLocation().

Referenced by WossPosition::getX().

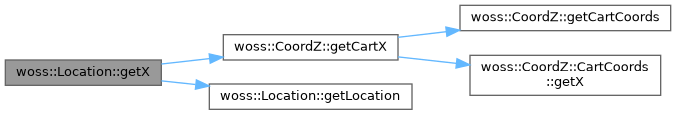

Here is the call graph for this function:

◆ getY()

double Location::getY ( )

virtual

Gets current cartesian y-axis value

Returns: y value

Reimplemented in WossPosition.

References woss::CoordZ::getCartY(), and getLocation().

Referenced by WossPosition::getY().

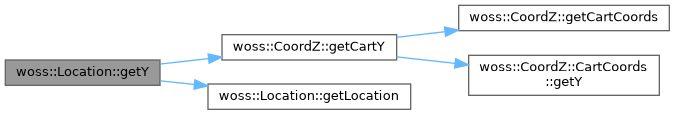

Here is the call graph for this function:

◆ getZ()

double Location::getZ ( )

virtual

Gets current cartesian z-axis value

Returns: z value

Reimplemented in WossPosition.

References woss::CoordZ::getCartZ(), and getLocation().

Referenced by WossPosition::getZ().

Here is the call graph for this function:

◆ isEquivalentTo()

bool Location::isEquivalentTo ( const woss::CoordZ & coordz )

virtual

Checks if the woss::CoordZ given is equivalent to this Location

Parameters

coordz valid woss::CoordZ to check

Returns: true if assumption is valid, false otherwise

Reimplemented in WossWpPosition.

References comparison_distance, woss::CoordZ::getCartDistance(), getLocation(), and woss::CoordZ::isValid().

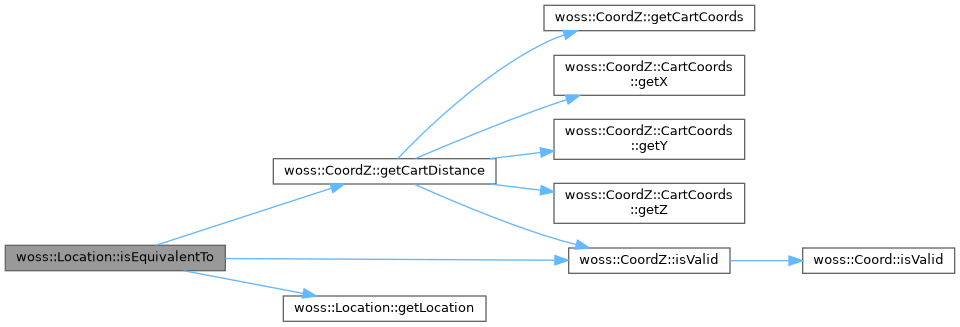

Here is the call graph for this function:

◆ isValid()

virtual bool woss::Location::isValid ( ) const

inlinevirtual

Checks the validity of Location

Returns: true if curr_coordz is valid, false otherwise

References curr_coordz, and woss::CoordZ::isValid().

Here is the call graph for this function:

◆ operator=() [1/2]

Location & woss::Location::operator= ( const Location & copy )

default

◆ operator=() [2/2]

Location & woss::Location::operator= ( Location && tmp )

default

◆ setDepth()

void Location::setDepth ( double depth )

virtual

Sets initial depth

Parameters

lat	valid depth [m]

Reimplemented in WossPosition.

References curr_coordz, and woss::CoordZ::setDepth().

Referenced by WossPosition::setAltitude(), and WossPosition::setDepth().

Here is the call graph for this function:

◆ setHorizontalOrientation()

void Location::setHorizontalOrientation ( double angle )

virtual

Gets current horizontal orientation from reference line (0 degrees = parallel to direction of current movement ) positive values are counter-clockwise rotations, while negative ones are clockwise rotations

Parameters

angle delta angle [dec degrees]

References horizontal_orientation.

◆ setLatitude()

void Location::setLatitude ( double lat )

virtual

Sets initial latitude

Parameters

lat	valid latitude [decimal degrees]

Reimplemented in WossPosition.

References curr_coordz, and woss::Coord::setLatitude().

Referenced by WossPosition::setLatitude().

Here is the call graph for this function:

◆ setLocation()

void Location::setLocation ( const CoordZ & coordz )

virtual

Sets initial coordinates

Parameters

coordz valid woss::CoordZ

References curr_coordz.

Referenced by WossWpPosition::command(), and WossWpPosition::update().

◆ setLongitude()

void Location::setLongitude ( double lon )

virtual

Sets initial longitude

Parameters

lat	valid longitude [decimal degrees]

Reimplemented in WossPosition.

References curr_coordz, and woss::Coord::setLongitude().

Referenced by WossPosition::setLongitude().

Here is the call graph for this function:

◆ setVerticalOrientation()

void Location::setVerticalOrientation ( double angle )

virtual

Sets current vertical orientation from reference line (0 degrees = parallel to sea surface / bottom ). Negative values are towards the surface, while positive ones are towards sea bottom

Parameters

angle delta angle [dec degrees]

References vertical_orientation.

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const Location &	instance
	)

friend

<< operator

Parameters

os	left operand ostream reference
instance	right operand const Location reference

Returns: os reference after the operation

Member Data Documentation

◆ bearing

double woss::Location::bearing

protected

current bearing

Referenced by getBearing(), WossWpPosition::getBearing(), and WossWpPosition::updateBearing().

◆ comparison_distance

double woss::Location::comparison_distance

protected

Comparison distance [m]

Referenced by isEquivalentTo(), WossWpPosition::isEquivalentTo(), WossPosition::WossPosition(), and WossPosition::WossPosition().

◆ curr_coordz

CoordZ woss::Location::curr_coordz

protected

current coordinates

Referenced by getLocation(), WossWpPosition::isEquivalentTo(), isValid(), setDepth(), setLatitude(), setLocation(), setLongitude(), and WossPosition::WossPosition().

◆ horizontal_orientation

double woss::Location::horizontal_orientation

protected

current horizontal orientation. It's the delta angle from reference direction (0 degrees = parallel to movement's direction )

Referenced by getHorizontalOrientation(), and setHorizontalOrientation().

◆ vertical_orientation

double woss::Location::vertical_orientation

protected

current vertical orientation. It's the delta angle from reference direction (0 degrees = parallel to sea surface / bottom )

Referenced by getVerticalOrientation(), WossWpPosition::getVerticalOrientation(), setVerticalOrientation(), WossWpPosition::updateVerticalOrientation(), WossPosition::WossPosition(), and WossPosition::WossPosition().

The documentation for this class was generated from the following files:

woss/woss_def/location-definitions.h
woss/woss_def/location-definitions.cpp

Public Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Location() [1/4]

◆ Location() [2/4]

◆ Location() [3/4]

◆ Location() [4/4]

◆ ~Location()

Member Function Documentation

◆ clone()

◆ create() [1/2]

◆ create() [2/2]

◆ getBearing()

◆ getDepth()

◆ getHorizontalOrientation()

◆ getLatitude()

◆ getLocation()

◆ getLongitude()

◆ getVerticalOrientation()

◆ getX()

◆ getY()

◆ getZ()

◆ isEquivalentTo()

◆ isValid()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ setDepth()

◆ setHorizontalOrientation()

◆ setLatitude()

◆ setLocation()

◆ setLongitude()

◆ setVerticalOrientation()

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ bearing

◆ comparison_distance

◆ curr_coordz

◆ horizontal_orientation

◆ vertical_orientation
