#include <res-pressure-txt-db.h>

Inheritance diagram for woss::ResPressureTxtDb:

Collaboration diagram for woss::ResPressureTxtDb:

Public Member Functions
	ResPressureTxtDb (const std::string &name)

virtual	~ResPressureTxtDb () override=default

virtual bool	closeConnection () override

virtual bool	finalizeConnection () override

virtual std::unique_ptr< Pressure >	getValue (const CoordZ &coord_tx, const CoordZ &coord_rx, const double frequency, const Time &time_value) const override

virtual bool	insertValue (const CoordZ &coord_tx, const CoordZ &coord_rx, const double frequency, const Time &time_value, const Pressure &pressure) override

Public Member Functions inherited from woss::WossTextualDb
	WossTextualDb (const std::string &name)

virtual	~WossTextualDb () override

virtual bool	openConnection () override

Public Member Functions inherited from woss::WossDb
	WossDb (const std::string &name)

virtual	~WossDb ()=default

void	setDbName (const std::string &pathname)

std::string	getDbName () const

void	setDebug (double flag=true)

bool	isUsingDebug () const

virtual bool	isValid () const

Public Member Functions inherited from woss::WossResPressDb
	WossResPressDb ()=default

virtual	~WossResPressDb ()=default

Static Public Member Functions
static void	setSpaceSampling (double value)

static double	getSpaceSampling ()

Protected Types
using	TimeMap = std::map< time_t, std::complex< double > >

using	TMIter = TimeMap::iterator

using	TMCIter = TimeMap::const_iterator

using	TMRIter = TimeMap::reverse_iterator

using	FreqMap = std::map< PDouble, TimeMap >

using	FMIter = FreqMap::iterator

using	FMCIter = FreqMap::const_iterator

using	FMRIter = FreqMap::reverse_iterator

using	RxMap = std::map< CoordZ, FreqMap, CoordComparator< ResPressureTxtDb, CoordZ > >

using	RxMIter = RxMap::iterator

using	RxCIter = RxMap::const_iterator

using	RxMRIter = RxMap::reverse_iterator

using	PressureMatrix = std::map< CoordZ, RxMap, CoordComparator< ResPressureTxtDb, CoordZ > >

using	PMIter = PressureMatrix::iterator

using	PMCIter = PressureMatrix::const_iterator

using	PMRIter = PressureMatrix::reverse_iterator

using	PMCRIter = PressureMatrix::const_reverse_iterator

Protected Member Functions
void	printScreenMap ()

virtual bool	writeMap ()

virtual bool	importMap ()

std::complex< double >	readMap (const CoordZ &tx, const CoordZ &rx, const double frequency, const Time &time_value) const

Protected Member Functions inherited from woss::WossDb
PathName	getPathName (const std::string &complete_path) const

Protected Attributes
PressureMatrix	pressure_map

int	initial_pressmap_size

bool	has_been_modified

Protected Attributes inherited from woss::WossTextualDb
std::fstream	textual_db

Protected Attributes inherited from woss::WossDb
std::string	db_name

bool	debug

Static Protected Attributes
static double	space_sampling = 0.0

Detailed Description

Textual WossDb for Pressure.

ResPressureTxtDb implements WossTextualDb and WossResPressDb for storing calculated Pressure into a text file

Member Typedef Documentation

◆ FMCIter

using woss::ResPressureTxtDb::FMCIter = FreqMap::const_iterator

protected

◆ FMIter

using woss::ResPressureTxtDb::FMIter = FreqMap::iterator

protected

◆ FMRIter

using woss::ResPressureTxtDb::FMRIter = FreqMap::reverse_iterator

protected

◆ FreqMap

using woss::ResPressureTxtDb::FreqMap = std::map< PDouble, TimeMap >

protected

◆ PMCIter

using woss::ResPressureTxtDb::PMCIter = PressureMatrix::const_iterator

protected

◆ PMCRIter

using woss::ResPressureTxtDb::PMCRIter = PressureMatrix::const_reverse_iterator

protected

◆ PMIter

using woss::ResPressureTxtDb::PMIter = PressureMatrix::iterator

protected

◆ PMRIter

using woss::ResPressureTxtDb::PMRIter = PressureMatrix::reverse_iterator

protected

◆ PressureMatrix

using woss::ResPressureTxtDb::PressureMatrix = std::map< CoordZ, RxMap, CoordComparator< ResPressureTxtDb, CoordZ > >

protected

Multidimensional map that links a transmitter CoordZ to a receiver CoordZ to a frequency PDouble value and finally to a Pressure value

◆ RxCIter

using woss::ResPressureTxtDb::RxCIter = RxMap::const_iterator

protected

◆ RxMap

using woss::ResPressureTxtDb::RxMap = std::map< CoordZ, FreqMap, CoordComparator< ResPressureTxtDb, CoordZ > >

protected

◆ RxMIter

using woss::ResPressureTxtDb::RxMIter = RxMap::iterator

protected

◆ RxMRIter

using woss::ResPressureTxtDb::RxMRIter = RxMap::reverse_iterator

protected

◆ TimeMap

using woss::ResPressureTxtDb::TimeMap = std::map< time_t, std::complex< double > >

protected

◆ TMCIter

using woss::ResPressureTxtDb::TMCIter = TimeMap::const_iterator

protected

◆ TMIter

using woss::ResPressureTxtDb::TMIter = TimeMap::iterator

protected

◆ TMRIter

using woss::ResPressureTxtDb::TMRIter = TimeMap::reverse_iterator

protected

Constructor & Destructor Documentation

◆ ResPressureTxtDb()

ResPressureTxtDb::ResPressureTxtDb ( const std::string & name )

ResPressureTxtDb constructor

Parameters

name	pathname of database

◆ ~ResPressureTxtDb()

virtual woss::ResPressureTxtDb::~ResPressureTxtDb ( )

overridevirtualdefault

Member Function Documentation

◆ closeConnection()

bool ResPressureTxtDb::closeConnection ( )

overridevirtual

Closes the connection to the text file provided

Returns: true if method was successful, false otherwise

Reimplemented from woss::WossTextualDb.

References woss::WossTextualDb::closeConnection(), has_been_modified, and writeMap().

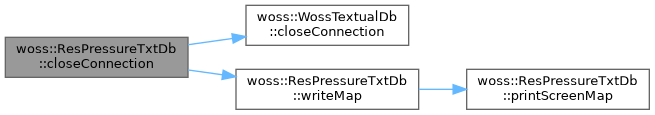

Here is the call graph for this function:

◆ finalizeConnection()

bool ResPressureTxtDb::finalizeConnection ( )

overridevirtual

Post openConnection() actions

Returns: true if method was successful, false otherwise

Implements woss::WossDb.

References importMap().

Here is the call graph for this function:

◆ getSpaceSampling()

static double woss::ResPressureTxtDb::getSpaceSampling ( )

inlinestatic

References space_sampling.

◆ getValue()

std::unique_ptr< Pressure > ResPressureTxtDb::getValue	(	const CoordZ &	coord_tx,
		const CoordZ &	coord_rx,
		const double	frequency,
		const Time &	time_value
	)		const

overridevirtual

Returns a pointer to a heap-created Pressure for given frequency, transmitter and receiver coordinates if present in the database. User is responsible of pointer's ownership

Parameters

coord_tx	const reference to a valid CoordZ object
coord_rx	const reference to a valid CoordZ object
frequency	used frequency [hz]
time_value	const reference to a valid Time object

Returns: valid std::unique_ptr with a valid Pressure if parameters are found, not valid otherwise

Implements woss::WossResPressDb.

References woss::Pressure::createNotValid(), woss::Singleton< T >::instance(), woss::Time::isValid(), pressure_map, and readMap().

Here is the call graph for this function:

◆ importMap()

bool ResPressureTxtDb::importMap ( )

protectedvirtual

Imports the formatted textual files into pressure_map. The column format is the following:
tx latitude, tx longitude, tx depth, rx latitude, rx longitude, rx depth, frequency, real pressure, imag pressure

Returns: true if operation succeeds, false otherwise

Reimplemented in woss::ResPressureBinDb.

References woss::WossDb::db_name, woss::WossDb::debug, initial_pressmap_size, pressure_map, printScreenMap(), and woss::WossTextualDb::textual_db.

Referenced by finalizeConnection().

Here is the call graph for this function:

◆ insertValue()

bool ResPressureTxtDb::insertValue	(	const CoordZ &	coord_tx,
		const CoordZ &	coord_rx,
		const double	frequency,
		const Time &	time_value,
		const Pressure &	pressure
	)

overridevirtual

Inserts the given Pressure value in the pressure_map at given frequency, transmitter and receiver coordinates

Parameters

coord_tx	const reference to a valid CoordZ object
coord_rx	const reference to a valid CoordZ object
frequency	used frequency [hz]
time_value	const reference to a valid Time object
pressure	computed Pressure

Implements woss::WossResPressDb.

References woss::WossDb::debug, has_been_modified, and pressure_map.

◆ printScreenMap()

void ResPressureTxtDb::printScreenMap ( )

protected

Prints pressure_map to screen. The columns format is the following:
tx latitude, tx longitude, tx depth, rx latitude, rx longitude, rx depth, frequency, real pressure, imag pressure

Returns: true if operation succeeds, false otherwise

References pressure_map, and woss::WossTextualDb::textual_db.

Referenced by importMap(), woss::ResPressureBinDb::importMap(), writeMap(), and woss::ResPressureBinDb::writeMap().

◆ readMap()

std::complex< double > ResPressureTxtDb::readMap	(	const CoordZ &	tx,
		const CoordZ &	rx,
		const double	frequency,
		const Time &	time_value
	)		const

protected

Reads given values from pressure_map

Parameters

tx	valid transmitter coordinates
rx	valid receiver coordinates
frequency	frequency [hz]
time_value	const reference to a valid time_value

Returns: valid Pressure if parameters are found, not valid otherwise

References woss::Pressure::createNotValid(), and pressure_map.

Referenced by getValue().

Here is the call graph for this function:

◆ setSpaceSampling()

static void woss::ResPressureTxtDb::setSpaceSampling ( double value )

inlinestatic

References space_sampling.

◆ writeMap()

bool ResPressureTxtDb::writeMap ( )

protectedvirtual

Writes pressure_map to textual files. The columns format is the following:
tx latitude, tx longitude, tx depth, rx latitude, rx longitude, rx depth, frequency, real pressure, imag pressure

Returns: true if operation succeeds, false otherwise

Reimplemented in woss::ResPressureBinDb.

References woss::WossDb::db_name, woss::WossDb::debug, pressure_map, printScreenMap(), and woss::WossTextualDb::textual_db.

Referenced by closeConnection().

Here is the call graph for this function:

Member Data Documentation

◆ has_been_modified

bool woss::ResPressureTxtDb::has_been_modified

protected

Referenced by closeConnection(), and insertValue().

◆ initial_pressmap_size

int woss::ResPressureTxtDb::initial_pressmap_size

protected

pressure_map's initial size. If pressure_map's size is greater on closeConnection() the map will be written to disk

Referenced by importMap(), and woss::ResPressureBinDb::importMap().

◆ pressure_map

PressureMatrix woss::ResPressureTxtDb::pressure_map

protected

PressureMatrix map for storing imported and user inserted Pressure values

Referenced by getValue(), importMap(), woss::ResPressureBinDb::importMap(), insertValue(), printScreenMap(), readMap(), writeMap(), and woss::ResPressureBinDb::writeMap().

◆ space_sampling

double ResPressureTxtDb::space_sampling = 0.0

staticprotected

Referenced by getSpaceSampling(), and setSpaceSampling().

The documentation for this class was generated from the following files:

woss/woss_db/res-pressure-txt-db.h
woss/woss_db/res-pressure-txt-db.cpp
