#include <res-time-arr-txt-db.h>

Inheritance diagram for woss::ResTimeArrTxtDb:

Collaboration diagram for woss::ResTimeArrTxtDb:

Public Member Functions
	ResTimeArrTxtDb (const std::string &name)

virtual	~ResTimeArrTxtDb () override=default

virtual bool	finalizeConnection () override

virtual bool	closeConnection () override

virtual std::unique_ptr< TimeArr >	getValue (const CoordZ &coord_tx, const CoordZ &coord_rx, const double frequency, const Time &time_value) const override

virtual bool	insertValue (const CoordZ &coord_tx, const CoordZ &coord_rx, const double frequency, const Time &time_value, const TimeArr &channel) override

Public Member Functions inherited from woss::WossTextualDb
	WossTextualDb (const std::string &name)

virtual	~WossTextualDb () override

virtual bool	openConnection () override

Public Member Functions inherited from woss::WossDb
	WossDb (const std::string &name)

virtual	~WossDb ()=default

void	setDbName (const std::string &pathname)

std::string	getDbName () const

void	setDebug (double flag=true)

bool	isUsingDebug () const

virtual bool	isValid () const

Public Member Functions inherited from woss::WossResTimeArrDb
	WossResTimeArrDb ()=default

virtual	~WossResTimeArrDb ()=default

Static Public Member Functions
static void	setSpaceSampling (double value)

static double	getSpaceSampling ()

Protected Types
using	TimeMap = std::map< time_t, std::unique_ptr< TimeArr > >

using	TMIter = TimeMap::iterator

using	TMCIter = TimeMap::const_iterator

using	TMRIter = TimeMap::reverse_iterator

using	FreqMap = std::map< PDouble, TimeMap >

using	FMIter = FreqMap::iterator

using	FMCIter = FreqMap::const_iterator

using	FMRIter = FreqMap::reverse_iterator

using	RxMap = std::map< CoordZ, FreqMap, CoordComparator< ResTimeArrTxtDb, CoordZ > >

using	RxMIter = RxMap::iterator

using	RxMCIter = RxMap::const_iterator

using	RxMRIter = RxMap::reverse_iterator

using	ArrMatrix = std::map< CoordZ, RxMap, CoordComparator< ResTimeArrTxtDb, CoordZ > >

using	AMXIter = ArrMatrix::iterator

using	AMXCIter = ArrMatrix::const_iterator

using	AMXRIter = ArrMatrix::reverse_iterator

using	AMXCRIter = ArrMatrix::const_reverse_iterator

Protected Member Functions
void	printScreenMap ()

virtual bool	writeMap ()

virtual bool	importMap ()

std::optional< std::unique_ptr< TimeArr > >	readMap (const CoordZ &tx, const CoordZ &rx, const double frequency, const Time &time_value) const

Protected Member Functions inherited from woss::WossDb
PathName	getPathName (const std::string &complete_path) const

Protected Attributes
ArrMatrix	arrivals_map

int	initial_arrmap_size

bool	has_been_modified

Protected Attributes inherited from woss::WossTextualDb
std::fstream	textual_db

Protected Attributes inherited from woss::WossDb
std::string	db_name

bool	debug

Static Protected Attributes
static double	space_sampling = 0.0

Detailed Description

Textual WossDb for TimeArr.

ResTimeArrTxtDb implements WossTextualDb and WossResTimeArrDb for storing calculated TimeArr into a text file

Member Typedef Documentation

◆ AMXCIter

using woss::ResTimeArrTxtDb::AMXCIter = ArrMatrix::const_iterator

protected

◆ AMXCRIter

using woss::ResTimeArrTxtDb::AMXCRIter = ArrMatrix::const_reverse_iterator

protected

◆ AMXIter

using woss::ResTimeArrTxtDb::AMXIter = ArrMatrix::iterator

protected

◆ AMXRIter

using woss::ResTimeArrTxtDb::AMXRIter = ArrMatrix::reverse_iterator

protected

◆ ArrMatrix

using woss::ResTimeArrTxtDb::ArrMatrix = std::map< CoordZ, RxMap, CoordComparator< ResTimeArrTxtDb, CoordZ > >

protected

Multidimensional map that links a transmitter CoordZ to a receiver CoordZ to a frequency PDouble value and finally to a TimeArr value

◆ FMCIter

using woss::ResTimeArrTxtDb::FMCIter = FreqMap::const_iterator

protected

◆ FMIter

using woss::ResTimeArrTxtDb::FMIter = FreqMap::iterator

protected

◆ FMRIter

using woss::ResTimeArrTxtDb::FMRIter = FreqMap::reverse_iterator

protected

◆ FreqMap

using woss::ResTimeArrTxtDb::FreqMap = std::map< PDouble, TimeMap >

protected

◆ RxMap

using woss::ResTimeArrTxtDb::RxMap = std::map< CoordZ, FreqMap, CoordComparator< ResTimeArrTxtDb, CoordZ > >

protected

◆ RxMCIter

using woss::ResTimeArrTxtDb::RxMCIter = RxMap::const_iterator

protected

◆ RxMIter

using woss::ResTimeArrTxtDb::RxMIter = RxMap::iterator

protected

◆ RxMRIter

using woss::ResTimeArrTxtDb::RxMRIter = RxMap::reverse_iterator

protected

◆ TimeMap

using woss::ResTimeArrTxtDb::TimeMap = std::map< time_t, std::unique_ptr<TimeArr> >

protected

◆ TMCIter

using woss::ResTimeArrTxtDb::TMCIter = TimeMap::const_iterator

protected

◆ TMIter

using woss::ResTimeArrTxtDb::TMIter = TimeMap::iterator

protected

◆ TMRIter

using woss::ResTimeArrTxtDb::TMRIter = TimeMap::reverse_iterator

protected

Constructor & Destructor Documentation

◆ ResTimeArrTxtDb()

ResTimeArrTxtDb::ResTimeArrTxtDb ( const std::string & name )

ResTimeArrTxtDb constructor

Parameters

name	pathname of database

◆ ~ResTimeArrTxtDb()

virtual woss::ResTimeArrTxtDb::~ResTimeArrTxtDb ( )

overridevirtualdefault

Member Function Documentation

◆ closeConnection()

bool ResTimeArrTxtDb::closeConnection ( )

overridevirtual

Closes the connection to the text file provided

Returns: true if method was successful, false otherwise

Reimplemented from woss::WossTextualDb.

References woss::WossTextualDb::closeConnection(), woss::WossDb::debug, has_been_modified, and writeMap().

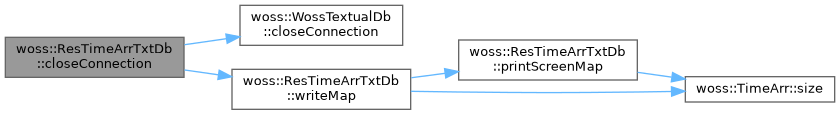

Here is the call graph for this function:

◆ finalizeConnection()

bool ResTimeArrTxtDb::finalizeConnection ( )

overridevirtual

Post openConnection() actions

Returns: true if method was successful, false otherwise

Implements woss::WossDb.

References importMap().

Here is the call graph for this function:

◆ getSpaceSampling()

static double woss::ResTimeArrTxtDb::getSpaceSampling ( )

inlinestatic

References space_sampling.

◆ getValue()

std::unique_ptr< TimeArr > ResTimeArrTxtDb::getValue	(	const CoordZ &	coord_tx,
		const CoordZ &	coord_rx,
		const double	frequency,
		const Time &	time_value
	)		const

overridevirtual

Returns a pointer to a heap-created TimeArr value for given frequency, transmitter and receiver coordinates if present in the database. User is responsible of pointer's ownership

Parameters

coord_tx	const reference to a valid CoordZ object
coord_rx	const reference to a valid CoordZ object
frequency	used frequency [hz]
time_value	const reference to a valid Time object

Returns: a std::unique_ptr to a valid TimeArr if parameters are found, not valid otherwise

Implements woss::WossResTimeArrDb.

References arrivals_map, woss::TimeArr::createNotValid(), woss::Singleton< T >::instance(), woss::Time::isValid(), and readMap().

Here is the call graph for this function:

◆ importMap()

bool ResTimeArrTxtDb::importMap ( )

protectedvirtual

Imports the formatted textual files into arrivals_map. The column format is the following:
tx latitude, tx longitude, tx depth, rx latitude, rx longitude, rx depth, frequency, total channel taps, delay-i-th real pressure-i-th, imag pressure-i-th

Returns: true if operation succeeds, false otherwise

Reimplemented in woss::ResTimeArrBinDb.

References arrivals_map, woss::WossDb::db_name, woss::WossDb::debug, initial_arrmap_size, woss::Singleton< T >::instance(), printScreenMap(), and woss::WossTextualDb::textual_db.

Referenced by finalizeConnection().

Here is the call graph for this function:

◆ insertValue()

bool ResTimeArrTxtDb::insertValue	(	const CoordZ &	coord_tx,
		const CoordZ &	coord_rx,
		const double	frequency,
		const Time &	time_value,
		const TimeArr &	channel
	)

overridevirtual

Inserts the given TimeArr value in the arrivals_map at given frequency, transmitter and receiver coordinates

Parameters

coord_tx	const reference to a valid CoordZ object
coord_rx	const reference to a valid CoordZ object
frequency	used frequency [hz]
time_value	const reference to a valid Time& object
channel	computed TimeArr

Implements woss::WossResTimeArrDb.

References arrivals_map, woss::TimeArr::clone(), woss::WossDb::debug, and has_been_modified.

Here is the call graph for this function:

◆ printScreenMap()

void ResTimeArrTxtDb::printScreenMap ( )

protected

Prints arrivals_map to screen. The columns format is the following:
tx latitude, tx longitude, tx depth, rx latitude, rx longitude, rx depth, frequency, total channel taps, delay-i-th real pressure-i-th, imag pressure-i-th

Returns: true if operation succeeds, false otherwise

References arrivals_map, woss::TimeArr::size(), and woss::WossTextualDb::textual_db.

Referenced by importMap(), woss::ResTimeArrBinDb::importMap(), writeMap(), and woss::ResTimeArrBinDb::writeMap().

Here is the call graph for this function:

◆ readMap()

std::optional< std::unique_ptr< TimeArr > > ResTimeArrTxtDb::readMap	(	const CoordZ &	tx,
		const CoordZ &	rx,
		const double	frequency,
		const Time &	time_value
	)		const

protected

Reads given values from arrivals_map

Parameters

tx	valid transmitter coordinates
rx	valid receiver coordinates
frequency	frequency [hz]
time_value	const reference to a valid Time object

Returns: std::optional to a std::unique_ptr to a valid TimeArr if parameters are found, not valid otherwise

References arrivals_map, and woss::WossDb::debug.

Referenced by getValue().

◆ setSpaceSampling()

static void woss::ResTimeArrTxtDb::setSpaceSampling ( double value )

inlinestatic

References space_sampling.

◆ writeMap()

bool ResTimeArrTxtDb::writeMap ( )

protectedvirtual

Writes arrivals_map into the textual file. The columns format is the following:
tx latitude, tx longitude, tx depth, rx latitude, rx longitude, rx depth, frequency, total channel taps, delay-i-th real pressure-i-th, imag pressure-i-th

Returns: true if operation succeeds, false otherwise

Reimplemented in woss::ResTimeArrBinDb.

References arrivals_map, woss::WossDb::db_name, woss::WossDb::debug, printScreenMap(), woss::TimeArr::size(), and woss::WossTextualDb::textual_db.

Referenced by closeConnection().

Here is the call graph for this function:

Member Data Documentation

◆ arrivals_map

ArrMatrix woss::ResTimeArrTxtDb::arrivals_map

protected

ArrMatrix map for storing imported and user inserted TimeArr values

Referenced by getValue(), importMap(), woss::ResTimeArrBinDb::importMap(), insertValue(), printScreenMap(), readMap(), writeMap(), and woss::ResTimeArrBinDb::writeMap().

◆ has_been_modified

bool woss::ResTimeArrTxtDb::has_been_modified

protected

Referenced by closeConnection(), and insertValue().

◆ initial_arrmap_size

int woss::ResTimeArrTxtDb::initial_arrmap_size

protected

arrivals_map's initial size. If pressure_map's size is greater on closeConnection() the map will be written to disk

Referenced by importMap(), and woss::ResTimeArrBinDb::importMap().

◆ space_sampling

double ResTimeArrTxtDb::space_sampling = 0.0

staticprotected

Referenced by woss::ResTimeArrBinDb::getSpaceSampling(), getSpaceSampling(), woss::ResTimeArrBinDb::setSpaceSampling(), and setSpaceSampling().

The documentation for this class was generated from the following files:

woss/woss_db/res-time-arr-txt-db.h
woss/woss_db/res-time-arr-txt-db.cpp
