SSP class offers multiple creation and manipulation capabilities for sound speed profile. More...

#include <ssp-definitions.h>

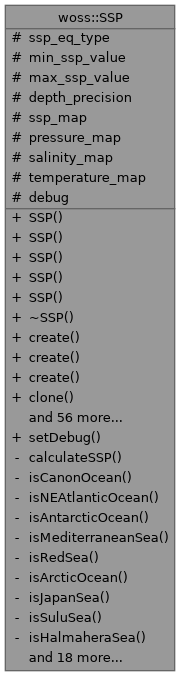

Collaboration diagram for woss::SSP:

Public Types
enum class	SSPEqType { SSP_EQ_CHEN_MILLERO = 0 , SSP_EQ_TEOS_10 = 1 , SSP_EQ_TEOS_10_EXACT = 2 , SSP_EQ_INVALID }

Public Member Functions
	SSP (long double depth_precision=SSP_CUSTOM_DEPTH_PRECISION)

	SSP (DepthMap &ssp_map, DepthMap &temp_map, DepthMap &sal_map, DepthMap &press_map, long double depth_precision=SSP_CUSTOM_DEPTH_PRECISION)

	SSP (DepthMap &ssp_map, long double depth_precision=SSP_CUSTOM_DEPTH_PRECISION)

	SSP (const SSP &copy)=default

	SSP (SSP &&tmp)=default

virtual	~SSP ()=default

virtual std::unique_ptr< SSP >	create (long double depth_precision=SSP_CUSTOM_DEPTH_PRECISION) const

virtual std::unique_ptr< SSP >	create (DepthMap &ssp_map, DepthMap &temp_map, DepthMap &sal_map, DepthMap &press_map, long double depth_precision=SSP_CUSTOM_DEPTH_PRECISION) const

virtual std::unique_ptr< SSP >	create (DepthMap &ssp_map, long double depth_precision=SSP_CUSTOM_DEPTH_PRECISION) const

virtual std::unique_ptr< SSP >	clone () const

int	size () const

bool	empty () const

void	clear ()

DConstIter	begin () const

DConstIter	end () const

DConstRIter	rbegin () const

DConstRIter	rend () const

DConstIter	lower_bound (const PDouble &depth) const

DConstIter	upper_bound (const PDouble &depth) const

DConstIter	at (const int i) const

DConstIter	pressure_begin () const

DConstIter	pressure_end () const

DConstRIter	pressure_rbegin () const

DConstRIter	pressure_rend () const

DConstIter	pressure_lower_bound (const PDouble &depth) const

DConstIter	pressure_upper_bound (const PDouble &depth) const

DConstIter	pressure_find (const PDouble &depth) const

DConstIter	temperature_begin () const

DConstIter	temperature_end () const

DConstRIter	temperature_rbegin () const

DConstRIter	temperature_rend () const

DConstIter	temperature_lower_bound (const PDouble &depth) const

DConstIter	temperature_upper_bound (const PDouble &depth) const

DConstIter	temperature_find (const PDouble &depth) const

DConstIter	salinity_begin () const

DConstIter	salinity_end () const

DConstRIter	salinity_rbegin () const

DConstRIter	salinity_rend () const

DConstIter	salinity_lower_bound (const PDouble &depth) const

DConstIter	salinity_upper_bound (const PDouble &depth) const

DConstIter	salinity_find (const PDouble &depth) const

virtual bool	isValid () const

virtual bool	isTransformable () const

virtual bool	isRandomizable () const

virtual std::unique_ptr< SSP >	transform (const Coord &coordinates, double new_min_depth=-HUGE_VAL, double new_max_depth=HUGE_VAL, int total_depth_steps=SSP_CUSTOM_DEPTH_STEPS) const

virtual std::unique_ptr< SSP >	truncate (double max_depth) const

virtual std::unique_ptr< SSP >	fullRandomize (double ratio_incr_value) const

virtual std::unique_ptr< SSP >	randomize (double ratio_incr_value) const

virtual bool	import (std::istream &stream_in)

virtual bool	write (std::ostream &stream_out) const

SSP &	insertValue (double depth, double ssp_value)

SSP &	insertValue (double depth, double temperature, double salinity, const std::complex< double > &pressure, double ssp_value)

SSP &	insertValue (double temperature, double salinity, const std::complex< double > &pressure, const Coord &coordinates=Coord(0.0, 0.0))

SSP &	insertValue (double depth, double temperature, double salinity, const Coord &coordinates=Coord(0.0, 0.0))

DConstIter	findValue (const double &depth) const

SSP &	eraseValue (const double &depth)

double	getMaxDepthValue () const

double	getMinDepthValue () const

double	getMaxSSPValue () const

double	getMinSSPValue () const

virtual void	setDepthPrecision (long double prec)

long double	getDepthPrecision () const

SSP &	setSSPEqType (SSPEqType eq_type)

SSPEqType	getSSPEqType () const

SSP &	operator= (const SSP &x)=default

SSP &	operator= (SSP &&tmp)=default

Static Public Member Functions
static void	setDebug (bool flag)

Protected Attributes
SSPEqType	ssp_eq_type

double	min_ssp_value

double	max_ssp_value

long double	depth_precision

DepthMap	ssp_map

DepthMap	pressure_map

DepthMap	salinity_map

DepthMap	temperature_map

Static Protected Attributes
static bool	debug = false

Private Member Functions
constexpr double	calculateSSP (double temperature, double salinity, double pressure) const

constexpr bool	isCanonOcean (const Coord &coordinates) const

constexpr bool	isNEAtlanticOcean (const Coord &coordinates) const

constexpr bool	isAntarcticOcean (const Coord &coordinates) const

constexpr bool	isMediterraneanSea (const Coord &coordinates) const

constexpr bool	isRedSea (const Coord &coordinates) const

constexpr bool	isArcticOcean (const Coord &coordinates) const

constexpr bool	isJapanSea (const Coord &coordinates) const

constexpr bool	isSuluSea (const Coord &coordinates) const

constexpr bool	isHalmaheraSea (const Coord &coordinates) const

constexpr bool	isCelebesSea (const Coord &coordinates) const

constexpr bool	isBlackSea (const Coord &coordinates) const

constexpr bool	isBalticSea (const Coord &coordinates) const

constexpr double	thyh (double z) const

constexpr double	g (double lat) const

constexpr double	k (double z, double lat) const

constexpr double	hq (double z) const

constexpr double	h (double z, double lat) const

constexpr double	getPressureCorreptions (const Coord &coordinates, double depth) const

constexpr double	getPressureFromDepth (const Coord &coordinates, double depth) const

constexpr double	g_z (double lat) const

constexpr double	getDepthCorreptions (const Coord &coordinates, double pressure) const

constexpr double	getDepthfromPressure (const Coord &coordinates, double pressure) const

constexpr double	d (double t, double p) const

constexpr double	b (double t, double p) const

constexpr double	a (double t, double p) const

constexpr double	cw (double t, double p) const

constexpr double	gibbs (int ns, int nt, int np, double sa, double t, double p) const

Friends
bool	operator== (const SSP &left, const SSP &right)

bool	operator!= (const SSP &left, const SSP &right)

const SSP	operator+ (const SSP &left, const SSP &right)

const SSP	operator- (const SSP &left, const SSP &right)

const SSP	operator* (const SSP &left, const SSP &right)

const SSP	operator/ (const SSP &left, const SSP &right)

const SSP	operator+ (const SSP &left, const double right)

const SSP	operator- (const SSP &left, const double right)

const SSP	operator/ (const SSP &left, const double right)

const SSP	operator* (const SSP &left, const double right)

const SSP	operator+ (const double left, const SSP &right)

const SSP	operator- (const double left, const SSP &right)

const SSP	operator/ (const double left, const SSP &right)

const SSP	operator* (const double left, const SSP &right)

SSP &	operator+= (SSP &left, const SSP &right)

SSP &	operator-= (SSP &left, const SSP &right)

SSP &	operator*= (SSP &left, const SSP &right)

SSP &	operator/= (SSP &left, const SSP &right)

SSP &	operator+= (SSP &left, const double right)

SSP &	operator-= (SSP &left, const double right)

SSP &	operator/= (SSP &left, const double right)

SSP &	operator*= (SSP &left, const double right)

std::ostream &	operator<< (std::ostream &os, const SSP &instance)

std::ostream &	operator>> (std::istream &is, const SSP &instance)

Detailed Description

SSP class offers multiple creation and manipulation capabilities for sound speed profile.

SSP can store all information related to a sound speed profile: temperature [C°], pressure [bar], salinity [psu] and sound speed [m/s]. It offers capabilities for arithmetic computations, sound speed calculations (Chen and Millero equations), depth to pressure conversions (and viceversa) with coordinates corrections, sound speed profile transformations and random perturbation.

Member Enumeration Documentation

◆ SSPEqType

enum class woss::SSP::SSPEqType

strong

SSP EQ

Enumerator
SSP_EQ_CHEN_MILLERO	UNESCO Chen & Miller, Wong Zu Eq.
SSP_EQ_TEOS_10	TEOS-10 Eq (. See also reference [10])
SSP_EQ_TEOS_10_EXACT	TEOS-10 Exact Eq (. See also reference [10])
SSP_EQ_INVALID	Must always be the last.

Constructor & Destructor Documentation

◆ SSP() [1/5]

SSP::SSP ( long double depth_precision = SSP_CUSTOM_DEPTH_PRECISION )

SSP default constructor. The object created is not valid

Parameters

depth_precision precision of PDouble objects representing depth.

◆ SSP() [2/5]

SSP::SSP	(	DepthMap &	ssp_map,
		DepthMap &	temp_map,
		DepthMap &	sal_map,
		DepthMap &	press_map,
		long double	depth_precision = `SSP_CUSTOM_DEPTH_PRECISION`
	)

SSP constructor.

Parameters

ssp_map	map linking a PDouble depth [m] (with precision depth_precision) to a sound speed [m/s]
temp_map	map linking a PDouble depth [m] (with precision depth_precision) to a temperature [C°]
sal_map	map linking a PDouble depth [m] (with precision depth_precision) to a salinity [ppu]
press_map	map linking a PDouble depth [m] (with precision depth_precision) to a pressure [bar]
depth_precision	depth precision of given maps [m]

References pressure_map, salinity_map, ssp_map, and temperature_map.

◆ SSP() [3/5]

SSP::SSP	(	DepthMap &	ssp_map,
		long double	depth_precision = `SSP_CUSTOM_DEPTH_PRECISION`
	)

SSP constructor.

Parameters

ssp_map	map linking a PDouble depth [m] (with precision depth_precision) to a sound speed [m/s]
depth_precision	depth precision of given maps [m]

References ssp_map.

◆ SSP() [4/5]

woss::SSP::SSP ( const SSP & copy )

default

◆ SSP() [5/5]

woss::SSP::SSP ( SSP && tmp )

default

◆ ~SSP()

virtual woss::SSP::~SSP ( )

virtualdefault

Member Function Documentation

◆ a()

constexpr double woss::SSP::a	(	double	t,
		double	p
	)		const

inlineconstexprprivate

UNESCO Chen and Millero Equation with Wong and Zu corrections for sound speed calculations

Parameters

t	temperature provided [C°]
p	pressure provided [bar]

Referenced by calculateSSP().

◆ at()

DConstIter SSP::at ( const int i ) const

Returns a const iterator to the sound speed value at i-th position

Parameters

i	integer should be between 0 and size()

Returns: const iterator to end() if position i is not found

References ssp_map.

◆ b()

constexpr double woss::SSP::b	(	double	t,
		double	p
	)		const

inlineconstexprprivate

UNESCO Chen and Millero Equation with Wong and Zu corrections for sound speed calculations

Parameters

t	temperature provided [C°]
p	pressure provided [bar]

Referenced by calculateSSP().

◆ begin()

DConstIter woss::SSP::begin ( ) const

inline

Returns a const iterator to the beginning of the sound speed map

Returns: const iterator

References ssp_map.

Referenced by woss::BellhopWoss::writeNormalizedSSP().

◆ calculateSSP()

constexpr double woss::SSP::calculateSSP	(	double	temperature,
		double	salinity,
		double	pressure
	)		const

inlineconstexprprivate

Calculates sound speed from temperature, salinity, pressure with UNESCO Chen and Millero equations and with Wong and Zu corrections

Parameters

temperature	temperature value [C°]
salinity	salinity value [ppu]
pressure	pressure value [bar]

References a(), b(), cw(), d(), gibbs(), SSP_EQ_CHEN_MILLERO, SSP_EQ_TEOS_10, SSP_EQ_TEOS_10_EXACT, and ssp_eq_type.

Referenced by fullRandomize(), insertValue(), insertValue(), and transform().

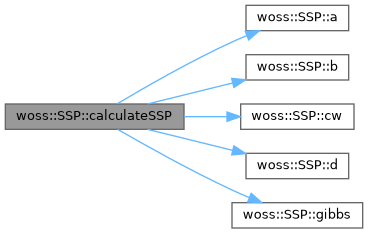

Here is the call graph for this function:

◆ clear()

void woss::SSP::clear ( )

inline

Erase all values of sound speed, temperature, pressure and salinity. The object therefore is not valid

References pressure_map, salinity_map, ssp_map, and temperature_map.

◆ clone()

virtual std::unique_ptr< SSP > woss::SSP::clone ( ) const

inlinevirtual

SSP virtual factory method

Returns: std::unique_ptr to a heap-created copy of this instance

Referenced by woss::WossDbManager::setCustomSSP(), and truncate().

◆ create() [1/3]

virtual std::unique_ptr< SSP > woss::SSP::create	(	DepthMap &	ssp_map,
		DepthMap &	temp_map,
		DepthMap &	sal_map,
		DepthMap &	press_map,
		long double	depth_precision = `SSP_CUSTOM_DEPTH_PRECISION`
	)		const

inlinevirtual

SSP virtual factory method

Parameters

ssp_map	map linking a PDouble depth [m] (with precision depth_precision) to a sound speed [m/s]
temp_map	map linking a PDouble depth [m] (with precision depth_precision) to a temperature [C°]
sal_map	map linking a PDouble depth [m] (with precision depth_precision) to a salinity [ppu]
press_map	map linking a PDouble depth [m] (with precision depth_precision) to a pressure [bar]
depth_precision	depth precision of given maps [m]

Returns: std::unique_ptr to a heap-created SSP object

References depth_precision, and ssp_map.

◆ create() [2/3]

virtual std::unique_ptr< SSP > woss::SSP::create	(	DepthMap &	ssp_map,
		long double	depth_precision = `SSP_CUSTOM_DEPTH_PRECISION`
	)		const

inlinevirtual

SSP virtual factory method

Parameters

ssp_map	map linking a PDouble depth [m] (with precision depth_precision) to a sound speed [m/s]
depth_precision	depth precision of given maps [m]

Returns: std::unique_ptr to a heap-created SSP object

References depth_precision, and ssp_map.

◆ create() [3/3]

virtual std::unique_ptr< SSP > woss::SSP::create ( long double depth_precision = SSP_CUSTOM_DEPTH_PRECISION ) const

inlinevirtual

SSP virtual factory method

Parameters

depth_precision precision of PDouble objects representing depth.

Returns: std::unique_ptr to a heap-created SSP object

References depth_precision.

Referenced by fullRandomize(), randomize(), transform(), and truncate().

◆ cw()

constexpr double woss::SSP::cw	(	double	t,
		double	p
	)		const

inlineconstexprprivate

UNESCO Chen and Millero Equation with Wong and Zu corrections for sound speed calculations

Parameters

t	temperature provided [C°]
p	pressure provided [bar]

Referenced by calculateSSP().

◆ d()

constexpr double woss::SSP::d	(	double	t,
		double	p
	)		const

inlineconstexprprivate

UNESCO Chen and Millero Equation with Wong and Zu corrections for sound speed calculations

Parameters

t	temperature provided [C°]
p	pressure provided [bar]

Referenced by calculateSSP().

◆ empty()

bool woss::SSP::empty ( ) const

inline

Checks if the instance has stored values

Returns: true if condition applies, false otherwise

References ssp_map.

◆ end()

DConstIter woss::SSP::end ( ) const

inline

Returns a const iterator to the end of the sound speed map

Returns: const iterator

References ssp_map.

Referenced by woss::BellhopWoss::writeNormalizedSSP().

◆ eraseValue()

SSP & woss::SSP::eraseValue ( const double & depth )

inline

Erase the sound speed value with key == of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: reference to *this

References ssp_map.

◆ findValue()

DConstIter woss::SSP::findValue ( const double & depth ) const

inline

Returns a const iterator to the sound speed value with key == of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to end() if depth is not found

References ssp_map.

◆ fullRandomize()

std::unique_ptr< SSP > SSP::fullRandomize ( double ratio_incr_value ) const

virtual

Performs a random perturbation of temperature, salinity, pressure with given ratio Sound speed values are then calculated from this new data

Parameters

ratio_incr_value perturbation ratio

Returns: a std::unique_ptr to a heap allocated woss::SSP object

References calculateSSP(), create(), depth_precision, woss::Singleton< T >::instance(), isRandomizable(), pressure_map, salinity_map, ssp_map, and temperature_map.

Here is the call graph for this function:

◆ g()

constexpr double woss::SSP::g ( double lat ) const

inlineconstexprprivate

Equation for pressure from depth conversion ( Leroy and Parthiot )

Parameters

lat	latitude [decimal degree]

Referenced by k().

◆ g_z()

constexpr double woss::SSP::g_z ( double lat ) const

inlineconstexprprivate

Equation for depth from pressure conversion ( Leroy and Parthiot )

Parameters

lat	latitude [decimal degree]

Referenced by getDepthfromPressure().

◆ getDepthCorreptions()

constexpr double woss::SSP::getDepthCorreptions	(	const Coord &	coordinates,
		double	pressure
	)		const

constexprprivate

Returns depth correction for given coordinates and pressure ( Leroy and Parthiot )

Parameters

coordinates	coordinates provided
pressure	pressure provided [bar]

References isAntarcticOcean(), isBalticSea(), isBlackSea(), isCanonOcean(), isCelebesSea(), isHalmaheraSea(), isJapanSea(), isMediterraneanSea(), isNEAtlanticOcean(), isRedSea(), and isSuluSea().

Referenced by getDepthfromPressure().

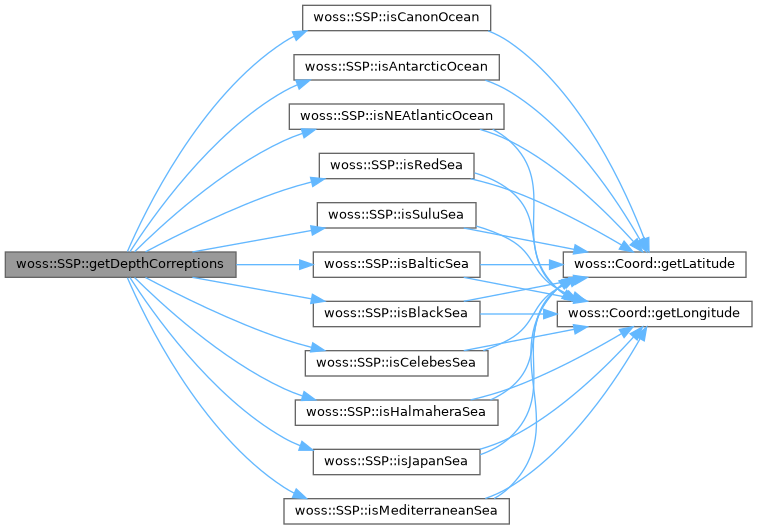

Here is the call graph for this function:

◆ getDepthfromPressure()

constexpr double woss::SSP::getDepthfromPressure	(	const Coord &	coordinates,
		double	pressure
	)		const

inlineconstexprprivate

Returns depth for given coordinates and pressure ( Leroy and Parthiot )

Parameters

coordinates	coordinates provided
pressure	pressure provided [bar]

Returns: depth [m]

References g_z(), getDepthCorreptions(), and woss::Coord::getLatitude().

Referenced by insertValue().

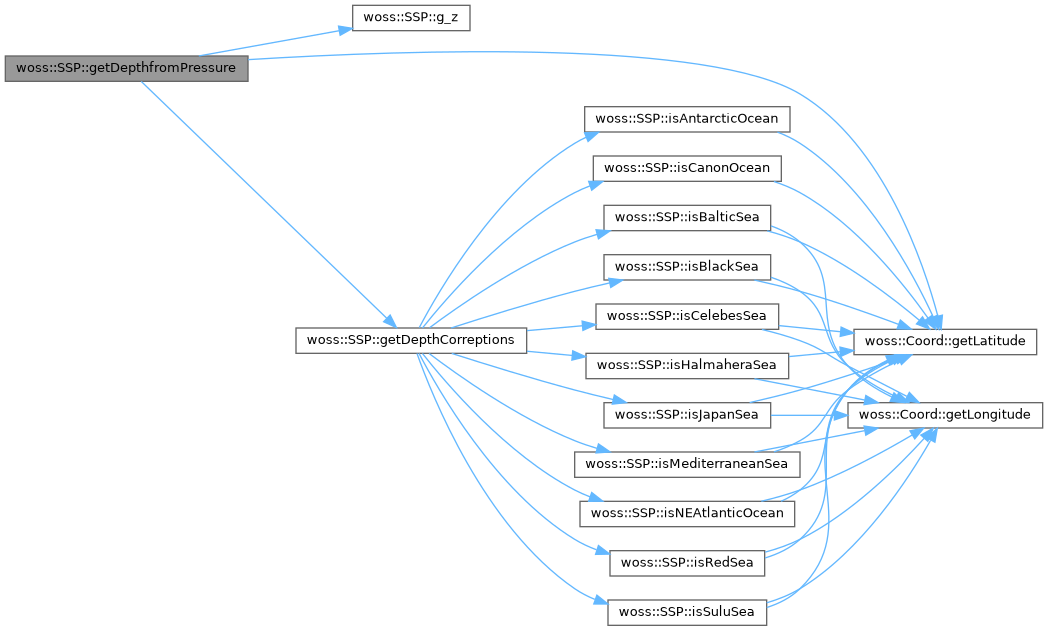

Here is the call graph for this function:

◆ getDepthPrecision()

long double woss::SSP::getDepthPrecision ( ) const

inline

Returns the sound speed profile depth precision

Returns: depth precision [m]

References depth_precision.

◆ getMaxDepthValue()

double woss::SSP::getMaxDepthValue ( ) const

inline

Returns the maximum depth value

Returns: maximum depth [m]

References ssp_map.

◆ getMaxSSPValue()

double woss::SSP::getMaxSSPValue ( ) const

inline

Returns the maximum sound speed value

Returns: maximum sound speed [m/s]

References max_ssp_value.

◆ getMinDepthValue()

double woss::SSP::getMinDepthValue ( ) const

inline

Returns the minimum depth value

Returns: minimum depth [m]

References ssp_map.

◆ getMinSSPValue()

double woss::SSP::getMinSSPValue ( ) const

inline

Returns the maximum depth value

Returns: maximum sound speed [m/s]

References min_ssp_value.

◆ getPressureCorreptions()

constexpr double woss::SSP::getPressureCorreptions	(	const Coord &	coordinates,
		double	depth
	)		const

constexprprivate

Returns pressure correction for given coordinates and depth ( Leroy and Parthiot )

Parameters

coordinates	coordinates provided
depth	depth provided [m]

References isAntarcticOcean(), isBalticSea(), isBlackSea(), isCanonOcean(), isCelebesSea(), isHalmaheraSea(), isJapanSea(), isMediterraneanSea(), isNEAtlanticOcean(), isRedSea(), and isSuluSea().

Referenced by getPressureFromDepth().

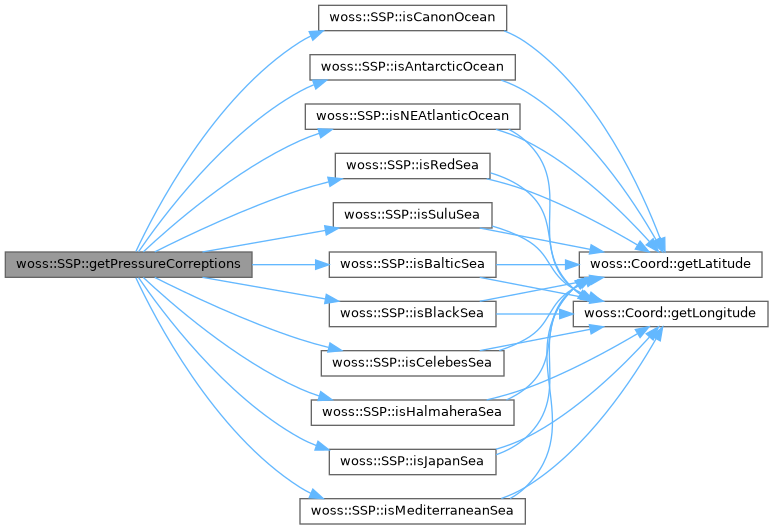

Here is the call graph for this function:

◆ getPressureFromDepth()

constexpr double woss::SSP::getPressureFromDepth	(	const Coord &	coordinates,
		double	depth
	)		const

inlineconstexprprivate

Returns pressure for given coordinates and depth ( Leroy and Parthiot )

Parameters

coordinates	coordinates provided
depth	depth provided [m]

Returns: pressure [bar]

References woss::Coord::getLatitude(), getPressureCorreptions(), h(), and thyh().

Referenced by insertValue(), and transform().

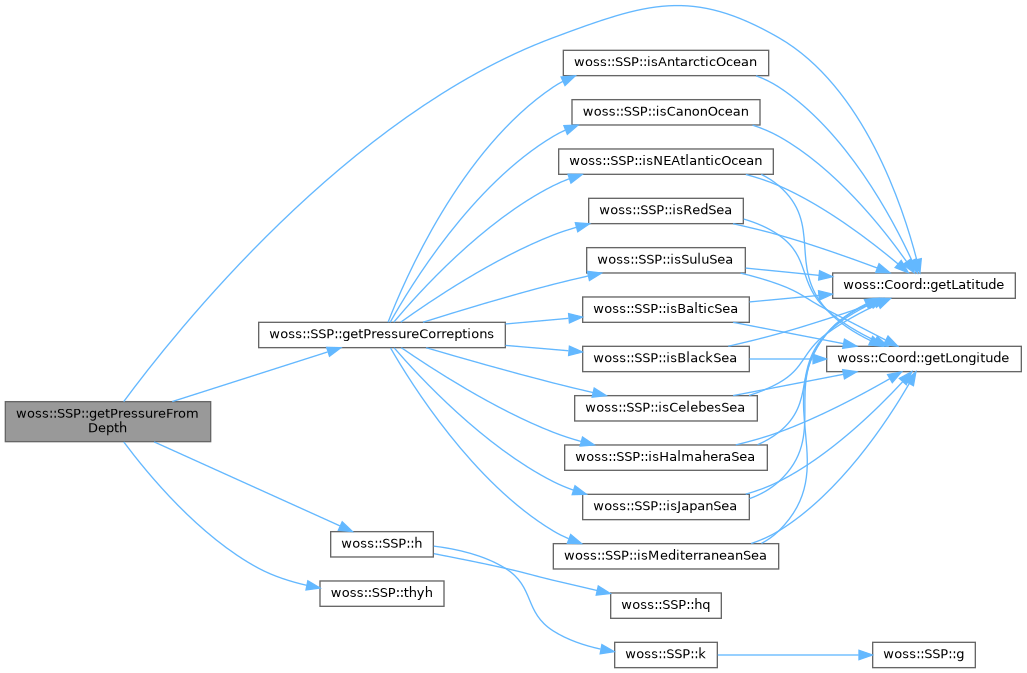

Here is the call graph for this function:

◆ getSSPEqType()

SSPEqType woss::SSP::getSSPEqType ( ) const

inline

Gets the current SSPEqType

Returns: current SSPEqType

References ssp_eq_type.

◆ gibbs()

constexpr double woss::SSP::gibbs	(	int	ns,
		int	nt,
		int	np,
		double	sa,
		double	t,
		double	p
	)		const

inlineconstexprprivate

Seawater specific Gibbs free energy and derivatives up to order 2

Parameters

ns	order of salinity derivative
nt	order of temperature derivative
np	order of pressure derivative
sa	salinity [ppu]
t	temperature [C°]
p	pressure [dbar]

Referenced by calculateSSP().

◆ h()

constexpr double woss::SSP::h	(	double	z,
		double	lat
	)		const

inlineconstexprprivate

Equation for pressure from depth conversion ( Leroy and Parthiot )

Parameters

z	depth [m]
lat	latitude [decimal degree]

References hq(), and k().

Referenced by getPressureFromDepth().

Here is the call graph for this function:

◆ hq()

constexpr double woss::SSP::hq ( double z ) const

inlineconstexprprivate

Equation for pressure from depth conversion ( Leroy and Parthiot )

Parameters

z depth [m]

Referenced by h().

◆ import()

bool SSP::import ( std::istream & stream_in )

virtual

Imports values in from the given stream

Parameters

stream_in const reference to an istream instance

Returns: true if method was successful, false otherwise

References debug, and insertValue().

Referenced by woss::operator>>().

Here is the call graph for this function:

◆ insertValue() [1/4]

SSP & SSP::insertValue	(	double	depth,
		double	ssp_value
	)

Inserts and doesn't replace a sound speed value at given depth

Parameters

depth	depth value [m]. The corresponding PDouble will take SSP::depth_precision as precision
ssp_value	sound speed value [m/s]

Returns: reference to *this

References depth_precision, max_ssp_value, min_ssp_value, and ssp_map.

Referenced by import().

◆ insertValue() [2/4]

SSP & SSP::insertValue	(	double	depth,
		double	temperature,
		double	salinity,
		const Coord &	coordinates = `Coord(0.0, 0.0)`
	)

Calculates and doesn't replace sound speed from given temperature, pressure and salinity value at given depth, with pressure converted from depth.

Parameters

coordinates	coordinates for depth-to-pressure conversion corrections (defaults to CanonOcean)
depth	depth value [m]
temperature	temperature value [C°]
salinity	salinity value [ppu]

Returns: reference to *this

References calculateSSP(), depth_precision, getPressureFromDepth(), woss::Coord::isValid(), max_ssp_value, min_ssp_value, pressure_map, salinity_map, ssp_map, and temperature_map.

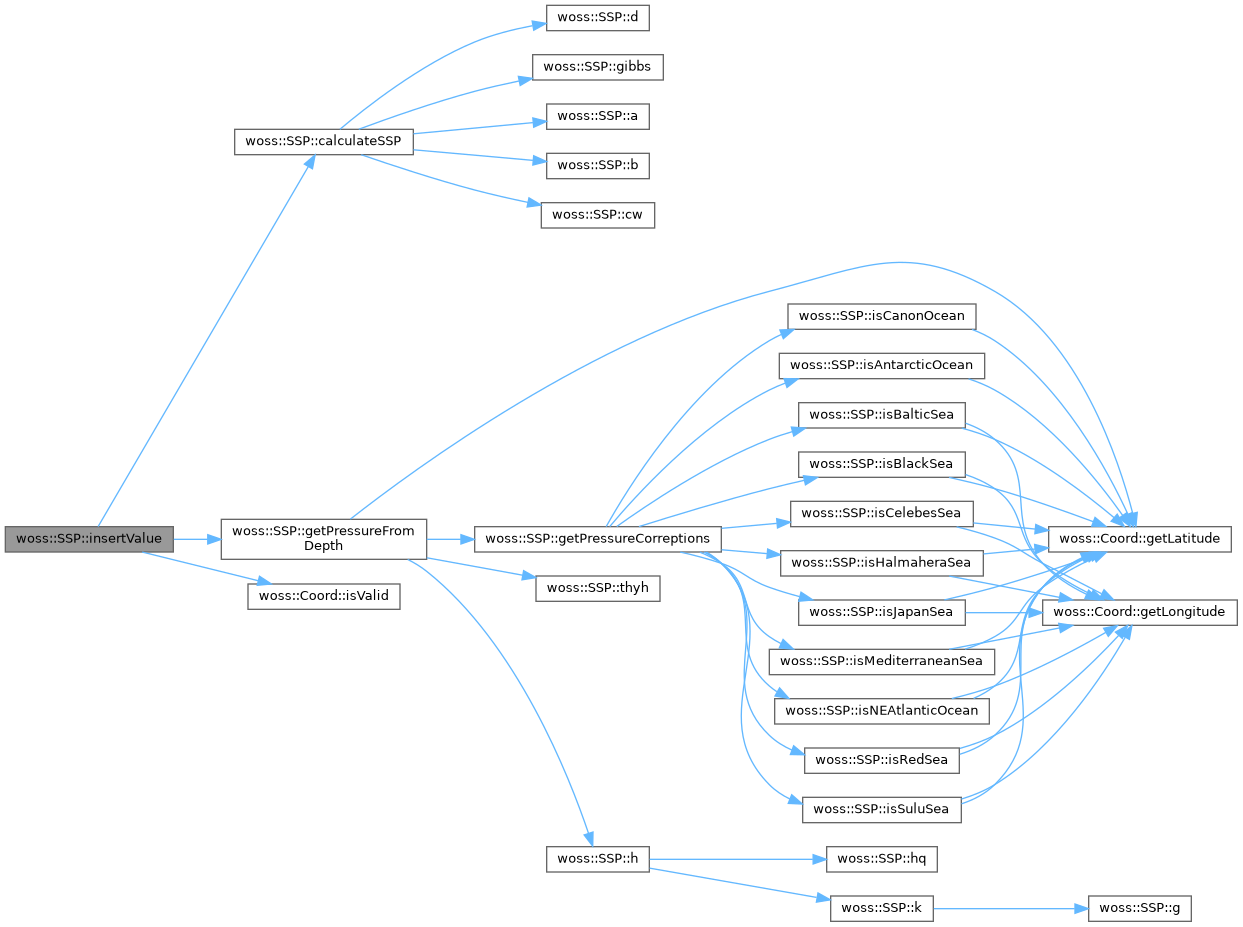

Here is the call graph for this function:

◆ insertValue() [3/4]

SSP & SSP::insertValue	(	double	depth,
		double	temperature,
		double	salinity,
		const std::complex< double > &	pressure,
		double	ssp_value
	)

Inserts and doesn't replace a sound speed value at given depth

Parameters

depth	depth value [m]. The corresponding PDouble will take SSP::depth_precision as precision
temperature	temperature value [C°]
salinity	salinity value [ppu]
pressure	pressure value [bar]
ssp_value	sound speed value [m/s]

Returns: reference to *this

References depth_precision, max_ssp_value, min_ssp_value, pressure_map, salinity_map, ssp_map, and temperature_map.

◆ insertValue() [4/4]

SSP & SSP::insertValue	(	double	temperature,
		double	salinity,
		const std::complex< double > &	pressure,
		const Coord &	coordinates = `Coord( 0.0, 0.0)`
	)

Calculates and doesn't replace sound speed from given temperature, pressure and salinity value at depth converted from pressure.

Parameters

coordinates	coordinates for pressure-to-depth conversion corrections (defaults to CanonOcean)
temperature	temperature value [C°]
salinity	salinity value [ppu]
pressure	pressure value [bar]

Returns: reference to *this

References calculateSSP(), depth_precision, getDepthfromPressure(), woss::Coord::isValid(), max_ssp_value, min_ssp_value, pressure_map, salinity_map, ssp_map, and temperature_map.

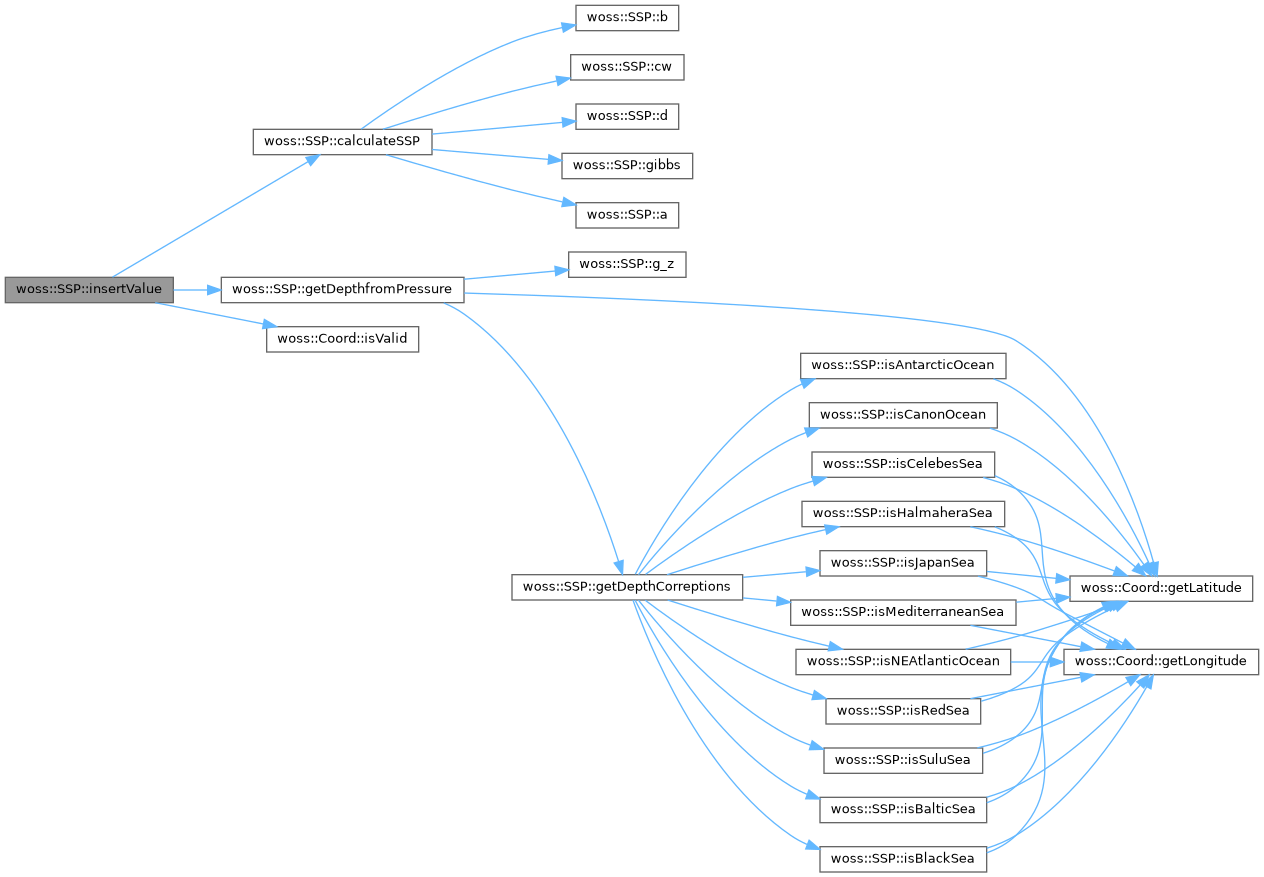

Here is the call graph for this function:

◆ isAntarcticOcean()

constexpr bool woss::SSP::isAntarcticOcean ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in Antarctic Ocean

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isArcticOcean()

constexpr bool woss::SSP::isArcticOcean ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in Arctic Ocean

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude().

Here is the call graph for this function:

◆ isBalticSea()

constexpr bool woss::SSP::isBalticSea ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in Baltic Sea

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isBlackSea()

constexpr bool woss::SSP::isBlackSea ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in Black Sea

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isCanonOcean()

constexpr bool woss::SSP::isCanonOcean ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in canon ocean

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isCelebesSea()

constexpr bool woss::SSP::isCelebesSea ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in Celebes Sea

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isHalmaheraSea()

constexpr bool woss::SSP::isHalmaheraSea ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in Halmahera Sea

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isJapanSea()

constexpr bool woss::SSP::isJapanSea ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in Japan Sea

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isMediterraneanSea()

constexpr bool woss::SSP::isMediterraneanSea ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in Mediterranean Sea

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isNEAtlanticOcean()

constexpr bool woss::SSP::isNEAtlanticOcean ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in north eastern Atlantic Ocean

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isRandomizable()

virtual bool woss::SSP::isRandomizable ( ) const

inlinevirtual

Checks if the sound speed profile provided can be randomly perturbated

Returns: true if it can, false otherwise

References isValid(), pressure_map, salinity_map, and temperature_map.

Referenced by fullRandomize(), and transform().

Here is the call graph for this function:

◆ isRedSea()

constexpr bool woss::SSP::isRedSea ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in Red Sea

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isSuluSea()

constexpr bool woss::SSP::isSuluSea ( const Coord & coordinates ) const

inlineconstexprprivate

Checks if coordinates provided are in Sulu Sea

Parameters

coordinates coordinates value

Returns: true if condition holds, false otherwise

References woss::Coord::getLatitude(), and woss::Coord::getLongitude().

Referenced by getDepthCorreptions(), and getPressureCorreptions().

Here is the call graph for this function:

◆ isTransformable()

virtual bool woss::SSP::isTransformable ( ) const

inlinevirtual

Checks if the sound speed profile provided can be transformed

Returns: true if it can, false otherwise

References isValid().

Referenced by transform().

Here is the call graph for this function:

◆ isValid()

virtual bool woss::SSP::isValid ( ) const

inlinevirtual

Checks the validity of sound speed profile provided

Returns: true if it has at least one value, false otherwise

References ssp_map.

Referenced by isRandomizable(), isTransformable(), and randomize().

◆ k()

constexpr double woss::SSP::k	(	double	z,
		double	lat
	)		const

inlineconstexprprivate

Equation for pressure from depth conversion ( Leroy and Parthiot )

Parameters

z	depth [m]
lat	latitude [decimal degree]

References g().

Referenced by h().

Here is the call graph for this function:

◆ lower_bound()

DConstIter woss::SSP::lower_bound ( const PDouble & depth ) const

inline

Returns a const iterator to the sound speed value with key >= of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to end() if depth is not found

References ssp_map.

◆ operator=() [1/2]

SSP & woss::SSP::operator= ( const SSP & x )

default

Assignment operator

Parameters

copy	const reference to a SSP object to be copied

Returns: SSP reference to this

◆ operator=() [2/2]

SSP & woss::SSP::operator= ( SSP && tmp )

default

Move Assignment operator

Parameters

tmp	rvalue reference to a SSP object to be copied

Returns: SSP reference to this

◆ pressure_begin()

DConstIter woss::SSP::pressure_begin ( ) const

inline

Returns a const iterator to the begin of the pressure map

Returns: const iterator

References pressure_map.

◆ pressure_end()

DConstIter woss::SSP::pressure_end ( ) const

inline

Returns a const iterator to the end of the pressure map

Returns: const iterator

References pressure_map.

◆ pressure_find()

DConstIter woss::SSP::pressure_find ( const PDouble & depth ) const

inline

Returns a const iterator to the pressure value with key == depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to pressure_end() if depth is not found

References pressure_map.

◆ pressure_lower_bound()

DConstIter woss::SSP::pressure_lower_bound ( const PDouble & depth ) const

inline

Returns a const iterator to the pressure value with key >= of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to pressure_end() if depth is not found

References pressure_map.

◆ pressure_rbegin()

DConstRIter woss::SSP::pressure_rbegin ( ) const

inline

Returns a const reverse iterator to the reverse begin of the pressure map

Returns: const reverse iterator

References pressure_map.

◆ pressure_rend()

DConstRIter woss::SSP::pressure_rend ( ) const

inline

Returns a const reverse iterator to the reverse end of the pressure map

Returns: const reverse iterator

References pressure_map.

◆ pressure_upper_bound()

DConstIter woss::SSP::pressure_upper_bound ( const PDouble & depth ) const

inline

Returns a const iterator to the pressure value with key > of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to pressure_end() if depth is not found

References pressure_map.

◆ randomize()

std::unique_ptr< SSP > SSP::randomize ( double ratio_incr_value ) const

virtual

Performs a random perturbation of sound speed values with given ratio

Parameters

ratio_incr_value perturbation ratio

Returns: a std::unique_ptr to a heap allocated woss::SSP object

References create(), depth_precision, woss::Singleton< T >::instance(), isValid(), and ssp_map.

Referenced by woss::BellhopWoss::writeNormalizedSSP().

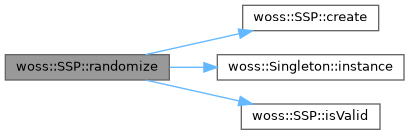

Here is the call graph for this function:

◆ rbegin()

DConstRIter woss::SSP::rbegin ( ) const

inline

Returns a const reverse iterator to the reverse beginning of the sound speed map

Returns: const reverse iterator

References ssp_map.

◆ rend()

DConstRIter woss::SSP::rend ( ) const

inline

Returns a const reverse iterator to the reverse end of the sound speed map

Returns: const reverse iterator

References ssp_map.

◆ salinity_begin()

DConstIter woss::SSP::salinity_begin ( ) const

inline

Returns a const iterator to the beginning of the salinity map

Returns: const reverse iterator

References salinity_map.

◆ salinity_end()

DConstIter woss::SSP::salinity_end ( ) const

inline

Returns a const iterator to the end of the salinity map

Returns: const reverse iterator

References salinity_map.

◆ salinity_find()

DConstIter woss::SSP::salinity_find ( const PDouble & depth ) const

inline

Returns a const iterator to the salinity value with key > of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to salinity_end() if depth is not found

References salinity_map.

◆ salinity_lower_bound()

DConstIter woss::SSP::salinity_lower_bound ( const PDouble & depth ) const

inline

Returns a const iterator to the salinity value with key >= of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to salinity_end() if depth is not found

References salinity_map.

◆ salinity_rbegin()

DConstRIter woss::SSP::salinity_rbegin ( ) const

inline

Returns a const reverse iterator to the reverse beginning of the salinity map

Returns: const reverse iterator

References salinity_map.

◆ salinity_rend()

DConstRIter woss::SSP::salinity_rend ( ) const

inline

Returns a const reverse iterator to the reverse end of the salinity map

Returns: const reverse iterator

References salinity_map.

◆ salinity_upper_bound()

DConstIter woss::SSP::salinity_upper_bound ( const PDouble & depth ) const

inline

Returns a const iterator to the salinity value with key > of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to salinity_end() if depth is not found

References salinity_map.

◆ setDebug()

static void woss::SSP::setDebug ( bool flag )

inlinestatic

Sets debug flag for all instances

Parameters

flag	debug bool

References debug.

◆ setDepthPrecision()

void SSP::setDepthPrecision ( long double prec )

virtual

Sets the sound speed profile depth precision for all PDouble depth values. If the given precision is different from current value, the profile will be modified accordingly

Parameters

prec	depth precision [m]

References depth_precision, pressure_map, salinity_map, ssp_map, and temperature_map.

◆ setSSPEqType()

SSP & woss::SSP::setSSPEqType ( SSPEqType eq_type )

inline

Sets the SSP EQ that should be used by when inserting data

Parameters

eq_type valid SSPEqType

Returns: reference to *this

References ssp_eq_type.

◆ size()

int woss::SSP::size ( ) const

inline

Returns the number of sound speed values stored

Returns: number of sound speed values stored

References ssp_map.

◆ temperature_begin()

DConstIter woss::SSP::temperature_begin ( ) const

inline

Returns a const iterator to the beginning of the temperature map

Returns: const reverse iterator

References temperature_map.

◆ temperature_end()

DConstIter woss::SSP::temperature_end ( ) const

inline

Returns a const iterator to the end of the temperature map

Returns: const reverse iterator

References temperature_map.

◆ temperature_find()

DConstIter woss::SSP::temperature_find ( const PDouble & depth ) const

inline

Returns a const iterator to the temperature value with key == of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to temperature_end() if depth is not found

References temperature_map.

◆ temperature_lower_bound()

DConstIter woss::SSP::temperature_lower_bound ( const PDouble & depth ) const

inline

Returns a const iterator to the temperature value with key >= of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to temperature_end() if depth is not found

References temperature_map.

◆ temperature_rbegin()

DConstRIter woss::SSP::temperature_rbegin ( ) const

inline

Returns a const reverse iterator to the reverse beginning of the temperature map

Returns: const reverse iterator

References temperature_map.

◆ temperature_rend()

DConstRIter woss::SSP::temperature_rend ( ) const

inline

Returns a const reverse iterator to the reverse end of the temperature map

Returns: const reverse iterator

References temperature_map.

◆ temperature_upper_bound()

DConstIter woss::SSP::temperature_upper_bound ( const PDouble & depth ) const

inline

Returns a const iterator to the temperature value with key > of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to temperature_end() if depth is not found

References temperature_map.

◆ thyh()

constexpr double woss::SSP::thyh ( double z ) const

inlineconstexprprivate

Equation for pressure from depth conversion ( Leroy and Parthiot )

Parameters

z depth [m]

Referenced by getPressureFromDepth().

◆ transform()

std::unique_ptr< SSP > SSP::transform	(	const Coord &	coordinates,
		double	new_min_depth = `-HUGE_VAL`,
		double	new_max_depth = `HUGE_VAL`,
		int	total_depth_steps = `SSP_CUSTOM_DEPTH_STEPS`
	)		const

virtual

Transform the sound speed profile. If the current ssp can't be transformed it returns a not valid SSP. If both depth are not changed while depth steps is increased, all data will be linearly interpolated. If the SSP is extended in depth, sound speed will be calculated from last known temperature and salinity, while pressure will be calculated from depth conversion.

Parameters

coordinates	coordinates for pressure, depth conversion corrections
new_min_depth	miminum depth [m] of the new SSP
new_max_depth	maximum depth [m] of the new SSP
total_depth_steps	number of depths of the new SSP

Returns: a std::unique_ptr to a heap allocated woss::SSP object

References calculateSSP(), create(), debug, depth_precision, getPressureFromDepth(), isRandomizable(), isTransformable(), woss::Coord::isValid(), pressure_map, salinity_map, ssp_map, and temperature_map.

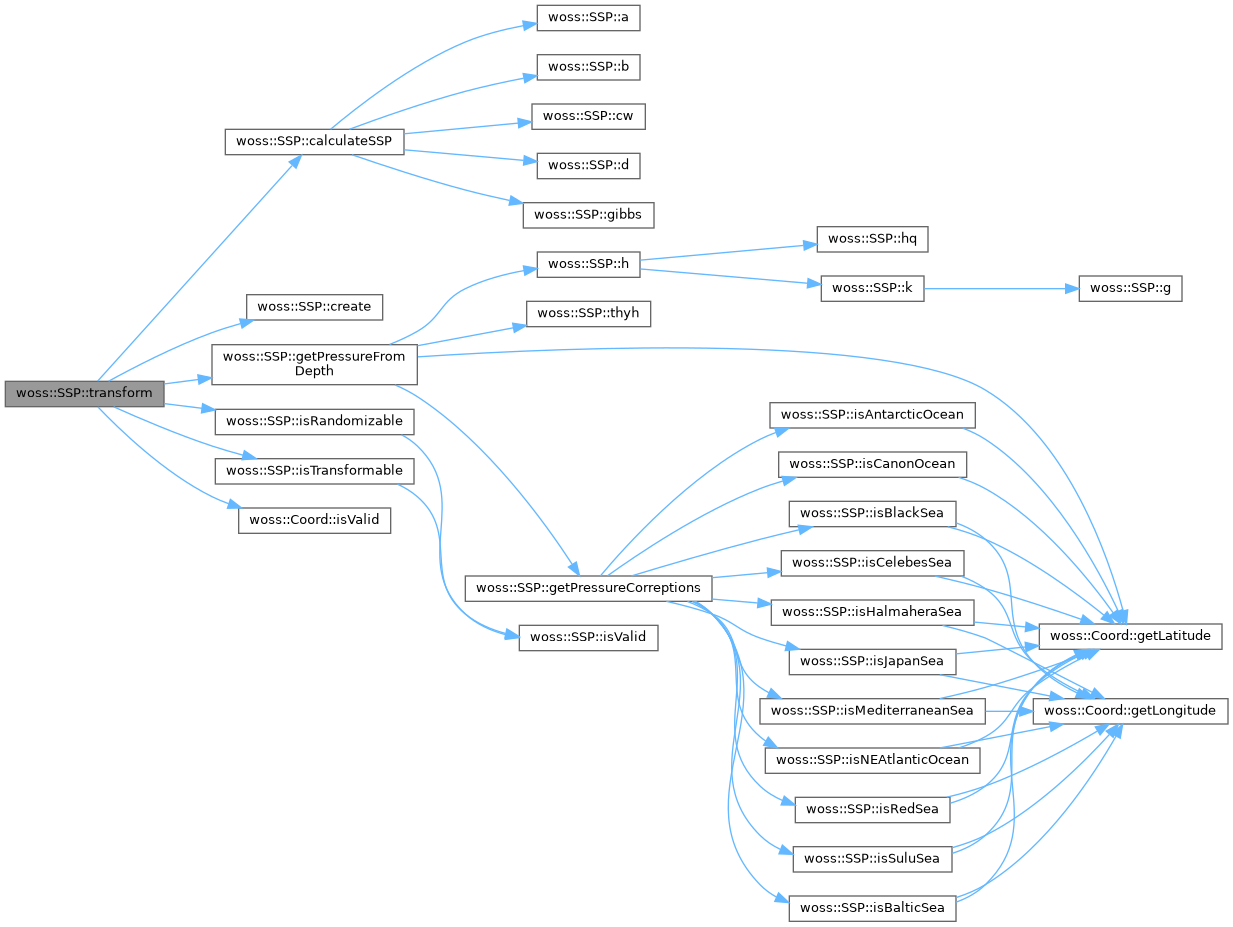

Here is the call graph for this function:

◆ truncate()

std::unique_ptr< SSP > SSP::truncate ( double max_depth ) const

virtual

It returns a new SSP object, truncated at the input depth. If the current ssp can't be truncated it returns a not valid SSP.

Parameters

max_depth truncation depth [m]

Returns: a std::unique_ptr to a heap allocated woss::SSP object

References clone(), create(), and debug.

Here is the call graph for this function:

◆ upper_bound()

DConstIter woss::SSP::upper_bound ( const PDouble & depth ) const

inline

Returns a const iterator to the sound speed value with key > of depth parameter

Parameters

depth const reference to a PDouble depth value

Returns: const iterator to end() if depth is not found

References ssp_map.

◆ write()

bool SSP::write ( std::ostream & stream_out ) const

virtual

Write values out to the given stream

Parameters

stream_out const reference to an ostream instance

Returns: true if method was successful, false otherwise

References pressure_map, salinity_map, ssp_map, and temperature_map.

Friends And Related Symbol Documentation

◆ operator!=

bool operator!=	(	const SSP &	left,
		const SSP &	right
	)

friend

Inequality operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left == right, false otherwise

◆ operator* [1/3]

const SSP operator*	(	const double	left,
		const SSP &	right
	)

friend

Multiplication operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator* [2/3]

const SSP operator*	(	const SSP &	left,
		const double	right
	)

friend

Multiplication operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator* [3/3]

const SSP operator*	(	const SSP &	left,
		const SSP &	right
	)

friend

Multiplication operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator*= [1/2]

SSP & operator*=	(	SSP &	left,
		const double	right
	)

friend

Compound assignment multiplication operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

◆ operator*= [2/2]

SSP & operator*=	(	SSP &	left,
		const SSP &	right
	)

friend

Compound assignment multiplication operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

◆ operator+ [1/3]

const SSP operator+	(	const double	left,
		const SSP &	right
	)

friend

Sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator+ [2/3]

const SSP operator+	(	const SSP &	left,
		const double	right
	)

friend

Sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator+ [3/3]

const SSP operator+	(	const SSP &	left,
		const SSP &	right
	)

friend

Sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a const instance holding the operation result

◆ operator+= [1/2]

SSP & operator+=	(	SSP &	left,
		const double	right
	)

friend

Compound assignment sum operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

◆ operator+= [2/2]

SSP & operator+=	(	SSP &	left,
		const SSP &	right
	)

friend

Compound assignment sum operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

◆ operator- [1/3]

const SSP operator-	(	const double	left,
		const SSP &	right
	)

friend

Subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator- [2/3]

const SSP operator-	(	const SSP &	left,
		const double	right
	)

friend

Subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator- [3/3]

const SSP operator-	(	const SSP &	left,
		const SSP &	right
	)

friend

Subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator-= [1/2]

SSP & operator-=	(	SSP &	left,
		const double	right
	)

friend

Compound assignment subtraction operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

◆ operator-= [2/2]

SSP & operator-=	(	SSP &	left,
		const SSP &	right
	)

friend

Compound assignment subtraction operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

◆ operator/ [1/3]

const SSP operator/	(	const double	left,
		const SSP &	right
	)

friend

Division operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator/ [2/3]

const SSP operator/	(	const SSP &	left,
		const double	right
	)

friend

Division operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator/ [3/3]

const SSP operator/	(	const SSP &	left,
		const SSP &	right
	)

friend

Division operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

◆ operator/= [1/2]

SSP & operator/=	(	SSP &	left,
		const double	right
	)

friend

Compound assignment division operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

◆ operator/= [2/2]

SSP & operator/=	(	SSP &	left,
		const SSP &	right
	)

friend

Compound assignment division operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const SSP &	instance
	)

friend

<< operator

Parameters

os	left operand ostream reference
instance	right operand const SSP reference

Returns: os reference after the operation

◆ operator==

bool operator==	(	const SSP &	left,
		const SSP &	right
	)

friend

Equality operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left == right, false otherwise

◆ operator>>

std::ostream & operator>>	(	std::istream &	is,
		const SSP &	instance
	)

friend

‍operator

Parameters

os	left operand ostream reference
instance	right operand const SSP reference

Returns: os reference after the operation

Member Data Documentation

◆ debug

bool SSP::debug = false

staticprotected

Stores the common debug flag

Referenced by import(), setDebug(), transform(), and truncate().

◆ depth_precision

long double woss::SSP::depth_precision

protected

Stores the precision of all PDouble depth instances [m]

Referenced by create(), create(), create(), fullRandomize(), getDepthPrecision(), insertValue(), insertValue(), insertValue(), insertValue(), randomize(), setDepthPrecision(), and transform().

◆ max_ssp_value

double woss::SSP::max_ssp_value

protected

Stores the maximum sound speed value [m/s]

Referenced by getMaxSSPValue(), insertValue(), insertValue(), insertValue(), and insertValue().

◆ min_ssp_value

double woss::SSP::min_ssp_value

protected

Stores the miminum sound speed value [m/s]

Referenced by getMinSSPValue(), insertValue(), insertValue(), insertValue(), and insertValue().

◆ pressure_map

DepthMap woss::SSP::pressure_map

protected

◆ salinity_map

DepthMap woss::SSP::salinity_map

protected

◆ ssp_eq_type

SSPEqType woss::SSP::ssp_eq_type

protected

Stores the SSP eq type that should be used

Referenced by calculateSSP(), getSSPEqType(), and setSSPEqType().

◆ ssp_map

DepthMap woss::SSP::ssp_map

protected

Sound speed values map

Referenced by at(), begin(), clear(), create(), create(), empty(), end(), eraseValue(), findValue(), fullRandomize(), getMaxDepthValue(), getMinDepthValue(), insertValue(), insertValue(), insertValue(), insertValue(), isValid(), lower_bound(), woss::operator*=(), woss::operator*=(), woss::operator+=(), woss::operator+=(), woss::operator-=(), woss::operator-=(), woss::operator/=(), woss::operator/=(), randomize(), rbegin(), rend(), setDepthPrecision(), size(), SSP(), SSP(), transform(), upper_bound(), and write().

◆ temperature_map

DepthMap woss::SSP::temperature_map

protected

The documentation for this class was generated from the following files:

woss/woss_def/ssp-definitions.h
woss/woss_def/ssp-definitions.cpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Friends

Detailed Description

Member Enumeration Documentation

◆ SSPEqType

Constructor & Destructor Documentation

◆ SSP() [1/5]

◆ SSP() [2/5]

◆ SSP() [3/5]

◆ SSP() [4/5]

◆ SSP() [5/5]

◆ ~SSP()

Member Function Documentation

◆ a()

◆ at()

◆ b()

◆ begin()

◆ calculateSSP()

◆ clear()

◆ clone()

◆ create() [1/3]

◆ create() [2/3]

◆ create() [3/3]

◆ cw()

◆ d()

◆ empty()

◆ end()

◆ eraseValue()

◆ findValue()

◆ fullRandomize()

◆ g()

◆ g_z()

◆ getDepthCorreptions()

◆ getDepthfromPressure()

◆ getDepthPrecision()

◆ getMaxDepthValue()

◆ getMaxSSPValue()

◆ getMinDepthValue()

◆ getMinSSPValue()

◆ getPressureCorreptions()

◆ getPressureFromDepth()

◆ getSSPEqType()

◆ gibbs()

◆ h()

◆ hq()

◆ import()

◆ insertValue() [1/4]

◆ insertValue() [2/4]

◆ insertValue() [3/4]

◆ insertValue() [4/4]

◆ isAntarcticOcean()

◆ isArcticOcean()

◆ isBalticSea()

◆ isBlackSea()

◆ isCanonOcean()

◆ isCelebesSea()

◆ isHalmaheraSea()

◆ isJapanSea()

◆ isMediterraneanSea()

◆ isNEAtlanticOcean()

◆ isRandomizable()

◆ isRedSea()

◆ isSuluSea()

◆ isTransformable()

◆ isValid()

◆ k()

◆ lower_bound()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ pressure_begin()

◆ pressure_end()

◆ pressure_find()

◆ pressure_lower_bound()

◆ pressure_rbegin()

◆ pressure_rend()
