Transducer creator and handler class. More...

#include <transducer-handler.h>

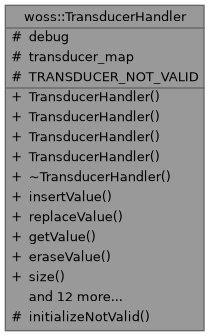

Collaboration diagram for woss::TransducerHandler:

Public Member Functions
	TransducerHandler ()

	TransducerHandler (const TransducerHandler &copy)=default

	TransducerHandler (TransducerHandler &&tmp)=default

	TransducerHandler (TransducerMap &transduc_map)

virtual	~TransducerHandler ()=default

bool	insertValue (const std::string &name, const Transducer &transducer)

TransducerHandler &	replaceValue (const std::string &name, const Transducer &transducer)

std::unique_ptr< Transducer >	getValue (const std::string &name) const

TransducerHandler &	eraseValue (const std::string &name)

int	size () const

bool	empty () const

TransducerHandler &	clear ()

TMCIter	begin () const

TMCIter	end () const

virtual bool	importValueAscii (const std::string &type_name, const std::string &file_name)

virtual bool	importValueBinary (const std::string &type_name, const std::string &file_name)

virtual bool	writeValueAscii (const std::string &type_name, const std::string &file_name)

virtual bool	writeValueBinary (const std::string &type_name, const std::string &file_name)

TransducerHandler &	operator= (const TransducerHandler &copy)=default

TransducerHandler &	operator= (TransducerHandler &&copy)=default

TransducerHandler &	setDebug (bool flag)

bool	getDebug () const

Protected Types
using	TransducerMap = std::unordered_map< std::string, std::unique_ptr< Transducer > >

using	TMIter = TransducerMap::iterator

using	TMCIter = TransducerMap::const_iterator

Protected Member Functions
void	initializeNotValid ()

Protected Attributes
bool	debug

TransducerMap	transducer_map

Static Protected Attributes
static const std::string	TRANSDUCER_NOT_VALID = "TRANSDUCER_NOT_VALID"

Detailed Description

Transducer creator and handler class.

woss::TransducerHandler class imports and saves woss::Transducer. It provides access to them via string name.

Member Typedef Documentation

◆ TMCIter

using woss::TransducerHandler::TMCIter = TransducerMap::const_iterator

protected

◆ TMIter

using woss::TransducerHandler::TMIter = TransducerMap::iterator

protected

◆ TransducerMap

using woss::TransducerHandler::TransducerMap = std::unordered_map< std::string, std::unique_ptr<Transducer> >

protected

Map that links a string to a pointer to a woss::Transducer

Constructor & Destructor Documentation

◆ TransducerHandler() [1/4]

TransducerHandler::TransducerHandler ( )

TransducerHandler default constructor

◆ TransducerHandler() [2/4]

woss::TransducerHandler::TransducerHandler ( const TransducerHandler & copy )

default

◆ TransducerHandler() [3/4]

woss::TransducerHandler::TransducerHandler ( TransducerHandler && tmp )

default

◆ TransducerHandler() [4/4]

TransducerHandler::TransducerHandler ( TransducerMap & transduc_map )

TransducerHandler constructor.

Parameters

transduc_map TransducerMap to be inserted

References transducer_map.

◆ ~TransducerHandler()

virtual woss::TransducerHandler::~TransducerHandler ( )

virtualdefault

Member Function Documentation

◆ begin()

TransducerHandler::TMCIter woss::TransducerHandler::begin ( ) const

inline

Returns a const iterator to the beginning of the tranducer map

Returns: const iterator

References transducer_map.

◆ clear()

TransducerHandler & TransducerHandler::clear ( )

Deletes all pointers and clears the map

Returns: reference to *this

References clear(), and transducer_map.

Referenced by clear().

Here is the call graph for this function:

◆ empty()

bool woss::TransducerHandler::empty ( ) const

inline

Checks if the instance has any stored values

Returns: true if condition applies, false otherwise

References transducer_map.

◆ end()

TransducerHandler::TMCIter woss::TransducerHandler::end ( ) const

inline

Returns a const iterator to the end of the tranducer map

Returns: const iterator

References transducer_map.

◆ eraseValue()

TransducerHandler & TransducerHandler::eraseValue ( const std::string & name )

Erases and deletes the pointer to a woss::Transducer for given string

Parameters

name	const reference to string

Returns: reference to *this

References transducer_map.

◆ getDebug()

bool woss::TransducerHandler::getDebug ( ) const

inline

References debug.

◆ getValue()

std::unique_ptr< Transducer > TransducerHandler::getValue ( const std::string & name ) const

Returns a std::unique_ptr to a woss::Transducer for the input string.

Parameters

name	const reference to string

Returns: a std::unique_ptr to a heap allocated woss::Transducer that is invalid if the given key is not found.

References initializeNotValid(), transducer_map, and TRANSDUCER_NOT_VALID.

Here is the call graph for this function:

◆ importValueAscii()

bool TransducerHandler::importValueAscii	(	const std::string &	type_name,
		const std::string &	file_name
	)

virtual

Imports a woss::Transducer from the given file and with given string key

Parameters

type_name	transducer type name
file_name	file path

Returns: true if method was successful, false otherwise

References woss::Singleton< T >::instance(), and transducer_map.

Here is the call graph for this function:

◆ importValueBinary()

bool TransducerHandler::importValueBinary	(	const std::string &	type_name,
		const std::string &	file_name
	)

virtual

Imports a woss::Transducer from the given binary file and with given string key

Parameters

type_name	transducer type name
file_name	file path

Returns: true if method was successful, false otherwise

References woss::Singleton< T >::instance(), and transducer_map.

Here is the call graph for this function:

◆ initializeNotValid()

void TransducerHandler::initializeNotValid ( )

protected

References woss::Singleton< T >::instance(), transducer_map, and TRANSDUCER_NOT_VALID.

Referenced by getValue().

Here is the call graph for this function:

◆ insertValue()

bool TransducerHandler::insertValue	(	const std::string &	name,
		const Transducer &	transducer
	)

Inserts and doesn't replace if another pointer to a woss::Transducer is found for given key; in this case the given pointer is deleted.

Parameters

name	type name
transducer	constant pointer to a woss::Transducer

Returns: true if inserted, false otherwise

References woss::Transducer::clone(), and transducer_map.

Here is the call graph for this function:

◆ operator=() [1/2]

TransducerHandler & woss::TransducerHandler::operator= ( const TransducerHandler & copy )

default

◆ operator=() [2/2]

TransducerHandler & woss::TransducerHandler::operator= ( TransducerHandler && copy )

default

◆ replaceValue()

TransducerHandler & TransducerHandler::replaceValue	(	const std::string &	name,
		const Transducer &	transducer
	)

Replaces a pointer to a woss::Transducer for given key. The old value is deleted

Parameters

name	type name
transducer	constant pointer to a woss::Transducer

Returns: true if inserted, false otherwise

References woss::Transducer::clone(), and transducer_map.

Here is the call graph for this function:

◆ setDebug()

TransducerHandler & woss::TransducerHandler::setDebug ( bool flag )

inline

Sets debug flag for all instances

Parameters

flag	debug bool

References debug.

◆ size()

int woss::TransducerHandler::size ( ) const

inline

Returns the number of pointers stored

Returns: number of pointers stored

References transducer_map.

◆ writeValueAscii()

bool TransducerHandler::writeValueAscii	(	const std::string &	type_name,
		const std::string &	file_name
	)

virtual

Writes a woss::Transducer to the given file

Parameters

type_name	transducer type name
file_name	file path

Returns: true if method was successful, false otherwise

References transducer_map.

◆ writeValueBinary()

bool TransducerHandler::writeValueBinary	(	const std::string &	type_name,
		const std::string &	file_name
	)

virtual

Writes a woss::Transducer to the given binary file

Parameters

type_name	transducer type name
file_name	file path

Returns: true if method was successful, false otherwise

References transducer_map.

Member Data Documentation

◆ debug

bool woss::TransducerHandler::debug

protected

debug flag

Referenced by getDebug(), and setDebug().

◆ transducer_map

TransducerMap woss::TransducerHandler::transducer_map

protected

beam pattern map

Referenced by begin(), clear(), empty(), end(), eraseValue(), getValue(), importValueAscii(), importValueBinary(), initializeNotValid(), insertValue(), replaceValue(), size(), TransducerHandler(), writeValueAscii(), and writeValueBinary().

◆ TRANSDUCER_NOT_VALID

const std::string TransducerHandler::TRANSDUCER_NOT_VALID = "TRANSDUCER_NOT_VALID"

staticprotected

string key that represents an invalid woss::Transducer

Referenced by getValue(), and initializeNotValid().

The documentation for this class was generated from the following files:

woss/woss_def/transducer-handler.h
woss/woss_def/transducer-handler.cpp
