woss::ArrData Class Reference

class for storing data of any acoustic toolbox ARR file More...

#include <ac-toolbox-arr-asc-reader.h>

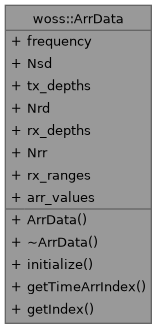

Collaboration diagram for woss::ArrData:

Public Member Functions
	ArrData ()=default
	~ArrData ()=default
void	initialize ()
int	getTimeArrIndex (double tx_depth, double rx_depth, double rx_range) const
int	getIndex (float value, float array[], int array_size) const

Public Attributes
float	frequency = 0.0
int32_t	Nsd = 0
std::unique_ptr< float[] >	tx_depths = nullptr
int32_t	Nrd = 0
std::unique_ptr< float[] >	rx_depths = nullptr
int32_t	Nrr = 0
std::unique_ptr< float[] >	rx_ranges = nullptr
std::unique_ptr< TimeArr[] >	arr_values = nullptr

Detailed Description

class for storing data of any acoustic toolbox ARR file

class ArrData stores TimeArr values provided by any acoustic toolbox ARR file

Constructor & Destructor Documentation

ArrData()

woss::ArrData::ArrData ( )

default

~ArrData()

woss::ArrData::~ArrData ( )

default

Member Function Documentation

getIndex()

int ArrData::getIndex	(	float	value,
		float	array[],
		int	array_size ) const

Returns the index of given array associated to given value

Parameters

value	test value
array	valid pointer to an array
array_size	size of passed array

Returns

valid array index value

Referenced by getTimeArrIndex().

getTimeArrIndex()

int ArrData::getTimeArrIndex	(	double	tx_depth,
		double	rx_depth,
		double	rx_range ) const

Returns the arr_values index associated to given parameters

Parameters

tx_depth	transmitter depth [m]
rx_depth	receiver depth [m]
rx_range	receiver range [m]

Returns

valid arr_values index value

References getIndex(), Nrd, Nrr, Nsd, rx_depths, rx_ranges, and tx_depths.

Referenced by WossUnitTest::testArrDataAndReaders().

Here is the call graph for this function:

initialize()

void woss::ArrData::initialize ( )

inline

Initializes the struct

References arr_values, frequency, Nrd, Nrr, Nsd, rx_depths, rx_ranges, and tx_depths.

Referenced by WossUnitTest::testArrDataAndReaders().

Member Data Documentation

arr_values

std::unique_ptr< TimeArr[] > woss::ArrData::arr_values = nullptr

Pointer to an array of TimeArr values [m]

Referenced by initialize().

frequency

float woss::ArrData::frequency = 0.0

Frequency value [Hz]

Referenced by initialize(), and WossUnitTest::testArrDataAndReaders().

Nrd

int32_t woss::ArrData::Nrd = 0

Total number of receiver depths

Referenced by getTimeArrIndex(), initialize(), and WossUnitTest::testArrDataAndReaders().

Nrr

int32_t woss::ArrData::Nrr = 0

Total number of receiver ranges

Referenced by getTimeArrIndex(), initialize(), and WossUnitTest::testArrDataAndReaders().

Nsd

int32_t woss::ArrData::Nsd = 0

Total number of transmitter depths

Referenced by getTimeArrIndex(), initialize(), and WossUnitTest::testArrDataAndReaders().

rx_depths

std::unique_ptr< float[] > woss::ArrData::rx_depths = nullptr

Pointer to an array of receiver depths [m]

Referenced by getTimeArrIndex(), initialize(), and WossUnitTest::testArrDataAndReaders().

rx_ranges

std::unique_ptr< float[] > woss::ArrData::rx_ranges = nullptr

Pointer to an array of receiver ranges [m]

Referenced by getTimeArrIndex(), initialize(), and WossUnitTest::testArrDataAndReaders().

tx_depths

std::unique_ptr< float[] > woss::ArrData::tx_depths = nullptr

Pointer to an array of transmitter depths [m]

Referenced by getTimeArrIndex(), initialize(), and WossUnitTest::testArrDataAndReaders().

---

The documentation for this class was generated from the following files:

• woss/ac-toolbox-arr-asc-reader.h
• woss/ac-toolbox-arr-asc-reader.cpp
