Channel power delay profile class. More...

#include <time-arrival-definitions.h>

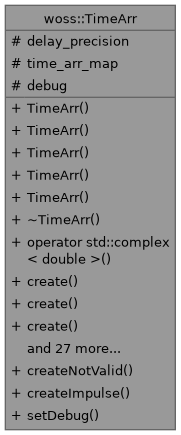

Collaboration diagram for woss::TimeArr:

Public Member Functions
	TimeArr (long double custom_delay_prec=TIMEARR_CUSTOM_DELAY_PRECISION)
	TimeArr (TimeArrMap &map, long double custom_delay_prec=TIMEARR_CUSTOM_DELAY_PRECISION)
	TimeArr (const Pressure &pressure, double delay=TIMEARR_PRESSURE_CONVERSION_DELAY, long double custom_delay_prec=TIMEARR_CUSTOM_DELAY_PRECISION)
	TimeArr (const TimeArr &copy)=default
	TimeArr (TimeArr &&tmp)=default
virtual	~TimeArr ()=default
virtual	operator std::complex< double > () const
virtual std::unique_ptr< TimeArr >	create (long double custom_delay_prec=TIMEARR_CUSTOM_DELAY_PRECISION) const
virtual std::unique_ptr< TimeArr >	create (TimeArrMap &map, long double custom_delay_prec=TIMEARR_CUSTOM_DELAY_PRECISION) const
virtual std::unique_ptr< TimeArr >	create (const Pressure &pressure, double delay=TIMEARR_PRESSURE_CONVERSION_DELAY, long double custom_delay_prec=TIMEARR_CUSTOM_DELAY_PRECISION) const
virtual std::unique_ptr< TimeArr >	clone () const
virtual std::unique_ptr< TimeArr[]>	createArray (unsigned int array_size) const
TimeArr &	insertValue (double delay, const Pressure &pressure)
void	sumValue (double delay, const Pressure &pressure)
TimeArrCIt	findValue (double delay) const
TimeArr &	eraseValue (double delay)
virtual std::unique_ptr< TimeArr >	coherentSumSample (double time_delay) const
virtual std::unique_ptr< TimeArr >	incoherentSumSample (double time_delay) const
virtual std::unique_ptr< TimeArr >	crop (double time_start, double time_end) const
virtual bool	checkPressureAttenuation (double distance, double frequency)
TimeArrCIt	begin () const
TimeArrCIt	end () const
TimeArrCRIt	rbegin () const
TimeArrCRIt	rend () const
TimeArrCIt	at (const int i) const
TimeArrCIt	lowerBoundTxLoss (double threshold_db) const
int	size () const
bool	empty () const
void	clear ()
TimeArr &	setDelayPrecision (long double precision)
double	getMaxDelayValue () const
double	getMinDelayValue () const
long double	getDelayPrecision () const
virtual bool	isValid () const
virtual bool	isConvertedFromPressure () const
TimeArr &	operator= (const TimeArr &copy)=default
TimeArr &	operator= (TimeArr &&tmp)=default

Static Public Member Functions
static TimeArrMap &	createNotValid ()
static TimeArrMap &	createImpulse ()
static void	setDebug (bool flag)

Protected Attributes
long double	delay_precision
TimeArrMap	time_arr_map

Static Protected Attributes
static bool	debug = false

Friends
bool	operator== (const TimeArr &left, const TimeArr &right)
bool	operator!= (const TimeArr &left, const TimeArr &right)
const TimeArr	operator+ (const TimeArr &left, const TimeArr &right)
const TimeArr	operator- (const TimeArr &left, const TimeArr &right)
const TimeArr	operator+ (const TimeArr &left, const double right)
const TimeArr	operator- (const TimeArr &left, const double right)
const TimeArr	operator/ (const TimeArr &left, const double right)
const TimeArr	operator* (const TimeArr &left, const double right)
const TimeArr	operator+ (const double left, const TimeArr &right)
const TimeArr	operator- (const double left, const TimeArr &right)
const TimeArr	operator/ (const double left, const TimeArr &right)
const TimeArr	operator* (const double left, const TimeArr &right)
TimeArr &	operator+= (TimeArr &left, const TimeArr &right)
TimeArr &	operator-= (TimeArr &left, const TimeArr &right)
TimeArr &	operator+= (TimeArr &left, double right)
TimeArr &	operator-= (TimeArr &left, double right)
TimeArr &	operator/= (TimeArr &left, double right)
TimeArr &	operator*= (TimeArr &left, double right)
std::ostream &	operator<< (std::ostream &os, const TimeArr &instance)

Detailed Description

Channel power delay profile class.

TimeArr class offers the possibility to store and manipulate channel power delay profiles, e.g. a collection of time delay values associated to a Pressure attenuation value.

Constructor & Destructor Documentation

◆ TimeArr() [1/5]

TimeArr::TimeArr ( long double custom_delay_prec = TIMEARR_CUSTOM_DELAY_PRECISION )

Default TimeArr constructor

Parameters

custom_delay_prec delay precision [s]

References delay_precision, and time_arr_map.

Referenced by eraseValue(), insertValue(), operator!=, operator*, operator*, operator*=, operator+, operator+, operator+, operator+=, operator+=, operator-, operator-, operator-, operator-=, operator-=, operator/, operator/, operator/=, operator<<, operator=(), operator=(), operator==, TimeArr(), and TimeArr().

◆ TimeArr() [2/5]

TimeArr::TimeArr	(	TimeArrMap &	map,
		long double	custom_delay_prec = TIMEARR_CUSTOM_DELAY_PRECISION )

TimeArr constructor

Parameters

map	custom time arrival map
custom_delay_prec	delay precision [s]

References delay_precision, and time_arr_map.

◆ TimeArr() [3/5]

TimeArr::TimeArr	(	const Pressure &	pressure,
		double	delay = TIMEARR_PRESSURE_CONVERSION_DELAY,
		long double	custom_delay_prec = TIMEARR_CUSTOM_DELAY_PRECISION )

explicit

TimeArr constructor. Needed for Pressure to TimeArr conversion

Parameters

pressure	Pressure value
delay	delay value [s]
custom_delay_prec	delay precision [s]

References woss::Pressure::createNotValid(), delay_precision, woss::Pressure::isValid(), and time_arr_map.

Here is the call graph for this function:

◆ TimeArr() [4/5]

woss::TimeArr::TimeArr ( const TimeArr & copy )

default

References TimeArr().

Here is the call graph for this function:

◆ TimeArr() [5/5]

woss::TimeArr::TimeArr ( TimeArr && tmp )

default

References TimeArr().

Here is the call graph for this function:

◆ ~TimeArr()

virtual woss::TimeArr::~TimeArr ( )

virtualdefault

Member Function Documentation

◆ at()

TimeArrCIt TimeArr::at ( const int i ) const

Returns a const iterator to the Pressure value at i-th position

Parameters

i	integer should be between 0 and size()

Returns: const iterator to end() if position i is not found

References time_arr_map.

◆ begin()

TimeArrCIt woss::TimeArr::begin ( ) const

inline

Returns a const iterator to the beginning of the time arrival map

Returns: const iterator

References time_arr_map.

Referenced by operator<<.

◆ checkPressureAttenuation()

bool TimeArr::checkPressureAttenuation	(	double	distance,
		double	frequency )

virtual

Check the Pressure value of each delay. If amplitude is >= 1, it replaces with a new Pressure with same phase and new amplitude given by the Thorp absorption process at given frequency and along given distance

Parameters

distance	given distance [m]
frequency	given frequency [hz]

Returns: true if correction was applied, false otherwise

References woss::Pressure::checkAttenuation(), and time_arr_map.

Here is the call graph for this function:

◆ clear()

void woss::TimeArr::clear ( )

inline

Erase all values of Pressure

References time_arr_map.

◆ clone()

virtual std::unique_ptr< TimeArr > woss::TimeArr::clone ( ) const

inlinevirtual

TimeArr virtual factory method

Returns: a std::unique_ptr to a heap-created copy of this instance

Referenced by woss::ResTimeArrTxtDb::insertValue(), and ChannelEstimator::updateEstimation().

◆ coherentSumSample()

std::unique_ptr< TimeArr > TimeArr::coherentSumSample ( double time_delay ) const

virtual

Sample the TimeArr with sample-time delay. Pressure of the new TimeArr are the coherent sum of previous object with equal sampled delay.

Parameters

delay delay value [s]

Returns: a std::unique_ptr to a heap allocated woss::TimeArr object

References create(), delay_precision, and time_arr_map.

Here is the call graph for this function:

◆ create() [1/3]

virtual std::unique_ptr< TimeArr > woss::TimeArr::create	(	const Pressure &	pressure,
		double	delay = TIMEARR_PRESSURE_CONVERSION_DELAY,
		long double	custom_delay_prec = TIMEARR_CUSTOM_DELAY_PRECISION ) const

inlinevirtual

TimeArr virtual factory method

Parameters

pressure	Pressure value
delay	delay value [s]
custom_delay_prec	delay precision [s]

Returns: a std::unique_ptr to a heap allocated woss::TimeArr object

◆ create() [2/3]

virtual std::unique_ptr< TimeArr > woss::TimeArr::create ( long double custom_delay_prec = TIMEARR_CUSTOM_DELAY_PRECISION ) const

inlinevirtual

TimeArr virtual factory method

Parameters

custom_delay_prec delay precision [s]

Returns: a std::unique_ptr to a heap allocated woss::TimeArr object

Referenced by coherentSumSample(), crop(), and incoherentSumSample().

◆ create() [3/3]

virtual std::unique_ptr< TimeArr > woss::TimeArr::create	(	TimeArrMap &	map,
		long double	custom_delay_prec = TIMEARR_CUSTOM_DELAY_PRECISION ) const

inlinevirtual

TimeArr virtual factory method

Parameters

map	custom time arrival map
custom_delay_prec	delay precision [s]

Returns: a std::unique_ptr to a heap allocated woss::TimeArr object

◆ createArray()

virtual std::unique_ptr< TimeArr[]> woss::TimeArr::createArray ( unsigned int array_size ) const

inlinevirtual

TimeArr virtual factory method

Parameters

array_size size of array

Returns: a std::unique_ptr to a heap-created array of size array_size

◆ createImpulse()

TimeArrMap & woss::TimeArr::createImpulse ( )

inlinestatic

Creates an impulsive instance

Returns: a new impulsive instance ( e.g. delay 0.0 = (+1.0, 0.0 ) )

References time_arr_map.

Referenced by woss::WossManager::getWossTimeArr(), woss::WossManager::getWossTimeArr(), woss::WossManagerResDb::getWossTimeArr(), woss::WossManagerResDbMT::getWossTimeArr(), and woss::WossManagerResDbMT::getWossTimeArr().

◆ createNotValid()

TimeArrMap & woss::TimeArr::createNotValid ( )

inlinestatic

Creates an instance not valid

Returns: a new instance not valid ( e.g. delay 0.0 = (+inf, +inf) )

References woss::Pressure::createNotValid(), and time_arr_map.

Referenced by WossChannelModule::checkTimeArrVector(), woss::WossManagerResDb::dbGetTimeArr(), woss::WossDbManager::getTimeArr(), woss::ResTimeArrTxtDb::getValue(), woss::WossManager::getWossTimeArr(), woss::ArrAscResReader::readTimeArr(), and woss::ArrBinResReader::readTimeArr().

Here is the call graph for this function:

◆ crop()

std::unique_ptr< TimeArr > TimeArr::crop	(	double	time_start,
		double	time_end ) const

virtual

Crops the TimeArr between given time values and returns a new heap-allocated object. The new object will have time values in [time_start, time_end)

Parameters

time_start	start time value [s]
time_end	end time value [s]

Returns: a std::unique_ptr to a heap allocated woss::TimeArr object

References create(), debug, delay_precision, and time_arr_map.

Here is the call graph for this function:

◆ empty()

bool woss::TimeArr::empty ( ) const

inline

Checks if the instance has stored values

Returns: true if condition applies, false otherwise

References time_arr_map.

◆ end()

TimeArrCIt woss::TimeArr::end ( ) const

inline

Returns a const iterator to the end of the time arrival map

Returns: const iterator

References time_arr_map.

◆ eraseValue()

TimeArr & woss::TimeArr::eraseValue ( double delay )

inline

Erase the Pressure value with key == delay parameter

Parameters

delay delay value [s]

Returns: reference to *this

References time_arr_map, and TimeArr().

Here is the call graph for this function:

◆ findValue()

TimeArrCIt woss::TimeArr::findValue ( double delay ) const

inline

Returns a const iterator to the Pressure with key == delay parameter

Parameters

delay delay value [s]

Returns: const iterator to end() if delay is not found

References time_arr_map.

◆ getDelayPrecision()

long double woss::TimeArr::getDelayPrecision ( ) const

inline

Returns the delay precision

Returns: delay precision [s]

References delay_precision.

◆ getMaxDelayValue()

double woss::TimeArr::getMaxDelayValue ( ) const

inline

Returns the maximum delay value

Returns: maximum delay [s]

References time_arr_map.

◆ getMinDelayValue()

double woss::TimeArr::getMinDelayValue ( ) const

inline

Returns the maximum delay value

Returns: maximum delay [s]

References time_arr_map.

◆ incoherentSumSample()

std::unique_ptr< TimeArr > TimeArr::incoherentSumSample ( double time_delay ) const

virtual

Sample the TimeArr with sample-time delay. Pressure of the new TimeArr are the incoherent sum of previous object with equal sampled delay.

Parameters

delay delay value [s]

Returns: a std::unique_ptr to a heap allocated woss::TimeArr object

References create(), delay_precision, and time_arr_map.

Here is the call graph for this function:

◆ insertValue()

TimeArr & woss::TimeArr::insertValue	(	double	delay,
		const Pressure &	pressure )

inline

Inserts and replace a Pressure value at given delay

Parameters

delay	delay value [s]
pressure	Pressure value

Returns: reference to *this

References woss::Pressure::isValid(), time_arr_map, and TimeArr().

Referenced by WossUnitTest::testPressure().

Here is the call graph for this function:

◆ isConvertedFromPressure()

virtual bool woss::TimeArr::isConvertedFromPressure ( ) const

inlinevirtual

Checks if the TimeArr was constructed from a Pressure value, therefore not carrying a valid delay information

Returns: true if it has at least one value, false otherwise

References time_arr_map.

◆ isValid()

bool TimeArr::isValid ( ) const

virtual

Checks the validity of TimeArr

Returns: true if it has at least one value, false otherwise

References woss::Pressure::createNotValid(), and time_arr_map.

Referenced by woss::Pressure::Pressure().

Here is the call graph for this function:

◆ lowerBoundTxLoss()

TimeArrCIt TimeArr::lowerBoundTxLoss ( double threshold_db ) const

Returns a const iterator to the Pressure that has txLoss >= threshold_db

Parameters

i	threshold in db re upa

Returns: const iterator to end() if position i is not found

References debug, woss::Pressure::getTxLossDb(), woss::Pressure::getTxLossDb(), and time_arr_map.

Here is the call graph for this function:

◆ operator std::complex< double >()

TimeArr::operator std::complex< double > ( ) const

virtual

complex<double> operator for implicit casting

Returns: the coherent sum

References time_arr_map.

◆ operator=() [1/2]

TimeArr & woss::TimeArr::operator= ( const TimeArr & copy )

default

References TimeArr().

Here is the call graph for this function:

◆ operator=() [2/2]

TimeArr & woss::TimeArr::operator= ( TimeArr && tmp )

default

References TimeArr().

Here is the call graph for this function:

◆ rbegin()

TimeArrCRIt woss::TimeArr::rbegin ( ) const

inline

Returns a const reverse iterator to the reverse beginning of the time arrival map

Returns: const iterator

References time_arr_map.

◆ rend()

TimeArrCRIt woss::TimeArr::rend ( ) const

inline

Returns a const reverse iterator to the reverse end of the time arrival map

Returns: const iterator

References time_arr_map.

◆ setDebug()

void woss::TimeArr::setDebug ( bool flag )

inlinestatic

Sets debug flag for all instances

Parameters

flag	debug bool

References debug.

◆ setDelayPrecision()

woss::TimeArr & TimeArr::setDelayPrecision ( long double precision )

Sets the delay precision for all PDouble delay values. If the given precision is different from current value, the profile will be modified accordingly

Parameters

precision delay precision [m]

Returns: reference to *this

References time_arr_map.

◆ size()

int woss::TimeArr::size ( ) const

inline

Returns the number of Pressure stored

Returns: number of Pressure values stored

References time_arr_map.

Referenced by woss::ResTimeArrTxtDb::printScreenMap(), woss::ResTimeArrBinDb::writeMap(), and woss::ResTimeArrTxtDb::writeMap().

◆ sumValue()

void woss::TimeArr::sumValue	(	double	delay,
		const Pressure &	pressure )

inline

Inserts and (complex) sums a Pressure value at given delay

Parameters

delay	delay value [s]
pressure	Pressure value

References woss::Pressure::isValid(), and time_arr_map.

Here is the call graph for this function:

◆ operator!=

bool operator!=	(	const TimeArr &	left,
		const TimeArr &	right )

friend

Inequality operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left != right, false otherwise

References time_arr_map, and TimeArr().

◆ operator* [1/2]

const TimeArr operator*	(	const double	left,
		const TimeArr &	right )

friend

Multiplication operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References TimeArr().

◆ operator* [2/2]

const TimeArr operator*	(	const TimeArr &	left,
		const double	right )

friend

Multiplication operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References TimeArr().

◆ operator*=

TimeArr & operator*=	(	TimeArr &	left,
		double	right )

friend

Compound assignment multiplication operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References TimeArr().

◆ operator+ [1/3]

const TimeArr operator+	(	const double	left,
		const TimeArr &	right )

friend

Sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References TimeArr().

◆ operator+ [2/3]

const TimeArr operator+	(	const TimeArr &	left,
		const double	right )

friend

Sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References TimeArr().

◆ operator+ [3/3]

const TimeArr operator+	(	const TimeArr &	left,
		const TimeArr &	right )

friend

Sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References TimeArr().

◆ operator+= [1/2]

TimeArr & operator+=	(	TimeArr &	left,
		const TimeArr &	right )

friend

Compound assignment sum operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References TimeArr().

◆ operator+= [2/2]

TimeArr & operator+=	(	TimeArr &	left,
		double	right )

friend

Compound assignment sum operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References TimeArr().

◆ operator- [1/3]

const TimeArr operator-	(	const double	left,
		const TimeArr &	right )

friend

Subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References TimeArr().

◆ operator- [2/3]

const TimeArr operator-	(	const TimeArr &	left,
		const double	right )

friend

Subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References TimeArr().

◆ operator- [3/3]

const TimeArr operator-	(	const TimeArr &	left,
		const TimeArr &	right )

friend

Subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References TimeArr().

◆ operator-= [1/2]

TimeArr & operator-=	(	TimeArr &	left,
		const TimeArr &	right )

friend

Compound assignment subtraction operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References TimeArr().

◆ operator-= [2/2]

TimeArr & operator-=	(	TimeArr &	left,
		double	right )

friend

Compound assignment subtraction operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References TimeArr().

◆ operator/ [1/2]

const TimeArr operator/	(	const double	left,
		const TimeArr &	right )

friend

Division operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References TimeArr().

◆ operator/ [2/2]

const TimeArr operator/	(	const TimeArr &	left,
		const double	right )

friend

Division operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References TimeArr().

◆ operator/=

TimeArr & operator/=	(	TimeArr &	left,
		double	right )

friend

Compound assignment division operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References TimeArr().

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const TimeArr &	instance )

friend

<< operator

Parameters

os	left operand ostream reference
instance	right operand const Pressure reference

Returns: os reference after the operation

References begin(), woss::Pressure::getTxLossDb(), time_arr_map, and TimeArr().

◆ operator==

bool operator==	(	const TimeArr &	left,
		const TimeArr &	right )

friend

Equality operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left == right, false otherwise

References time_arr_map, and TimeArr().

Member Data Documentation

◆ debug

bool TimeArr::debug = false

staticprotected

Debug flag

Referenced by crop(), lowerBoundTxLoss(), and setDebug().

◆ delay_precision

long double woss::TimeArr::delay_precision

protected

Stores the precision of all PDouble delay instances [s]

Referenced by coherentSumSample(), crop(), getDelayPrecision(), incoherentSumSample(), TimeArr(), TimeArr(), and TimeArr().

◆ time_arr_map

TimeArrMap woss::TimeArr::time_arr_map

protected

The documentation for this class was generated from the following files:

woss/woss_def/time-arrival-definitions.h
woss/woss_def/time-arrival-definitions.cpp

Public Member Functions

Static Public Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ TimeArr() [1/5]

◆ TimeArr() [2/5]

◆ TimeArr() [3/5]

◆ TimeArr() [4/5]

◆ TimeArr() [5/5]

◆ ~TimeArr()

Member Function Documentation

◆ at()

◆ begin()

◆ checkPressureAttenuation()

◆ clear()

◆ clone()

◆ coherentSumSample()

◆ create() [1/3]

◆ create() [2/3]

◆ create() [3/3]

◆ createArray()

◆ createImpulse()

◆ createNotValid()

◆ crop()

◆ empty()

◆ end()

◆ eraseValue()

◆ findValue()

◆ getDelayPrecision()

◆ getMaxDelayValue()

◆ getMinDelayValue()

◆ incoherentSumSample()

◆ insertValue()

◆ isConvertedFromPressure()

◆ isValid()

◆ lowerBoundTxLoss()

◆ operator std::complex< double >()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ rbegin()

◆ rend()

◆ setDebug()

◆ setDelayPrecision()

◆ size()

◆ sumValue()

Friends And Related Symbol Documentation

◆ operator!=

◆ operator* [1/2]

◆ operator* [2/2]

◆ operator*=

◆ operator+ [1/3]

◆ operator+ [2/3]

◆ operator+ [3/3]

◆ operator+= [1/2]

◆ operator+= [2/2]

◆ operator- [1/3]

◆ operator- [2/3]

◆ operator- [3/3]

◆ operator-= [1/2]

◆ operator-= [2/2]

◆ operator/ [1/2]

◆ operator/ [2/2]

◆ operator/=

◆ operator<<

◆ operator==

Member Data Documentation

◆ debug

◆ delay_precision

◆ time_arr_map
