woss::ResPressureBinDb Class Reference

Binary WossDb for Pressure. More...

#include <res-pressure-bin-db.h>

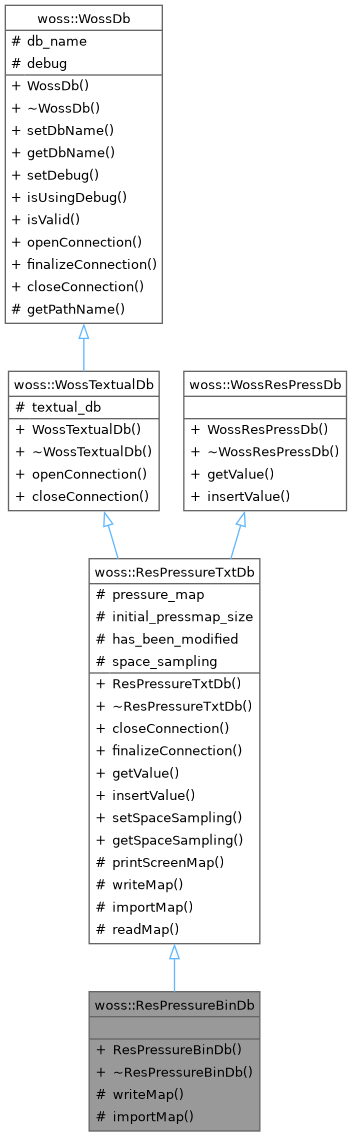

Inheritance diagram for woss::ResPressureBinDb:

Collaboration diagram for woss::ResPressureBinDb:

Public Member Functions
	ResPressureBinDb (const std::string &name)
virtual	~ResPressureBinDb () override=default
Public Member Functions inherited from woss::ResPressureTxtDb
	ResPressureTxtDb (const std::string &name)
virtual	~ResPressureTxtDb () override=default
virtual bool	closeConnection () override
virtual bool	finalizeConnection () override
virtual std::unique_ptr< Pressure >	getValue (const CoordZ &coord_tx, const CoordZ &coord_rx, const double frequency, const Time &time_value) const override
virtual bool	insertValue (const CoordZ &coord_tx, const CoordZ &coord_rx, const double frequency, const Time &time_value, const Pressure &pressure) override
Public Member Functions inherited from woss::WossTextualDb
	WossTextualDb (const std::string &name)
virtual	~WossTextualDb () override
virtual bool	openConnection () override
Public Member Functions inherited from woss::WossDb
	WossDb (const std::string &name)
virtual	~WossDb ()=default
void	setDbName (const std::string &pathname)
std::string	getDbName () const
void	setDebug (double flag=true)
bool	isUsingDebug () const
virtual bool	isValid () const
Public Member Functions inherited from woss::WossResPressDb
	WossResPressDb ()=default
virtual	~WossResPressDb ()=default

Protected Member Functions
virtual bool	writeMap () override
virtual bool	importMap () override
Protected Member Functions inherited from woss::ResPressureTxtDb
void	printScreenMap ()
std::complex< double >	readMap (const CoordZ &tx, const CoordZ &rx, const double frequency, const Time &time_value) const
Protected Member Functions inherited from woss::WossDb
PathName	getPathName (const std::string &complete_path) const

Additional Inherited Members
Static Public Member Functions inherited from woss::ResPressureTxtDb
static void	setSpaceSampling (double value)
static double	getSpaceSampling ()
Protected Types inherited from woss::ResPressureTxtDb
using	TimeMap = std::map< time_t, std::complex< double > >
using	TMIter = TimeMap::iterator
using	TMCIter = TimeMap::const_iterator
using	TMRIter = TimeMap::reverse_iterator
using	FreqMap = std::map< PDouble, TimeMap >
using	FMIter = FreqMap::iterator
using	FMCIter = FreqMap::const_iterator
using	FMRIter = FreqMap::reverse_iterator
using	RxMap = std::map< CoordZ, FreqMap, CoordComparator< ResPressureTxtDb, CoordZ > >
using	RxMIter = RxMap::iterator
using	RxCIter = RxMap::const_iterator
using	RxMRIter = RxMap::reverse_iterator
using	PressureMatrix = std::map< CoordZ, RxMap, CoordComparator< ResPressureTxtDb, CoordZ > >
using	PMIter = PressureMatrix::iterator
using	PMCIter = PressureMatrix::const_iterator
using	PMRIter = PressureMatrix::reverse_iterator
using	PMCRIter = PressureMatrix::const_reverse_iterator
Protected Attributes inherited from woss::ResPressureTxtDb
PressureMatrix	pressure_map
int	initial_pressmap_size
bool	has_been_modified
Protected Attributes inherited from woss::WossTextualDb
std::fstream	textual_db
Protected Attributes inherited from woss::WossDb
std::string	db_name
bool	debug
Static Protected Attributes inherited from woss::ResPressureTxtDb
static double	space_sampling = 0.0

Detailed Description

Binary WossDb for Pressure.

ResPressureBinDb implements WossTextualDb and WossResPressDb for storing calculated Pressure into a binary file

Constructor & Destructor Documentation

ResPressureBinDb()

woss::ResPressureBinDb::ResPressureBinDb ( const std::string & name )

inline

ResPressureBinDb constructor

Parameters

name	pathname of database

References woss::ResPressureTxtDb::ResPressureTxtDb().

Here is the call graph for this function:

~ResPressureBinDb()

virtual woss::ResPressureBinDb::~ResPressureBinDb ( )

overridevirtualdefault

Member Function Documentation

importMap()

bool ResPressureBinDb::importMap ( )

overrideprotectedvirtual

Imports the formatted binary file into pressure_map. The format is the following:
tx latitude, tx longitude, tx depth, rx latitude, rx longitude, rx depth, frequency, real pressure, imag pressure

Returns

true if operation succeeds, false otherwise

Reimplemented from woss::ResPressureTxtDb.

References woss::WossDb::db_name, woss::WossDb::debug, woss::ResPressureTxtDb::initial_pressmap_size, woss::ResPressureTxtDb::pressure_map, woss::ResPressureTxtDb::printScreenMap(), and woss::WossTextualDb::textual_db.

Here is the call graph for this function:

writeMap()

bool ResPressureBinDb::writeMap ( )

overrideprotectedvirtual

Writes pressure_map to binary file. The format is the following:
tx latitude, tx longitude, tx depth, rx latitude, rx longitude, rx depth, frequency, real pressure, imag pressure

Returns

true if operation succeeds, false otherwise

Reimplemented from woss::ResPressureTxtDb.

References woss::WossDb::db_name, woss::WossDb::debug, woss::ResPressureTxtDb::pressure_map, woss::ResPressureTxtDb::printScreenMap(), and woss::WossTextualDb::textual_db.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• woss/woss_db/res-pressure-bin-db.h
• woss/woss_db/res-pressure-bin-db.cpp
