Complex attenuated pressure class. More...

#include <pressure-definitions.h>

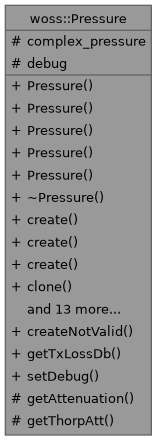

Collaboration diagram for woss::Pressure:

Public Member Functions
	Pressure (double real=0.0, double imag=0.0)
	Pressure (const std::complex< double > &complex_press)
	Pressure (const TimeArr &time_arr)
	Pressure (const Pressure &copy)=default
	Pressure (Pressure &&tmp)=default
virtual	~Pressure ()=default
virtual std::unique_ptr< Pressure >	create (double real=0.0, double imag=0.0) const
virtual std::unique_ptr< Pressure >	create (const std::complex< double > &complex_press) const
virtual std::unique_ptr< Pressure >	create (const TimeArr &time_arr) const
virtual std::unique_ptr< Pressure >	clone () const
virtual std::unique_ptr< Pressure[]>	createArray (unsigned int array_size) const
	operator std::complex< double > () const
void	clear ()
double	real () const
double	imag () const
double	abs () const
double	phase () const
Pressure	sqrt () const
virtual bool	isValid () const
double	getTxLossDb () const
virtual bool	checkAttenuation (double distance, double frequency)
Pressure &	operator= (const Pressure &copy)=default
Pressure &	operator= (Pressure &&tmp)=default

Static Public Member Functions
static constexpr std::complex< double >	createNotValid ()
static constexpr double	getTxLossDb (const std::complex< double > &val)
static void	setDebug (bool flag)

Protected Member Functions
virtual double	getAttenuation (double dist, double freq) const
constexpr double	getThorpAtt (double frequency) const

Protected Attributes
std::complex< double >	complex_pressure

Static Protected Attributes
static bool	debug = false

Friends
const Pressure	operator+ (const Pressure &left, const Pressure &right)
const Pressure	operator- (const Pressure &left, const Pressure &right)
const Pressure	operator/ (const Pressure &left, const Pressure &right)
const Pressure	operator* (const Pressure &left, const Pressure &right)
Pressure &	operator+= (Pressure &left, const Pressure &right)
Pressure &	operator-= (Pressure &left, const Pressure &right)
Pressure &	operator/= (Pressure &left, const Pressure &right)
Pressure &	operator*= (Pressure &left, const Pressure &right)
bool	operator== (const Pressure &left, const Pressure &right)
bool	operator!= (const Pressure &left, const Pressure &right)
std::ostream &	operator<< (std::ostream &os, const Pressure &instance)

Detailed Description

Complex attenuated pressure class.

The Pressure class stores a complex<double> acoustic pressure value for attenuation purposes. Pressure values are adimensional: complex pressure represented has to be considered in conjunction with transmitted pressure. Pressure also provides full arithmetic capability and a attenuation coherency check

Constructor & Destructor Documentation

◆ Pressure() [1/5]

Pressure::Pressure	(	double	real = 0.0,
		double	imag = 0.0 )

Pressure constructor

Parameters

real	real part
imag	imaginary part

References complex_pressure, imag(), and real().

Referenced by operator!=, operator*, operator*=, operator+, operator+=, operator-, operator-=, operator/, operator/=, operator<<, operator=(), operator=(), operator==, Pressure(), Pressure(), and sqrt().

Here is the call graph for this function:

◆ Pressure() [2/5]

Pressure::Pressure ( const std::complex< double > & complex_press )

Pressure constructor

Parameters

complex_press complex<double> value

References complex_pressure.

◆ Pressure() [3/5]

Pressure::Pressure ( const TimeArr & time_arr )

explicit

Constructs a Pressure from a TimeArr

Parameters

time_arr valid TimeArr const reference

References complex_pressure, createNotValid(), and woss::TimeArr::isValid().

Here is the call graph for this function:

◆ Pressure() [4/5]

woss::Pressure::Pressure ( const Pressure & copy )

default

References Pressure().

Here is the call graph for this function:

◆ Pressure() [5/5]

woss::Pressure::Pressure ( Pressure && tmp )

default

References Pressure().

Here is the call graph for this function:

◆ ~Pressure()

virtual woss::Pressure::~Pressure ( )

virtualdefault

Member Function Documentation

◆ abs()

double woss::Pressure::abs ( ) const

inline

Gets the absolute value

Returns: double absolute value

References complex_pressure.

Referenced by getTxLossDb(), and WossUnitTest::testPressure().

◆ checkAttenuation()

bool Pressure::checkAttenuation	(	double	distance,
		double	frequency )

virtual

Checks if the attuenuation provided by the complex pressure is truly an attenuation, e.g. if abs < 1. If not, replace the pressure with the attenuation provided by Thorp absorption process at given frequency along the given distance

Parameters

distance	distance value in meters
frequency	frequency value in hertz

Returns: true if correction was applied, false otherwise

References complex_pressure, debug, getAttenuation(), and phase().

Referenced by woss::TimeArr::checkPressureAttenuation().

Here is the call graph for this function:

◆ clear()

void woss::Pressure::clear ( )

inline

References complex_pressure.

◆ clone()

virtual std::unique_ptr< Pressure > woss::Pressure::clone ( ) const

inlinevirtual

Pressure virtual factory method

Returns: std::unique_ptr to a heap-created copy of this instance

Referenced by WossUnitTest::testPressure().

◆ create() [1/3]

virtual std::unique_ptr< Pressure > woss::Pressure::create ( const std::complex< double > & complex_press ) const

inlinevirtual

Pressure virtual factory method

Parameters

complex_press complex<double> value

Returns: std::unique_ptr to a heap-created Pressure object

◆ create() [2/3]

virtual std::unique_ptr< Pressure > woss::Pressure::create ( const TimeArr & time_arr ) const

inlinevirtual

Pressure virtual factory method

Parameters

time_arr valid TimeArr const reference

Returns: std::unique_ptr to a heap-created Pressure object

◆ create() [3/3]

virtual std::unique_ptr< Pressure > woss::Pressure::create	(	double	real = 0.0,
		double	imag = 0.0 ) const

inlinevirtual

Pressure virtual factory method

Parameters

real	real part
imag	imaginary part

Returns: a std::unique_ptr to a heap-created Pressure object

References imag(), and real().

Referenced by WossUnitTest::testPressure().

Here is the call graph for this function:

◆ createArray()

virtual std::unique_ptr< Pressure[]> woss::Pressure::createArray ( unsigned int array_size ) const

inlinevirtual

Pressure virtual factory method

Parameters

array_size size of array

Returns: std::unique_ptr to a heap-created array of size array_size

Referenced by WossUnitTest::testPressure().

◆ createNotValid()

constexpr std::complex< double > woss::Pressure::createNotValid ( )

inlinestaticconstexpr

Creates an instance not valid

Returns: an instance not valid ( e.g. (+inf, +inf) )

Referenced by woss::TimeArr::createNotValid(), woss::WossManagerResDb::dbGetPressure(), woss::WossDbManager::getPressure(), woss::ResPressureTxtDb::getValue(), woss::WossManager::getWossPressure(), woss::TimeArr::isValid(), Pressure(), woss::ArrAscResReader::readAvgPressure(), woss::ArrBinResReader::readAvgPressure(), woss::ShdResReader::readAvgPressure(), woss::ResPressureTxtDb::readMap(), woss::ShdResReader::readPressure(), woss::ShdResReader::readTimeArr(), WossUnitTest::testPressure(), and woss::TimeArr::TimeArr().

◆ getAttenuation()

double Pressure::getAttenuation	(	double	dist,
		double	freq ) const

protectedvirtual

Gets the linear acoustic attenuation incurred at given frequency along the given distance

Parameters

dist	distance in meters
freq	frequency in hertz

Returns: linear attenuation

References getThorpAtt().

Referenced by checkAttenuation().

Here is the call graph for this function:

◆ getThorpAtt()

double Pressure::getThorpAtt ( double frequency ) const

constexprprotected

Gets the acoustic attenuation (in db re uPa / m ) given by Thorp absorption process incurred at given frequency

Parameters

freq	frequency in hertz

Returns: attenuation in db re uPa / m

Referenced by getAttenuation().

◆ getTxLossDb() [1/2]

double woss::Pressure::getTxLossDb ( ) const

inline

Returns the Transmission Loss measured in db

Returns: the Transmission Loss [db]

References abs(), complex_pressure, and isValid().

Referenced by WossMPropagation::computeGain(), woss::ArrAscResReader::getArrAscFile(), woss::ArrBinResReader::getArrBinFile(), woss::TimeArr::lowerBoundTxLoss(), woss::TimeArr::operator<<, and WossChannelModule::schedulePacketCopies().

Here is the call graph for this function:

◆ getTxLossDb() [2/2]

constexpr double woss::Pressure::getTxLossDb ( const std::complex< double > & val )

inlinestaticconstexpr

Returns the Transmission Loss measured in db

Returns: the Transmission Loss [db]

Referenced by woss::ShdResReader::getShdFile(), woss::TimeArr::lowerBoundTxLoss(), operator<<, and WossUnitTest::testPressure().

◆ imag()

double woss::Pressure::imag ( ) const

inline

Gets the imaginary part

Returns: double imaginary part

References complex_pressure.

Referenced by create(), Pressure(), and WossUnitTest::testPressure().

◆ isValid()

virtual bool woss::Pressure::isValid ( ) const

inlinevirtual

Checks the validity of complex pressure provided

Returns: true if complex pressure is valid, false otherwise

References complex_pressure.

Referenced by getTxLossDb(), woss::TimeArr::insertValue(), woss::TimeArr::sumValue(), and woss::TimeArr::TimeArr().

◆ operator std::complex< double >()

woss::Pressure::operator std::complex< double > ( ) const

inline

complex<double> operator for implicit casting

Returns: a copy of complex_pressure

References complex_pressure.

◆ operator=() [1/2]

Pressure & woss::Pressure::operator= ( const Pressure & copy )

default

References Pressure().

Here is the call graph for this function:

◆ operator=() [2/2]

Pressure & woss::Pressure::operator= ( Pressure && tmp )

default

References Pressure().

Here is the call graph for this function:

◆ phase()

double woss::Pressure::phase ( ) const

inline

Gets the phase (arg) value

Returns: double phase (arg) value

References complex_pressure.

Referenced by checkAttenuation().

◆ real()

double woss::Pressure::real ( ) const

inline

Gets the real part

Returns: double real part

References complex_pressure.

Referenced by create(), Pressure(), and WossUnitTest::testPressure().

◆ setDebug()

void woss::Pressure::setDebug ( bool flag )

inlinestatic

Sets debug for the whole class

Parameters

flag	debug value

References debug.

◆ sqrt()

Pressure woss::Pressure::sqrt ( ) const

inline

Gets the square root of a complex number

Returns: double square root value

References complex_pressure, and Pressure().

Here is the call graph for this function:

◆ operator!=

bool operator!=	(	const Pressure &	left,
		const Pressure &	right )

friend

Inequality operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left != right, false otherwise

References complex_pressure, and Pressure().

◆ operator*

const Pressure operator*	(	const Pressure &	left,
		const Pressure &	right )

friend

Multiplication operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References complex_pressure, and Pressure().

◆ operator*=

Pressure & operator*=	(	Pressure &	left,
		const Pressure &	right )

friend

Compound assignment multiplication operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References complex_pressure, and Pressure().

◆ operator+

const Pressure operator+	(	const Pressure &	left,
		const Pressure &	right )

friend

Sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References complex_pressure, and Pressure().

◆ operator+=

Pressure & operator+=	(	Pressure &	left,
		const Pressure &	right )

friend

Compound assignment sum operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References complex_pressure, and Pressure().

◆ operator-

const Pressure operator-	(	const Pressure &	left,
		const Pressure &	right )

friend

Subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References complex_pressure, and Pressure().

◆ operator-=

Pressure & operator-=	(	Pressure &	left,
		const Pressure &	right )

friend

Compound assignment subtraction operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References complex_pressure, and Pressure().

◆ operator/

const Pressure operator/	(	const Pressure &	left,
		const Pressure &	right )

friend

Division operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References complex_pressure, and Pressure().

◆ operator/=

Pressure & operator/=	(	Pressure &	left,
		const Pressure &	right )

friend

Compound assignment division operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References complex_pressure, and Pressure().

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const Pressure &	instance )

friend

<< operator

Parameters

os	left operand ostream reference
instance	right operand const Pressure reference

Returns: os reference after the operation

References complex_pressure, getTxLossDb(), and Pressure().

◆ operator==

bool operator==	(	const Pressure &	left,
		const Pressure &	right )

friend

Equality operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left == right, false otherwise

References complex_pressure, and Pressure().

Member Data Documentation

◆ complex_pressure

std::complex< double > woss::Pressure::complex_pressure

protected

Complex acoustic pressure

Referenced by abs(), checkAttenuation(), clear(), getTxLossDb(), imag(), isValid(), operator std::complex< double >(), operator!=, operator*, operator*=, operator+, operator+=, operator-, operator-=, operator/, operator/=, operator<<, operator==, phase(), Pressure(), Pressure(), Pressure(), real(), and sqrt().

◆ debug

bool Pressure::debug = false

staticprotected

Debug flag

Referenced by checkAttenuation(), and setDebug().

The documentation for this class was generated from the following files:

woss/woss_def/pressure-definitions.h
woss/woss_def/pressure-definitions.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Pressure() [1/5]

◆ Pressure() [2/5]

◆ Pressure() [3/5]

◆ Pressure() [4/5]

◆ Pressure() [5/5]

◆ ~Pressure()

Member Function Documentation

◆ abs()

◆ checkAttenuation()

◆ clear()

◆ clone()

◆ create() [1/3]

◆ create() [2/3]

◆ create() [3/3]

◆ createArray()

◆ createNotValid()

◆ getAttenuation()

◆ getThorpAtt()

◆ getTxLossDb() [1/2]

◆ getTxLossDb() [2/2]

◆ imag()

◆ isValid()

◆ operator std::complex< double >()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ phase()

◆ real()

◆ setDebug()

◆ sqrt()

Friends And Related Symbol Documentation

◆ operator!=

◆ operator*

◆ operator*=

◆ operator+

◆ operator+=

◆ operator-

◆ operator-=

◆ operator/

◆ operator/=

◆ operator<<

◆ operator==

Member Data Documentation

◆ complex_pressure

◆ debug
