#include <res-time-arr-bin-db.h>

Inheritance diagram for woss::ResTimeArrBinDb:

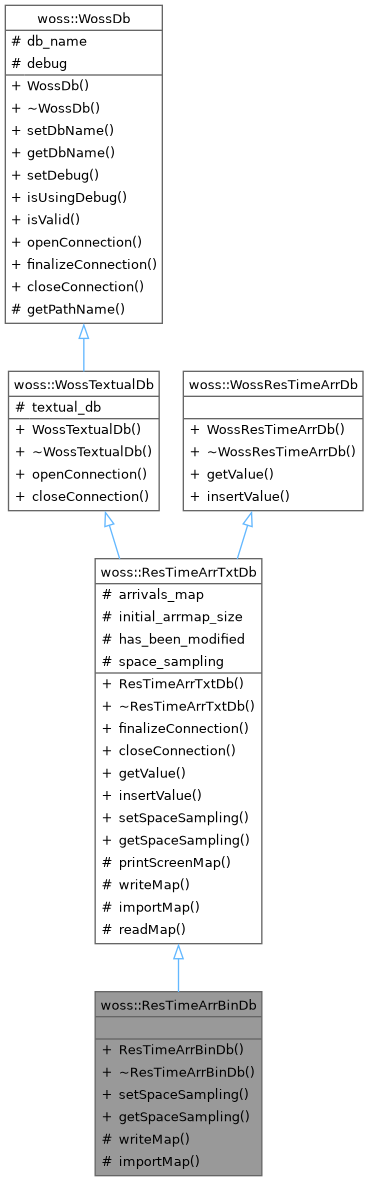

Collaboration diagram for woss::ResTimeArrBinDb:

Public Member Functions
	ResTimeArrBinDb (const std::string &name)
virtual	~ResTimeArrBinDb () override=default
Public Member Functions inherited from woss::ResTimeArrTxtDb
	ResTimeArrTxtDb (const std::string &name)
virtual	~ResTimeArrTxtDb () override=default
virtual bool	finalizeConnection () override
virtual bool	closeConnection () override
virtual std::unique_ptr< TimeArr >	getValue (const CoordZ &coord_tx, const CoordZ &coord_rx, const double frequency, const Time &time_value) const override
virtual bool	insertValue (const CoordZ &coord_tx, const CoordZ &coord_rx, const double frequency, const Time &time_value, const TimeArr &channel) override
Public Member Functions inherited from woss::WossTextualDb
	WossTextualDb (const std::string &name)
virtual	~WossTextualDb () override
virtual bool	openConnection () override
Public Member Functions inherited from woss::WossDb
	WossDb (const std::string &name)
virtual	~WossDb ()=default
void	setDbName (const std::string &pathname)
std::string	getDbName () const
void	setDebug (double flag=true)
bool	isUsingDebug () const
virtual bool	isValid () const
Public Member Functions inherited from woss::WossResTimeArrDb
	WossResTimeArrDb ()=default
virtual	~WossResTimeArrDb ()=default

Static Public Member Functions
static void	setSpaceSampling (double value)
static double	getSpaceSampling ()
Static Public Member Functions inherited from woss::ResTimeArrTxtDb
static void	setSpaceSampling (double value)
static double	getSpaceSampling ()

Protected Member Functions
virtual bool	writeMap () override
virtual bool	importMap () override
Protected Member Functions inherited from woss::ResTimeArrTxtDb
void	printScreenMap ()
std::optional< std::unique_ptr< TimeArr > >	readMap (const CoordZ &tx, const CoordZ &rx, const double frequency, const Time &time_value) const
Protected Member Functions inherited from woss::WossDb
PathName	getPathName (const std::string &complete_path) const

Additional Inherited Members
Protected Types inherited from woss::ResTimeArrTxtDb
using	TimeMap = std::map< time_t, std::unique_ptr<TimeArr> >
using	TMIter = TimeMap::iterator
using	TMCIter = TimeMap::const_iterator
using	TMRIter = TimeMap::reverse_iterator
using	FreqMap = std::map< PDouble, TimeMap >
using	FMIter = FreqMap::iterator
using	FMCIter = FreqMap::const_iterator
using	FMRIter = FreqMap::reverse_iterator
using	RxMap = std::map< CoordZ, FreqMap, CoordComparator< ResTimeArrTxtDb, CoordZ > >
using	RxMIter = RxMap::iterator
using	RxMCIter = RxMap::const_iterator
using	RxMRIter = RxMap::reverse_iterator
using	ArrMatrix = std::map< CoordZ, RxMap, CoordComparator< ResTimeArrTxtDb, CoordZ > >
using	AMXIter = ArrMatrix::iterator
using	AMXCIter = ArrMatrix::const_iterator
using	AMXRIter = ArrMatrix::reverse_iterator
using	AMXCRIter = ArrMatrix::const_reverse_iterator
Protected Attributes inherited from woss::ResTimeArrTxtDb
ArrMatrix	arrivals_map
int	initial_arrmap_size
bool	has_been_modified
Protected Attributes inherited from woss::WossTextualDb
std::fstream	textual_db
Protected Attributes inherited from woss::WossDb
std::string	db_name
bool	debug
Static Protected Attributes inherited from woss::ResTimeArrTxtDb
static double	space_sampling = 0.0

Detailed Description

Binary WossDb for TimeArr.

ResTimeArrBinDb implements WossTextualDb and WossResTimeArrDb for storing calculated TimeArr into a binary file

Constructor & Destructor Documentation

◆ ResTimeArrBinDb()

woss::ResTimeArrBinDb::ResTimeArrBinDb ( const std::string & name )

inline

ResTimeArrBinDb constructor

Parameters

name	pathname of database

References woss::ResTimeArrTxtDb::ResTimeArrTxtDb().

Here is the call graph for this function:

◆ ~ResTimeArrBinDb()

virtual woss::ResTimeArrBinDb::~ResTimeArrBinDb ( )

overridevirtualdefault

Member Function Documentation

◆ getSpaceSampling()

double woss::ResTimeArrBinDb::getSpaceSampling ( )

inlinestatic

References woss::ResTimeArrTxtDb::space_sampling.

◆ importMap()

bool ResTimeArrBinDb::importMap ( )

overrideprotectedvirtual

Imports the binary file into arrivals_map. The format is the following:
tx latitude, tx longitude, tx depth, rx latitude, rx longitude, rx depth, frequency, total channel taps, delay-i-th real pressure-i-th, imag pressure-i-th

Returns: true if operation succeeds, false otherwise

Reimplemented from woss::ResTimeArrTxtDb.

References woss::ResTimeArrTxtDb::arrivals_map, woss::DefHandler::createTimeArr(), woss::WossDb::db_name, woss::WossDb::debug, woss::ResTimeArrTxtDb::initial_arrmap_size, woss::Singleton< DefHandler >::instance(), woss::ResTimeArrTxtDb::printScreenMap(), and woss::WossTextualDb::textual_db.

Here is the call graph for this function:

◆ setSpaceSampling()

void woss::ResTimeArrBinDb::setSpaceSampling ( double value )

inlinestatic

References woss::ResTimeArrTxtDb::space_sampling.

◆ writeMap()

bool ResTimeArrBinDb::writeMap ( )

overrideprotectedvirtual

Writes arrivals_map into the binary file. The format is the following:
tx latitude, tx longitude, tx depth, rx latitude, rx longitude, rx depth, frequency, total channel taps, delay-i-th real pressure-i-th, imag pressure-i-th
