woss::SedimDeck41MarsdenDb Class Reference

WossDb for custom made NetCDF marsden square DECK41 Sediment database. More...

#include <sediment-deck41-marsden-db.h>

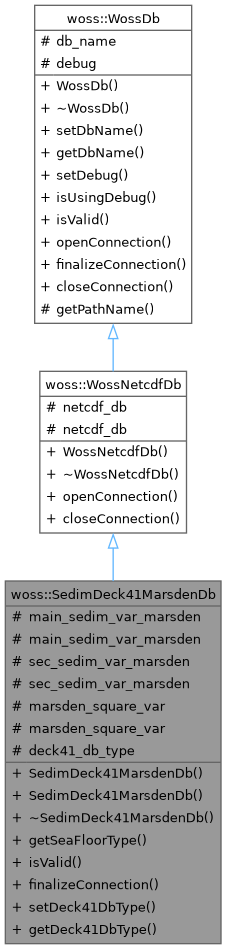

Inheritance diagram for woss::SedimDeck41MarsdenDb:

Collaboration diagram for woss::SedimDeck41MarsdenDb:

Public Member Functions
	SedimDeck41MarsdenDb (const std::string &name=DB_NAME_NOT_SET)
	SedimDeck41MarsdenDb (const std::string &name, DECK41DbType db_type)
virtual	~SedimDeck41MarsdenDb () override=default
Deck41Types	getSeaFloorType (const Marsden &marsden_square) const
virtual bool	isValid () const override
virtual bool	finalizeConnection () override
void	setDeck41DbType (DECK41DbType db_type)
DECK41DbType	getDeck41DbType () const
Public Member Functions inherited from woss::WossNetcdfDb
	WossNetcdfDb (const std::string &name)
virtual	~WossNetcdfDb () override
virtual bool	openConnection () override
virtual bool	closeConnection () override
Public Member Functions inherited from woss::WossDb
	WossDb (const std::string &name)
virtual	~WossDb ()=default
void	setDbName (const std::string &pathname)
std::string	getDbName () const
void	setDebug (double flag=true)
bool	isUsingDebug () const

Protected Attributes
netCDF::NcVar	main_sedim_var_marsden
NcVar *	main_sedim_var_marsden
netCDF::NcVar	sec_sedim_var_marsden
NcVar *	sec_sedim_var_marsden
netCDF::NcVar	marsden_square_var
NcVar *	marsden_square_var
DECK41DbType	deck41_db_type
Protected Attributes inherited from woss::WossNetcdfDb
std::unique_ptr< netCDF::NcFile >	netcdf_db = nullptr
std::unique_ptr< NcFile >	netcdf_db = nullptr
Protected Attributes inherited from woss::WossDb
std::string	db_name
bool	debug

Additional Inherited Members
Protected Member Functions inherited from woss::WossDb
PathName	getPathName (const std::string &complete_path) const

Detailed Description

WossDb for custom made NetCDF marsden square DECK41 Sediment database.

SedimDeck41MarsdenDb implements WossNetcdfDb for the custom made NetCDF marsden square DECK41 Sediment database

Constructor & Destructor Documentation

SedimDeck41MarsdenDb() [1/2]

SedimDeck41MarsdenDb::SedimDeck41MarsdenDb

(

const std::string &

name = DB_NAME_NOT_SET

)

SedimDeck41MarsdenDb constructor.

Parameters

name	pathname of database

References deck41_db_type, main_sedim_var_marsden, marsden_square_var, sec_sedim_var_marsden, and woss::WossNetcdfDb::WossNetcdfDb().

Here is the call graph for this function:

SedimDeck41MarsdenDb() [2/2]

SedimDeck41MarsdenDb::SedimDeck41MarsdenDb	(	const std::string &	name,
		DECK41DbType	db_type )

SedimDeck41MarsdenDb constructor.

Parameters

name	pathname of database
db_type	DECK41 db type

References deck41_db_type, main_sedim_var_marsden, marsden_square_var, sec_sedim_var_marsden, and woss::WossNetcdfDb::WossNetcdfDb().

Here is the call graph for this function:

~SedimDeck41MarsdenDb()

virtual woss::SedimDeck41MarsdenDb::~SedimDeck41MarsdenDb ( )

overridevirtualdefault

Member Function Documentation

finalizeConnection()

bool SedimDeck41MarsdenDb::finalizeConnection ( )

overridevirtual

Post openConnection() actions, used to create and initialize NetCDF variables

Returns

true if method was successful, false otherwise

Implements woss::WossDb.

References deck41_db_type, woss::DECK41_DB_V2_TYPE, main_sedim_var_marsden, marsden_square_var, woss::WossNetcdfDb::netcdf_db, and sec_sedim_var_marsden.

getDeck41DbType()

DECK41DbType woss::SedimDeck41MarsdenDb::getDeck41DbType ( ) const

inline

Returns the current DECK41 DB type

Returns

current deck41 db type

References deck41_db_type.

getSeaFloorType()

Deck41Types SedimDeck41MarsdenDb::getSeaFloorType

(

const Marsden &

marsden_square

)

const

Returns a Deck41Types for the given coordinates

Parameters

coordinates

const reference to a valid Marsden object

Returns

a Deck41Types value ( main type value, secondary type value )

References woss::WossDb::debug, deck41_db_type, woss::DECK41_DB_V1_TYPE, woss::DECK41_DB_V2_TYPE, main_sedim_var_marsden, marsden_square_var, and sec_sedim_var_marsden.

isValid()

virtual bool woss::SedimDeck41MarsdenDb::isValid ( ) const

inlineoverridevirtual

Checks the validity of SedimDeck41MarsdenDb

Returns

true if pathname is valid, false otherwise

Reimplemented from woss::WossDb.

References woss::WossDb::db_name, woss::DECK41_DB_INVALID_TYPE, deck41_db_type, and woss::WossDb::isValid().

Here is the call graph for this function:

setDeck41DbType()

void woss::SedimDeck41MarsdenDb::setDeck41DbType ( DECK41DbType db_type )

inline

Sets the current DECK41 Db type

Parameters

db_type

DECK41DbType

References deck41_db_type.

Referenced by woss::SedimDeck41DbCreator::initializeSedimDb().

Member Data Documentation

deck41_db_type

DECK41DbType woss::SedimDeck41MarsdenDb::deck41_db_type

protected

DECK41 database type

Referenced by finalizeConnection(), getDeck41DbType(), getSeaFloorType(), isValid(), SedimDeck41MarsdenDb(), SedimDeck41MarsdenDb(), and setDeck41DbType().

main_sedim_var_marsden [1/2]

NcVar* woss::SedimDeck41MarsdenDb::main_sedim_var_marsden

protected

main_sedim_var_marsden [2/2]

netCDF::NcVar woss::SedimDeck41MarsdenDb::main_sedim_var_marsden

protected

NetCDF variable representing main DECK41 floortype

Referenced by finalizeConnection(), getSeaFloorType(), SedimDeck41MarsdenDb(), and SedimDeck41MarsdenDb().

marsden_square_var [1/2]

NcVar* woss::SedimDeck41MarsdenDb::marsden_square_var

protected

marsden_square_var [2/2]

netCDF::NcVar woss::SedimDeck41MarsdenDb::marsden_square_var

protected

NetCDF marsden square variable

Referenced by finalizeConnection(), getSeaFloorType(), SedimDeck41MarsdenDb(), and SedimDeck41MarsdenDb().

sec_sedim_var_marsden [1/2]

NcVar* woss::SedimDeck41MarsdenDb::sec_sedim_var_marsden

protected

sec_sedim_var_marsden [2/2]

netCDF::NcVar woss::SedimDeck41MarsdenDb::sec_sedim_var_marsden

protected

NetCDF variable representing secondary DECK41 floortype

Referenced by finalizeConnection(), getSeaFloorType(), SedimDeck41MarsdenDb(), and SedimDeck41MarsdenDb().

---

The documentation for this class was generated from the following files:

• woss/woss_db/sediment-deck41-marsden-db.h
• woss/woss_db/sediment-deck41-marsden-db.cpp
