woss::ShdData Class Reference

class for storing data of any acoustic toolbox SHD file More...

#include <ac-toolbox-shd-reader.h>

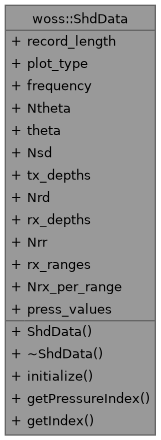

Collaboration diagram for woss::ShdData:

Public Member Functions
	ShdData ()=default
	~ShdData ()=default
void	initialize ()
int	getPressureIndex (double tx_depth, double rx_depth, double rx_range, double theta=0.0) const
int	getIndex (float value, float array[], int32_t array_size) const

Public Attributes
int32_t	record_length = 0
std::unique_ptr< char[]>	plot_type = nullptr
float	frequency = 0.0
int32_t	Ntheta = 0
std::unique_ptr< float[]>	theta = nullptr
int32_t	Nsd
std::unique_ptr< float[]>	tx_depths = nullptr
int32_t	Nrd = 0
std::unique_ptr< float[]>	rx_depths = nullptr
int32_t	Nrr = 0
std::unique_ptr< float[]>	rx_ranges = nullptr
int32_t	Nrx_per_range = 0
std::unique_ptr< std::complex< double >[] >	press_values = nullptr

Detailed Description

class for storing data of any acoustic toolbox SHD file

class ShdData stores Pressure provided by any acoustic toolbox SHD file

Constructor & Destructor Documentation

ShdData()

woss::ShdData::ShdData ( )

default

~ShdData()

woss::ShdData::~ShdData ( )

default

Member Function Documentation

getIndex()

int ShdData::getIndex	(	float	value,
		float	array[],
		int32_t	array_size ) const

Returns the index of given array associated to given value

Parameters

value	test value
array	valid pointer to an array
array_size	size of passed array

Returns

valid array index value

Referenced by getPressureIndex().

getPressureIndex()

int ShdData::getPressureIndex	(	double	tx_depth,
		double	rx_depth,
		double	rx_range,
		double	theta = 0.0 ) const

Returns the press_values index associated to given parameters

Parameters

tx_depth	transmitter depth [m]
rx_depth	receiver depth [m]
rx_range	receiver range [m]
theta	theta value

Returns

valid press_values index value

References getIndex(), Nrr, Nrx_per_range, Nsd, Ntheta, rx_depths, rx_ranges, theta, and tx_depths.

Referenced by WossUnitTest::testShdDataAndReaders().

Here is the call graph for this function:

initialize()

void woss::ShdData::initialize ( )

inline

Initializes the struct

References frequency, Nrd, Nrr, Nrx_per_range, Nsd, Ntheta, plot_type, press_values, record_length, rx_depths, rx_ranges, theta, and tx_depths.

Referenced by WossUnitTest::testShdDataAndReaders().

Member Data Documentation

frequency

float woss::ShdData::frequency = 0.0

Frequency value [Hz]

Referenced by initialize().

Nrd

int32_t woss::ShdData::Nrd = 0

Total number of receiver depths

Referenced by initialize(), and WossUnitTest::testShdDataAndReaders().

Nrr

int32_t woss::ShdData::Nrr = 0

Total number of receiver ranges

Referenced by getPressureIndex(), initialize(), and WossUnitTest::testShdDataAndReaders().

Nrx_per_range

int32_t woss::ShdData::Nrx_per_range = 0

Total number of receiver per range

Referenced by getPressureIndex(), and initialize().

Nsd

int32_t woss::ShdData::Nsd

Total number of transmitter depths

Referenced by getPressureIndex(), initialize(), and WossUnitTest::testShdDataAndReaders().

Ntheta

int32_t woss::ShdData::Ntheta = 0

Total number of theta values. See Bellhop code for more info

Referenced by getPressureIndex(), initialize(), and WossUnitTest::testShdDataAndReaders().

plot_type

std::unique_ptr<char[]> woss::ShdData::plot_type = nullptr

Plot typename. See Bellhop code for more info

Referenced by initialize().

press_values

std::unique_ptr< std::complex<double>[] > woss::ShdData::press_values = nullptr

Pointer to an array of complex<double> values [m]

Referenced by initialize().

record_length

int32_t woss::ShdData::record_length = 0

Record byte length of a binary SHD file. See Bellhop code for more info

Referenced by initialize().

rx_depths

std::unique_ptr<float[]> woss::ShdData::rx_depths = nullptr

Pointer to an array of receiver depths [m]

Referenced by getPressureIndex(), initialize(), and WossUnitTest::testShdDataAndReaders().

rx_ranges

std::unique_ptr<float[]> woss::ShdData::rx_ranges = nullptr

Pointer to an array of receiver ranges [m]

Referenced by getPressureIndex(), initialize(), and WossUnitTest::testShdDataAndReaders().

theta

std::unique_ptr<float[]> woss::ShdData::theta = nullptr

Pointer to an array of theta values

Referenced by getPressureIndex(), initialize(), and WossUnitTest::testShdDataAndReaders().

tx_depths

std::unique_ptr<float[]> woss::ShdData::tx_depths = nullptr

Pointer to an array of transmitter depths [m]

Referenced by getPressureIndex(), initialize(), and WossUnitTest::testShdDataAndReaders().

---

The documentation for this class was generated from the following files:

• woss/ac-toolbox-shd-reader.h
• woss/ac-toolbox-shd-reader.cpp
