base class for implementing acoustic-toolbox channel simulators (Bellhop, Kraken, etc...) More...

#include <ac-toolbox-woss.h>

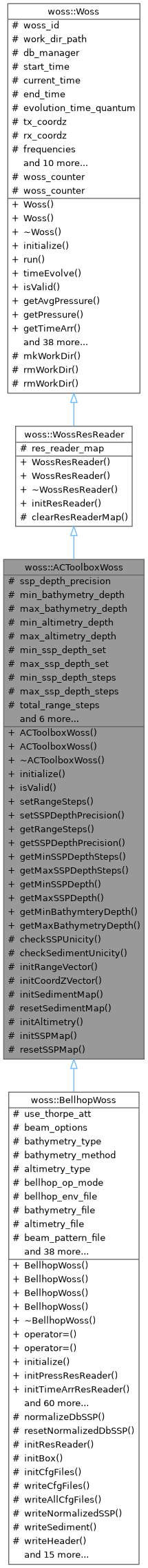

Inheritance diagram for woss::ACToolboxWoss:

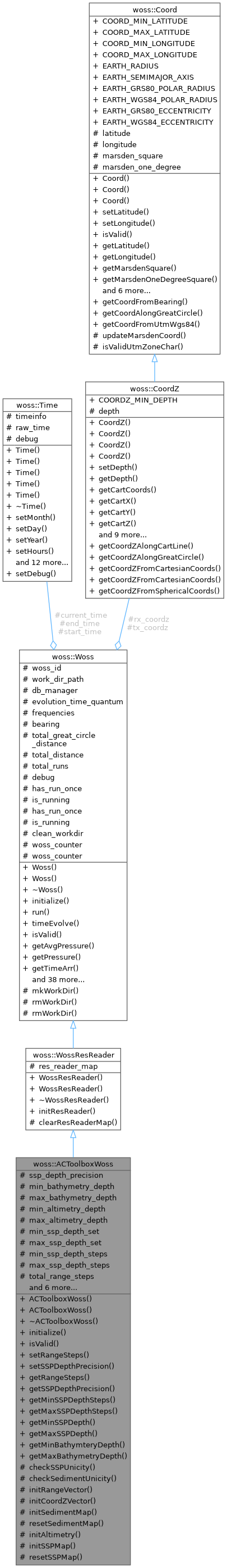

Collaboration diagram for woss::ACToolboxWoss:

Public Member Functions
	ACToolboxWoss ()

	ACToolboxWoss (const CoordZ &tx, const CoordZ &rx, const Time &start_t, const Time &end_t, double start_freq, double end_freq, double freq_step)

virtual	~ACToolboxWoss () override=default

virtual bool	initialize () override

virtual bool	isValid () const override

ACToolboxWoss &	setRangeSteps (int steps)

ACToolboxWoss &	setSSPDepthPrecision (long double precision)

int	getRangeSteps () const

long double	getSSPDepthPrecision () const

int	getMinSSPDepthSteps () const

int	getMaxSSPDepthSteps () const

double	getMinSSPDepth () const

double	getMaxSSPDepth () const

double	getMinBathymteryDepth () const

double	getMaxBathymetryDepth () const

Public Member Functions inherited from woss::WossResReader
	WossResReader ()=default

	WossResReader (const CoordZ &tx, const CoordZ &rx, const Time &start_t, const Time &end_t, double start_freq, double end_freq, double freq_step)

virtual	~WossResReader () override=default

virtual bool	initResReader (double curr_frequency)=0

Public Member Functions inherited from woss::Woss
	Woss ()

	Woss (const CoordZ &tx, const CoordZ &rx, const Time &start_t, const Time &end_t, double start_freq, double end_freq, double freq_step)

virtual	~Woss ()

virtual bool	run ()=0

virtual bool	timeEvolve (const Time &time_value)=0

virtual std::unique_ptr< Pressure >	getAvgPressure (double frequency, double tx_depth, double start_rx_depth=WOSS_MIN_DEPTH, double start_rx_range=WOSS_MIN_RANGE, double end_rx_depth=WOSS_MAX_DEPTH, double end_rx_range=WOSS_MAX_RANGE) const =0

virtual std::unique_ptr< Pressure >	getPressure (double frequency, double tx_depth, double rx_depth, double rx_range) const =0

virtual std::unique_ptr< TimeArr >	getTimeArr (double frequency, double tx_depth, double rx_depth, double rx_range) const =0

Woss &	setDebug (bool flag)

Woss &	setCleanWorkDir (bool flag)

Woss &	setWorkDirPath (const std::string &path)

Woss &	setWossDbManager (const std::shared_ptr< WossDbManager > &ptr)

Woss &	insertFrequency (double freq)

Woss &	insertFrequencies (double freq_start, double freq_end, double freq_step)

Woss &	setFrequencies (const FreqSet &freq_set)

Woss &	eraseFrequency (double freq)

Woss &	clearFrequencies ()

Woss &	setTotalRuns (int runs)

Woss &	setTxCoordZ (const CoordZ &coordz)

Woss &	setRxCoordZ (const CoordZ &coordz)

Woss &	setStartTime (const Time &start_t)

Woss &	setEndTime (const Time &end_t)

Woss &	setEvolutionTimeQuantum (double value)

int	getWossId () const

std::string	getWorkDirPath () const

const FreqSet &	getFrequencies () const

double	getMinFrequency () const

double	getMaxFrequency () const

FreqSCIt	freq_begin () const

FreqSCIt	freq_end () const

FreqSCRIt	freq_rbegin () const

FreqSCRIt	freq_rend () const

FreqSCIt	freq_lower_bound (double frequency) const

FreqSCIt	freq_upper_bound (double frequency) const

int	getTotalRuns () const

CoordZ	getTxCoordZ () const

CoordZ	getRxCoordZ () const

Time	getStartTime () const

Time	getCurrentTime () const

Time	getEndTime () const

double	getEvolutionTimeQuantum () const

double	getGreatCircleDistance () const

double	getDistance () const

double	getBearing () const

bool	usingDebug () const

virtual bool	isRunning () const

Protected Member Functions
virtual bool	checkSSPUnicity (const SSP &ptr) const

virtual bool	checkSedimentUnicity (const Sediment &ptr) const

virtual bool	initRangeVector ()

virtual bool	initCoordZVector ()

virtual bool	initSedimentMap ()

virtual void	resetSedimentMap ()

virtual bool	initAltimetry ()

virtual bool	initSSPMap ()

virtual void	resetSSPMap ()

Protected Member Functions inherited from woss::WossResReader
void	clearResReaderMap ()

Protected Member Functions inherited from woss::Woss
virtual bool	mkWorkDir (double curr_frequency, int curr_run=0)

virtual bool	rmWorkDir (double curr_frequency, int curr_run=0)

virtual bool	rmWorkDir ()

Protected Attributes
long double	ssp_depth_precision

double	min_bathymetry_depth

double	max_bathymetry_depth

double	min_altimetry_depth

double	max_altimetry_depth

std::set< double >	min_ssp_depth_set

std::set< double >	max_ssp_depth_set

int	min_ssp_depth_steps

int	max_ssp_depth_steps

int	total_range_steps

CoordZVector	coordz_vector

RangeVector	range_vector

SSPMap	ssp_map

SedimentMap	sediment_map

std::unique_ptr< Altimetry >	altimetry_value

bool	is_ssp_map_transformable

Protected Attributes inherited from woss::WossResReader
ResReaderMap	res_reader_map

Protected Attributes inherited from woss::Woss
int	woss_id

std::string	work_dir_path

std::shared_ptr< WossDbManager >	db_manager

Time	start_time

Time	current_time

Time	end_time

double	evolution_time_quantum

CoordZ	tx_coordz

CoordZ	rx_coordz

FreqSet	frequencies

double	bearing

double	total_great_circle_distance

double	total_distance

int	total_runs

bool	debug

std::atomic< bool >	has_run_once

std::atomic< bool >	is_running

bool	has_run_once

volatile bool	is_running

bool	clean_workdir

Additional Inherited Members
Static Protected Attributes inherited from woss::Woss
static std::atomic< int >	woss_counter = 0

static int	woss_counter

Detailed Description

base class for implementing acoustic-toolbox channel simulators (Bellhop, Kraken, etc...)

Class ACToolboxWoss should be the base class of any Woss that wants to implement any acoustic-toolbox channel simulator (Bellhop, Kraken, Fields, Sparc, etc...)

Constructor & Destructor Documentation

◆ ACToolboxWoss() [1/2]

ACToolboxWoss::ACToolboxWoss ( )

ACToolboxWoss default constructor. Default constructed objects are not valid

◆ ACToolboxWoss() [2/2]

ACToolboxWoss::ACToolboxWoss	(	const CoordZ &	tx,
		const CoordZ &	rx,
		const Time &	start_t,
		const Time &	end_t,
		double	start_freq,
		double	end_freq,
		double	freq_step
	)

ACToolboxWoss constructor

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_t	const reference to a valid Time object for SSP's averaging purposes ( start date time )
end_t	const reference to a valid Time object for SSP's averaging purposes ( end date time )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
freq_step	frequency step [Hz]

◆ ~ACToolboxWoss()

virtual woss::ACToolboxWoss::~ACToolboxWoss ( )

overridevirtualdefault

Member Function Documentation

◆ checkSedimentUnicity()

bool ACToolboxWoss::checkSedimentUnicity ( const Sediment & ptr ) const

protectedvirtual

Checks if the given Sediment is not equal to previous values

Parameters

value pointer to a valid Sediment object

Returns: true if input is unique, false otherwise

References sediment_map.

Referenced by initSedimentMap().

◆ checkSSPUnicity()

bool ACToolboxWoss::checkSSPUnicity ( const SSP & ptr ) const

protectedvirtual

Checks if the given SSP is not equal to previous values

Parameters

value pointer to a valid SSP object

Returns: true if input is unique, false otherwise

References ssp_map.

Referenced by initSSPMap().

◆ getMaxBathymetryDepth()

double woss::ACToolboxWoss::getMaxBathymetryDepth ( ) const

inline

Gets the maximum depth of bathymetry in use

Returns: maximum bathymetry depth [m]

References max_bathymetry_depth.

◆ getMaxSSPDepth()

double woss::ACToolboxWoss::getMaxSSPDepth ( ) const

inline

Gets the maximum depth of all SSP currently in use

Returns: maximum SSP depth [m]

References max_ssp_depth_set.

◆ getMaxSSPDepthSteps()

int woss::ACToolboxWoss::getMaxSSPDepthSteps ( ) const

inline

Gets the maximum number depth steps of all SSP currently in use

Returns: maximum SSP depth steps

References max_ssp_depth_steps.

◆ getMinBathymteryDepth()

double woss::ACToolboxWoss::getMinBathymteryDepth ( ) const

inline

Gets the minimum depth of bathymetry in use

Returns: mimimum bathymetry depth [m]

References min_bathymetry_depth.

◆ getMinSSPDepth()

double woss::ACToolboxWoss::getMinSSPDepth ( ) const

inline

Gets the minimum depth of all SSP currently in use

Returns: mimimum SSP depth [m]

References min_ssp_depth_set.

◆ getMinSSPDepthSteps()

int woss::ACToolboxWoss::getMinSSPDepthSteps ( ) const

inline

Gets the minimum number depth steps of all SSP currently in use

Returns: mimimum SSP depth steps

References min_ssp_depth_steps.

◆ getRangeSteps()

int woss::ACToolboxWoss::getRangeSteps ( ) const

inline

Gets the total number of range steps

Returns: total number of range steps

References total_range_steps.

◆ getSSPDepthPrecision()

long double woss::ACToolboxWoss::getSSPDepthPrecision ( ) const

inline

Gets the depth precision for all SSP that will be created

Returns: depth precision [m]

References ssp_depth_precision.

◆ initAltimetry()

bool ACToolboxWoss::initAltimetry ( )

protectedvirtual

Initializes altimetry_value

Returns: true if method succeeded, false otherwise

References altimetry_value, woss::Woss::db_manager, woss::Woss::debug, woss::Coord::getGreatCircleDistance(), max_altimetry_depth, max_bathymetry_depth, min_altimetry_depth, woss::Woss::rx_coordz, woss::CoordZ::setDepth(), total_range_steps, woss::Woss::tx_coordz, and woss::Woss::woss_id.

Referenced by initialize().

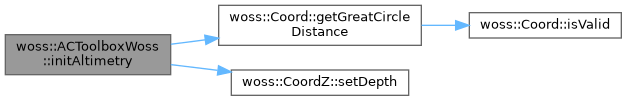

Here is the call graph for this function:

◆ initCoordZVector()

bool ACToolboxWoss::initCoordZVector ( )

protectedvirtual

Initializes coordz_vector

Returns: true if method succeeded, false otherwise

References woss::Woss::bearing, coordz_vector, woss::Woss::db_manager, woss::Woss::debug, woss::Coord::getCoordFromBearing(), woss::CoordZ::isValid(), max_bathymetry_depth, min_bathymetry_depth, range_vector, woss::Woss::rx_coordz, woss::CoordZ::setDepth(), woss::Woss::total_great_circle_distance, woss::Woss::tx_coordz, and woss::Woss::woss_id.

Referenced by initialize().

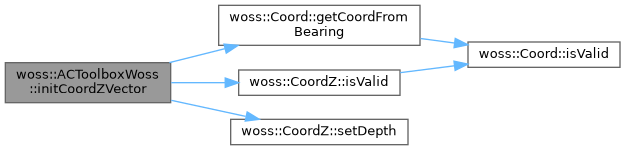

Here is the call graph for this function:

◆ initialize()

bool ACToolboxWoss::initialize ( )

overridevirtual

Initializes the enviroment for acoustic-toolbox channel simulator

Returns: true if method was successful, false otherwise

Implements woss::Woss.

Reimplemented in woss::BellhopWoss.

References altimetry_value, coordz_vector, initAltimetry(), initCoordZVector(), woss::Woss::initialize(), initRangeVector(), initSedimentMap(), initSSPMap(), max_altimetry_depth, max_bathymetry_depth, min_altimetry_depth, min_bathymetry_depth, range_vector, resetSedimentMap(), and resetSSPMap().

Referenced by woss::BellhopWoss::initialize().

Here is the call graph for this function:

◆ initRangeVector()

bool ACToolboxWoss::initRangeVector ( )

protectedvirtual

Initializes range_vector

Returns: true if method succeeded, false otherwise

References woss::Woss::debug, range_vector, woss::Woss::total_great_circle_distance, total_range_steps, and woss::Woss::woss_id.

Referenced by initialize().

◆ initSedimentMap()

bool ACToolboxWoss::initSedimentMap ( )

protectedvirtual

Initializes sediment_map

Returns: true if method succeeded, false otherwise

References checkSedimentUnicity(), coordz_vector, woss::Woss::db_manager, woss::Woss::debug, range_vector, sediment_map, woss::Woss::tx_coordz, and woss::Woss::woss_id.

Referenced by initialize().

Here is the call graph for this function:

◆ initSSPMap()

bool ACToolboxWoss::initSSPMap ( )

protectedvirtual

Initializes ssp_map

Returns: true if method succeeded, false otherwise

References checkSSPUnicity(), coordz_vector, woss::Woss::current_time, woss::Woss::db_manager, woss::Woss::debug, is_ssp_map_transformable, max_ssp_depth_set, max_ssp_depth_steps, min_ssp_depth_set, min_ssp_depth_steps, range_vector, ssp_map, woss::Woss::tx_coordz, and woss::Woss::woss_id.

Referenced by initialize().

Here is the call graph for this function:

◆ isValid()

bool ACToolboxWoss::isValid ( ) const

overridevirtual

Checks the validity of ACToolboxWoss

Returns: true if it's valid, false otherwise

Implements woss::Woss.

Reimplemented in woss::BellhopWoss.

References woss::Woss::end_time, woss::Woss::frequencies, woss::CoordZ::isValid(), woss::Time::isValid(), woss::Woss::rx_coordz, woss::Woss::start_time, and woss::Woss::tx_coordz.

Referenced by woss::BellhopWoss::isValid().

Here is the call graph for this function:

◆ resetSedimentMap()

void ACToolboxWoss::resetSedimentMap ( )

protectedvirtual

Resets sediment_map

References sediment_map.

Referenced by initialize().

◆ resetSSPMap()

void ACToolboxWoss::resetSSPMap ( )

protectedvirtual

Resets ssp_map

References ssp_map.

Referenced by initialize().

◆ setRangeSteps()

ACToolboxWoss & woss::ACToolboxWoss::setRangeSteps ( int steps )

inline

Sets the total number of range steps

Parameters

steps total number of range steps

References coordz_vector, range_vector, and total_range_steps.

Referenced by woss::BellhopCreator::initializeBhWoss().

◆ setSSPDepthPrecision()

ACToolboxWoss & woss::ACToolboxWoss::setSSPDepthPrecision ( long double precision )

inline

Sets the depth precision for all SSP that will be created

Parameters

precision depth precision [m]

References ssp_depth_precision.

Referenced by woss::BellhopCreator::initializeBhWoss().

Member Data Documentation

◆ altimetry_value

std::unique_ptr<Altimetry> woss::ACToolboxWoss::altimetry_value

protected

Altimetry in use

Referenced by initAltimetry(), initialize(), woss::BellhopWoss::timeEvolve(), woss::BellhopWoss::writeAltimetryFile(), woss::BellhopWoss::writeCfgFiles(), and woss::BellhopWoss::writeNormalizedSSP().

◆ coordz_vector

CoordZVector woss::ACToolboxWoss::coordz_vector

protected

Vector of all CoordZ involved. Its size is equal to total_range_steps

Referenced by woss::BellhopWoss::checkDepthOffsets(), initCoordZVector(), initialize(), initSedimentMap(), initSSPMap(), setRangeSteps(), and woss::BellhopWoss::writeBathymetryFile().

◆ is_ssp_map_transformable

bool woss::ACToolboxWoss::is_ssp_map_transformable

protected

True if ssp_map is transformable

See also: SSP::isTransformable()

Referenced by initSSPMap(), and woss::BellhopWoss::normalizeDbSSP().

◆ max_altimetry_depth

double woss::ACToolboxWoss::max_altimetry_depth

protected

Maximum altimetry depth [m]

Referenced by initAltimetry(), initialize(), and woss::BellhopWoss::writeAltimetryFile().

◆ max_bathymetry_depth

double woss::ACToolboxWoss::max_bathymetry_depth

protected

Maximum bathymetry depth [m]

Referenced by woss::BellhopWoss::checkDepthOffsets(), getMaxBathymetryDepth(), initAltimetry(), initCoordZVector(), initialize(), woss::BellhopWoss::initialize(), and woss::BellhopWoss::normalizeDbSSP().

◆ max_ssp_depth_set

std::set< double > woss::ACToolboxWoss::max_ssp_depth_set

protected

Set of all maximum SSP depth [m] currently in use

Referenced by getMaxSSPDepth(), initSSPMap(), and woss::BellhopWoss::normalizeDbSSP().

◆ max_ssp_depth_steps

int woss::ACToolboxWoss::max_ssp_depth_steps

protected

Maximum number of currently in use SSP depth steps

Referenced by getMaxSSPDepthSteps(), initSSPMap(), and woss::BellhopWoss::normalizeDbSSP().

◆ min_altimetry_depth

double woss::ACToolboxWoss::min_altimetry_depth

protected

Minimum altimetry depth [m]

Referenced by initAltimetry(), initialize(), woss::BellhopWoss::normalizeDbSSP(), and woss::BellhopWoss::writeAltimetryFile().

◆ min_bathymetry_depth

double woss::ACToolboxWoss::min_bathymetry_depth

protected

Minimum bathymetry depth [m]

Referenced by getMinBathymteryDepth(), initCoordZVector(), and initialize().

◆ min_ssp_depth_set

std::set< double > woss::ACToolboxWoss::min_ssp_depth_set

protected

Set of all minimum SSP depth [m] currently in use

Referenced by getMinSSPDepth(), initSSPMap(), and woss::BellhopWoss::normalizeDbSSP().

◆ min_ssp_depth_steps

int woss::ACToolboxWoss::min_ssp_depth_steps

protected

Miminum number of currently in use SSP depth steps

Referenced by getMinSSPDepthSteps(), initSSPMap(), and woss::BellhopWoss::normalizeDbSSP().

◆ range_vector

RangeVector woss::ACToolboxWoss::range_vector

protected

Vector of all ranges [m] involved. Its size is equal to total_range_steps

Referenced by initCoordZVector(), initialize(), initRangeVector(), initSedimentMap(), initSSPMap(), woss::BellhopWoss::normalizeDbSSP(), setRangeSteps(), woss::BellhopWoss::writeAltimetryFile(), and woss::BellhopWoss::writeBathymetryFile().

◆ sediment_map

SedimentMap woss::ACToolboxWoss::sediment_map

protected

Map of all Sediment involved. Its size is less or equal to total_range_steps

Referenced by checkSedimentUnicity(), initSedimentMap(), resetSedimentMap(), woss::BellhopWoss::writeBathymetryFile(), and woss::BellhopWoss::writeSediment().

◆ ssp_depth_precision

long double woss::ACToolboxWoss::ssp_depth_precision

protected

Depth precision of all SSP that will be created [m]

Referenced by getSSPDepthPrecision(), and setSSPDepthPrecision().

◆ ssp_map

SSPMap woss::ACToolboxWoss::ssp_map

protected

Map of all SSP involved. Its size is less or equal to total_range_steps

Referenced by checkSSPUnicity(), initSSPMap(), woss::BellhopWoss::normalizeDbSSP(), and resetSSPMap().

◆ total_range_steps

int woss::ACToolboxWoss::total_range_steps

protected

Number of range steps

Referenced by getRangeSteps(), initAltimetry(), initRangeVector(), woss::BellhopWoss::isValid(), and setRangeSteps().

The documentation for this class was generated from the following files:

woss/ac-toolbox-woss.h
woss/ac-toolbox-woss.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ACToolboxWoss() [1/2]

◆ ACToolboxWoss() [2/2]

◆ ~ACToolboxWoss()

Member Function Documentation

◆ checkSedimentUnicity()

◆ checkSSPUnicity()

◆ getMaxBathymetryDepth()

◆ getMaxSSPDepth()

◆ getMaxSSPDepthSteps()

◆ getMinBathymteryDepth()

◆ getMinSSPDepth()

◆ getMinSSPDepthSteps()

◆ getRangeSteps()

◆ getSSPDepthPrecision()

◆ initAltimetry()

◆ initCoordZVector()

◆ initialize()

◆ initRangeVector()

◆ initSedimentMap()

◆ initSSPMap()

◆ isValid()

◆ resetSedimentMap()

◆ resetSSPMap()

◆ setRangeSteps()

◆ setSSPDepthPrecision()

Member Data Documentation

◆ altimetry_value

◆ coordz_vector

◆ is_ssp_map_transformable

◆ max_altimetry_depth

◆ max_bathymetry_depth

◆ max_ssp_depth_set

◆ max_ssp_depth_steps

◆ min_altimetry_depth

◆ min_bathymetry_depth

◆ min_ssp_depth_set

◆ min_ssp_depth_steps

◆ range_vector

◆ sediment_map

◆ ssp_depth_precision

◆ ssp_map

◆ total_range_steps
