WossDb for the custom made NetCDF WOA2005 SSP database. More...

#include <ssp-woa2005-db.h>

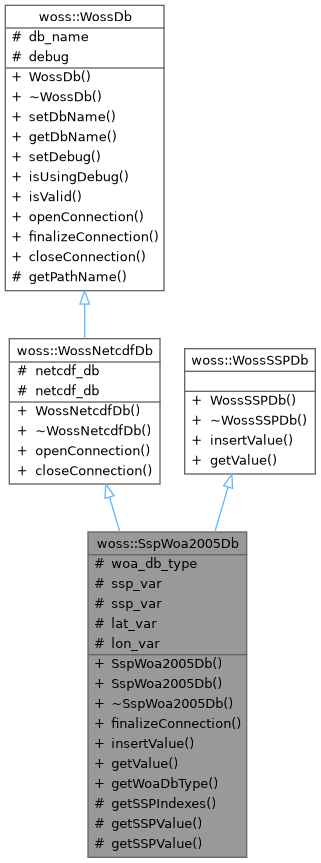

Inheritance diagram for woss::SspWoa2005Db:

Collaboration diagram for woss::SspWoa2005Db:

Public Member Functions
	SspWoa2005Db (const std::string &name)

	SspWoa2005Db (const std::string &name, WOADbType db_type)

virtual	~SspWoa2005Db () override=default

virtual bool	finalizeConnection () override

virtual bool	insertValue (const Coord &coordinates, const Time &time_value, const SSP &ssp_value) override

virtual std::unique_ptr< SSP >	getValue (const Coord &coordinates, const Time &time, long double ssp_depth_precision) const override

WOADbType	getWoaDbType () const

Public Member Functions inherited from woss::WossNetcdfDb
	WossNetcdfDb (const std::string &name)

virtual	~WossNetcdfDb () override

virtual bool	openConnection () override

virtual bool	closeConnection () override

Public Member Functions inherited from woss::WossDb
	WossDb (const std::string &name)

virtual	~WossDb ()=default

void	setDbName (const std::string &pathname)

std::string	getDbName () const

void	setDebug (double flag=true)

bool	isUsingDebug () const

virtual bool	isValid () const

Public Member Functions inherited from woss::WossSSPDb
	WossSSPDb ()=default

virtual	~WossSSPDb ()=default

Protected Member Functions
SSPIndexes	getSSPIndexes (const Coord &coordinates) const

void	getSSPValue (const Coord &coordinates, const SSPIndexes &indexes, double ssp_values[]) const

void	getSSPValue (const SSPIndexes &indexes, double ssp_values[]) const

Protected Member Functions inherited from woss::WossDb
PathName	getPathName (const std::string &complete_path) const

Protected Attributes
WOADbType	woa_db_type

netCDF::NcVar	ssp_var

NcVar *	ssp_var

netCDF::NcVar	lat_var

netCDF::NcVar	lon_var

Protected Attributes inherited from woss::WossNetcdfDb
std::unique_ptr< netCDF::NcFile >	netcdf_db = nullptr

std::unique_ptr< NcFile >	netcdf_db = nullptr

Protected Attributes inherited from woss::WossDb
std::string	db_name

bool	debug

Detailed Description

WossDb for the custom made NetCDF WOA2005 SSP database.

WossDb for the custom made NetCDF WOA2005 SSP database

Constructor & Destructor Documentation

◆ SspWoa2005Db() [1/2]

SspWoa2005Db::SspWoa2005Db ( const std::string & name )

SspWoa2005Db constructor

Parameters

name	pathname of database

◆ SspWoa2005Db() [2/2]

SspWoa2005Db::SspWoa2005Db	(	const std::string &	name,
		WOADbType	db_type
	)

SspWoa2005Db constructor

Parameters

name	pathname of database
db_type	WOADbType of the database

◆ ~SspWoa2005Db()

virtual woss::SspWoa2005Db::~SspWoa2005Db ( )

overridevirtualdefault

Member Function Documentation

◆ finalizeConnection()

bool SspWoa2005Db::finalizeConnection ( )

overridevirtual

Post openConnection() actions, used to create and initialize NetCDF variables

Returns: true if method was successful, false otherwise

Implements woss::WossDb.

References lat_var, lon_var, woss::WossNetcdfDb::netcdf_db, ssp_var, woa_db_type, woss::WOA_DB_TYPE_2005, and woss::WOA_DB_TYPE_2013.

◆ getSSPIndexes()

SSPIndexes SspWoa2005Db::getSSPIndexes ( const Coord & coordinates ) const

protected

Returns the indexes used by the NetCDF variable to get the SSP values

Parameters

coordinates const reference to a valid Coord object

Returns: SSPIndexes value

References woss::WossDb::debug, woss::Coord::getLatitude(), woss::Coord::getLongitude(), woa_db_type, woss::WOA_DB_TYPE_2005, and woss::WOA_DB_TYPE_2013.

Referenced by getValue().

Here is the call graph for this function:

◆ getSSPValue() [1/2]

void SspWoa2005Db::getSSPValue	(	const Coord &	coordinates,
		const SSPIndexes &	indexes,
		double	ssp_values[]
	)		const

protected

Insert the SSP values taken from the given indexes into the given array

Parameters

coordinates	const reference to a valid Coord object
indexes	const reference to a valid SSPIndexes object
ssp_values[]	array that will hold SSP values

References woss::WOA_DB_TYPE_2005, and woss::WOA_DB_TYPE_2013.

Referenced by getValue().

◆ getSSPValue() [2/2]

void woss::SspWoa2005Db::getSSPValue	(	const SSPIndexes &	indexes,
		double	ssp_values[]
	)		const

protected

Insert the SSP values taken from the given indexes into the given array

Parameters

indexes	const reference to a valid SSPIndexes object
ssp_values[]	array that will hold SSP values

◆ getValue()

std::unique_ptr< SSP > SspWoa2005Db::getValue	(	const Coord &	coordinates,
		const Time &	time,
		long double	ssp_depth_precision
	)		const

overridevirtual

Returns a std::unique_ptr to a heap-based SSP for given coordinates and date time if both present in the database. User is responsible of pointer's ownership

Parameters

coords	const reference to a valid Coord object
time	const reference to a valid Time object
ssp_depth_precision	ssp depth precision [m]

Returns: std::unique_ptr to a valid SSP if coordinates and time date are found, not valid otherwise

Implements woss::WossSSPDb.

References woss::WossDb::debug, getSSPIndexes(), getSSPValue(), and woss::Singleton< T >::instance().

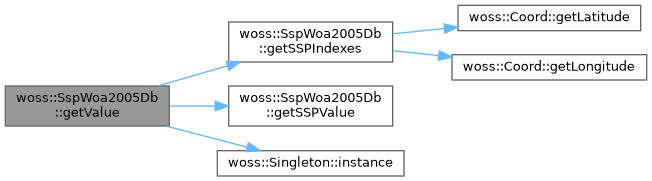

Here is the call graph for this function:

◆ getWoaDbType()

WOADbType woss::SspWoa2005Db::getWoaDbType ( ) const

inline

Returns current WOADbType

Returns: current WOADbType

References woa_db_type.

◆ insertValue()

bool SspWoa2005Db::insertValue	(	const Coord &	coordinates,
		const Time &	time_value,
		const SSP &	ssp_value
	)

overridevirtual

Inserts the given woss::SSP value in the database for given coordinates

Parameters

coordinates	const reference to a valid Coord object
time_value	const reference to a valid Time object
ssp_value	const Reference to SSP value to be inserted

Returns: true if method was successful, false otherwise

Implements woss::WossSSPDb.

Member Data Documentation

◆ lat_var

netCDF::NcVar woss::SspWoa2005Db::lat_var

protected

NetCDF variable representing latitude

Referenced by finalizeConnection().

◆ lon_var

netCDF::NcVar woss::SspWoa2005Db::lon_var

protected

NetCDF variable representing longitude

Referenced by finalizeConnection().

◆ ssp_var [1/2]

netCDF::NcVar woss::SspWoa2005Db::ssp_var

protected

NetCDF variable representing SSP

Referenced by finalizeConnection().

◆ ssp_var [2/2]

NcVar* woss::SspWoa2005Db::ssp_var

protected

◆ woa_db_type

WOADbType woss::SspWoa2005Db::woa_db_type

protected

WOA Db type

Referenced by finalizeConnection(), getSSPIndexes(), and getWoaDbType().

The documentation for this class was generated from the following files:

woss/woss_db/ssp-woa2005-db.h
woss/woss_db/ssp-woa2005-db.cpp
