Abstract class that implements WossManager. It adds computed results dbs control. More...

#include <woss-manager.h>

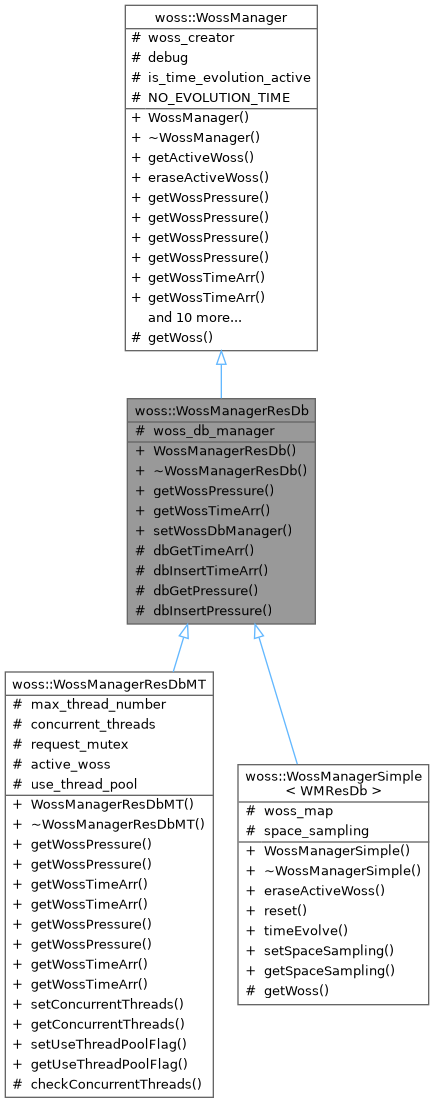

Inheritance diagram for woss::WossManagerResDb:

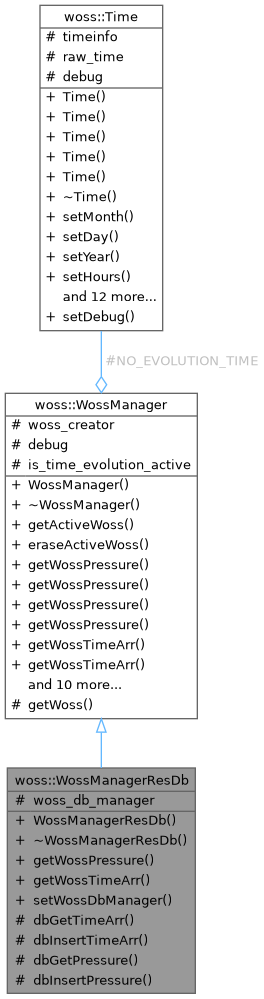

Collaboration diagram for woss::WossManagerResDb:

Public Member Functions
	WossManagerResDb ()

virtual	~WossManagerResDb () override=default

virtual std::unique_ptr< Pressure >	getWossPressure (const CoordZ &tx_coordz, const CoordZ &rx_coordz, double start_frequency, double end_frequency, const Time &time_value) override

virtual std::unique_ptr< TimeArr >	getWossTimeArr (const CoordZ &tx_coordz, const CoordZ &rx_coordz, double start_frequency, double end_frequency, const Time &time_value) override

WossManagerResDb &	setWossDbManager (const std::shared_ptr< WossDbManager > &ptr)

Public Member Functions inherited from woss::WossManager
	WossManager ()

virtual	~WossManager ()=default

virtual std::shared_ptr< Woss >	getActiveWoss (const CoordZ &tx, const CoordZ &rx, double start_frequency, double end_frequency)

virtual WossManager &	eraseActiveWoss (const CoordZ &tx, const CoordZ &rx, double start_frequency, double end_frequency)=0

virtual std::unique_ptr< Pressure >	getWossPressure (const CoordZ &tx_coordz, const CoordZ &rx_coordz, double start_frequency, double end_frequency, double time_value=0.0)

virtual PressureVector	getWossPressure (const CoordZPairVect &coordinates, double start_frequency, double end_frequency, const Time &time_value)

virtual PressureVector	getWossPressure (const CoordZPairVect &coordinates, double start_frequency, double end_frequency, double time_value=0.0)

virtual std::unique_ptr< TimeArr >	getWossTimeArr (const CoordZ &tx_coordz, const CoordZ &rx_coordz, double start_frequency, double end_frequency, double time_value=0.0)

virtual TimeArrVector	getWossTimeArr (const CoordZPairVect &coordinates, double start_frequency, double end_frequency, const Time &time_value)

virtual TimeArrVector	getWossTimeArr (const CoordZPairVect &coordinates, double start_frequency, double end_frequency, double time_value=0.0)

virtual bool	reset ()=0

virtual bool	timeEvolve (const Time &time_value)=0

WossManager &	setWossCreator (const std::shared_ptr< WossCreator > &ptr)

void	setTimeEvolutionActiveFlag (bool flag)

void	setDebugFlag (bool flag)

std::shared_ptr< WossCreator >	getWossCreator () const

bool	getTimeEvolutionActiveFlag () const

bool	getDebugFlag () const

Protected Member Functions
std::unique_ptr< TimeArr >	dbGetTimeArr (const CoordZ &tx, const CoordZ &rx, double frequency, const Time &time_value) const

void	dbInsertTimeArr (const CoordZ &tx, const CoordZ &rx, double frequency, const Time &time_value, const TimeArr &channel) const

std::unique_ptr< Pressure >	dbGetPressure (const CoordZ &tx, const CoordZ &rx, double frequency, const Time &time_value) const

void	dbInsertPressure (const CoordZ &tx, const CoordZ &rx, double frequency, const Time &time_value, const Pressure &press) const

Protected Member Functions inherited from woss::WossManager
virtual std::shared_ptr< Woss >	getWoss (const CoordZ &tx, const CoordZ &rx, double start_frequency, double end_frequency)=0

Protected Attributes
std::shared_ptr< WossDbManager >	woss_db_manager

Protected Attributes inherited from woss::WossManager
std::shared_ptr< WossCreator >	woss_creator

bool	debug

bool	is_time_evolution_active

Additional Inherited Members
Static Protected Attributes inherited from woss::WossManager
static const Time	NO_EVOLUTION_TIME = {1, 1, 1901 , 1, 1, 1}

Detailed Description

Abstract class that implements WossManager. It adds computed results dbs control.

WossManagerResDb adds control over optional computed dbs control. If dbs are present and valid requested TimeArr or Pressure is returned, no channel simulator is run

Constructor & Destructor Documentation

◆ WossManagerResDb()

WossManagerResDb::WossManagerResDb ( )

◆ ~WossManagerResDb()

virtual woss::WossManagerResDb::~WossManagerResDb ( )

overridevirtualdefault

Member Function Documentation

◆ dbGetPressure()

std::unique_ptr< Pressure > woss::WossManagerResDb::dbGetPressure	(	const CoordZ &	tx,
		const CoordZ &	rx,
		double	frequency,
		const Time &	time_value
	)		const

inlineprotected

Returns a unique_ptr<Pressure> from a WossPressureDb for given parameters. User is responsible of pointer's ownership

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
frequency	frequency [Hz]
time_value	const reference to a valid Time oject

Returns: std::unique_ptr to a valid Pressure object

References woss::Pressure::createNotValid(), woss::Singleton< T >::instance(), and woss_db_manager.

Referenced by getWossPressure(), and woss::WossManagerResDbMT::getWossPressure().

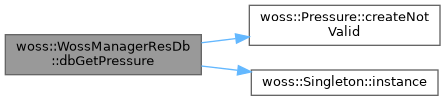

Here is the call graph for this function:

◆ dbGetTimeArr()

std::unique_ptr< TimeArr > woss::WossManagerResDb::dbGetTimeArr	(	const CoordZ &	tx,
		const CoordZ &	rx,
		double	frequency,
		const Time &	time_value
	)		const

inlineprotected

Returns a TimeArr* from a WossResTimeArrDb for given parameters. User is responsible of pointer's ownership

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
frequency	frequency [Hz]
time_value	const reference to a valid Time oject

Returns: std::unique_ptr to a valid TimeArr object

References woss::TimeArr::createNotValid(), woss::Singleton< T >::instance(), and woss_db_manager.

Referenced by getWossTimeArr(), and woss::WossManagerResDbMT::getWossTimeArr().

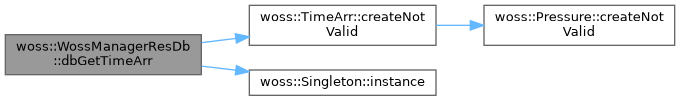

Here is the call graph for this function:

◆ dbInsertPressure()

void woss::WossManagerResDb::dbInsertPressure	(	const CoordZ &	tx,
		const CoordZ &	rx,
		double	frequency,
		const Time &	time_value,
		const Pressure &	press
	)		const

inlineprotected

Inserts a Pressure in a WossResPressureDb

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
frequency	frequency [Hz]
time_value	const reference to a valid Time oject
press	const reference to a valid Pressure to be inserted

References woss_db_manager.

Referenced by getWossPressure(), and woss::WossManagerResDbMT::getWossPressure().

◆ dbInsertTimeArr()

void woss::WossManagerResDb::dbInsertTimeArr	(	const CoordZ &	tx,
		const CoordZ &	rx,
		double	frequency,
		const Time &	time_value,
		const TimeArr &	channel
	)		const

inlineprotected

Inserts a TimeArr in a WossResTimeArrDb

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
frequency	frequency [Hz]
time_value	const reference to a valid Time oject
channel	const reference to a valid TimeArr to be inserted

References woss_db_manager.

Referenced by getWossTimeArr(), and woss::WossManagerResDbMT::getWossTimeArr().

◆ getWossPressure()

std::unique_ptr< Pressure > WossManagerResDb::getWossPressure	(	const CoordZ &	tx_coordz,
		const CoordZ &	rx_coordz,
		double	start_frequency,
		double	end_frequency,
		const Time &	time_value
	)

overridevirtual

Returns a valid unique_ptr<Pressure> for given parameters

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
time_value	const reference to a valid Time object

Returns: std::unique_ptr to a valid Pressure object

Implements woss::WossManager.

Reimplemented in woss::WossManagerResDbMT.

References dbGetPressure(), dbInsertPressure(), woss::WossManager::debug, woss::CoordZ::getCartDistance(), woss::CoordZ::getDepth(), woss::WossManager::getWoss(), woss::Singleton< T >::instance(), woss::WossManager::is_time_evolution_active, woss::WossManager::NO_EVOLUTION_TIME, and woss::WossManager::woss_creator.

Referenced by woss::WossManagerResDbMT::getWossPressure().

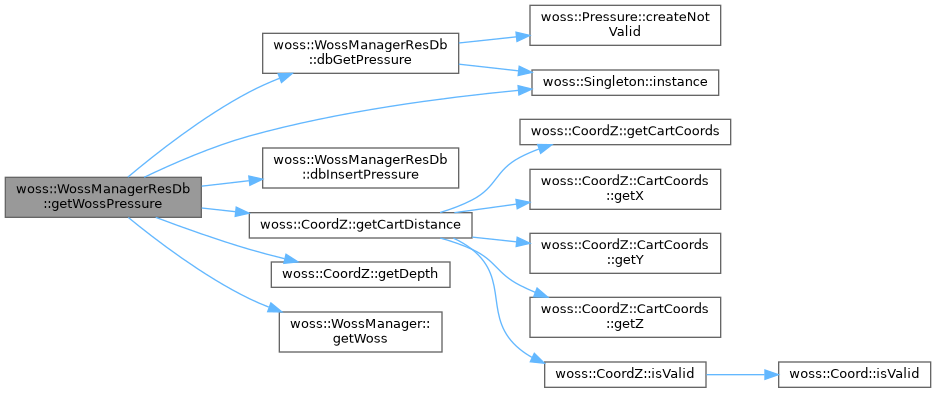

Here is the call graph for this function:

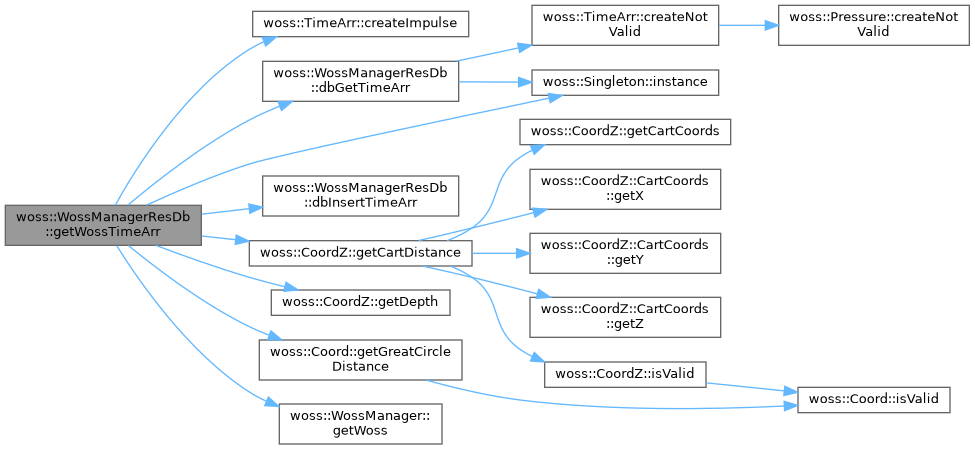

◆ getWossTimeArr()

std::unique_ptr< TimeArr > WossManagerResDb::getWossTimeArr	(	const CoordZ &	tx_coordz,
		const CoordZ &	rx_coordz,
		double	start_frequency,
		double	end_frequency,
		const Time &	time_value
	)

overridevirtual

Returns a valid TimeArr for given parameters

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
time_value	const reference to a valid Time& object
