Abstract class that provides correctly initialized Woss objects. More...

#include <woss-creator.h>

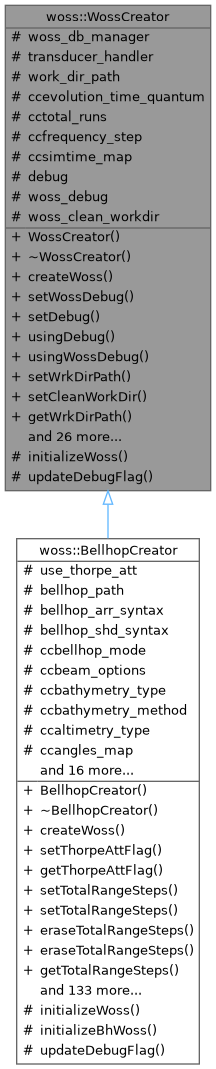

Inheritance diagram for woss::WossCreator:

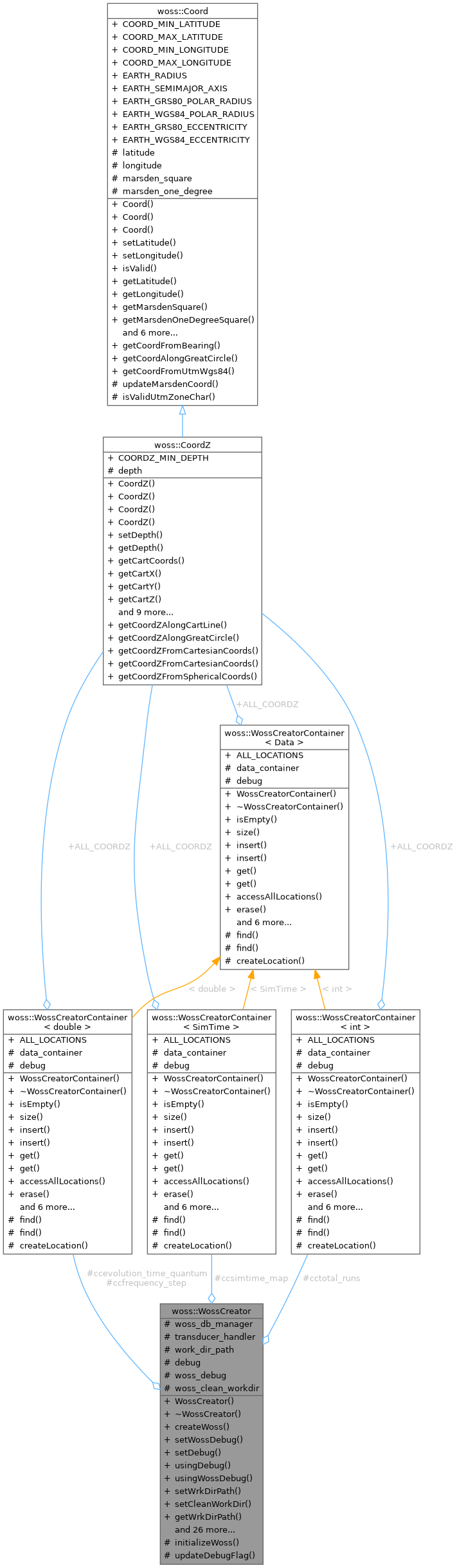

Collaboration diagram for woss::WossCreator:

Public Member Functions
	WossCreator ()

virtual	~WossCreator ()=default

virtual std::unique_ptr< Woss > const	createWoss (const CoordZ &tx, const CoordZ &rx, double start_freq, double end_freq) const =0

WossCreator &	setWossDebug (bool flag)

WossCreator &	setDebug (bool flag)

bool	usingDebug () const

bool	usingWossDebug () const

WossCreator &	setWrkDirPath (const std::string &path)

WossCreator &	setCleanWorkDir (bool flag)

std::string	getWrkDirPath () const

WossCreator &	setFrequencyStep (double f_step, const CoordZ &tx, const CoordZ &rx)

WossCreator &	setFrequencyStep (double f_step, const std::shared_ptr< Location > &tx=CCDouble::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCDouble::ALL_LOCATIONS)

double	getFrequencyStep (const CoordZ &tx, const CoordZ &rx) const

double	getFrequencyStep (const std::shared_ptr< Location > &tx=CCDouble::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCDouble::ALL_LOCATIONS) const

WossCreator &	eraseFrequencyStep (const CoordZ &tx, const CoordZ &rx)

WossCreator &	eraseFrequencyStep (const std::shared_ptr< Location > &tx=CCDouble::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCDouble::ALL_LOCATIONS)

WossCreator &	setEvolutionTimeQuantum (double value, const CoordZ &tx, const CoordZ &rx)

WossCreator &	setEvolutionTimeQuantum (double value, const std::shared_ptr< Location > &tx=CCInt::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCInt::ALL_LOCATIONS)

double	getEvolutionTimeQuantum (const CoordZ &tx, const CoordZ &rx) const

double	getEvolutionTimeQuantum (const std::shared_ptr< Location > &tx=CCInt::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCInt::ALL_LOCATIONS) const

WossCreator &	eraseEvolutionTimeQuantum (const CoordZ &tx, const CoordZ &rx)

WossCreator &	eraseEvolutionTimeQuantum (const std::shared_ptr< Location > &tx=CCInt::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCInt::ALL_LOCATIONS)

WossCreator &	setTotalRuns (int runs, const CoordZ &tx, const CoordZ &rx)

WossCreator &	setTotalRuns (int runs, const std::shared_ptr< Location > &tx=CCInt::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCInt::ALL_LOCATIONS)

int	getTotalRuns (const CoordZ &tx, const CoordZ &rx) const

int	getTotalRuns (const std::shared_ptr< Location > &tx=CCInt::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCInt::ALL_LOCATIONS) const

WossCreator &	eraseTotalRuns (const CoordZ &tx, const CoordZ &rx)

WossCreator &	eraseTotalRuns (const std::shared_ptr< Location > &tx=CCInt::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCInt::ALL_LOCATIONS)

WossCreator &	setSimTime (const SimTime &simtime, const CoordZ &tx, const CoordZ &rx)

WossCreator &	setSimTime (const SimTime &simtime, const std::shared_ptr< Location > &tx=CCSimTime::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCSimTime::ALL_LOCATIONS)

SimTime	getSimTime (const CoordZ &tx, const CoordZ &rx) const

SimTime	getSimTime (const std::shared_ptr< Location > &tx=CCSimTime::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCSimTime::ALL_LOCATIONS) const

WossCreator &	eraseSimTime (const CoordZ &tx, const CoordZ &rx)

WossCreator &	eraseSimTime (const std::shared_ptr< Location > &tx=CCSimTime::ALL_LOCATIONS, const std::shared_ptr< Location > &rx=CCSimTime::ALL_LOCATIONS)

WossCreator &	setWossDbManager (const std::shared_ptr< WossDbManager > &ptr)

WossCreator &	setTransducerHandler (const std::shared_ptr< TransducerHandler > &ptr)

Protected Types
using	CCSimTime = WossCreatorContainer< SimTime >

using	CCDouble = WossCreatorContainer< double >

using	CCInt = WossCreatorContainer< int >

Protected Member Functions
virtual bool	initializeWoss (Woss &woss_ref) const =0

virtual void	updateDebugFlag ()

Protected Attributes
std::shared_ptr< WossDbManager >	woss_db_manager

std::shared_ptr< TransducerHandler >	transducer_handler

std::string	work_dir_path

CCDouble	ccevolution_time_quantum

CCInt	cctotal_runs

CCDouble	ccfrequency_step

CCSimTime	ccsimtime_map

bool	debug

bool	woss_debug

bool	woss_clean_workdir

Detailed Description

Abstract class that provides correctly initialized Woss objects.

WossCreator provides interface for creation and initializiation of Woss objects, relieving the user from this task

Member Typedef Documentation

◆ CCDouble

using woss::WossCreator::CCDouble = WossCreatorContainer< double >

protected

double WossCreatorContainer

◆ CCInt

using woss::WossCreator::CCInt = WossCreatorContainer< int >

protected

int WossCreatorContainer

◆ CCSimTime

using woss::WossCreator::CCSimTime = WossCreatorContainer< SimTime >

protected

SimTime WossCreatorContainer

Constructor & Destructor Documentation

◆ WossCreator()

WossCreator::WossCreator ( )

WossCreator default constructor

References woss::WossCreatorContainer< Data >::accessAllLocations(), ccfrequency_step, and updateDebugFlag().

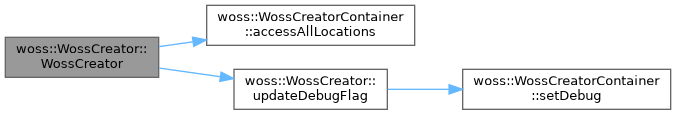

Here is the call graph for this function:

◆ ~WossCreator()

virtual woss::WossCreator::~WossCreator ( )

virtualdefault

Member Function Documentation

◆ createWoss()

virtual std::unique_ptr< Woss > const woss::WossCreator::createWoss	(	const CoordZ &	tx,
		const CoordZ &	rx,
		double	start_freq,
		double	end_freq
	)		const

pure virtual

Returns a pointer to valid Woss for given parameters

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]

Returns: pointer to properly initialized Woss object

Implemented in woss::BellhopCreator.

◆ eraseEvolutionTimeQuantum() [1/2]

WossCreator & woss::WossCreator::eraseEvolutionTimeQuantum	(	const CoordZ &	tx,
		const CoordZ &	rx
	)

inline

Erases the time evolution threshold

Parameters

tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: reference to *this

References ccevolution_time_quantum, and woss::WossCreatorContainer< Data >::erase().

Here is the call graph for this function:

◆ eraseEvolutionTimeQuantum() [2/2]

WossCreator & woss::WossCreator::eraseEvolutionTimeQuantum	(	const std::shared_ptr< Location > &	tx = `CCInt::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCInt::ALL_LOCATIONS`
	)

inline

Erases the time evolution threshold

Parameters

tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: reference to *this

References ccevolution_time_quantum, and woss::WossCreatorContainer< Data >::erase().

Here is the call graph for this function:

◆ eraseFrequencyStep() [1/2]

WossCreator & woss::WossCreator::eraseFrequencyStep	(	const CoordZ &	tx,
		const CoordZ &	rx
	)

inline

Erases the frequency step for given transmitter, receiver woss::CoordZ

Parameters

tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: reference to *this

References ccfrequency_step, and woss::WossCreatorContainer< Data >::erase().

Here is the call graph for this function:

◆ eraseFrequencyStep() [2/2]

WossCreator & woss::WossCreator::eraseFrequencyStep	(	const std::shared_ptr< Location > &	tx = `CCDouble::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCDouble::ALL_LOCATIONS`
	)

inline

Erases the frequency step for given transmitter, receiver woss::Location

Parameters

tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: reference to *this

References ccfrequency_step, and woss::WossCreatorContainer< Data >::erase().

Here is the call graph for this function:

◆ eraseSimTime() [1/2]

WossCreator & woss::WossCreator::eraseSimTime	(	const CoordZ &	tx,
		const CoordZ &	rx
	)

inline

Erases the SimTime for given transmitter, receiver woss::CoordZ

Parameters

tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: reference to *this

References ccsimtime_map, and woss::WossCreatorContainer< Data >::erase().

Here is the call graph for this function:

◆ eraseSimTime() [2/2]

WossCreator & woss::WossCreator::eraseSimTime	(	const std::shared_ptr< Location > &	tx = `CCSimTime::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCSimTime::ALL_LOCATIONS`
	)

inline

Erases the SimTime for given transmitter, receiver woss::Location

Parameters

tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: reference to *this

References ccsimtime_map, and woss::WossCreatorContainer< Data >::erase().

Here is the call graph for this function:

◆ eraseTotalRuns() [1/2]

WossCreator & woss::WossCreator::eraseTotalRuns	(	const CoordZ &	tx,
		const CoordZ &	rx
	)

inline

Erases the total number of channel simulator's runs

Parameters

tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: reference to *this

References cctotal_runs, and woss::WossCreatorContainer< Data >::erase().

Here is the call graph for this function:

◆ eraseTotalRuns() [2/2]

WossCreator & woss::WossCreator::eraseTotalRuns	(	const std::shared_ptr< Location > &	tx = `CCInt::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCInt::ALL_LOCATIONS`
	)

inline

Erases the total number of channel simulator's runs

Parameters

tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: reference to *this

References cctotal_runs, and woss::WossCreatorContainer< Data >::erase().

Here is the call graph for this function:

◆ getEvolutionTimeQuantum() [1/2]

double woss::WossCreator::getEvolutionTimeQuantum	(	const CoordZ &	tx,
		const CoordZ &	rx
	)		const

inline

Returns the time evolution threshold

Parameters

tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: time evolution threshold in seconds

References ccevolution_time_quantum, and woss::WossCreatorContainer< Data >::get().

Here is the call graph for this function:

◆ getEvolutionTimeQuantum() [2/2]

double woss::WossCreator::getEvolutionTimeQuantum	(	const std::shared_ptr< Location > &	tx = `CCInt::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCInt::ALL_LOCATIONS`
	)		const

inline

Returns the time evolution threshold

Parameters

tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: time evolution threshold in seconds

References ccevolution_time_quantum, and woss::WossCreatorContainer< Data >::get().

Here is the call graph for this function:

◆ getFrequencyStep() [1/2]

double woss::WossCreator::getFrequencyStep	(	const CoordZ &	tx,
		const CoordZ &	rx
	)		const

inline

Returns the frequency step for given transmitter, receiver woss::CoordZ

Parameters

tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: frequency step in Hz

References ccfrequency_step, and woss::WossCreatorContainer< Data >::get().

Referenced by woss::BellhopCreator::createWoss().

Here is the call graph for this function:

◆ getFrequencyStep() [2/2]

double woss::WossCreator::getFrequencyStep	(	const std::shared_ptr< Location > &	tx = `CCDouble::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCDouble::ALL_LOCATIONS`
	)		const

inline

Returns the frequency step for given transmitter, receiver woss::Location

Parameters

tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: frequency step in Hz

References ccfrequency_step, and woss::WossCreatorContainer< Data >::get().

Here is the call graph for this function:

◆ getSimTime() [1/2]

SimTime woss::WossCreator::getSimTime	(	const CoordZ &	tx,
		const CoordZ &	rx
	)		const

inline

Returns the SimTime for given transmitter, receiver woss::CoordZ

Parameters

tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: SimTime instance

References ccsimtime_map, and woss::WossCreatorContainer< Data >::get().

Referenced by woss::BellhopCreator::createWoss().

Here is the call graph for this function:

◆ getSimTime() [2/2]

SimTime woss::WossCreator::getSimTime	(	const std::shared_ptr< Location > &	tx = `CCSimTime::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCSimTime::ALL_LOCATIONS`
	)		const

inline

Returns the SimTime for given transmitter, receiver woss::Location

Parameters

tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: SimTime instance

References ccsimtime_map, and woss::WossCreatorContainer< Data >::get().

Here is the call graph for this function:

◆ getTotalRuns() [1/2]

int woss::WossCreator::getTotalRuns	(	const CoordZ &	tx,
		const CoordZ &	rx
	)		const

inline

Returns the total number of channel simulator's runs

Parameters

tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: number of runs

References cctotal_runs, and woss::WossCreatorContainer< Data >::get().

Here is the call graph for this function:

◆ getTotalRuns() [2/2]

int woss::WossCreator::getTotalRuns	(	const std::shared_ptr< Location > &	tx = `CCInt::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCInt::ALL_LOCATIONS`
	)		const

inline

Returns the total number of channel simulator's runs

Parameters

tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: number of runs

References cctotal_runs, and woss::WossCreatorContainer< Data >::get().

Here is the call graph for this function:

◆ getWrkDirPath()

std::string woss::WossCreator::getWrkDirPath ( ) const

inline

Gets the work pathname

Returns: valid pathname

References work_dir_path.

◆ initializeWoss()

bool WossCreator::initializeWoss ( Woss & woss_ref ) const

protectedpure virtual

Initializes given Woss object

Parameters

woss_ptr reference to an unitialized Woss

Returns: true if method succeeded, false otherwise

Implemented in woss::BellhopCreator.

References ccevolution_time_quantum, cctotal_runs, woss::WossCreatorContainer< Data >::get(), woss::Woss::getRxCoordZ(), woss::Woss::getTxCoordZ(), woss::Woss::setCleanWorkDir(), woss::Woss::setDebug(), woss::Woss::setEvolutionTimeQuantum(), woss::Woss::setTotalRuns(), woss::Woss::setWorkDirPath(), woss::Woss::setWossDbManager(), work_dir_path, woss_clean_workdir, woss_db_manager, and woss_debug.

Referenced by woss::BellhopCreator::initializeWoss().

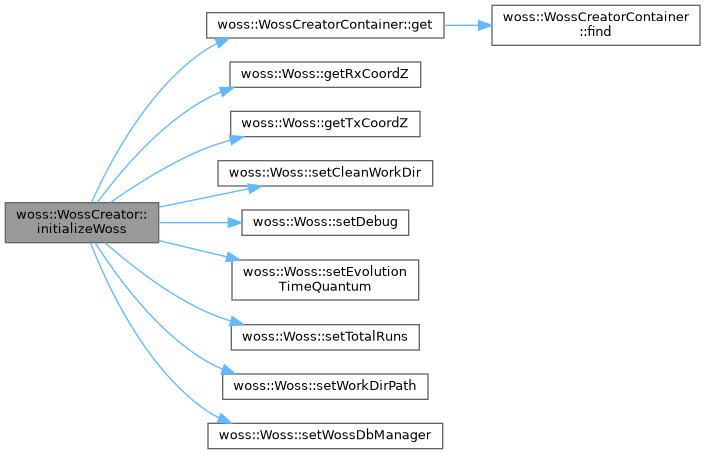

Here is the call graph for this function:

◆ setCleanWorkDir()

WossCreator & woss::WossCreator::setCleanWorkDir ( bool flag )

inline

Sets clean work dir flag

Parameters

flag	debug flag

Returns: reference to *this

References woss_clean_workdir.

◆ setDebug()

WossCreator & woss::WossCreator::setDebug ( bool flag )

inline

Sets debug flag

Parameters

flag	debug flag

Returns: reference to *this

References debug, and updateDebugFlag().

Here is the call graph for this function:

◆ setEvolutionTimeQuantum() [1/2]

WossCreator & woss::WossCreator::setEvolutionTimeQuantum	(	double	value,
		const CoordZ &	tx,
		const CoordZ &	rx
	)

inline

Sets the time evolution threshold in seconds

Parameters

value	time evolution threshold in seconds
tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: reference to *this

References ccevolution_time_quantum, and woss::WossCreatorContainer< Data >::replace().

Here is the call graph for this function:

◆ setEvolutionTimeQuantum() [2/2]

WossCreator & woss::WossCreator::setEvolutionTimeQuantum	(	double	value,
		const std::shared_ptr< Location > &	tx = `CCInt::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCInt::ALL_LOCATIONS`
	)

inline

Sets time threshold for time evolution purposes

Parameters

value	time threshold in seconds
tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: reference to *this

References ccevolution_time_quantum, and woss::WossCreatorContainer< Data >::replace().

Here is the call graph for this function:

◆ setFrequencyStep() [1/2]

WossCreator & woss::WossCreator::setFrequencyStep	(	double	f_step,
		const CoordZ &	tx,
		const CoordZ &	rx
	)

inline

Sets the frequency step for given transmitter, receiver woss::CoordZ

Parameters

f_step	valid frequency step [Hz]. If step <= 0 start frequency is used and no steps are done
tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: reference to *this

References ccfrequency_step, and woss::WossCreatorContainer< Data >::replace().

Here is the call graph for this function:

◆ setFrequencyStep() [2/2]

WossCreator & woss::WossCreator::setFrequencyStep	(	double	f_step,
		const std::shared_ptr< Location > &	tx = `CCDouble::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCDouble::ALL_LOCATIONS`
	)

inline

Sets the frequency step for given transmitter, receiver woss::Location

Parameters

f_step	valid frequency step [Hz]. If step <= 0 start frequency is used and no steps are done
tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: reference to *this

References ccfrequency_step, and woss::WossCreatorContainer< Data >::replace().

Here is the call graph for this function:

◆ setSimTime() [1/2]

WossCreator & woss::WossCreator::setSimTime	(	const SimTime &	simtime,
		const CoordZ &	tx,
		const CoordZ &	rx
	)

inline

Sets the SimTime for given transmitter, receiver woss::CoordZ

Parameters

simtime	const reference to a valid SimTime
tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: reference to *this

References ccsimtime_map, and woss::WossCreatorContainer< Data >::replace().

Here is the call graph for this function:

◆ setSimTime() [2/2]

WossCreator & woss::WossCreator::setSimTime	(	const SimTime &	simtime,
		const std::shared_ptr< Location > &	tx = `CCSimTime::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCSimTime::ALL_LOCATIONS`
	)

inline

Sets the SimTime for given transmitter, receiver woss::Location

Parameters

simtime	const reference to a valid SimTime
tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: reference to *this

References ccsimtime_map, and woss::WossCreatorContainer< Data >::replace().

Here is the call graph for this function:

◆ setTotalRuns() [1/2]

WossCreator & woss::WossCreator::setTotalRuns	(	int	runs,
		const CoordZ &	tx,
		const CoordZ &	rx
	)

inline

Sets the total number of channel simulator's runs

Parameters

runs	number of runs
tx	const reference to a valid woss::CoordZ instance
rx	const reference to a valid woss::CoordZ instance

Returns: reference to *this

References cctotal_runs, and woss::WossCreatorContainer< Data >::replace().

Here is the call graph for this function:

◆ setTotalRuns() [2/2]

WossCreator & woss::WossCreator::setTotalRuns	(	int	runs,
		const std::shared_ptr< Location > &	tx = `CCInt::ALL_LOCATIONS`,
		const std::shared_ptr< Location > &	rx = `CCInt::ALL_LOCATIONS`
	)

inline

Sets the total number of channel simulator's runs

Parameters

runs	number of runs
tx	const reference to a std::shared_ptr to a valid transmitter Location
rx	const reference to a std::shared_ptr to a valid receiver Location

Returns: reference to *this

References cctotal_runs, and woss::WossCreatorContainer< Data >::replace().

Here is the call graph for this function:

◆ setTransducerHandler()

WossCreator & woss::WossCreator::setTransducerHandler ( const std::shared_ptr< TransducerHandler > & ptr )

inline

Sets the TransducerHander pointer

Parameters

ptr	std::shared_ptr to a TransducerHander object

Returns: reference to *this

References transducer_handler.

◆ setWossDbManager()

WossCreator & woss::WossCreator::setWossDbManager ( const std::shared_ptr< WossDbManager > & ptr )

inline

Sets the WossDbManager pointer

Parameters

ptr	std::shared_ptr to a WossDbManager object

Returns: reference to *this

References woss_db_manager.

◆ setWossDebug()

WossCreator & woss::WossCreator::setWossDebug ( bool flag )

inline

Sets debug flag of every Woss object created

Parameters

flag	debug flag

Returns: reference to *this

References woss_debug.

◆ setWrkDirPath()

WossCreator & woss::WossCreator::setWrkDirPath ( const std::string & path )

inline

Sets the work pathname

Parameters

path	valid pathname

Returns: reference to *this

References work_dir_path.

◆ updateDebugFlag()

void WossCreator::updateDebugFlag ( )

protectedvirtual

Propagates the debug flag

Reimplemented in woss::BellhopCreator.

References ccevolution_time_quantum, ccfrequency_step, ccsimtime_map, cctotal_runs, debug, and woss::WossCreatorContainer< Data >::setDebug().

Referenced by setDebug(), woss::BellhopCreator::updateDebugFlag(), and WossCreator().

Here is the call graph for this function:

◆ usingDebug()

bool woss::WossCreator::usingDebug ( ) const

inline

Returns debug flag

Returns: true if using debug, false otherwise

References debug.

◆ usingWossDebug()

bool woss::WossCreator::usingWossDebug ( ) const

inline

Returns Woss debug flag

Returns: true if Woss objects will be using debug, false otherwise

References woss_debug.

Member Data Documentation

◆ ccevolution_time_quantum

CCDouble woss::WossCreator::ccevolution_time_quantum

protected

Time evolution threshold in seconds

Referenced by eraseEvolutionTimeQuantum(), eraseEvolutionTimeQuantum(), getEvolutionTimeQuantum(), getEvolutionTimeQuantum(), initializeWoss(), setEvolutionTimeQuantum(), setEvolutionTimeQuantum(), and updateDebugFlag().

◆ ccfrequency_step

CCDouble woss::WossCreator::ccfrequency_step

protected

Frequency step [Hz]

Referenced by eraseFrequencyStep(), eraseFrequencyStep(), getFrequencyStep(), getFrequencyStep(), setFrequencyStep(), setFrequencyStep(), updateDebugFlag(), and WossCreator().

◆ ccsimtime_map

CCSimTime woss::WossCreator::ccsimtime_map

protected

SimTime containter for user-given transmitter CoordZ

Referenced by eraseSimTime(), eraseSimTime(), getSimTime(), getSimTime(), setSimTime(), setSimTime(), and updateDebugFlag().

◆ cctotal_runs

CCInt woss::WossCreator::cctotal_runs

protected

Total number of channel simulator's runs

Referenced by eraseTotalRuns(), eraseTotalRuns(), getTotalRuns(), getTotalRuns(), initializeWoss(), setTotalRuns(), setTotalRuns(), and updateDebugFlag().

◆ debug

bool woss::WossCreator::debug

protected

Debug flag

Referenced by setDebug(), updateDebugFlag(), woss::BellhopCreator::updateDebugFlag(), and usingDebug().

◆ transducer_handler

std::shared_ptr<TransducerHandler> woss::WossCreator::transducer_handler

protected

Referenced by woss::BellhopCreator::initializeBhWoss(), and setTransducerHandler().

◆ work_dir_path

std::string woss::WossCreator::work_dir_path

protected

Directory path for temporary files (e.g. channel simulator files)

Referenced by getWrkDirPath(), initializeWoss(), and setWrkDirPath().

◆ woss_clean_workdir

bool woss::WossCreator::woss_clean_workdir

protected

Debug flag for all Woss instances

Referenced by initializeWoss(), and setCleanWorkDir().

◆ woss_db_manager

std::shared_ptr<WossDbManager> woss::WossCreator::woss_db_manager

protected

Referenced by initializeWoss(), and setWossDbManager().

◆ woss_debug

bool woss::WossCreator::woss_debug

protected

Debug flag for all Woss instances

Referenced by initializeWoss(), setWossDebug(), and usingWossDebug().

The documentation for this class was generated from the following files:

woss/woss-creator.h
woss/woss-creator.cpp

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ CCDouble

◆ CCInt

◆ CCSimTime

Constructor & Destructor Documentation

◆ WossCreator()

◆ ~WossCreator()

Member Function Documentation

◆ createWoss()

◆ eraseEvolutionTimeQuantum() [1/2]

◆ eraseEvolutionTimeQuantum() [2/2]

◆ eraseFrequencyStep() [1/2]

◆ eraseFrequencyStep() [2/2]

◆ eraseSimTime() [1/2]

◆ eraseSimTime() [2/2]

◆ eraseTotalRuns() [1/2]

◆ eraseTotalRuns() [2/2]

◆ getEvolutionTimeQuantum() [1/2]

◆ getEvolutionTimeQuantum() [2/2]

◆ getFrequencyStep() [1/2]

◆ getFrequencyStep() [2/2]

◆ getSimTime() [1/2]

◆ getSimTime() [2/2]

◆ getTotalRuns() [1/2]

◆ getTotalRuns() [2/2]

◆ getWrkDirPath()

◆ initializeWoss()

◆ setCleanWorkDir()

◆ setDebug()

◆ setEvolutionTimeQuantum() [1/2]

◆ setEvolutionTimeQuantum() [2/2]

◆ setFrequencyStep() [1/2]

◆ setFrequencyStep() [2/2]

◆ setSimTime() [1/2]

◆ setSimTime() [2/2]

◆ setTotalRuns() [1/2]

◆ setTotalRuns() [2/2]

◆ setTransducerHandler()

◆ setWossDbManager()

◆ setWossDebug()

◆ setWrkDirPath()

◆ updateDebugFlag()

◆ usingDebug()

◆ usingWossDebug()

Member Data Documentation

◆ ccevolution_time_quantum

◆ ccfrequency_step

◆ ccsimtime_map

◆ cctotal_runs

◆ debug

◆ transducer_handler

◆ work_dir_path

◆ woss_clean_workdir

◆ woss_db_manager

◆ woss_debug
