woss::ShdData_v1 Class Reference

class for storing data of any acoustic toolbox SHD file More...

#include <ac-toolbox-shd-reader.h>

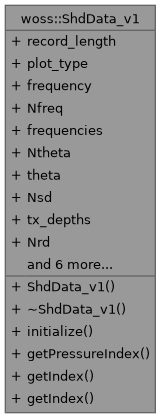

Collaboration diagram for woss::ShdData_v1:

Public Member Functions
	ShdData_v1 ()=default
	~ShdData_v1 ()=default
void	initialize ()
int	getPressureIndex (double tx_freq, double tx_depth, double rx_depth, double rx_range, double theta=0.0) const
int	getIndex (float value, float array[], int32_t array_size) const
int	getIndex (double value, double array[], int32_t array_size) const

Public Attributes
int32_t	record_length = 0
std::unique_ptr< char[] >	plot_type = nullptr
double	frequency = 0.0
int32_t	Nfreq = 0
std::unique_ptr< double[] >	frequencies = nullptr
int32_t	Ntheta = 0
std::unique_ptr< double[] >	theta = nullptr
int32_t	Nsd = 0
std::unique_ptr< float[] >	tx_depths = nullptr
int32_t	Nrd = 0
std::unique_ptr< float[] >	rx_depths = nullptr
int32_t	Nrr = 0
std::unique_ptr< double[]>	rx_ranges = nullptr
int32_t	Nrx_per_range = 0
double	stabil_atten = 0.0
std::unique_ptr< std::complex< double >[] >	press_values = nullptr

Detailed Description

class for storing data of any acoustic toolbox SHD file

class ShdData stores Pressure provided by any acoustic toolbox SHD file

Constructor & Destructor Documentation

ShdData_v1()

woss::ShdData_v1::ShdData_v1 ( )

default

~ShdData_v1()

woss::ShdData_v1::~ShdData_v1 ( )

default

Member Function Documentation

getIndex() [1/2]

int ShdData_v1::getIndex	(	double	value,
		double	array[],
		int32_t	array_size ) const

Returns the index of given array associated to given value

Parameters

value	test value
array	valid pointer to an array
array_size	size of passed array

Returns

valid array index value

getIndex() [2/2]

int ShdData_v1::getIndex	(	float	value,
		float	array[],
		int32_t	array_size ) const

Returns the index of given array associated to given value

Parameters

value	test value
array	valid pointer to an array
array_size	size of passed array

Returns

valid array index value

Referenced by getPressureIndex().

getPressureIndex()

int ShdData_v1::getPressureIndex	(	double	tx_freq,
		double	tx_depth,
		double	rx_depth,
		double	rx_range,
		double	theta = 0.0 ) const

Returns the press_values index associated to given parameters

Parameters

tx_freq	transmitter frequency [hZ]
tx_depth	transmitter depth [m]
rx_depth	receiver depth [m]
rx_range	receiver range [m]
theta	theta value

Returns

valid press_values index value

References frequencies, getIndex(), Nfreq, Nrr, Nrx_per_range, Nsd, Ntheta, rx_depths, rx_ranges, theta, and tx_depths.

Here is the call graph for this function:

initialize()

void woss::ShdData_v1::initialize ( )

inline

Initializes the struct

References frequencies, frequency, Nfreq, Nrd, Nrr, Nrx_per_range, Nsd, Ntheta, plot_type, press_values, record_length, rx_depths, rx_ranges, stabil_atten, theta, and tx_depths.

Referenced by WossUnitTest::testShdDataAndReaders().

Member Data Documentation

frequencies

std::unique_ptr< double[] > woss::ShdData_v1::frequencies = nullptr

Referenced by getPressureIndex(), and initialize().

frequency

double woss::ShdData_v1::frequency = 0.0

Frequency value [Hz]

Referenced by initialize().

Nfreq

int32_t woss::ShdData_v1::Nfreq = 0

Referenced by getPressureIndex(), and initialize().

Nrd

int32_t woss::ShdData_v1::Nrd = 0

Total number of receiver depths

Referenced by initialize().

Nrr

int32_t woss::ShdData_v1::Nrr = 0

Total number of receiver ranges

Referenced by getPressureIndex(), and initialize().

Nrx_per_range

int32_t woss::ShdData_v1::Nrx_per_range = 0

Total number of receiver per range

Referenced by getPressureIndex(), and initialize().

Nsd

int32_t woss::ShdData_v1::Nsd = 0

Total number of transmitter depths

Referenced by getPressureIndex(), and initialize().

Ntheta

int32_t woss::ShdData_v1::Ntheta = 0

Total number of theta values. See Bellhop code for more info

Referenced by getPressureIndex(), and initialize().

plot_type

std::unique_ptr< char[] > woss::ShdData_v1::plot_type = nullptr

Plot typename. See Bellhop code for more info

Referenced by initialize().

press_values

std::unique_ptr< std::complex<double>[] > woss::ShdData_v1::press_values = nullptr

Pointer to an array of complex<double> values [m]

Referenced by initialize().

record_length

int32_t woss::ShdData_v1::record_length = 0

Record byte length of a binary SHD file. See Bellhop code for more info

Referenced by initialize().

rx_depths

std::unique_ptr< float[] > woss::ShdData_v1::rx_depths = nullptr

Pointer to an array of receiver depths [m]

Referenced by getPressureIndex(), and initialize().

rx_ranges

std::unique_ptr<double[]> woss::ShdData_v1::rx_ranges = nullptr

Pointer to an array of receiver ranges [m]

Referenced by getPressureIndex(), and initialize().

stabil_atten

double woss::ShdData_v1::stabil_atten = 0.0

Referenced by initialize().

theta

std::unique_ptr< double[] > woss::ShdData_v1::theta = nullptr

Pointer to an array of theta values

Referenced by getPressureIndex(), and initialize().

tx_depths

std::unique_ptr< float[] > woss::ShdData_v1::tx_depths = nullptr

Pointer to an array of transmitter depths [m]

Referenced by getPressureIndex(), and initialize().

---

The documentation for this class was generated from the following files:

• woss/ac-toolbox-shd-reader.h
• woss/ac-toolbox-shd-reader.cpp
