WossMPropagation Class Reference

UnderwaterMPropagation class for channel calculations with WOSS. More...

#include <uw-woss-mpropagation.h>

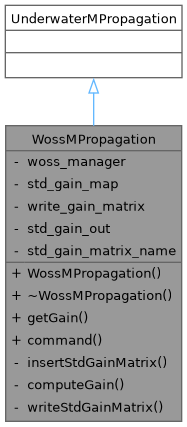

Inheritance diagram for WossMPropagation:

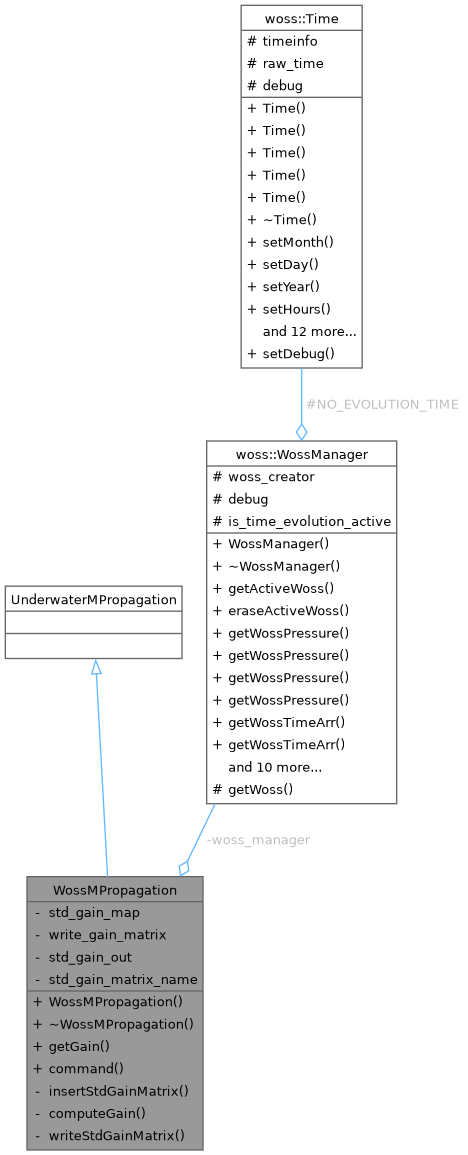

Collaboration diagram for WossMPropagation:

Public Member Functions
	WossMPropagation ()
virtual	~WossMPropagation () override=default
virtual double	getGain (Packet *p) override
virtual int	command (int argc, const char *const *argv) override

Private Member Functions
void	insertStdGainMatrix (Position *sp, Position *rp, double gain)
double	computeGain (Packet *p)
void	writeStdGainMatrix ()

Private Attributes
woss::WossManager *	woss_manager
GainMatrix	std_gain_map
bool	write_gain_matrix
fstream	std_gain_out
string	std_gain_matrix_name

Detailed Description

UnderwaterMPropagation class for channel calculations with WOSS.

WossMPropagation extends UnderwaterMPropagation for channel calculations with WOSS

Constructor & Destructor Documentation

WossMPropagation()

WossMPropagation::WossMPropagation

(

)

References woss_manager, and write_gain_matrix.

~WossMPropagation()

virtual WossMPropagation::~WossMPropagation ( )

overridevirtualdefault

Member Function Documentation

command()

int WossMPropagation::command ( int argc, const char *const * argv )

overridevirtual

References command(), std_gain_matrix_name, woss_manager, write_gain_matrix, and writeStdGainMatrix().

Referenced by command().

Here is the call graph for this function:

computeGain()

double WossMPropagation::computeGain ( Packet * p )

private

Provides attenuation calculation with WOSS framework

Parameters

p	pointer to the current Packet being processed

Returns

gain in uPa

References hdr_woss::already_processed, hdr_woss::attenuation, hdr_woss::frequency, WossPosition::getAltitude(), woss::CoordZ::getCartDistance(), WossPosition::getLatitude(), WossPosition::getLongitude(), woss::Pressure::getTxLossDb(), insertStdGainMatrix(), woss_manager, and write_gain_matrix.

Referenced by getGain().

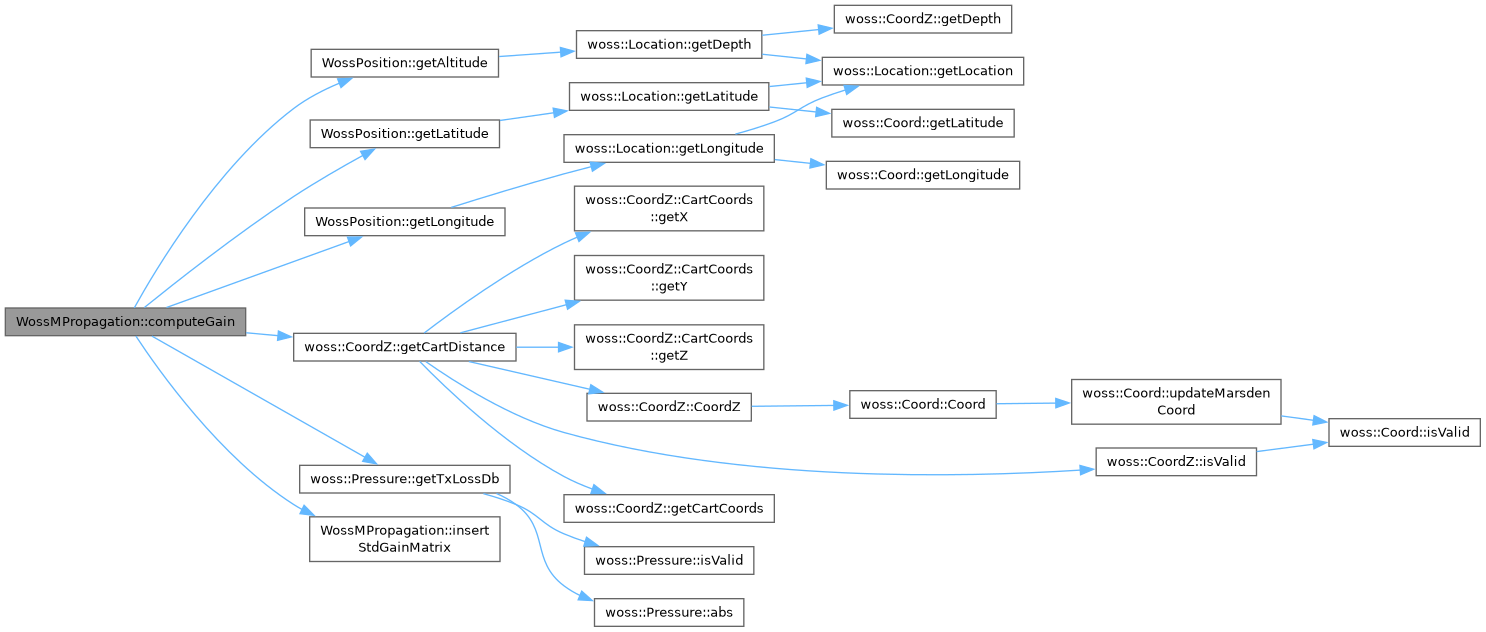

Here is the call graph for this function:

getGain()

double WossMPropagation::getGain ( Packet * p )

overridevirtual

Checks if a WossChannelModule has already processed current Packet; if not, it provides calculations

Parameters

p	pointer to the current Packet being processed

Returns

gain in uPa

References hdr_woss::already_processed, hdr_woss::attenuation, computeGain(), WossPosition::getAltitude(), woss::CoordZ::getCartDistance(), WossPosition::getLatitude(), WossPosition::getLongitude(), insertStdGainMatrix(), and write_gain_matrix.

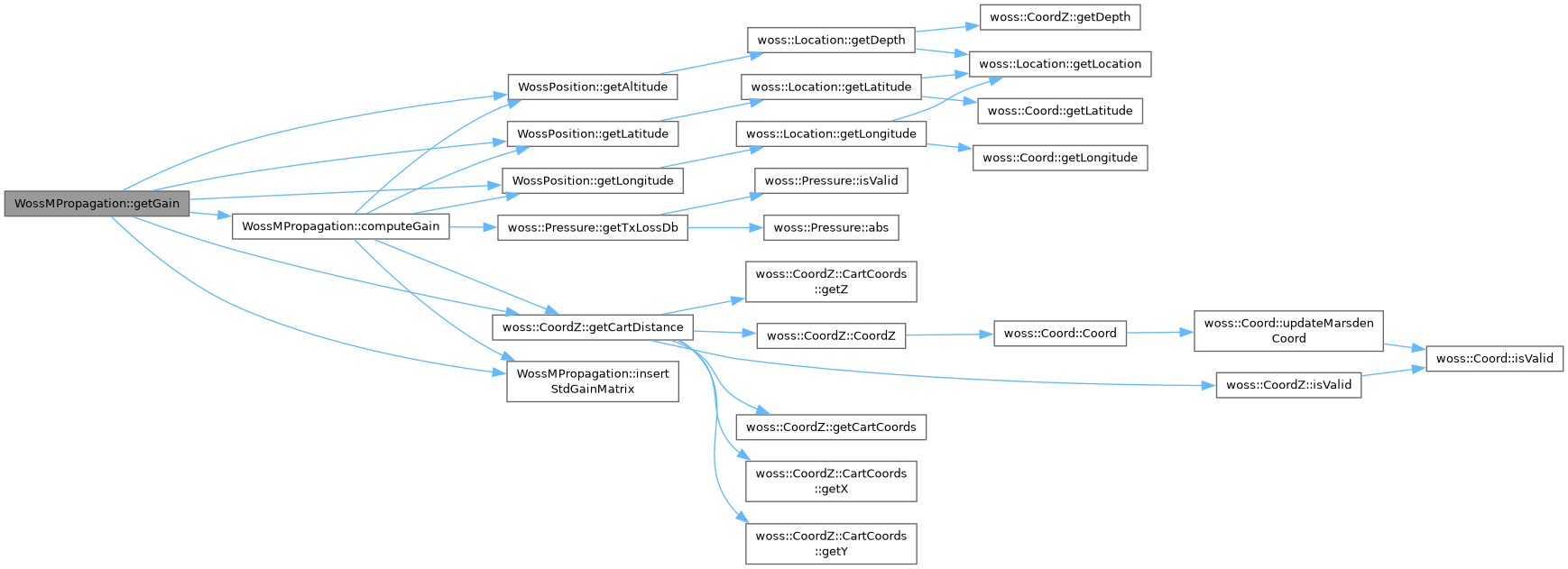

Here is the call graph for this function:

insertStdGainMatrix()

void WossMPropagation::insertStdGainMatrix ( Position * sp, Position * rp, double gain )

inlineprivate

References std_gain_map.

Referenced by computeGain(), and getGain().

writeStdGainMatrix()

void WossMPropagation::writeStdGainMatrix ( )

private

References std_gain_map, std_gain_matrix_name, and std_gain_out.

Referenced by command().

Member Data Documentation

std_gain_map

GainMatrix WossMPropagation::std_gain_map

private

Referenced by insertStdGainMatrix(), and writeStdGainMatrix().

std_gain_matrix_name

string WossMPropagation::std_gain_matrix_name

private

Referenced by command(), and writeStdGainMatrix().

std_gain_out

fstream WossMPropagation::std_gain_out

private

Referenced by writeStdGainMatrix().

woss_manager

woss::WossManager* WossMPropagation::woss_manager

private

Referenced by command(), computeGain(), and WossMPropagation().

write_gain_matrix

bool WossMPropagation::write_gain_matrix

private

Referenced by command(), computeGain(), getGain(), and WossMPropagation().

---

The documentation for this class was generated from the following files:

• woss_phy/uw-woss-mpropagation.h
• woss_phy/uw-woss-mpropagation.cpp
