Abstract class that interfaces Pressure or TimeArr requests from user layer. More...

#include <woss-manager.h>

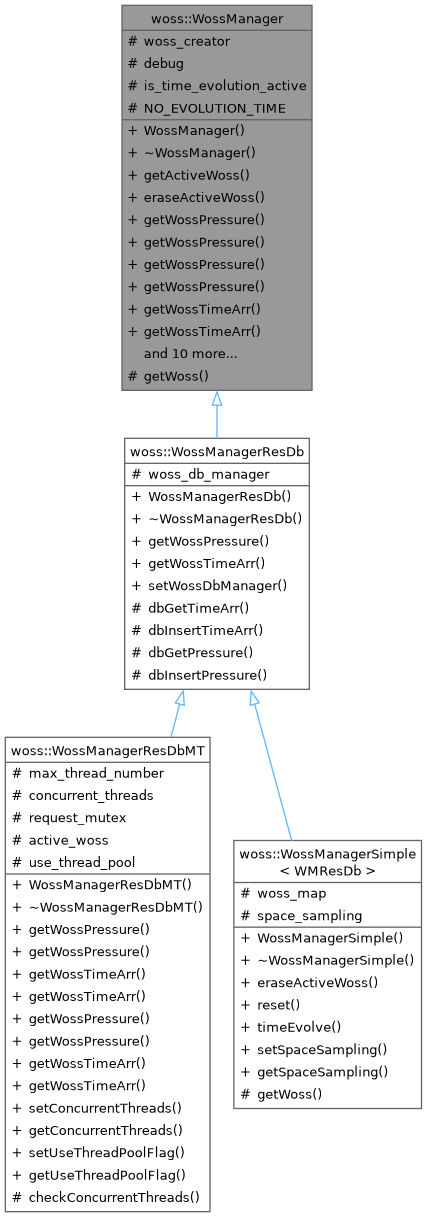

Inheritance diagram for woss::WossManager:

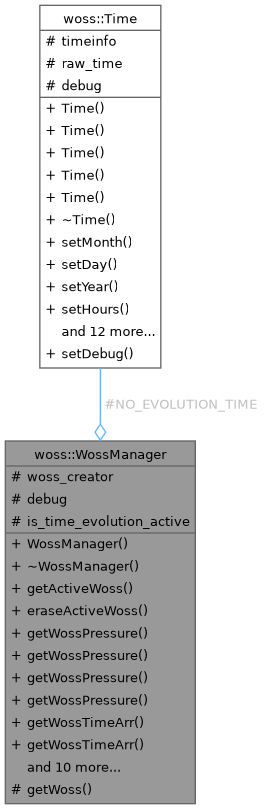

Collaboration diagram for woss::WossManager:

Public Member Functions
	WossManager ()
virtual	~WossManager ()=default
virtual std::shared_ptr< Woss >	getActiveWoss (const CoordZ &tx, const CoordZ &rx, double start_frequency, double end_frequency)
virtual WossManager &	eraseActiveWoss (const CoordZ &tx, const CoordZ &rx, double start_frequency, double end_frequency)=0
virtual std::unique_ptr< Pressure >	getWossPressure (const CoordZ &tx_coordz, const CoordZ &rx_coordz, double start_frequency, double end_frequency, const Time &time_value)=0
virtual std::unique_ptr< Pressure >	getWossPressure (const CoordZ &tx_coordz, const CoordZ &rx_coordz, double start_frequency, double end_frequency, double time_value=0.0)
virtual PressureVector	getWossPressure (const CoordZPairVect &coordinates, double start_frequency, double end_frequency, const Time &time_value)
virtual PressureVector	getWossPressure (const CoordZPairVect &coordinates, double start_frequency, double end_frequency, double time_value=0.0)
virtual std::unique_ptr< TimeArr >	getWossTimeArr (const CoordZ &tx_coordz, const CoordZ &rx_coordz, double start_frequency, double end_frequency, const Time &time_value)=0
virtual std::unique_ptr< TimeArr >	getWossTimeArr (const CoordZ &tx_coordz, const CoordZ &rx_coordz, double start_frequency, double end_frequency, double time_value=0.0)
virtual TimeArrVector	getWossTimeArr (const CoordZPairVect &coordinates, double start_frequency, double end_frequency, const Time &time_value)
virtual TimeArrVector	getWossTimeArr (const CoordZPairVect &coordinates, double start_frequency, double end_frequency, double time_value=0.0)
virtual bool	reset ()=0
virtual bool	timeEvolve (const Time &time_value)=0
WossManager &	setWossCreator (const std::shared_ptr< WossCreator > &ptr)
void	setTimeEvolutionActiveFlag (bool flag)
void	setDebugFlag (bool flag)
std::shared_ptr< WossCreator >	getWossCreator () const
bool	getTimeEvolutionActiveFlag () const
bool	getDebugFlag () const

Protected Member Functions
virtual std::shared_ptr< Woss >	getWoss (const CoordZ &tx, const CoordZ &rx, double start_frequency, double end_frequency)=0

Protected Attributes
std::shared_ptr< WossCreator >	woss_creator
bool	debug
bool	is_time_evolution_active

Static Protected Attributes
static const Time	NO_EVOLUTION_TIME = {1, 1, 1901 , 1, 1, 1}

Detailed Description

Abstract class that interfaces Pressure or TimeArr requests from user layer.

WossManager interfaces the user with the whole library. Every request for Pressure or TimeArr should be done to this class. Logical inteligence for planning CPU load, multi-frequency and multi-run channel simulations should be placed in this inheritance chain

Constructor & Destructor Documentation

◆ WossManager()

WossManager::WossManager ( )

WossManager default constructor

References debug, and woss_creator.

Referenced by eraseActiveWoss(), and setWossCreator().

◆ ~WossManager()

virtual woss::WossManager::~WossManager ( )

virtualdefault

Member Function Documentation

◆ eraseActiveWoss()

virtual WossManager & woss::WossManager::eraseActiveWoss	(	const CoordZ &	tx,
		const CoordZ &	rx,
		double	start_frequency,
		double	end_frequency )

pure virtual

Deletes a woss::Woss object for given params

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]

Returns: reference to *this

Implemented in woss::WossManagerSimple< WMResDb >.

References WossManager().

Here is the call graph for this function:

◆ getActiveWoss()

std::shared_ptr< Woss > WossManager::getActiveWoss	(	const CoordZ &	tx,
		const CoordZ &	rx,
		double	start_frequency,
		double	end_frequency )

virtual

Returns a shared_ptr to a valid and properly initialized woss::Woss object.

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]

Returns: std::shared_ptr to a valid Woss instance

References getWoss().

Here is the call graph for this function:

◆ getDebugFlag()

bool woss::WossManager::getDebugFlag ( ) const

inline

References debug.

◆ getTimeEvolutionActiveFlag()

bool woss::WossManager::getTimeEvolutionActiveFlag ( ) const

inline

References is_time_evolution_active.

◆ getWoss()

virtual std::shared_ptr< Woss > woss::WossManager::getWoss	(	const CoordZ &	tx,
		const CoordZ &	rx,
		double	start_frequency,
		double	end_frequency )

protectedpure virtual

Returns a pointer to a properly initialized Woss, for storage purposes.

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]

Returns: std::shared_ptr to a valid Woss object

Implemented in woss::WossManagerSimple< WMResDb >.

Referenced by getActiveWoss(), getWossPressure(), woss::WossManagerResDb::getWossPressure(), woss::WossManagerResDbMT::getWossPressure(), getWossTimeArr(), woss::WossManagerResDb::getWossTimeArr(), and woss::WossManagerResDbMT::getWossTimeArr().

◆ getWossCreator()

std::shared_ptr< WossCreator > woss::WossManager::getWossCreator ( ) const

inline

References woss_creator.

Referenced by woss::WossManagerResDbMT::getWossPressure(), and woss::WossManagerResDbMT::getWossTimeArr().

◆ getWossPressure() [1/4]

std::unique_ptr< Pressure > WossManager::getWossPressure	(	const CoordZ &	tx_coordz,
		const CoordZ &	rx_coordz,
		double	start_frequency,
		double	end_frequency,
		const Time &	time_value )

pure virtual

Returns a valid unique_ptr<Pressure> for given parameters

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
time_value	const reference to a valid Time object

Returns: std::unique_ptr to a valid Pressure object

Implemented in woss::WossManagerResDb, and woss::WossManagerResDbMT.

References debug, woss::CoordZ::getCartDistance(), woss::CoordZ::getDepth(), woss::Coord::getGreatCircleDistance(), getWoss(), and woss::Singleton< DefHandler >::instance().

Referenced by getWossPressure(), getWossPressure(), getWossPressure(), woss::WossManagerResDbMT::getWossPressure(), and woss::WossManagerResDbMT::getWossPressure().

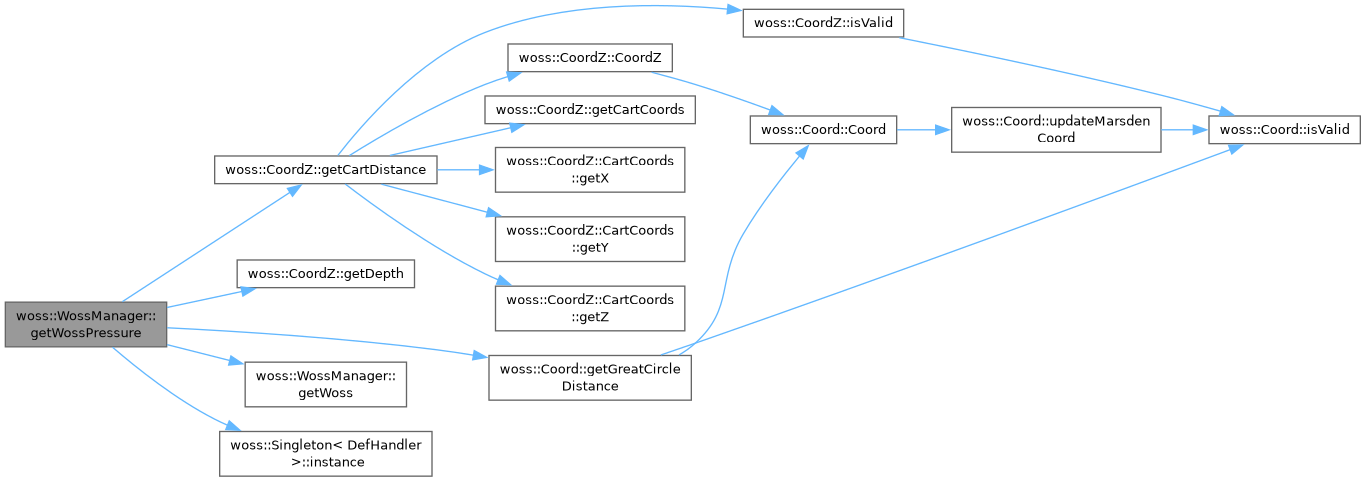

Here is the call graph for this function:

◆ getWossPressure() [2/4]

std::unique_ptr< Pressure > WossManager::getWossPressure	(	const CoordZ &	tx_coordz,
		const CoordZ &	rx_coordz,
		double	start_frequency,
		double	end_frequency,
		double	time_value = 0.0 )

virtual

Returns a valid Pressure* for given parameters

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
time_value	const reference to a valid Time object

Returns: std::unique_ptr to a valid Pressure object

Reimplemented in woss::WossManagerResDbMT.

References debug, woss::CoordZ::getCartDistance(), getWossPressure(), woss::Singleton< DefHandler >::instance(), woss::Time::isValid(), woss::SimTime::start_time, and woss_creator.

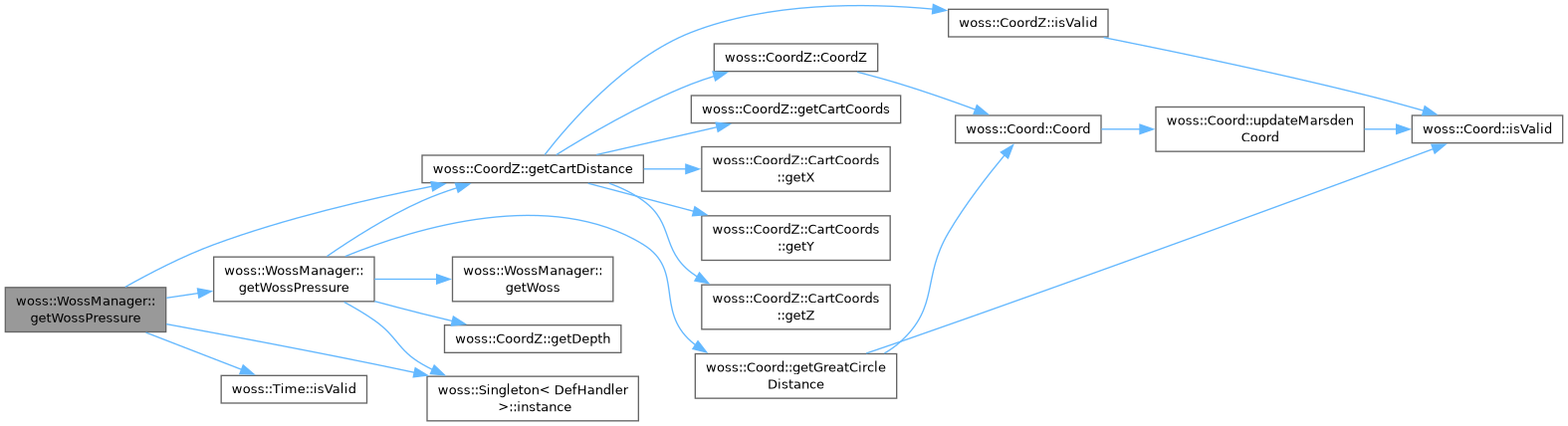

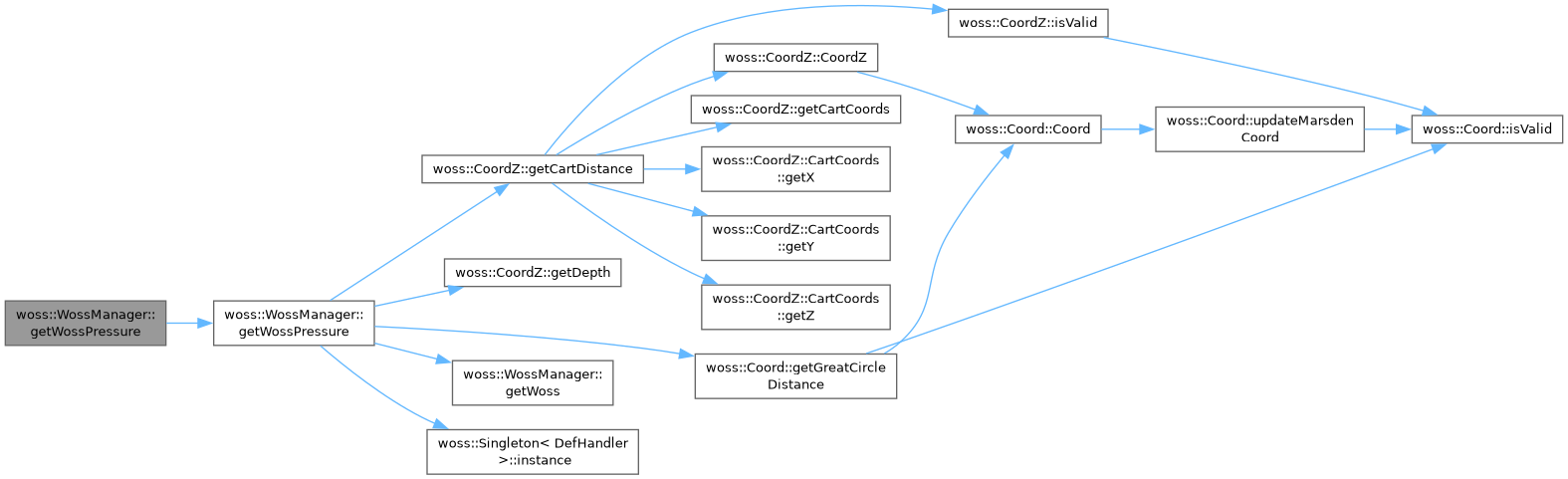

Here is the call graph for this function:

◆ getWossPressure() [3/4]

PressureVector WossManager::getWossPressure	(	const CoordZPairVect &	coordinates,
		double	start_frequency,
		double	end_frequency,
		const Time &	time_value )

virtual

Returns a valid vector of Pressure* for given parameters

Parameters

coordinates	const reference to a valid CoordZPairVect
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
time_value	const reference to a valid Time object

Returns: valid PressureVector

Reimplemented in woss::WossManagerResDbMT.

References getWossPressure().

Here is the call graph for this function:

◆ getWossPressure() [4/4]

PressureVector WossManager::getWossPressure	(	const CoordZPairVect &	coordinates,
		double	start_frequency,
		double	end_frequency,
		double	time_value = 0.0 )

virtual

Returns a valid vector of Pressure* for given parameters

Parameters

coordinates	const reference to a valid CoordZPairVect
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
time_value	seconds after start time

Returns: valid PressureVector

Reimplemented in woss::WossManagerResDbMT.

References woss::Pressure::createNotValid(), debug, getWossPressure(), woss::Singleton< DefHandler >::instance(), woss::Time::isValid(), woss::SimTime::start_time, and woss_creator.

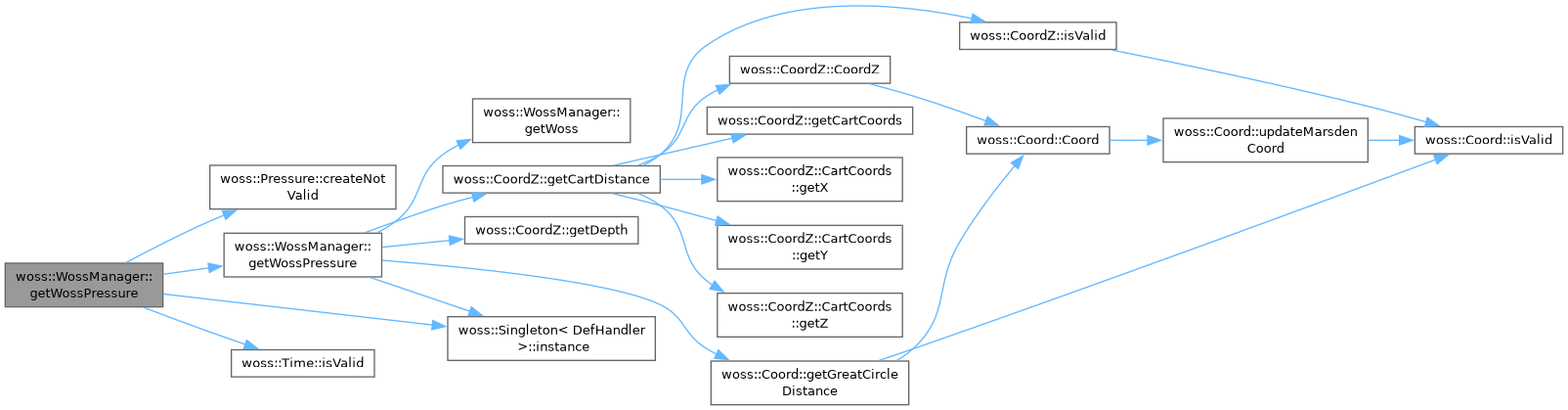

Here is the call graph for this function:

◆ getWossTimeArr() [1/4]

std::unique_ptr< TimeArr > WossManager::getWossTimeArr	(	const CoordZ &	tx_coordz,
		const CoordZ &	rx_coordz,
		double	start_frequency,
		double	end_frequency,
		const Time &	time_value )

pure virtual

Returns a valid TimeArr* for given parameters

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
time_value	const reference to a valid Time object

Returns: std::unique_ptr to a valid TimeArr object

Implemented in woss::WossManagerResDb, and woss::WossManagerResDbMT.

References woss::TimeArr::createImpulse(), debug, woss::CoordZ::getCartDistance(), woss::CoordZ::getDepth(), woss::Coord::getGreatCircleDistance(), getWoss(), and woss::Singleton< DefHandler >::instance().

Referenced by getWossTimeArr(), getWossTimeArr(), getWossTimeArr(), woss::WossManagerResDbMT::getWossTimeArr(), and woss::WossManagerResDbMT::getWossTimeArr().

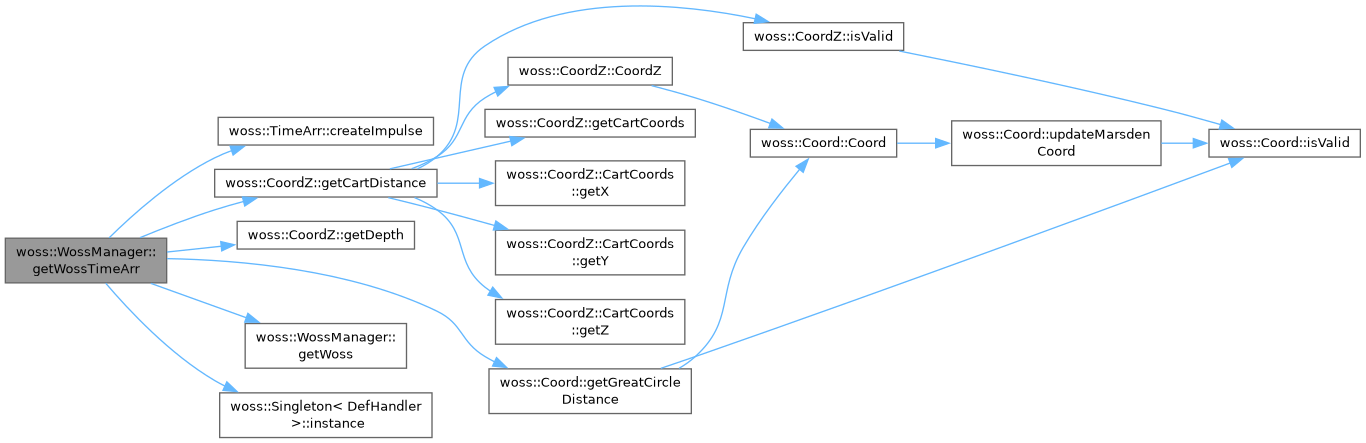

Here is the call graph for this function:

◆ getWossTimeArr() [2/4]

std::unique_ptr< TimeArr > WossManager::getWossTimeArr	(	const CoordZ &	tx_coordz,
		const CoordZ &	rx_coordz,
		double	start_frequency,
		double	end_frequency,
		double	time_value = 0.0 )

virtual

Returns a valid TimeArr* for given parameters

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
time_value	const reference to a valid Time object

Returns: std::unique_ptr to a valid TimeArr object

Reimplemented in woss::WossManagerResDbMT.

References woss::TimeArr::createImpulse(), debug, woss::CoordZ::getCartDistance(), getWossTimeArr(), woss::Singleton< DefHandler >::instance(), woss::Time::isValid(), woss::SimTime::start_time, and woss_creator.

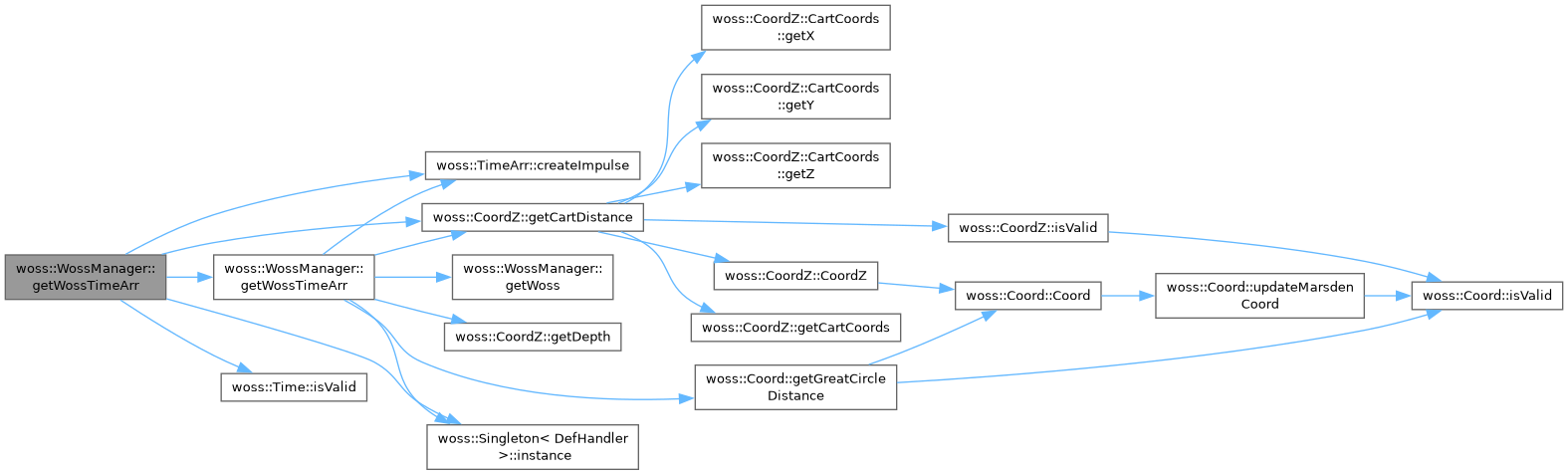

Here is the call graph for this function:

◆ getWossTimeArr() [3/4]

TimeArrVector WossManager::getWossTimeArr	(	const CoordZPairVect &	coordinates,
		double	start_frequency,
		double	end_frequency,
		const Time &	time_value )

virtual

Returns a valid vector of TimeArr* for given parameters

Parameters

coordinates	const reference to a valid CoordZPairVect
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
time_value	const reference to a Time object

Returns: valid TimeArrVector

Reimplemented in woss::WossManagerResDbMT.

References getWossTimeArr().

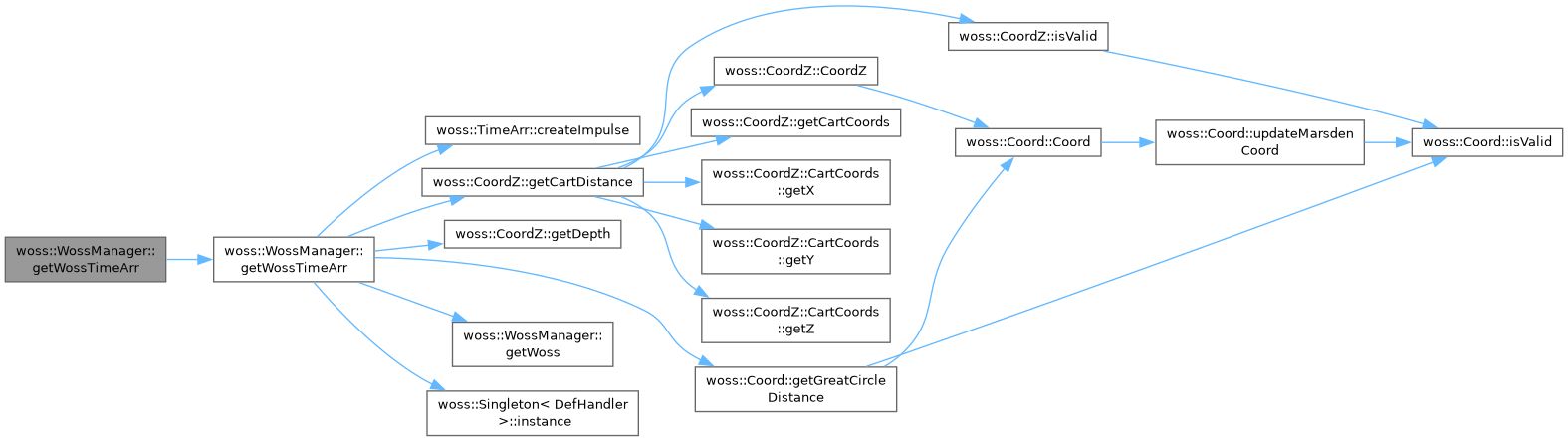

Here is the call graph for this function:

◆ getWossTimeArr() [4/4]

TimeArrVector WossManager::getWossTimeArr	(	const CoordZPairVect &	coordinates,
		double	start_frequency,
		double	end_frequency,
		double	time_value = 0.0 )

virtual

Returns a valid vector of TimeArr* for given parameters

Parameters

coordinates	const reference to a valid CoordZPairVect
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
time_value	number of seconds after start time

Returns: valid TimeArrVector

Reimplemented in woss::WossManagerResDbMT.

References woss::TimeArr::createNotValid(), debug, getWossTimeArr(), woss::Singleton< DefHandler >::instance(), woss::Time::isValid(), woss::SimTime::start_time, and woss_creator.

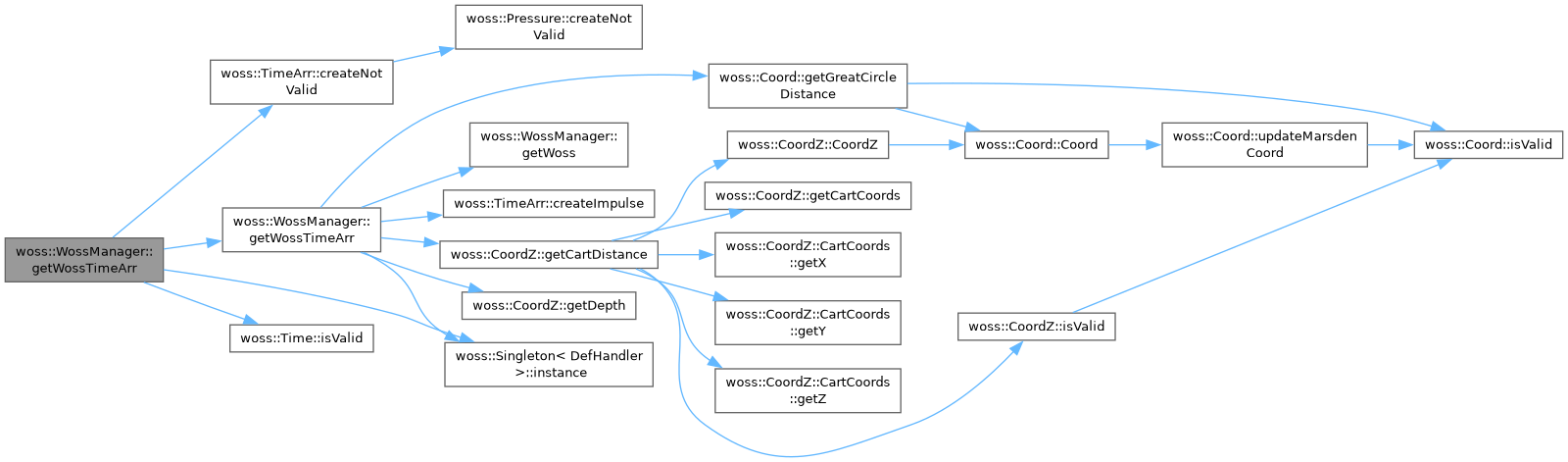

Here is the call graph for this function:

◆ reset()

virtual bool woss::WossManager::reset ( )

pure virtual

Deletes all created Woss instances

Returns: true if method was successful, false otherwise

Implemented in woss::WossManagerSimple< WMResDb >.

◆ setDebugFlag()

void woss::WossManager::setDebugFlag ( bool flag )

inline

References debug.

◆ setTimeEvolutionActiveFlag()

void woss::WossManager::setTimeEvolutionActiveFlag ( bool flag )

inline

References is_time_evolution_active.

◆ setWossCreator()

WossManager & woss::WossManager::setWossCreator ( const std::shared_ptr< WossCreator > & ptr )

inline

Sets a pointer to a WossCreator instance, for Woss creation purposes

Parameters

ptr	const pointer to a const WossCreator instance

Returns: reference to *this

References woss_creator, and WossManager().

Here is the call graph for this function:

◆ timeEvolve()

virtual bool woss::WossManager::timeEvolve ( const Time & time_value )

pure virtual

Performs a time evoulion of all time-dependant parameters of all created Woss instances

Parameters

time_value const reference to a valid Time object

Returns: true if method was successful, false otherwise

Implemented in woss::WossManagerSimple< WMResDb >.

Member Data Documentation

◆ debug

◆ is_time_evolution_active

bool woss::WossManager::is_time_evolution_active

protected

Referenced by getTimeEvolutionActiveFlag(), woss::WossManagerResDb::getWossPressure(), woss::WossManagerResDbMT::getWossPressure(), woss::WossManagerResDb::getWossTimeArr(), woss::WossManagerResDbMT::getWossTimeArr(), and setTimeEvolutionActiveFlag().

◆ NO_EVOLUTION_TIME

const Time WossManager::NO_EVOLUTION_TIME = {1, 1, 1901 , 1, 1, 1}

staticprotected

Referenced by woss::WossManagerResDb::getWossPressure(), woss::WossManagerResDbMT::getWossPressure(), woss::WossManagerResDb::getWossTimeArr(), and woss::WossManagerResDbMT::getWossTimeArr().

◆ woss_creator

std::shared_ptr<WossCreator> woss::WossManager::woss_creator

protected

Const pointer to a WossCreator instance, for Woss creation purposes

Referenced by woss::WossManagerSimple< WMResDb >::getWoss(), getWossCreator(), getWossPressure(), getWossPressure(), woss::WossManagerResDb::getWossPressure(), woss::WossManagerResDbMT::getWossPressure(), woss::WossManagerResDbMT::getWossPressure(), getWossTimeArr(), getWossTimeArr(), woss::WossManagerResDb::getWossTimeArr(), woss::WossManagerResDbMT::getWossTimeArr(), woss::WossManagerResDbMT::getWossTimeArr(), setWossCreator(), and WossManager().

The documentation for this class was generated from the following files:

woss/woss-manager.h
woss/woss-manager.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ WossManager()

◆ ~WossManager()

Member Function Documentation

◆ eraseActiveWoss()

◆ getActiveWoss()

◆ getDebugFlag()

◆ getTimeEvolutionActiveFlag()

◆ getWoss()

◆ getWossCreator()

◆ getWossPressure() [1/4]

◆ getWossPressure() [2/4]

◆ getWossPressure() [3/4]

◆ getWossPressure() [4/4]

◆ getWossTimeArr() [1/4]

◆ getWossTimeArr() [2/4]

◆ getWossTimeArr() [3/4]

◆ getWossTimeArr() [4/4]

◆ reset()

◆ setDebugFlag()

◆ setTimeEvolutionActiveFlag()

◆ setWossCreator()

◆ timeEvolve()

Member Data Documentation

◆ debug

◆ is_time_evolution_active

◆ NO_EVOLUTION_TIME

◆ woss_creator
