WossChannelModule Class Reference

WossChannelModule class for channel calculations with WOSS. More...

#include <uw-woss-channel.h>

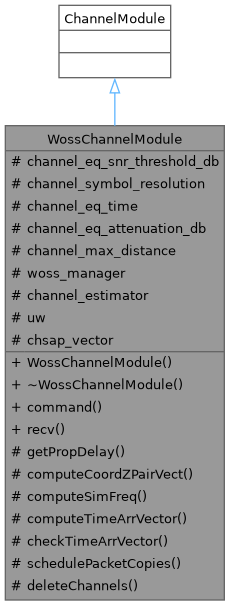

Inheritance diagram for WossChannelModule:

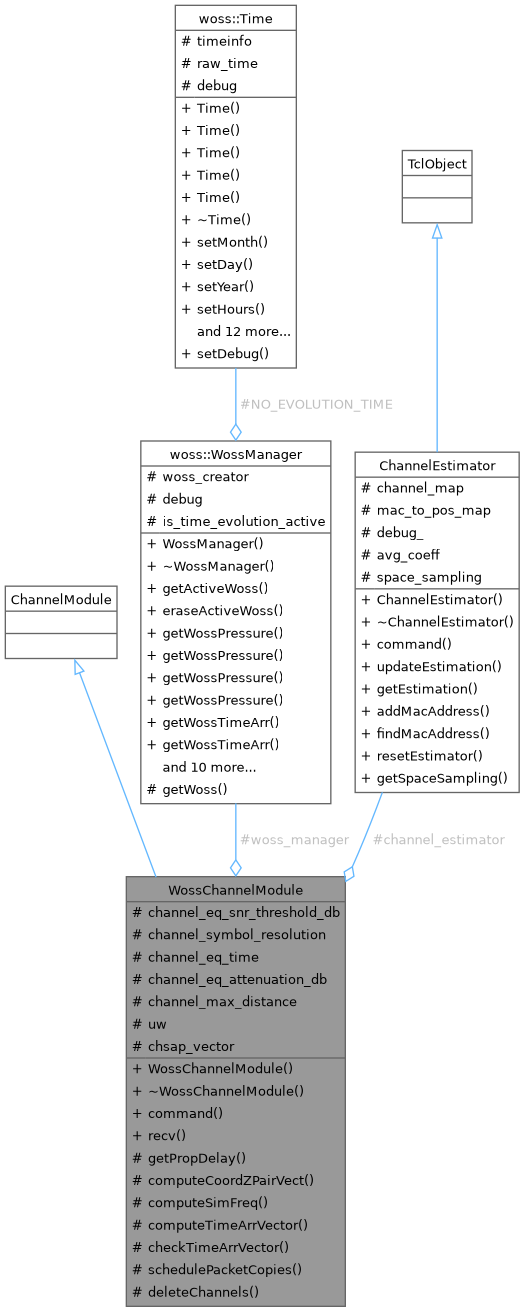

Collaboration diagram for WossChannelModule:

Public Member Functions
	WossChannelModule ()
virtual	~WossChannelModule () override=default
virtual int	command (int argc, const char *const *argv) override
virtual void	recv (Packet *p, ChSAP *chsap) override

Protected Types
using	ChSAPVector = std::vector< ChSAP* >

Protected Member Functions
double	getPropDelay (const woss::CoordZ &s, const woss::CoordZ &d)
woss::CoordZPairVect	computeCoordZPairVect (ChSAP *dest)
woss::SimFreq	computeSimFreq (Packet *p)
woss::TimeArrVector	computeTimeArrVector (const woss::CoordZPairVect &coords, const woss::SimFreq &sim_freq)
void	checkTimeArrVector (const woss::CoordZPairVect &coords, woss::TimeArrVector &channels)
void	schedulePacketCopies (const woss::CoordZPairVect &coords, const woss::TimeArrVector &channels, const woss::SimFreq &sim_freq, Packet *p)
void	deleteChannels (woss::TimeArrVector &channels)

Protected Attributes
double	channel_eq_snr_threshold_db
double	channel_symbol_resolution
double	channel_eq_time
double	channel_eq_attenuation_db
double	channel_max_distance
woss::WossManager *	woss_manager
ChannelEstimator *	channel_estimator
Underwater	uw
ChSAPVector	chsap_vector

Detailed Description

WossChannelModule class for channel calculations with WOSS.

WossChannelModule extends ChannelModule for channel calculations with WOSS

Member Typedef Documentation

ChSAPVector

using WossChannelModule::ChSAPVector = std::vector< ChSAP* >

protected

Constructor & Destructor Documentation

WossChannelModule()

WossChannelModule::WossChannelModule

(

)

References channel_eq_snr_threshold_db, channel_eq_time, channel_estimator, channel_max_distance, channel_symbol_resolution, uw, and woss_manager.

~WossChannelModule()

virtual WossChannelModule::~WossChannelModule ( )

overridevirtualdefault

Member Function Documentation

checkTimeArrVector()

void WossChannelModule::checkTimeArrVector ( const woss::CoordZPairVect & coords, woss::TimeArrVector & channels )

protected

References channel_eq_attenuation_db, channel_eq_time, channel_estimator, channel_symbol_resolution, woss::TimeArr::createNotValid(), and getPropDelay().

Referenced by recv().

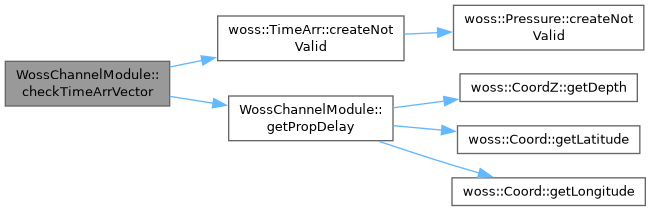

Here is the call graph for this function:

command()

int WossChannelModule::command ( int argc, const char *const * argv )

overridevirtual

References channel_estimator, and woss_manager.

computeCoordZPairVect()

woss::CoordZPairVect WossChannelModule::computeCoordZPairVect ( ChSAP * dest )

protected

References channel_max_distance, chsap_vector, WossPosition::getDepth(), woss::Coord::getGreatCircleDistance(), and woss::Location::getLocation().

Referenced by recv().

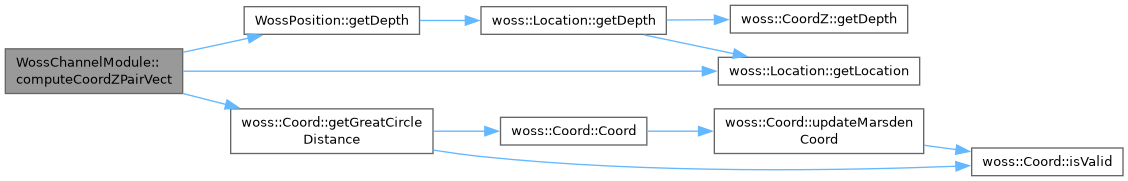

Here is the call graph for this function:

computeSimFreq()

woss::SimFreq WossChannelModule::computeSimFreq ( Packet * p )

protected

Referenced by recv().

computeTimeArrVector()

woss::TimeArrVector WossChannelModule::computeTimeArrVector ( const woss::CoordZPairVect & coords, const woss::SimFreq & sim_freq )

protected

References woss_manager.

Referenced by recv().

deleteChannels()

void WossChannelModule::deleteChannels ( woss::TimeArrVector & channels )

protected

Referenced by recv().

getPropDelay()

double WossChannelModule::getPropDelay ( const woss::CoordZ & s, const woss::CoordZ & d )

protected

References woss::CoordZ::getDepth(), woss::Coord::getLatitude(), woss::Coord::getLongitude(), and uw.

Referenced by checkTimeArrVector().

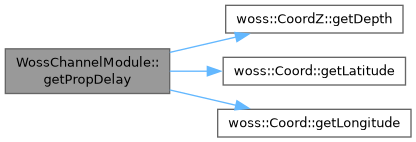

Here is the call graph for this function:

recv()

void WossChannelModule::recv ( Packet * p, ChSAP * chsap )

overridevirtual

References channel_eq_attenuation_db, channel_eq_snr_threshold_db, checkTimeArrVector(), chsap_vector, computeCoordZPairVect(), computeSimFreq(), computeTimeArrVector(), deleteChannels(), schedulePacketCopies(), uw, and woss_manager.

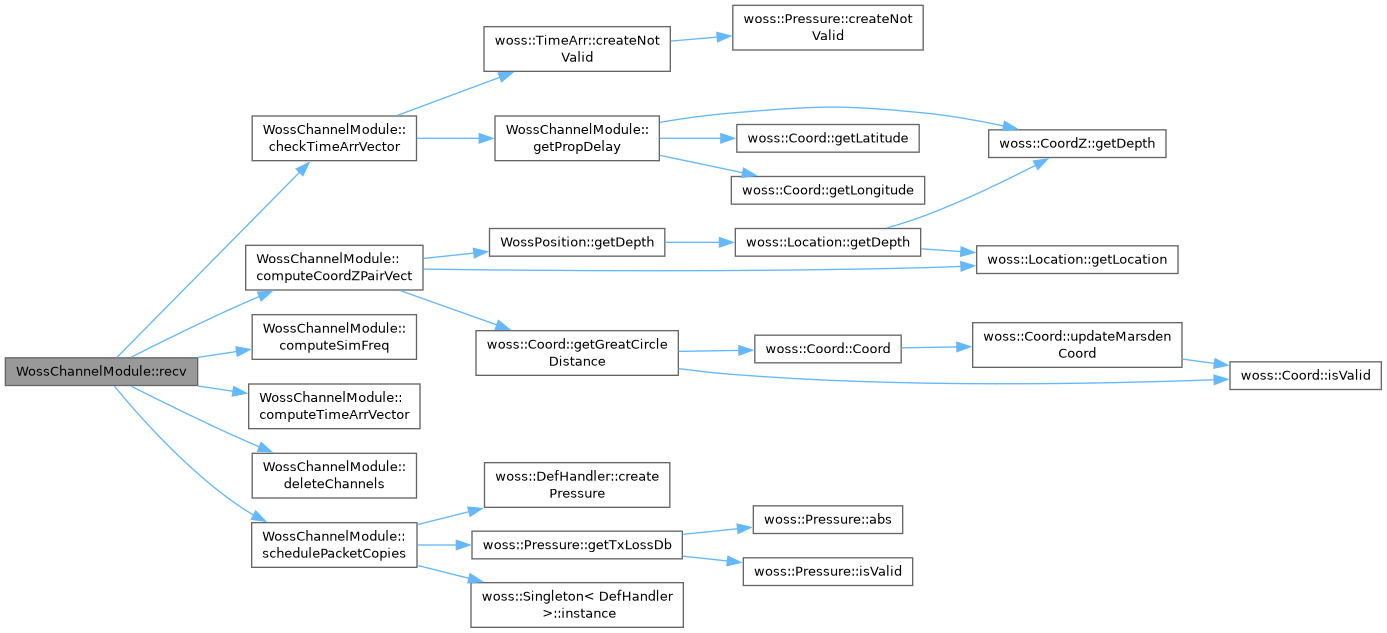

Here is the call graph for this function:

schedulePacketCopies()

void WossChannelModule::schedulePacketCopies ( const woss::CoordZPairVect & coords, const woss::TimeArrVector & channels, const woss::SimFreq & sim_freq, Packet * p )

protected

References hdr_woss::already_processed, hdr_woss::attenuation, chsap_vector, woss::DefHandler::createPressure(), hdr_woss::frequency, woss::Pressure::getTxLossDb(), and woss::Singleton< DefHandler >::instance().

Referenced by recv().

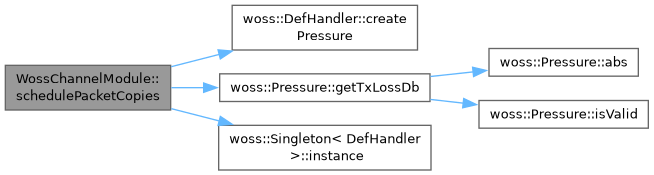

Here is the call graph for this function:

Member Data Documentation

channel_eq_attenuation_db

double WossChannelModule::channel_eq_attenuation_db

protected

Referenced by checkTimeArrVector(), and recv().

channel_eq_snr_threshold_db

double WossChannelModule::channel_eq_snr_threshold_db

protected

Referenced by recv(), and WossChannelModule().

channel_eq_time

double WossChannelModule::channel_eq_time

protected

Referenced by checkTimeArrVector(), and WossChannelModule().

channel_estimator

ChannelEstimator* WossChannelModule::channel_estimator

protected

Referenced by checkTimeArrVector(), command(), and WossChannelModule().

channel_max_distance

double WossChannelModule::channel_max_distance

protected

Referenced by computeCoordZPairVect(), and WossChannelModule().

channel_symbol_resolution

double WossChannelModule::channel_symbol_resolution

protected

Referenced by checkTimeArrVector(), and WossChannelModule().

chsap_vector

ChSAPVector WossChannelModule::chsap_vector

protected

Referenced by computeCoordZPairVect(), recv(), and schedulePacketCopies().

uw

Underwater WossChannelModule::uw

protected

Referenced by getPropDelay(), recv(), and WossChannelModule().

woss_manager

woss::WossManager* WossChannelModule::woss_manager

protected

Referenced by command(), computeTimeArrVector(), recv(), and WossChannelModule().

---

The documentation for this class was generated from the following files:

• woss_phy/uw-woss-channel.h
• woss_phy/uw-woss-channel.cpp
