Coordinates (lat, long) class definitions and functions library. More...

#include <coordinates-definitions.h>

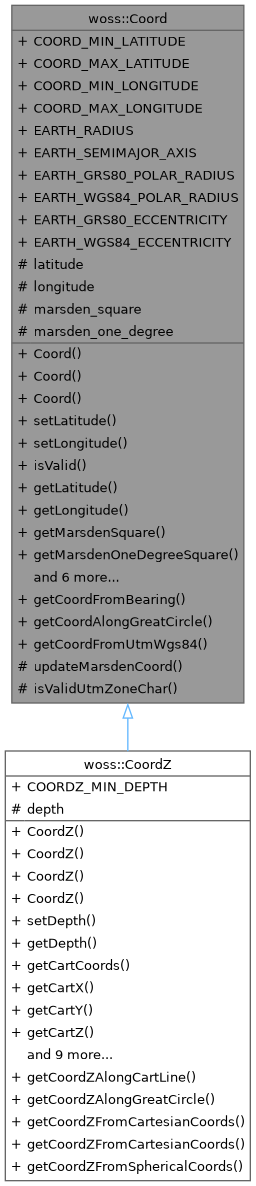

Inheritance diagram for woss::Coord:

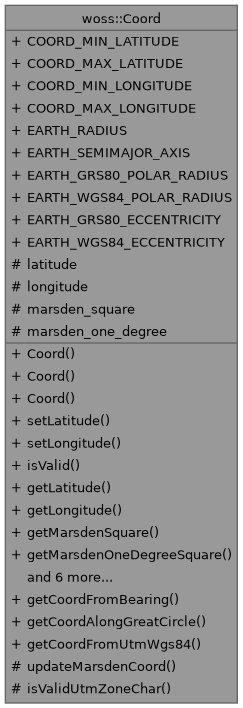

Collaboration diagram for woss::Coord:

Public Member Functions
constexpr	Coord (double lat=COORD_NOT_SET_VALUE, double lon=COORD_NOT_SET_VALUE)
constexpr	Coord (const Coord &copy)=default
constexpr	Coord (Coord &&tmp)=default
constexpr void	setLatitude (double lat)
constexpr void	setLongitude (double lon)
constexpr bool	isValid () const
constexpr double	getLatitude () const
constexpr double	getLongitude () const
constexpr int	getMarsdenSquare () const
constexpr int	getMarsdenOneDegreeSquare () const
constexpr MarsdenCoord	getMarsdenCoord () const
constexpr double	getInitialBearing (const Coord &destination) const
constexpr double	getFinalBearing (const Coord &destination) const
constexpr double	getGreatCircleDistance (const Coord &destination, double depth=0) const
constexpr Coord &	operator= (const Coord &copy)=default
constexpr Coord &	operator= (Coord &&tmp)=default

Static Public Member Functions
static constexpr Coord	getCoordFromBearing (const Coord &start_coord, double bearing, double distance, double depth=0.0)
static constexpr Coord	getCoordAlongGreatCircle (const Coord &start_coord, const Coord &end_coord, double distance, double depth=0.0)
static constexpr Coord	getCoordFromUtmWgs84 (double easting, double northing, double utm_zone_number, UtmZoneChar utm_zone_char)

Static Public Attributes
static constexpr double	COORD_MIN_LATITUDE = -90.0
	Minimum valid Latitude.
static constexpr double	COORD_MAX_LATITUDE = 90.0
	Maximum valid Latitude.
static constexpr double	COORD_MIN_LONGITUDE = -180.0
	Minimum valid Longitude.
static constexpr double	COORD_MAX_LONGITUDE = 180.0
	Maximum valid Longitude.
static constexpr double	EARTH_RADIUS = 6371000.0
	Mean earth radius in meters.
static constexpr double	EARTH_SEMIMAJOR_AXIS = 6378137.0
	Earth's semi-major axis in meters as defined by both GRS80 and WGS84.
static constexpr double	EARTH_GRS80_POLAR_RADIUS = 6356752.3141
	Earth's semi-major axis in meters as defined by GRS80.
static constexpr double	EARTH_WGS84_POLAR_RADIUS = 6356752.314245
	Earth's polar radius in meters as defined by WGS84.
static constexpr double	EARTH_GRS80_ECCENTRICITY = 0.0818191910428158
	Earth's first eccentricity as defined by GRS80.
static constexpr double	EARTH_WGS84_ECCENTRICITY = 0.0818191908426215
	Earth's first eccentricity as defined by WGS84.

Protected Member Functions
constexpr void	updateMarsdenCoord ()

Static Protected Member Functions
static constexpr bool	isValidUtmZoneChar (UtmZoneChar utm_zone_char)

Protected Attributes
double	latitude
double	longitude
int	marsden_square
int	marsden_one_degree

Friends
constexpr Coord	operator+ (const Coord &left, const Coord &right)
constexpr Coord	operator- (const Coord &left, const Coord &right)
constexpr Coord &	operator+= (Coord &left, const Coord &right)
constexpr Coord &	operator-= (Coord &left, const Coord &right)
constexpr bool	operator== (const Coord &left, const Coord &right)
constexpr bool	operator!= (const Coord &left, const Coord &right)
constexpr bool	operator> (const Coord &left, const Coord &right)
constexpr bool	operator< (const Coord &left, const Coord &right)
constexpr bool	operator>= (const Coord &left, const Coord &right)
constexpr bool	operator<= (const Coord &left, const Coord &right)
std::ostream &	operator<< (std::ostream &os, const Coord &instance)

Detailed Description

Coordinates (lat, long) class definitions and functions library.

Coord class stores a double decimal degree latitude and double decimal degree longitude. It has a reach library for Marsden coordinates, distance, bearing and arithmetic calculations.

Constructor & Destructor Documentation

◆ Coord() [1/3]

woss::Coord::Coord	(	double	lat = COORD_NOT_SET_VALUE,
		double	lon = COORD_NOT_SET_VALUE )

inlineconstexpr

Coord constructor.

Parameters

lat	decimal degree latitude value. Default value makes the instance not valid
lon	decimal degree longitude value. Default value makes the instance not valid

References latitude, longitude, marsden_one_degree, marsden_square, and updateMarsdenCoord().

Referenced by Coord(), Coord(), woss::CoordZ::CoordZ(), woss::CoordZ::CoordZ(), getCoordAlongGreatCircle(), getCoordFromBearing(), getCoordFromUtmWgs84(), woss::CoordZ::getCoordZAlongGreatCircle(), getFinalBearing(), getGreatCircleDistance(), getInitialBearing(), operator!=, operator+, operator+=, operator-, operator-=, operator<, operator<<, operator<=, operator=(), operator=(), operator==, operator>, and operator>=.

Here is the call graph for this function:

◆ Coord() [2/3]

woss::Coord::Coord ( const Coord & copy )

constexprdefault

References Coord().

Here is the call graph for this function:

◆ Coord() [3/3]

woss::Coord::Coord ( Coord && tmp )

constexprdefault

References Coord().

Here is the call graph for this function:

Member Function Documentation

◆ getCoordAlongGreatCircle()

Coord woss::Coord::getCoordAlongGreatCircle	(	const Coord &	start_coord,
		const Coord &	end_coord,
		double	distance,
		double	depth = 0.0 )

inlinestaticconstexpr

Gets destination Cood given bearing and distance from a start Coord, travelling along a (shortest distance) great circle arc of given depth to end Coord

Parameters

start_coord	valid start Coord instance
end_coord	valid end Coord instance
distance	distance measured in meters
depth	depth measured in meters

Returns: a new Coord instance containing the destination coordinates

References Coord(), getCoordFromBearing(), and getInitialBearing().

Referenced by woss::CoordZ::getCoordZAlongGreatCircle().

Here is the call graph for this function:

◆ getCoordFromBearing()

Coord woss::Coord::getCoordFromBearing	(	const Coord &	start_coord,
		double	bearing,
		double	distance,
		double	depth = 0.0 )

inlinestaticconstexpr

Gets destination Cood given bearing and distance from a start Coord, travelling along a (shortest distance) great circle arc of given depth

Parameters

start_coord	valid start Coord instance
bearing	bearing measured in radians
distance	distance measured in meters
depth	depth measured in meters

Returns: a new Coord instance containing the destination coordinates

References Coord(), EARTH_RADIUS, isValid(), latitude, and longitude.

Referenced by WossCoordDefTest::doRun(), getCoordAlongGreatCircle(), and woss::ACToolboxWoss::initCoordZVector().

Here is the call graph for this function:

◆ getCoordFromUtmWgs84()

Coord woss::Coord::getCoordFromUtmWgs84	(	double	easting,
		double	northing,
		double	utm_zone_number,
		UtmZoneChar	utm_zone_char )

inlinestaticconstexpr

Gets destination Cood given easting and northing in UTM - WGS84 coordinates

Parameters

easting	valid easting relative to central UTM zone meridian
end_coord	valid northing
utm_zone_number	validzone number
utm_zone_char	validzone character

Returns: a new Coord instance containing the destination coordinates

References Coord(), EARTH_SEMIMAJOR_AXIS, EARTH_WGS84_POLAR_RADIUS, isValidUtmZoneChar(), latitude, and longitude.

Here is the call graph for this function:

◆ getFinalBearing()

double woss::Coord::getFinalBearing ( const Coord & destination ) const

inlineconstexpr

Gets the final bearing of a trajectory

Parameters

destination destination Coord instance

Returns: initial bearing measured in radians

References Coord(), and getInitialBearing().

Here is the call graph for this function:

◆ getGreatCircleDistance()

double woss::Coord::getGreatCircleDistance	(	const Coord &	destination,
		double	depth = 0 ) const

inlineconstexpr

Gets calculates great-circle distances between the two points – that is, the shortest distance over the earth’s surface – using the ‘Haversine’ formula

Parameters

destination valid destination Coord instance

Returns: distance measured in meters

References Coord(), EARTH_RADIUS, isValid(), latitude, and longitude.

Referenced by WossChannelModule::computeCoordZPairVect(), WossCoordDefTest::doBearingTests(), woss::CoordZ::getCoordZAlongGreatCircle(), woss::WossManager::getWossPressure(), woss::WossManager::getWossTimeArr(), woss::WossManagerResDb::getWossTimeArr(), woss::WossManagerResDbMT::getWossTimeArr(), woss::WossDbManager::RangeOperator::operator()(), and WossWpPosition::updateVerticalOrientation().

Here is the call graph for this function:

◆ getInitialBearing()

double woss::Coord::getInitialBearing ( const Coord & destination ) const

inlineconstexpr

Gets the initial bearing of a trajectory

Parameters

destination destination Coord instance

Returns: initial bearing measured in radians

References Coord(), isValid(), latitude, and longitude.

Referenced by WossCoordDefTest::doBearingTests(), getCoordAlongGreatCircle(), getFinalBearing(), woss::WossDbManager::BearingOperator::operator()(), and WossWpPosition::updateBearing().

Here is the call graph for this function:

◆ getLatitude()

double woss::Coord::getLatitude ( ) const

inlineconstexpr

Gets the latitude value

Returns: latitude value of the instance

References latitude.

Referenced by woss::BellhopWoss::checkDepthOffsets(), woss::BathyGebcoDb::get1DBathyIndex(), woss::BathyGebcoDb::get2DBathyIndexes(), woss::SSP::getDepthfromPressure(), woss::Location::getLatitude(), woss::SSP::getPressureFromDepth(), WossChannelModule::getPropDelay(), woss::SedimDeck41CoordDb::getSeaFloorType(), woss::SedimDeck41CoordDb::getSedimIndex(), woss::SedimDeck41CoordDb::getSedimIndexes(), woss::SspWoa2005Db::getSSPIndexes(), woss::UtmWgs84::getUtmWgs84FromCoord(), woss::BathyGebcoDb::getValue(), woss::SSP::isAntarcticOcean(), woss::SSP::isArcticOcean(), woss::SSP::isBalticSea(), woss::SSP::isBlackSea(), woss::SSP::isCanonOcean(), woss::SSP::isCelebesSea(), woss::SSP::isHalmaheraSea(), woss::SSP::isJapanSea(), woss::SSP::isMediterraneanSea(), woss::SSP::isNEAtlanticOcean(), woss::SSP::isRedSea(), woss::SSP::isSuluSea(), woss::Location::operator<<, WossUnitTest::testCoordZ(), and WossPosition::WossPosition().

◆ getLongitude()

double woss::Coord::getLongitude ( ) const

inlineconstexpr

Gets the longitude value

Returns: longitude value of the instance

References longitude.

Referenced by woss::BellhopWoss::checkDepthOffsets(), woss::BathyGebcoDb::get1DBathyIndex(), woss::BathyGebcoDb::get2DBathyIndexes(), woss::Location::getLongitude(), WossChannelModule::getPropDelay(), woss::SedimDeck41CoordDb::getSeaFloorType(), woss::SedimDeck41CoordDb::getSedimIndex(), woss::SedimDeck41CoordDb::getSedimIndexes(), woss::SspWoa2005Db::getSSPIndexes(), woss::UtmWgs84::getUtmWgs84FromCoord(), woss::BathyGebcoDb::getValue(), woss::SSP::isBalticSea(), woss::SSP::isBlackSea(), woss::SSP::isCelebesSea(), woss::SSP::isHalmaheraSea(), woss::SSP::isJapanSea(), woss::SSP::isMediterraneanSea(), woss::SSP::isNEAtlanticOcean(), woss::SSP::isRedSea(), woss::SSP::isSuluSea(), woss::Location::operator<<, WossUnitTest::testCoordZ(), and WossPosition::WossPosition().

◆ getMarsdenCoord()

MarsdenCoord woss::Coord::getMarsdenCoord ( ) const

inlineconstexpr

Gets the marsden coordinates

Returns: complete marsden coordinates of the instance

References marsden_one_degree, and marsden_square.

◆ getMarsdenOneDegreeSquare()

int woss::Coord::getMarsdenOneDegreeSquare ( ) const

inlineconstexpr

Gets the marsden one degree square value

Returns: marsden one degree square value of the instance

References marsden_one_degree.

◆ getMarsdenSquare()

int woss::Coord::getMarsdenSquare ( ) const

inlineconstexpr

Gets the marsden square value

Returns: marsden square value of the instance

References marsden_square.

◆ isValid()

bool woss::Coord::isValid ( ) const

inlineconstexpr

Checks the validity of coordinates provided

Returns: true if coordinates are valid, false otherwise

References COORD_MAX_LATITUDE, COORD_MAX_LONGITUDE, COORD_MIN_LATITUDE, COORD_MIN_LONGITUDE, latitude, and longitude.

Referenced by getCoordFromBearing(), getGreatCircleDistance(), getInitialBearing(), woss::SSP::insertValue(), woss::SSP::insertValue(), woss::CoordZ::isValid(), operator+, operator+=, operator-, operator-=, woss::SSP::transform(), and updateMarsdenCoord().

◆ isValidUtmZoneChar()

bool woss::Coord::isValidUtmZoneChar ( UtmZoneChar utm_zone_char )

inlinestaticconstexprprotected

Checks if the passed utm zone character is valid

Parameters

utm_zone_char utm zone character

Returns: true if valid, false otherwise

Referenced by getCoordFromUtmWgs84().

◆ operator=() [1/2]

Coord & woss::Coord::operator= ( const Coord & copy )

constexprdefault

Assignment operator

Parameters

copy	const reference to a Coord object to be copied

Returns: Coord reference to this

References Coord().

Here is the call graph for this function:

◆ operator=() [2/2]

Coord & woss::Coord::operator= ( Coord && tmp )

constexprdefault

Move assignment operator

Parameters

tmp	rvalue reference to a Coord object to be move

Returns: Coord reference to this

References Coord().

Here is the call graph for this function:

◆ setLatitude()

void woss::Coord::setLatitude ( double lat )

inlineconstexpr

Sets latitude and updates marsden coordinates

Parameters

lat	latitude value

References latitude, and updateMarsdenCoord().

Here is the call graph for this function:

◆ setLongitude()

void woss::Coord::setLongitude ( double lon )

inlineconstexpr

Sets longitude and updates marsden coordinates

Parameters

lon	longitude value

References longitude, and updateMarsdenCoord().

Here is the call graph for this function:

◆ updateMarsdenCoord()

void woss::Coord::updateMarsdenCoord ( )

inlineconstexprprotected

Calculates marsden coordinates from latitude and longitude

References isValid(), latitude, longitude, marsden_one_degree, and marsden_square.

Referenced by Coord(), setLatitude(), and setLongitude().

Here is the call graph for this function:

◆ operator!=

bool operator!=	(	const Coord &	left,
		const Coord &	right )

friend

Inequality operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left != right, false otherwise

References Coord(), latitude, and longitude.

◆ operator+

Coord operator+	(	const Coord &	left,
		const Coord &	right )

friend

Sum operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References Coord(), isValid(), latitude, and longitude.

◆ operator+=

Coord & operator+=	(	Coord &	left,
		const Coord &	right )

friend

Compound assignment sum operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References Coord(), isValid(), latitude, and longitude.

◆ operator-

Coord operator-	(	const Coord &	left,
		const Coord &	right )

friend

Subtraction operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: a new const instance holding the operation result

References Coord(), isValid(), latitude, and longitude.

◆ operator-=

Coord & operator-=	(	Coord &	left,
		const Coord &	right )

friend

Compound assignment subtraction operator

Parameters

left	left operand reference
right	right operand const reference

Returns: left reference after the operation

References Coord(), isValid(), latitude, and longitude.

◆ operator<

bool operator<	(	const Coord &	left,
		const Coord &	right )

friend

Less than operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left < right, false otherwise

References Coord(), latitude, and longitude.

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const Coord &	instance )

friend

<< operator

Parameters

os	left operand ostream reference
instance	right operand const Coord reference

Returns: os reference after the operation

References Coord(), latitude, longitude, marsden_one_degree, and marsden_square.

◆ operator<=

bool operator<=	(	const Coord &	left,
		const Coord &	right )

friend

Less than or equal to operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left <= right, false otherwise

References Coord().

◆ operator==

bool operator==	(	const Coord &	left,
		const Coord &	right )

friend

Equality operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left == right, false otherwise

References Coord(), latitude, and longitude.

◆ operator>

bool operator>	(	const Coord &	left,
		const Coord &	right )

friend

Greater than operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left > right, false otherwise

References Coord(), latitude, and longitude.

◆ operator>=

bool operator>=	(	const Coord &	left,
		const Coord &	right )

friend

Greater than or equal to operator

Parameters

left	left operand const reference
right	right operand const reference

Returns: true if left >= right, false otherwise

References Coord().

Member Data Documentation

◆ COORD_MAX_LATITUDE

double woss::Coord::COORD_MAX_LATITUDE = 90.0

staticconstexpr

Maximum valid Latitude.

Referenced by woss::SedimDeck41CoordDb::getSedimIndexes(), and isValid().

◆ COORD_MAX_LONGITUDE

double woss::Coord::COORD_MAX_LONGITUDE = 180.0

staticconstexpr

Maximum valid Longitude.

Referenced by woss::SedimDeck41CoordDb::getSedimIndexes(), and isValid().

◆ COORD_MIN_LATITUDE

double woss::Coord::COORD_MIN_LATITUDE = -90.0

staticconstexpr

Minimum valid Latitude.

Referenced by woss::SedimDeck41CoordDb::getSedimIndexes(), and isValid().

◆ COORD_MIN_LONGITUDE

double woss::Coord::COORD_MIN_LONGITUDE = -180.0

staticconstexpr

Minimum valid Longitude.

Referenced by woss::SedimDeck41CoordDb::getSedimIndexes(), and isValid().

◆ EARTH_GRS80_ECCENTRICITY

double woss::Coord::EARTH_GRS80_ECCENTRICITY = 0.0818191910428158

staticconstexpr

Earth's first eccentricity as defined by GRS80.

Referenced by woss::CoordZ::getCartCoords().

◆ EARTH_GRS80_POLAR_RADIUS

double woss::Coord::EARTH_GRS80_POLAR_RADIUS = 6356752.3141

staticconstexpr

Earth's semi-major axis in meters as defined by GRS80.

Referenced by woss::CoordZ::getCoordZFromCartesianCoords().

◆ EARTH_RADIUS

double woss::Coord::EARTH_RADIUS = 6371000.0

staticconstexpr

Mean earth radius in meters.

Referenced by woss::CoordZ::getCartCoords(), getCoordFromBearing(), woss::CoordZ::getCoordZAlongCartLine(), woss::CoordZ::getCoordZFromCartesianCoords(), woss::CoordZ::getCoordZFromSphericalCoords(), getGreatCircleDistance(), and woss::CoordZ::getSphericalRho().

◆ EARTH_SEMIMAJOR_AXIS

double woss::Coord::EARTH_SEMIMAJOR_AXIS = 6378137.0

staticconstexpr

Earth's semi-major axis in meters as defined by both GRS80 and WGS84.

Referenced by woss::CoordZ::getCartCoords(), getCoordFromUtmWgs84(), woss::CoordZ::getCoordZFromCartesianCoords(), and woss::UtmWgs84::getUtmWgs84FromCoord().

◆ EARTH_WGS84_ECCENTRICITY

double woss::Coord::EARTH_WGS84_ECCENTRICITY = 0.0818191908426215

staticconstexpr

Earth's first eccentricity as defined by WGS84.

Referenced by woss::CoordZ::getCartCoords().

◆ EARTH_WGS84_POLAR_RADIUS

double woss::Coord::EARTH_WGS84_POLAR_RADIUS = 6356752.314245

staticconstexpr

Earth's polar radius in meters as defined by WGS84.

Referenced by getCoordFromUtmWgs84(), and woss::CoordZ::getCoordZFromCartesianCoords().

◆ latitude

◆ longitude

◆ marsden_one_degree

int woss::Coord::marsden_one_degree

protected

Marsden one degree square value

Referenced by Coord(), getMarsdenCoord(), getMarsdenOneDegreeSquare(), operator<<, woss::CoordZ::operator<<, and updateMarsdenCoord().

◆ marsden_square

int woss::Coord::marsden_square

protected

Marsden square value

Referenced by Coord(), getMarsdenCoord(), getMarsdenSquare(), operator<<, woss::CoordZ::operator<<, and updateMarsdenCoord().

The documentation for this class was generated from the following file:

woss/woss_def/coordinates-definitions.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Coord() [1/3]

◆ Coord() [2/3]

◆ Coord() [3/3]

Member Function Documentation

◆ getCoordAlongGreatCircle()

◆ getCoordFromBearing()

◆ getCoordFromUtmWgs84()

◆ getFinalBearing()

◆ getGreatCircleDistance()

◆ getInitialBearing()

◆ getLatitude()

◆ getLongitude()

◆ getMarsdenCoord()

◆ getMarsdenOneDegreeSquare()

◆ getMarsdenSquare()

◆ isValid()

◆ isValidUtmZoneChar()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ setLatitude()

◆ setLongitude()

◆ updateMarsdenCoord()

Friends And Related Symbol Documentation

◆ operator!=

◆ operator+

◆ operator+=

◆ operator-

◆ operator-=

◆ operator<

◆ operator<<

◆ operator<=

◆ operator==

◆ operator>

◆ operator>=

Member Data Documentation

◆ COORD_MAX_LATITUDE

◆ COORD_MAX_LONGITUDE

◆ COORD_MIN_LATITUDE

◆ COORD_MIN_LONGITUDE

◆ EARTH_GRS80_ECCENTRICITY

◆ EARTH_GRS80_POLAR_RADIUS

◆ EARTH_RADIUS

◆ EARTH_SEMIMAJOR_AXIS

◆ EARTH_WGS84_ECCENTRICITY

◆ EARTH_WGS84_POLAR_RADIUS

◆ latitude

◆ longitude

◆ marsden_one_degree

◆ marsden_square
