Implempentation of ACToolboxWoss for Bellhop raytracing program. More...

#include <bellhop-woss.h>

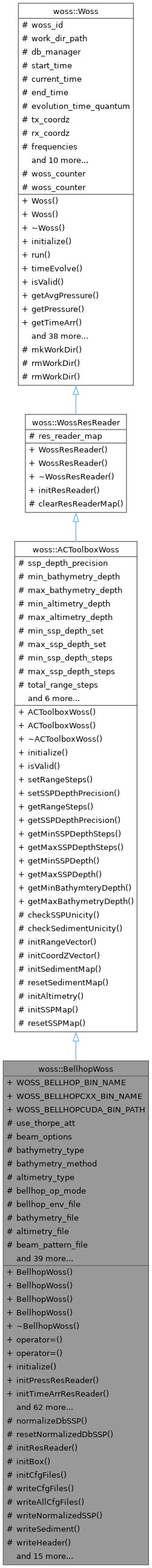

Inheritance diagram for woss::BellhopWoss:

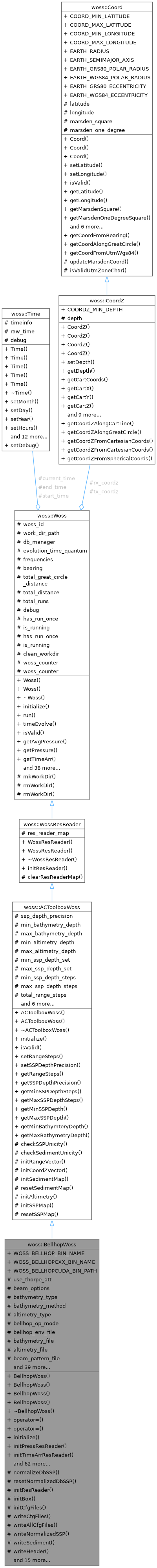

Collaboration diagram for woss::BellhopWoss:

Public Member Functions
	BellhopWoss ()
	BellhopWoss (const CoordZ &tx, const CoordZ &rx, const Time &start_t, const Time &end_t, double start_freq, double end_freq, double freq_step)
	BellhopWoss (const BellhopWoss &copy)=default
	BellhopWoss (BellhopWoss &&tmp)=default
virtual	~BellhopWoss () override=default
BellhopWoss &	operator= (const BellhopWoss &copy)=default
BellhopWoss &	operator= (BellhopWoss &&tmp)=default
virtual bool	initialize () override
virtual bool	initPressResReader (double curr_frequency)
virtual bool	initTimeArrResReader (double curr_frequency)
virtual bool	run () override
virtual bool	timeEvolve (const Time &time_value) override
virtual bool	isValid () const override
virtual std::unique_ptr< Pressure >	getAvgPressure (double frequency, double tx_depth, double start_rx_depth=WOSS_MIN_DEPTH, double start_rx_range=WOSS_MIN_RANGE, double end_rx_depth=WOSS_MAX_DEPTH, double end_rx_range=WOSS_MAX_RANGE) const
virtual std::unique_ptr< Pressure >	getPressure (double frequency, double tx_depth, double rx_depth, double rx_range) const
virtual std::unique_ptr< TimeArr >	getTimeArr (double frequency, double tx_depth, double rx_depth, double rx_range) const
BellhopWoss &	setThorpeAttFlag (bool flag)
BellhopWoss &	setTxMinDepthOffset (double offset)
BellhopWoss &	setTxMaxDepthOffset (double offset)
BellhopWoss &	setTotalTransmitters (int sources)
BellhopWoss &	setRxMinDepthOffset (double offset)
BellhopWoss &	setRxMaxDepthOffset (double offset)
BellhopWoss &	setRxMinRangeOffset (double offset)
BellhopWoss &	setRxMaxRangeOffset (double offset)
BellhopWoss &	setRxTotalDepths (int number)
BellhopWoss &	setRxTotalRanges (int number)
BellhopWoss &	setRaysNumber (int number)
BellhopWoss &	setMinAngle (double angle)
BellhopWoss &	setMaxAngle (double angle)
BellhopWoss &	setBoxDepth (double depth)
BellhopWoss &	setBoxRange (double range)
BellhopWoss &	setBellhopPath (const std::string &path)
BellhopWoss &	setBellhopBinName (const std::string &name)
BellhopWoss &	setBellhopArrSyntax (BellhopArrSyntax syntax)
BellhopWoss &	setBellhopShdSyntax (BellhopShdSyntax syntax)
BellhopWoss &	setBeamOptions (const std::string &options)
BellhopWoss &	setBhMode (const std::string &mode)
BellhopWoss &	setBathymetryType (const std::string &type)
BellhopWoss &	setBathymetryMethod (const std::string &type)
BellhopWoss &	setAltimetryType (const std::string &type)
BellhopWoss &	setTransducer (std::unique_ptr< Transducer > ptr)
BellhopWoss &	setTransformSSPDepthSteps (int depth_steps)
BellhopWoss &	setBeamPatternParam (double init_bearing, double vert_rot=0.0, double horiz_rot=0.0, double mult=1.0, double add=0.0)
bool	getThorpeAttFlag () const
double	getTxMinDepthOffset () const
double	getTxMaxDepthOffset () const
int	getTotalTransmitters () const
double	getRxMinDepthOffset () const
double	getRxMaxDepthOffset () const
double	getRxMinRangeOffset () const
double	getRxMaxRangeOffset () const
int	getRxTotalDepths () const
int	getRxTotalRanges () const
int	getRaysNumber () const
double	getMinAngle () const
double	getMaxAngle () const
double	getBoxDepth () const
double	getBoxRange () const
int	getTransformSSPDepthSteps () const
std::string	getBellhopPath () const
std::string	getBellhopBinName () const
BellhopArrSyntax	getBellhopArrSyntax () const
BellhopShdSyntax	getBellhopShdSyntax () const
std::string	getBeamOptions () const
std::string	getBathymetryType () const
std::string	getBathymetryMethod () const
std::string	getAltimetryType () const
std::unique_ptr< Transducer >	getTransducer () const
bool	isValidBhMode (const std::string &) const
bool	usingPressMode () const
bool	usingTimeArrMode () const
bool	usingSSPFile () const
Public Member Functions inherited from woss::ACToolboxWoss
	ACToolboxWoss ()
	ACToolboxWoss (const CoordZ &tx, const CoordZ &rx, const Time &start_t, const Time &end_t, double start_freq, double end_freq, double freq_step)
virtual	~ACToolboxWoss () override=default
ACToolboxWoss &	setRangeSteps (int steps)
ACToolboxWoss &	setSSPDepthPrecision (long double precision)
int	getRangeSteps () const
long double	getSSPDepthPrecision () const
int	getMinSSPDepthSteps () const
int	getMaxSSPDepthSteps () const
double	getMinSSPDepth () const
double	getMaxSSPDepth () const
double	getMinBathymteryDepth () const
double	getMaxBathymetryDepth () const
Public Member Functions inherited from woss::WossResReader
	WossResReader ()=default
	WossResReader (const CoordZ &tx, const CoordZ &rx, const Time &start_t, const Time &end_t, double start_freq, double end_freq, double freq_step)
virtual	~WossResReader () override=default
Public Member Functions inherited from woss::Woss
	Woss ()
	Woss (const CoordZ &tx, const CoordZ &rx, const Time &start_t, const Time &end_t, double start_freq, double end_freq, double freq_step)
virtual	~Woss ()
Woss &	setDebug (bool flag)
Woss &	setCleanWorkDir (bool flag)
Woss &	setWorkDirPath (const std::string &path)
Woss &	setWossDbManager (const std::shared_ptr< WossDbManager > &ptr)
Woss &	insertFrequency (double freq)
Woss &	insertFrequencies (double freq_start, double freq_end, double freq_step)
Woss &	setFrequencies (const FreqSet &freq_set)
Woss &	eraseFrequency (double freq)
Woss &	clearFrequencies ()
Woss &	setTotalRuns (int runs)
Woss &	setTxCoordZ (const CoordZ &coordz)
Woss &	setRxCoordZ (const CoordZ &coordz)
Woss &	setStartTime (const Time &start_t)
Woss &	setEndTime (const Time &end_t)
Woss &	setEvolutionTimeQuantum (double value)
int	getWossId () const
std::string	getWorkDirPath () const
const FreqSet &	getFrequencies () const
double	getMinFrequency () const
double	getMaxFrequency () const
FreqSCIt	freq_begin () const
FreqSCIt	freq_end () const
FreqSCRIt	freq_rbegin () const
FreqSCRIt	freq_rend () const
FreqSCIt	freq_lower_bound (double frequency) const
FreqSCIt	freq_upper_bound (double frequency) const
int	getTotalRuns () const
CoordZ	getTxCoordZ () const
CoordZ	getRxCoordZ () const
Time	getStartTime () const
Time	getCurrentTime () const
Time	getEndTime () const
double	getEvolutionTimeQuantum () const
double	getGreatCircleDistance () const
double	getDistance () const
double	getBearing () const
bool	usingDebug () const
virtual bool	isRunning () const

Static Public Attributes
static constexpr const char *	WOSS_BELLHOP_BIN_NAME = "bellhop.exe"
static constexpr const char *	WOSS_BELLHOPCXX_BIN_NAME = "bellhopcxx"
static constexpr const char *	WOSS_BELLHOPCUDA_BIN_PATH = "bellhopcuda"

Protected Member Functions
virtual void	normalizeDbSSP ()
virtual void	resetNormalizedDbSSP ()
bool	initResReader (double curr_frequency)
void	initBox (double depth, double range)
void	initCfgFiles (double curr_frequency, int curr_run)
void	writeCfgFiles (double curr_frequency, int curr_run)
void	writeAllCfgFiles ()
void	writeNormalizedSSP (int curr_run)
void	writeSediment ()
void	writeHeader (double curr_frequency, int curr_run)
void	writeTransmitter ()
void	writeReceiver ()
void	writeRayOptions ()
void	writeBox ()
void	writeBeamBlock ()
void	writeBathymetryFile ()
void	writeBeamPatternFile ()
void	writeAltimetryFile (int curr_run)
void	removeAllCfgFiles ()
void	removeCfgFiles (double curr_frequency, int curr_run)
void	checkBoundaries (double &frequency, double &tx_depth, double &rx_start_depth, double &rx_start_range, double &rx_end_depth, double &rx_end_range) const
void	checkDepthOffsets ()
void	checkDepthOffsets (const CoordZ &coords, double &min_offset, double &max_offset, double min_depth_value, double max_depth_value)
void	checkAngles ()
void	checkRangeOffsets ()
Protected Member Functions inherited from woss::ACToolboxWoss
virtual bool	checkSSPUnicity (const SSP &ptr) const
virtual bool	checkSedimentUnicity (const Sediment &ptr) const
virtual bool	initRangeVector ()
virtual bool	initCoordZVector ()
virtual bool	initSedimentMap ()
virtual void	resetSedimentMap ()
virtual bool	initAltimetry ()
virtual bool	initSSPMap ()
virtual void	resetSSPMap ()
Protected Member Functions inherited from woss::WossResReader
void	clearResReaderMap ()
Protected Member Functions inherited from woss::Woss
virtual bool	mkWorkDir (double curr_frequency, int curr_run=0)
virtual bool	rmWorkDir (double curr_frequency, int curr_run=0)
virtual bool	rmWorkDir ()

Protected Attributes
bool	use_thorpe_att
std::string	beam_options
std::string	bathymetry_type
std::string	bathymetry_method
std::string	altimetry_type
std::string	bellhop_op_mode
std::string	bellhop_env_file
std::string	bathymetry_file
std::string	altimetry_file
std::string	beam_pattern_file
std::string	ssp_file
std::string	shd_file
std::string	arr_file
std::string	bellhop_path
std::string	bellhop_bin_name
BellhopArrSyntax	bellhop_arr_syntax
BellhopShdSyntax	bellhop_shd_syntax
std::string	curr_path
std::string	transducer_type
double	tx_min_depth_offset
double	tx_max_depth_offset
int	total_transmitters
int	total_rx_depths
double	rx_min_depth_offset
double	rx_max_depth_offset
int	total_rx_ranges
double	rx_min_range_offset
double	rx_max_range_offset
int	total_rays
double	min_angle
double	max_angle
double	min_normalized_ssp_depth
double	max_normalized_ssp_depth
int	curr_norm_ssp_depth_steps
int	transform_ssp_depth_steps
std::unique_ptr< Transducer >	transducer
double	bp_initial_bearing
double	bp_vertical_rotation
double	bp_horizontal_rotation
double	bp_mult_costant
double	bp_add_costant
bool	using_ssp_file
bool	using_press_mode
bool	using_time_arrival_mode
NormSSPMap	normalized_ssp_map
NormSSPMap	randomized_ssp_map
double	box_depth
double	box_range
std::ofstream	f_out
Protected Attributes inherited from woss::ACToolboxWoss
long double	ssp_depth_precision
double	min_bathymetry_depth
double	max_bathymetry_depth
double	min_altimetry_depth
double	max_altimetry_depth
std::set< double >	min_ssp_depth_set
std::set< double >	max_ssp_depth_set
int	min_ssp_depth_steps
int	max_ssp_depth_steps
int	total_range_steps
CoordZVector	coordz_vector
RangeVector	range_vector
SSPMap	ssp_map
SedimentMap	sediment_map
std::unique_ptr< Altimetry >	altimetry_value
bool	is_ssp_map_transformable
Protected Attributes inherited from woss::WossResReader
ResReaderMap	res_reader_map
Protected Attributes inherited from woss::Woss
int	woss_id
std::string	work_dir_path
std::shared_ptr< WossDbManager >	db_manager
Time	start_time
Time	current_time
Time	end_time
double	evolution_time_quantum
CoordZ	tx_coordz
CoordZ	rx_coordz
FreqSet	frequencies
double	bearing
double	total_great_circle_distance
double	total_distance
int	total_runs
bool	debug
std::atomic< bool >	has_run_once
std::atomic< bool >	is_running
bool	has_run_once
volatile bool	is_running
bool	clean_workdir

Additional Inherited Members
Static Protected Attributes inherited from woss::Woss
static std::atomic< int >	woss_counter = 0
static int	woss_counter

Detailed Description

Implempentation of ACToolboxWoss for Bellhop raytracing program.

BellhopWoss class has the task to create enviromental file, run Bellhop and read its results.

Constructor & Destructor Documentation

◆ BellhopWoss() [1/4]

BellhopWoss::BellhopWoss ( )

BellhopWoss default constructor. Default constructed objects are not valid

References altimetry_file, altimetry_type, arr_file, bathymetry_file, bathymetry_method, bathymetry_type, beam_options, beam_pattern_file, bellhop_bin_name, bellhop_env_file, bellhop_op_mode, bellhop_path, box_depth, box_range, bp_add_costant, bp_horizontal_rotation, bp_initial_bearing, bp_mult_costant, bp_vertical_rotation, curr_norm_ssp_depth_steps, curr_path, f_out, max_angle, max_normalized_ssp_depth, min_angle, min_normalized_ssp_depth, normalized_ssp_map, randomized_ssp_map, rx_max_depth_offset, rx_max_range_offset, rx_min_depth_offset, rx_min_range_offset, shd_file, ssp_file, total_rays, total_rx_depths, total_rx_ranges, total_transmitters, transducer, transform_ssp_depth_steps, tx_max_depth_offset, tx_min_depth_offset, use_thorpe_att, using_press_mode, using_ssp_file, using_time_arrival_mode, and WOSS_BELLHOP_BIN_NAME.

Referenced by BellhopWoss(), BellhopWoss(), operator=(), operator=(), setAltimetryType(), setBathymetryMethod(), setBathymetryType(), setBeamOptions(), setBeamPatternParam(), setBellhopArrSyntax(), setBellhopBinName(), setBellhopPath(), setBellhopShdSyntax(), setBhMode(), setBoxDepth(), setBoxRange(), setMaxAngle(), setMinAngle(), setRaysNumber(), setRxMaxDepthOffset(), setRxMaxRangeOffset(), setRxMinDepthOffset(), setRxMinRangeOffset(), setRxTotalDepths(), setRxTotalRanges(), setThorpeAttFlag(), setTotalTransmitters(), setTransducer(), setTransformSSPDepthSteps(), setTxMaxDepthOffset(), and setTxMinDepthOffset().

◆ BellhopWoss() [2/4]

BellhopWoss::BellhopWoss	(	const CoordZ &	tx,
		const CoordZ &	rx,
		const Time &	start_t,
		const Time &	end_t,
		double	start_freq,
		double	end_freq,
		double	freq_step )

BellhopWoss constructor

Parameters

tx	const reference to a valid CoordZ object ( transmitter )
rx	const reference to a valid CoordZ object ( receiver )
start_t	const reference to a valid Time object for SSP's averaging purposes ( start date time )
end_t	const reference to a valid Time object for SSP's averaging purposes ( end date time )
start_freq	start frequency [Hz]
end_freq	end frequency [Hz]
freq_step	frequency step [Hz]

References woss::ACToolboxWoss::ACToolboxWoss(), altimetry_file, altimetry_type, arr_file, bathymetry_file, bathymetry_method, bathymetry_type, beam_options, beam_pattern_file, bellhop_env_file, bellhop_op_mode, bellhop_path, box_depth, box_range, bp_add_costant, bp_horizontal_rotation, bp_initial_bearing, bp_mult_costant, bp_vertical_rotation, curr_norm_ssp_depth_steps, curr_path, f_out, max_angle, max_normalized_ssp_depth, min_angle, min_normalized_ssp_depth, normalized_ssp_map, randomized_ssp_map, rx_max_depth_offset, rx_max_range_offset, rx_min_depth_offset, rx_min_range_offset, shd_file, ssp_file, total_rays, total_rx_depths, total_rx_ranges, total_transmitters, transducer, transform_ssp_depth_steps, tx_max_depth_offset, tx_min_depth_offset, using_press_mode, using_ssp_file, and using_time_arrival_mode.

Here is the call graph for this function:

◆ BellhopWoss() [3/4]

woss::BellhopWoss::BellhopWoss ( const BellhopWoss & copy )

default

References BellhopWoss().

Here is the call graph for this function:

◆ BellhopWoss() [4/4]

woss::BellhopWoss::BellhopWoss ( BellhopWoss && tmp )

default

References BellhopWoss().

Here is the call graph for this function:

◆ ~BellhopWoss()

virtual woss::BellhopWoss::~BellhopWoss ( )

overridevirtualdefault

Member Function Documentation

◆ checkAngles()

void BellhopWoss::checkAngles ( )

protected

Checks the consistency of given launching angle and modifies them if needed

References woss::Woss::debug, max_angle, min_angle, woss::Woss::total_distance, woss::Woss::total_great_circle_distance, and woss::Woss::woss_id.

Referenced by initialize().

◆ checkBoundaries()

void BellhopWoss::checkBoundaries	(	double &	frequency,
		double &	tx_depth,
		double &	rx_start_depth,
		double &	rx_start_range,
		double &	rx_end_depth,
		double &	rx_end_range ) const

protected

Checks parameters passed by a WossManager request and modifies them in place if they are not consistent with data

Parameters

frequency	frequency [Hz]
tx_depth	transmitter depth [m]
rx_start_depth	receiver start depth [m]
rx_start_range	receiver start range [m]
rx_end_depth	receiver end depth [m]
rx_end_range	receiver end range [m]

References woss::Woss::frequencies, woss::Woss::rx_coordz, rx_max_depth_offset, rx_max_range_offset, rx_min_depth_offset, rx_min_range_offset, woss::Woss::total_great_circle_distance, woss::Woss::tx_coordz, tx_max_depth_offset, and tx_min_depth_offset.

Referenced by getAvgPressure(), getPressure(), and getTimeArr().

◆ checkDepthOffsets() [1/2]

void BellhopWoss::checkDepthOffsets ( )

protected

Checks the consistency of tx and rx depth offsets and modifies them if needed

References checkDepthOffsets(), woss::ACToolboxWoss::coordz_vector, woss::ACToolboxWoss::max_bathymetry_depth, max_normalized_ssp_depth, min_normalized_ssp_depth, woss::Woss::rx_coordz, rx_max_depth_offset, rx_min_depth_offset, woss::Woss::tx_coordz, tx_max_depth_offset, and tx_min_depth_offset.

Referenced by checkDepthOffsets(), and initialize().

Here is the call graph for this function:

◆ checkDepthOffsets() [2/2]

void BellhopWoss::checkDepthOffsets	(	const CoordZ &	coords,
		double &	min_offset,
		double &	max_offset,
		double	min_depth_value,
		double	max_depth_value )

protected

Checks the consistency of input offsets and modifies them if needed

Parameters

coords	3-D coordinates of the point to be tested
min_offset	min offset to be tested [m]
max_offset	max offset to be tested [m]
min_depth_value	min depth value of point to be tested [m]
max_depth_value	max depth value of point to be tested [m]

References woss::Woss::debug, woss::CoordZ::getDepth(), woss::Coord::getLatitude(), woss::Coord::getLongitude(), and woss::Woss::woss_id.

Here is the call graph for this function:

◆ checkRangeOffsets()

void BellhopWoss::checkRangeOffsets ( )

protected

Checks the consistency of rx range offsets and modifies them if needed

References woss::Woss::debug, woss::Woss::rx_coordz, rx_max_range_offset, rx_min_range_offset, woss::Woss::total_great_circle_distance, woss::Woss::tx_coordz, and woss::Woss::woss_id.

Referenced by initialize().

◆ getAltimetryType()

std::string woss::BellhopWoss::getAltimetryType ( ) const

inline

Gets altimetry type string

Returns: "C" or "L"

References altimetry_type.

◆ getAvgPressure()

std::unique_ptr< Pressure > BellhopWoss::getAvgPressure	(	double	frequency,
		double	tx_depth,
		double	start_rx_depth = WOSS_MIN_DEPTH,
		double	start_rx_range = WOSS_MIN_RANGE,
		double	end_rx_depth = WOSS_MAX_DEPTH,
		double	end_rx_range = WOSS_MAX_RANGE ) const

virtual

Gets the average Pressure value in given rx range-depth box

Parameters

frequency	frequency [hZ]
tx_depth	transmitter depth [m]
start_rx_depth	start receiver depth [m]
start_rx_range	start receiver range [m]
end_rx_depth	end receiver depth [m]
end_rx_range	end receiver range [m]

Returns: a std::unique_ptr to a valid Pressure value; a not valid Pressure if shd_file hasn't been read yet

Implements woss::Woss.

References checkBoundaries(), woss::WossResReader::res_reader_map, woss::Woss::total_runs, and using_press_mode.

Here is the call graph for this function:

◆ getBathymetryMethod()

std::string woss::BellhopWoss::getBathymetryMethod ( ) const

inline

Gets bathymetry write method string

Returns: "S" or "D"

References bathymetry_method.

◆ getBathymetryType()

std::string woss::BellhopWoss::getBathymetryType ( ) const

inline

Gets bathymetry type string

Returns: "C" or "L"

References bathymetry_type.

◆ getBeamOptions()

std::string woss::BellhopWoss::getBeamOptions ( ) const

inline

Gets the beam option string

Returns: "R" , "B", "C" or "G"

References beam_options.

◆ getBellhopArrSyntax()

BellhopArrSyntax woss::BellhopWoss::getBellhopArrSyntax ( ) const

inline

Gets the .arr file sintax

Returns: arr file syntax

References bellhop_arr_syntax.

Referenced by woss::ArrAscResReader::getArrAscFile(), woss::ArrAscResReader::getArrAscHeader(), woss::ArrBinResReader::getArrBinFile(), and woss::ArrBinResReader::getArrBinHeader().

◆ getBellhopBinName()

std::string woss::BellhopWoss::getBellhopBinName ( ) const

inline

Gets the bellhop binary name

Returns: bellhop binary name

References bellhop_bin_name.

Referenced by WossUnitTest::testBellhopWoss().

◆ getBellhopPath()

std::string woss::BellhopWoss::getBellhopPath ( ) const

inline

Gets the path of bellhop program

Returns: path of bellhop program

References bellhop_path.

Referenced by WossUnitTest::testBellhopWoss().

◆ getBellhopShdSyntax()

BellhopShdSyntax woss::BellhopWoss::getBellhopShdSyntax ( ) const

inline

Gets the .shd file sintax

Returns: shd file syntax

References bellhop_shd_syntax.

Referenced by woss::ShdResReader::accessMap(), woss::ShdResReader::getShdFile(), woss::ShdResReader::getShdHeader(), and woss::ShdResReader::readMapAvgPressure().

◆ getBoxDepth()

double woss::BellhopWoss::getBoxDepth ( ) const

inline

Gets the maximum ray depth

Returns: maximum ray depth

References box_depth.

◆ getBoxRange()

double woss::BellhopWoss::getBoxRange ( ) const

inline

Gets the maximum ray range

Returns: maximum ray range

References box_range.

◆ getMaxAngle()

double woss::BellhopWoss::getMaxAngle ( ) const

inline

Gets the maximum launch angle

Returns: maximum launch angle

References max_angle.

Referenced by WossUnitTest::testBellhopWoss().

◆ getMinAngle()

double woss::BellhopWoss::getMinAngle ( ) const

inline

Gets the minimum launch angle

Returns: minimum launch angle

References min_angle.

Referenced by WossUnitTest::testBellhopWoss().

◆ getPressure()

std::unique_ptr< Pressure > BellhopWoss::getPressure	(	double	frequency,
		double	tx_depth,
		double	rx_depth,
		double	rx_range ) const

virtual

Gets a Pressure value of given range, depths

Parameters

frequency	frequency [hZ]
tx_depth	transmitter depth [m]
rx_depth	receiver depth [m]
rx_range	receiver range [m]

Returns: a std::unique_ptr to a valid Pressure value; a not valid Pressure if shd_file hasn't been read yet

Implements woss::Woss.

References checkBoundaries(), woss::WossResReader::res_reader_map, and woss::Woss::total_runs.

Here is the call graph for this function:

◆ getRaysNumber()

int woss::BellhopWoss::getRaysNumber ( ) const

inline

Gets the total number of launched angles

Returns: number of launched angles

References total_rays.

Referenced by WossUnitTest::testBellhopWoss().

◆ getRxMaxDepthOffset()

double woss::BellhopWoss::getRxMaxDepthOffset ( ) const

inline

Gets the receiver maximum depth offset [m]

Returns: depth offset [m]

References rx_max_depth_offset.

◆ getRxMaxRangeOffset()

double woss::BellhopWoss::getRxMaxRangeOffset ( ) const

inline

Gets the receiver maximum range offset [m]

Returns: range offset [m]

References rx_max_range_offset.

◆ getRxMinDepthOffset()

double woss::BellhopWoss::getRxMinDepthOffset ( ) const

inline

Gets the receiver mimimum depth offset [m]

Returns: depth offset [m]

References rx_min_depth_offset.

◆ getRxMinRangeOffset()

double woss::BellhopWoss::getRxMinRangeOffset ( ) const

inline

Gets the receiver mimimum range offset [m]

Returns: range offset [m]

References rx_min_range_offset.

◆ getRxTotalDepths()

int woss::BellhopWoss::getRxTotalDepths ( ) const

inline

Gets the total number of receiver depths

Returns: number of receiver depths

References total_rx_depths.

◆ getRxTotalRanges()

int woss::BellhopWoss::getRxTotalRanges ( ) const

inline

Gets the total number of receiver ranges

Returns: number of receiver ranges

References total_rx_ranges.

◆ getThorpeAttFlag()

bool woss::BellhopWoss::getThorpeAttFlag ( ) const

inline

Gets the thorpe attenuation flag

Returns: boolean flag

References use_thorpe_att.

Referenced by WossUnitTest::testBellhopWoss().

◆ getTimeArr()

std::unique_ptr< TimeArr > BellhopWoss::getTimeArr	(	double	frequency,
		double	tx_depth,
		double	rx_depth,
		double	rx_range ) const

virtual

Gets a TimeArr value for given range, depths

Parameters

frequency	frequency [hZ]
tx_depth	transmitter depth [m]
rx_depth	receiver depth [m]
rx_range	receiver range [m]

Returns: a std::unique_ptr to a valid TimeArr value; a not valid TimeArr if arr_file hasn't been read yet

Implements woss::Woss.

References checkBoundaries(), woss::Woss::debug, woss::WossResReader::res_reader_map, woss::Woss::total_runs, and woss::Woss::woss_id.

Here is the call graph for this function:

◆ getTotalTransmitters()

int woss::BellhopWoss::getTotalTransmitters ( ) const

inline

Gets the number of transmitters

Returns: number of transmitters

References total_transmitters.

◆ getTransducer()

std::unique_ptr< Transducer > woss::BellhopWoss::getTransducer ( ) const

inline

Gets bathymetry type string

Returns: "C" or "L"

References transducer.

◆ getTransformSSPDepthSteps()

int woss::BellhopWoss::getTransformSSPDepthSteps ( ) const

inline

Returns the depth steps (and possibly transform) of all SSP in use

Returns: transformed SSP depth steps

References transform_ssp_depth_steps.

◆ getTxMaxDepthOffset()

double woss::BellhopWoss::getTxMaxDepthOffset ( ) const

inline

Gets the transmitter maximum depth offset [m]

Returns: depth offset [m]

References tx_max_depth_offset.

◆ getTxMinDepthOffset()

double woss::BellhopWoss::getTxMinDepthOffset ( ) const

inline

Gets the transmitter mimimum depth offset [m]

Returns: depth offset [m]

References tx_min_depth_offset.

◆ initBox()

void woss::BellhopWoss::initBox	(	double	depth,
		double	range )

inlineprotected

Initializes the Bellhop box

Parameters

depth	box depth [m]
range	box range [m]

References box_depth, and box_range.

Referenced by initialize().

◆ initCfgFiles()

void BellhopWoss::initCfgFiles	(	double	curr_frequency,
		int	curr_run )

protected

Initializes the configuration file(s)

Parameters

curr_frequency	frequency in use [Hz]
curr_run	current run number

References altimetry_file, arr_file, bathymetry_file, beam_pattern_file, bellhop_env_file, curr_path, woss::Woss::current_time, shd_file, ssp_file, woss::Woss::work_dir_path, and woss::Woss::woss_id.

Referenced by run(), and writeCfgFiles().

◆ initialize()

bool BellhopWoss::initialize ( )

overridevirtual

Gets enviromental data and writes the env file

Returns: true if method was successful, false otherwise

Reimplemented from woss::ACToolboxWoss.

References checkAngles(), checkDepthOffsets(), checkRangeOffsets(), initBox(), woss::ACToolboxWoss::initialize(), isValid(), woss::ACToolboxWoss::max_bathymetry_depth, max_normalized_ssp_depth, normalizeDbSSP(), resetNormalizedDbSSP(), rx_max_range_offset, woss::Woss::total_distance, woss::Woss::total_great_circle_distance, and writeAllCfgFiles().

Referenced by initResReader(), and timeEvolve().

Here is the call graph for this function:

◆ initPressResReader()

bool BellhopWoss::initPressResReader ( double curr_frequency )

virtual

Initializes the ShdResReader object for given frequency

Parameters

curr_frequency frequency in use [Hz]

Returns: true if method succeeded, false otherwise

References woss::WossResReader::res_reader_map, and shd_file.

Referenced by initResReader().

◆ initResReader()

bool BellhopWoss::initResReader ( double curr_frequency )

protectedvirtual

Initializes the ResReader object for given frequency

Parameters

curr_frequency frequency in use [Hz]

Returns: true if method succeeded, false otherwise

Implements woss::WossResReader.

References initialize(), initPressResReader(), initTimeArrResReader(), woss::WossResReader::res_reader_map, using_press_mode, and using_time_arrival_mode.

Referenced by run().

Here is the call graph for this function:

◆ initTimeArrResReader()

bool BellhopWoss::initTimeArrResReader ( double curr_frequency )

virtual

Initializes the ArrAscResReader or ArrBinResReader object for given frequency

Parameters

curr_frequency frequency in use [Hz]

Returns: true if method succeeded, false otherwise

References arr_file, bellhop_op_mode, and woss::WossResReader::res_reader_map.

Referenced by initResReader().

◆ isValid()

bool BellhopWoss::isValid ( ) const

overridevirtual

Checks the validity of Woss

Returns: true if it's valid, false otherwise

Reimplemented from woss::ACToolboxWoss.

References bellhop_op_mode, woss::ACToolboxWoss::isValid(), isValidBhMode(), max_angle, min_angle, woss::ACToolboxWoss::total_range_steps, total_rays, total_rx_depths, total_rx_ranges, and total_transmitters.

Referenced by initialize(), and WossUnitTest::testBellhopWoss().

Here is the call graph for this function:

◆ isValidBhMode()

bool woss::BellhopWoss::isValidBhMode ( const std::string & mode ) const

inline

Checks the validity of Bellhop run mode

Returns: true if it's valid, false otherwise

Referenced by isValid(), and setBhMode().

◆ normalizeDbSSP()

void BellhopWoss::normalizeDbSSP ( )

protectedvirtual

Normalizes the SSP matrix for Bellhop requirements (same depths and same depth-steps for all SSP involved)

References curr_norm_ssp_depth_steps, woss::Woss::debug, woss::ACToolboxWoss::is_ssp_map_transformable, woss::ACToolboxWoss::max_bathymetry_depth, max_normalized_ssp_depth, woss::ACToolboxWoss::max_ssp_depth_set, woss::ACToolboxWoss::max_ssp_depth_steps, woss::ACToolboxWoss::min_altimetry_depth, min_normalized_ssp_depth, woss::ACToolboxWoss::min_ssp_depth_set, woss::ACToolboxWoss::min_ssp_depth_steps, normalized_ssp_map, woss::ACToolboxWoss::range_vector, woss::ACToolboxWoss::ssp_map, transform_ssp_depth_steps, and woss::Woss::tx_coordz.

Referenced by initialize(), and writeCfgFiles().

◆ operator=() [1/2]

BellhopWoss & woss::BellhopWoss::operator= ( BellhopWoss && tmp )

default

References BellhopWoss().

Here is the call graph for this function:

◆ operator=() [2/2]

BellhopWoss & woss::BellhopWoss::operator= ( const BellhopWoss & copy )

default

References BellhopWoss().

Here is the call graph for this function:

◆ removeAllCfgFiles()

void BellhopWoss::removeAllCfgFiles ( )

protected

Writes all configuration files

References woss::Woss::frequencies, removeCfgFiles(), and woss::Woss::total_runs.

Here is the call graph for this function:

◆ removeCfgFiles()

void BellhopWoss::removeCfgFiles	(	double	curr_frequency,
		int	curr_run )

protected

Removes the configuration file(s)

Parameters

curr_frequency	frequency in use [Hz]
curr_run	current run number

References woss::Woss::rmWorkDir().

Referenced by removeAllCfgFiles().

Here is the call graph for this function:

◆ resetNormalizedDbSSP()

void BellhopWoss::resetNormalizedDbSSP ( )

protectedvirtual

Deletes all normalized SSPs

References normalized_ssp_map.

Referenced by initialize(), and writeCfgFiles().

◆ run()

bool BellhopWoss::run ( )

overridevirtual

Runs the channel simulator. It is mandatory to set has_run to true before returning from this function

Returns: true if method was successful, false otherwise

Implements woss::Woss.

References bellhop_arr_syntax, bellhop_bin_name, woss::BELLHOP_CREATOR_ARR_FILE_INVALID, woss::BELLHOP_CREATOR_SHD_FILE_INVALID, bellhop_path, bellhop_shd_syntax, curr_path, woss::Woss::debug, woss::Woss::frequencies, woss::Woss::has_run_once, initCfgFiles(), initResReader(), woss::Woss::is_running, woss::Woss::total_runs, and woss::Woss::woss_id.

Here is the call graph for this function:

◆ setAltimetryType()

BellhopWoss & woss::BellhopWoss::setAltimetryType ( const std::string & type )

inline

Sets the altimetry type ( L, C). See Bellhop documentation for more info

Parameters

type	beam options

Returns: reference to *this

References altimetry_type, and BellhopWoss().

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setBathymetryMethod()

BellhopWoss & woss::BellhopWoss::setBathymetryMethod ( const std::string & type )

inline

Sets the bathymetry write method (S, D)

Parameters

type	beam options

Returns: reference to *this

References bathymetry_method, and BellhopWoss().

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setBathymetryType()

BellhopWoss & woss::BellhopWoss::setBathymetryType ( const std::string & type )

inline

Sets the bathymetry type ( L, C). See Bellhop documentation for more info

Parameters

type	beam options

Returns: reference to *this

References bathymetry_type, and BellhopWoss().

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setBeamOptions()

BellhopWoss & woss::BellhopWoss::setBeamOptions ( const std::string & options )

inline

Sets the beam option string . See Bellhop documentation for more info

Parameters

options beam options ( G, C, R , B)

Returns: reference to *this

References beam_options, and BellhopWoss().

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setBeamPatternParam()

BellhopWoss & woss::BellhopWoss::setBeamPatternParam	(	double	init_bearing,
		double	vert_rot = 0.0,
		double	horiz_rot = 0.0,
		double	mult = 1.0,
		double	add = 0.0 )

inline

Sets the transmitter beam pattern

Parameters

type	valid woss::BeamPattern

Returns: reference to *this

References BellhopWoss(), bp_add_costant, bp_horizontal_rotation, bp_initial_bearing, bp_mult_costant, and bp_vertical_rotation.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setBellhopArrSyntax()

BellhopWoss & woss::BellhopWoss::setBellhopArrSyntax ( BellhopArrSyntax syntax )

inline

Sets the bellhop arr file syntax

Parameters

syntax syntax to be used

Returns: reference to *this

References bellhop_arr_syntax, and BellhopWoss().

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setBellhopBinName()

BellhopWoss & woss::BellhopWoss::setBellhopBinName ( const std::string & name )

inline

Sets the bellhop binary name

Parameters

name	binary name

Returns: reference to *this

References bellhop_bin_name, and BellhopWoss().

Referenced by woss::BellhopCreator::initializeBhWoss(), and WossUnitTest::testBellhopWoss().

Here is the call graph for this function:

◆ setBellhopPath()

BellhopWoss & woss::BellhopWoss::setBellhopPath ( const std::string & path )

inline

Sets the path of bellhop program

Parameters

path	filesystem path

Returns: reference to *this

References bellhop_path, and BellhopWoss().

Referenced by woss::BellhopCreator::initializeBhWoss(), and WossUnitTest::testBellhopWoss().

Here is the call graph for this function:

◆ setBellhopShdSyntax()

BellhopWoss & woss::BellhopWoss::setBellhopShdSyntax ( BellhopShdSyntax syntax )

inline

Sets the bellhop shd file syntax

Parameters

syntax syntax to be used

Returns: reference to *this

References bellhop_shd_syntax, and BellhopWoss().

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setBhMode()

BellhopWoss & BellhopWoss::setBhMode ( const std::string & mode )

Sets the Bellhop run mode string. See Bellhop documentation for more info

Parameters

mode	Bellhop run mode ( A, a , C, I , S)

Returns: reference to *this

References bellhop_op_mode, BellhopWoss(), isValidBhMode(), using_press_mode, using_time_arrival_mode, and woss::Woss::woss_id.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setBoxDepth()

BellhopWoss & woss::BellhopWoss::setBoxDepth ( double depth )

inline

Sets the maximum depth for Bellhop rays

Parameters

depth maximum ray depth [m]

Returns: reference to *this

References BellhopWoss(), and box_depth.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setBoxRange()

BellhopWoss & woss::BellhopWoss::setBoxRange ( double range )

inline

Sets the maximum range for Bellhop rays

Parameters

range maximum ray range [m]

Returns: reference to *this

References BellhopWoss(), and box_range.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setMaxAngle()

BellhopWoss & woss::BellhopWoss::setMaxAngle ( double angle )

inline

Sets the maximum launch angle for all BellhopWoss that will be created

Parameters

angle number of launched rays (>= 0)

Returns: reference to *this

References BellhopWoss(), and max_angle.

Referenced by woss::BellhopCreator::initializeBhWoss(), and WossUnitTest::testBellhopWoss().

Here is the call graph for this function:

◆ setMinAngle()

BellhopWoss & woss::BellhopWoss::setMinAngle ( double angle )

inline

Sets the mimimum launch angle for all BellhopWoss that will be created

Parameters

angle number of launched rays (>= 0)

Returns: reference to *this

References BellhopWoss(), and min_angle.

Referenced by woss::BellhopCreator::initializeBhWoss(), and WossUnitTest::testBellhopWoss().

Here is the call graph for this function:

◆ setRaysNumber()

BellhopWoss & woss::BellhopWoss::setRaysNumber ( int number )

inline

Sets the number of launched rays

Parameters

number number of launched rays (>= 0)

Returns: reference to *this

References BellhopWoss(), and total_rays.

Referenced by woss::BellhopCreator::initializeBhWoss(), and WossUnitTest::testBellhopWoss().

Here is the call graph for this function:

◆ setRxMaxDepthOffset()

BellhopWoss & woss::BellhopWoss::setRxMaxDepthOffset ( double offset )

inline

Sets the receiver maximum depth offset [m]

Parameters

offset 0 <= depth offset <= 0 [m]

Returns: reference to *this

References BellhopWoss(), and rx_max_depth_offset.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setRxMaxRangeOffset()

BellhopWoss & woss::BellhopWoss::setRxMaxRangeOffset ( double offset )

inline

Sets the receiver maximum depth offset [m]

Parameters

offset -total_distance <= range offset <= total_distance [m]

Returns: reference to *this

References BellhopWoss(), and rx_max_range_offset.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setRxMinDepthOffset()

BellhopWoss & woss::BellhopWoss::setRxMinDepthOffset ( double offset )

inline

Sets the receiver mimimum depth offset [m]

Parameters

offset 0 <= depth offset <= 0 [m]

Returns: reference to *this

References BellhopWoss(), and rx_min_depth_offset.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setRxMinRangeOffset()

BellhopWoss & woss::BellhopWoss::setRxMinRangeOffset ( double offset )

inline

Sets the receiver mimimum range offset [m]

Parameters

offset -total_distance <= range offset <= total_distance [m]

Returns: reference to *this

References BellhopWoss(), and rx_min_range_offset.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setRxTotalDepths()

BellhopWoss & woss::BellhopWoss::setRxTotalDepths ( int number )

inline

Sets the number of receiver depths

Parameters

number number of receiver depths

Returns: reference to *this

References BellhopWoss(), and total_rx_depths.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setRxTotalRanges()

BellhopWoss & woss::BellhopWoss::setRxTotalRanges ( int number )

inline

Sets the number of receiver ranges

Parameters

number number of receiver ranges

Returns: reference to *this

References BellhopWoss(), and total_rx_ranges.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setThorpeAttFlag()

BellhopWoss & woss::BellhopWoss::setThorpeAttFlag ( bool flag )

inline

Sets the thorpe attenuation flag

Parameters

flag	boolean flag

Returns: reference to *this

References BellhopWoss(), and use_thorpe_att.

Referenced by woss::BellhopCreator::initializeBhWoss(), and WossUnitTest::testBellhopWoss().

Here is the call graph for this function:

◆ setTotalTransmitters()

BellhopWoss & woss::BellhopWoss::setTotalTransmitters ( int sources )

inline

Sets the number of transmitters

Parameters

sources number of transmitters

Returns: reference to *this

References BellhopWoss(), and total_transmitters.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setTransducer()

BellhopWoss & woss::BellhopWoss::setTransducer ( std::unique_ptr< Transducer > ptr )

inline

Sets the transducer type. See TransducerDbCreator for more info

Parameters

type	tranducer type

Returns: reference to *this

References BellhopWoss(), and transducer.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setTransformSSPDepthSteps()

BellhopWoss & woss::BellhopWoss::setTransformSSPDepthSteps ( int depth_steps )

inline

Sets the depth steps (and possibly transform) of all SSP in use

Parameters

type	beam options

Returns: reference to *this

References BellhopWoss(), and transform_ssp_depth_steps.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setTxMaxDepthOffset()

BellhopWoss & woss::BellhopWoss::setTxMaxDepthOffset ( double offset )

inline

Sets the transmitter maximum depth offset [m]

Parameters

offset 0 <= depth offset <= 0 [m]

Returns: reference to *this

References BellhopWoss(), and tx_max_depth_offset.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ setTxMinDepthOffset()

BellhopWoss & woss::BellhopWoss::setTxMinDepthOffset ( double offset )

inline

Sets the transmitter mimimum depth offset [m]

Parameters

offset 0 <= depth offset <= 0 [m]

Returns: reference to *this

References BellhopWoss(), and tx_min_depth_offset.

Referenced by woss::BellhopCreator::initializeBhWoss().

Here is the call graph for this function:

◆ timeEvolve()

bool BellhopWoss::timeEvolve ( const Time & time_value )

overridevirtual

Performs a time evoulion of all time-dependant parameters

Parameters

time_value constant reference to a valid Time object (between start_time and end_time)

Returns: true if method was successful, false otherwise

Implements woss::Woss.

References woss::ACToolboxWoss::altimetry_value, woss::Woss::current_time, woss::Woss::debug, woss::Woss::end_time, woss::Woss::evolution_time_quantum, woss::Woss::has_run_once, initialize(), woss::Time::isValid(), woss::Woss::start_time, and woss::Woss::woss_id.

Here is the call graph for this function:

◆ usingPressMode()

bool woss::BellhopWoss::usingPressMode ( ) const

inline

Signals if the instance is using Bellhop in SHD mode ( C, S , I)

Returns: true if it is using it, false otherwise

References using_press_mode.

◆ usingSSPFile()

bool woss::BellhopWoss::usingSSPFile ( ) const

inline

Signals if the instance is using Bellhop with SSP matrix file

Returns: true if it is using it, false otherwise

References using_ssp_file.

◆ usingTimeArrMode()

bool woss::BellhopWoss::usingTimeArrMode ( ) const

inline

Signals if the instance is using Bellhop in ARR mode ( A, a)

Returns: true if it is using it, false otherwise

References using_time_arrival_mode.

◆ writeAllCfgFiles()

void BellhopWoss::writeAllCfgFiles ( )

protected

Writes all configuration files

References woss::Woss::frequencies, woss::Woss::total_runs, and writeCfgFiles().

Referenced by initialize().

Here is the call graph for this function:

◆ writeAltimetryFile()

void BellhopWoss::writeAltimetryFile ( int curr_run )

protected

Writes db created altimetry in the configuration file(s)

Parameters

curr_run current run number

References altimetry_file, altimetry_type, woss::ACToolboxWoss::altimetry_value, woss::Woss::debug, woss::Altimetry::getMaxAltimetryValue(), woss::Altimetry::getMinAltimetryValue(), woss::ACToolboxWoss::max_altimetry_depth, woss::ACToolboxWoss::min_altimetry_depth, woss::ACToolboxWoss::range_vector, woss::Altimetry::size(), and woss::Woss::woss_id.

Referenced by writeCfgFiles().

Here is the call graph for this function:

◆ writeBathymetryFile()

void BellhopWoss::writeBathymetryFile ( )

protected

Writes db created bathymetry in the configuration file(s)

References bathymetry_file, bathymetry_method, bathymetry_type, woss::ACToolboxWoss::coordz_vector, woss::Woss::debug, max_normalized_ssp_depth, woss::ACToolboxWoss::range_vector, woss::ACToolboxWoss::sediment_map, and woss::Woss::woss_id.

Referenced by writeCfgFiles().

◆ writeBeamBlock()

void woss::BellhopWoss::writeBeamBlock ( )

inlineprotected

References f_out.

◆ writeBeamPatternFile()

void BellhopWoss::writeBeamPatternFile ( )

protected

Writes transmitter beam pattern file(s)

References beam_pattern_file, bp_add_costant, bp_horizontal_rotation, bp_initial_bearing, bp_mult_costant, bp_vertical_rotation, woss::Woss::rx_coordz, transducer, and woss::Woss::tx_coordz.

Referenced by writeCfgFiles().

◆ writeBox()

void woss::BellhopWoss::writeBox ( )

inlineprotected

Writes the box options in the configuration file(s)

References box_depth, box_range, and f_out.

Referenced by writeCfgFiles().

◆ writeCfgFiles()

void BellhopWoss::writeCfgFiles	(	double	curr_frequency,
		int	curr_run )

protected

Writes the configuration file(s)

Parameters

curr_frequency	frequency in use [Hz]
curr_run	current run number

References woss::ACToolboxWoss::altimetry_value, bellhop_env_file, f_out, initCfgFiles(), woss::Woss::mkWorkDir(), normalizeDbSSP(), resetNormalizedDbSSP(), transducer, writeAltimetryFile(), writeBathymetryFile(), writeBeamPatternFile(), writeBox(), writeHeader(), writeNormalizedSSP(), writeRayOptions(), writeReceiver(), writeSediment(), and writeTransmitter().

Referenced by writeAllCfgFiles().

Here is the call graph for this function:

◆ writeHeader()

void woss::BellhopWoss::writeHeader	(	double	curr_frequency,
		int	curr_run )

inlineprotected

Writes the header in the configuration file(s)

Parameters

curr_frequency	frequency in use [Hz]
curr_run	current run number

References f_out, woss::Woss::rx_coordz, woss::Woss::tx_coordz, and woss::Woss::woss_id.

Referenced by writeCfgFiles().

◆ writeNormalizedSSP()

void BellhopWoss::writeNormalizedSSP ( int curr_run )

protected

Writes the normalized SSP matrix in the configuration file(s)

Parameters

curr_run current run number

References woss::ACToolboxWoss::altimetry_value, woss::SSP::begin(), box_range, curr_norm_ssp_depth_steps, woss::SSP::end(), f_out, max_normalized_ssp_depth, min_normalized_ssp_depth, normalized_ssp_map, randomized_ssp_map, ssp_file, use_thorpe_att, and using_ssp_file.

Referenced by writeCfgFiles().

Here is the call graph for this function:

◆ writeRayOptions()

void woss::BellhopWoss::writeRayOptions ( )

inlineprotected

Writes the ray options in the configuration file(s)

References beam_options, bellhop_op_mode, f_out, max_angle, min_angle, total_rays, and transducer.

Referenced by writeCfgFiles().

◆ writeReceiver()

void woss::BellhopWoss::writeReceiver ( )

inlineprotected

Writes the receiver info in the configuration file(s)

References f_out, woss::Woss::rx_coordz, rx_max_depth_offset, rx_max_range_offset, rx_min_depth_offset, rx_min_range_offset, woss::Woss::total_great_circle_distance, total_rx_depths, and total_rx_ranges.

Referenced by writeCfgFiles().

◆ writeSediment()

void woss::BellhopWoss::writeSediment ( )

inlineprotected

Writes the db Sediment in the configuration file(s)

References f_out, max_normalized_ssp_depth, and woss::ACToolboxWoss::sediment_map.

Referenced by writeCfgFiles().

◆ writeTransmitter()

void woss::BellhopWoss::writeTransmitter ( )

inlineprotected

Writes the transmitter info in the configuration file(s)

References f_out, total_transmitters, woss::Woss::tx_coordz, tx_max_depth_offset, and tx_min_depth_offset.

Referenced by writeCfgFiles().

Member Data Documentation

◆ altimetry_file

std::string woss::BellhopWoss::altimetry_file

protected

Pathname of Bellhop altimetry file

Referenced by BellhopWoss(), BellhopWoss(), initCfgFiles(), and writeAltimetryFile().

◆ altimetry_type

std::string woss::BellhopWoss::altimetry_type

protected

Altimetry type ( L, C )

Referenced by BellhopWoss(), BellhopWoss(), getAltimetryType(), setAltimetryType(), and writeAltimetryFile().

◆ arr_file

std::string woss::BellhopWoss::arr_file

protected

Pathname of Bellhop ARR file

Referenced by BellhopWoss(), BellhopWoss(), initCfgFiles(), and initTimeArrResReader().

◆ bathymetry_file

std::string woss::BellhopWoss::bathymetry_file

protected

Pathname of Bellhop bathymetry file

Referenced by BellhopWoss(), BellhopWoss(), initCfgFiles(), and writeBathymetryFile().

◆ bathymetry_method

std::string woss::BellhopWoss::bathymetry_method

protected

Bathymetry write method ( S, D )

Referenced by BellhopWoss(), BellhopWoss(), getBathymetryMethod(), setBathymetryMethod(), and writeBathymetryFile().

◆ bathymetry_type

std::string woss::BellhopWoss::bathymetry_type

protected

Bathymetry type ( L, C )

Referenced by BellhopWoss(), BellhopWoss(), getBathymetryType(), setBathymetryType(), and writeBathymetryFile().

◆ beam_options

std::string woss::BellhopWoss::beam_options

protected

Bellhop beam options ( G, C, R, B )

Referenced by BellhopWoss(), BellhopWoss(), getBeamOptions(), setBeamOptions(), and writeRayOptions().

◆ beam_pattern_file

std::string woss::BellhopWoss::beam_pattern_file

protected

Pathname of Bellhop beam pattern file

Referenced by BellhopWoss(), BellhopWoss(), initCfgFiles(), and writeBeamPatternFile().

◆ bellhop_arr_syntax

BellhopArrSyntax woss::BellhopWoss::bellhop_arr_syntax

protected

.arr file syntax to be used during file parsing

Referenced by getBellhopArrSyntax(), run(), and setBellhopArrSyntax().

◆ bellhop_bin_name

std::string woss::BellhopWoss::bellhop_bin_name

protected

Bellhop binary name

Referenced by BellhopWoss(), getBellhopBinName(), run(), and setBellhopBinName().

◆ bellhop_env_file

std::string woss::BellhopWoss::bellhop_env_file

protected

Pathname of Bellhop configuration file

Referenced by BellhopWoss(), BellhopWoss(), initCfgFiles(), and writeCfgFiles().

◆ bellhop_op_mode

std::string woss::BellhopWoss::bellhop_op_mode

protected

Bellhop run mode ( A, a, C, I, S )

Referenced by BellhopWoss(), BellhopWoss(), initTimeArrResReader(), isValid(), setBhMode(), and writeRayOptions().

◆ bellhop_path

std::string woss::BellhopWoss::bellhop_path

protected

Pathname of Bellhop program

Referenced by BellhopWoss(), BellhopWoss(), getBellhopPath(), run(), and setBellhopPath().

◆ bellhop_shd_syntax

BellhopShdSyntax woss::BellhopWoss::bellhop_shd_syntax

protected

.shd file syntax to be used during file parsing

Referenced by getBellhopShdSyntax(), run(), and setBellhopShdSyntax().

◆ box_depth

double woss::BellhopWoss::box_depth

protected

Bellhop box depth [m]

Referenced by BellhopWoss(), BellhopWoss(), getBoxDepth(), initBox(), setBoxDepth(), and writeBox().

◆ box_range

double woss::BellhopWoss::box_range

protected

Bellhop box range [m]

Referenced by BellhopWoss(), BellhopWoss(), getBoxRange(), initBox(), setBoxRange(), writeBox(), and writeNormalizedSSP().

◆ bp_add_costant

double woss::BellhopWoss::bp_add_costant

protected

Referenced by BellhopWoss(), BellhopWoss(), setBeamPatternParam(), and writeBeamPatternFile().

◆ bp_horizontal_rotation

double woss::BellhopWoss::bp_horizontal_rotation

protected

Referenced by BellhopWoss(), BellhopWoss(), setBeamPatternParam(), and writeBeamPatternFile().

◆ bp_initial_bearing

double woss::BellhopWoss::bp_initial_bearing

protected

Referenced by BellhopWoss(), BellhopWoss(), setBeamPatternParam(), and writeBeamPatternFile().

◆ bp_mult_costant

double woss::BellhopWoss::bp_mult_costant

protected

Referenced by BellhopWoss(), BellhopWoss(), setBeamPatternParam(), and writeBeamPatternFile().

◆ bp_vertical_rotation

double woss::BellhopWoss::bp_vertical_rotation

protected

Referenced by BellhopWoss(), BellhopWoss(), setBeamPatternParam(), and writeBeamPatternFile().

◆ curr_norm_ssp_depth_steps

int woss::BellhopWoss::curr_norm_ssp_depth_steps

protected

Depth steps of all SSP involved

Referenced by BellhopWoss(), BellhopWoss(), normalizeDbSSP(), and writeNormalizedSSP().

◆ curr_path

std::string woss::BellhopWoss::curr_path

protected

Current working path

Referenced by BellhopWoss(), BellhopWoss(), initCfgFiles(), and run().

◆ f_out

std::ofstream woss::BellhopWoss::f_out

protected

ofstream for file writing

Referenced by BellhopWoss(), BellhopWoss(), writeBeamBlock(), writeBox(), writeCfgFiles(), writeHeader(), writeNormalizedSSP(), writeRayOptions(), writeReceiver(), writeSediment(), and writeTransmitter().

◆ max_angle

double woss::BellhopWoss::max_angle

protected

Maximum launching angle [decimal degrees]

Referenced by BellhopWoss(), BellhopWoss(), checkAngles(), getMaxAngle(), isValid(), setMaxAngle(), and writeRayOptions().

◆ max_normalized_ssp_depth

double woss::BellhopWoss::max_normalized_ssp_depth

protected

Maximum depth of normalized SSP matrix [m]

Referenced by BellhopWoss(), BellhopWoss(), checkDepthOffsets(), initialize(), normalizeDbSSP(), writeBathymetryFile(), writeNormalizedSSP(), and writeSediment().

◆ min_angle

double woss::BellhopWoss::min_angle

protected

Minimum launching angle [decimal degrees]

Referenced by BellhopWoss(), BellhopWoss(), checkAngles(), getMinAngle(), isValid(), setMinAngle(), and writeRayOptions().

◆ min_normalized_ssp_depth

double woss::BellhopWoss::min_normalized_ssp_depth

protected

Minimum depth of normalized SSP matrix [m]

Referenced by BellhopWoss(), BellhopWoss(), checkDepthOffsets(), normalizeDbSSP(), and writeNormalizedSSP().

◆ normalized_ssp_map

NormSSPMap woss::BellhopWoss::normalized_ssp_map

protected

SSP matrix normalized for Bellhop requirements (same depths and same depth-steps for all SSP involved)

Referenced by BellhopWoss(), BellhopWoss(), normalizeDbSSP(), resetNormalizedDbSSP(), and writeNormalizedSSP().

◆ randomized_ssp_map

NormSSPMap woss::BellhopWoss::randomized_ssp_map

protected

SSP matrix normalized and randomized for Bellhop requirements (same depths and same depth-steps for all SSP involved)

Referenced by BellhopWoss(), BellhopWoss(), and writeNormalizedSSP().

◆ rx_max_depth_offset

double woss::BellhopWoss::rx_max_depth_offset

protected

Receiver maximum depth offset [m]

Referenced by BellhopWoss(), BellhopWoss(), checkBoundaries(), checkDepthOffsets(), getRxMaxDepthOffset(), setRxMaxDepthOffset(), and writeReceiver().

◆ rx_max_range_offset

double woss::BellhopWoss::rx_max_range_offset

protected

Receiver maximum range offset [m]

Referenced by BellhopWoss(), BellhopWoss(), checkBoundaries(), checkRangeOffsets(), getRxMaxRangeOffset(), initialize(), setRxMaxRangeOffset(), and writeReceiver().

◆ rx_min_depth_offset

double woss::BellhopWoss::rx_min_depth_offset

protected

Receiver minimum depth offset [m]

Referenced by BellhopWoss(), BellhopWoss(), checkBoundaries(), checkDepthOffsets(), getRxMinDepthOffset(), setRxMinDepthOffset(), and writeReceiver().

◆ rx_min_range_offset

double woss::BellhopWoss::rx_min_range_offset

protected

Receiver minimum range offset [m]

Referenced by BellhopWoss(), BellhopWoss(), checkBoundaries(), checkRangeOffsets(), getRxMinRangeOffset(), setRxMinRangeOffset(), and writeReceiver().

◆ shd_file

std::string woss::BellhopWoss::shd_file

protected

Pathname of Bellhop SHD file

Referenced by BellhopWoss(), BellhopWoss(), initCfgFiles(), and initPressResReader().

◆ ssp_file

std::string woss::BellhopWoss::ssp_file

protected

Pathname of Bellhop SSP file

Referenced by BellhopWoss(), BellhopWoss(), initCfgFiles(), and writeNormalizedSSP().

◆ total_rays

int woss::BellhopWoss::total_rays

protected

Number of launched rays

Referenced by BellhopWoss(), BellhopWoss(), getRaysNumber(), isValid(), setRaysNumber(), and writeRayOptions().

◆ total_rx_depths

int woss::BellhopWoss::total_rx_depths

protected

Number of receiver depths

Referenced by BellhopWoss(), BellhopWoss(), getRxTotalDepths(), isValid(), setRxTotalDepths(), and writeReceiver().

◆ total_rx_ranges

int woss::BellhopWoss::total_rx_ranges

protected

Number of receiver ranges.

On some configuration (linux distribution / cpu ) bellhop will output an empty file with a value of total_rx_ranges = 1.

Referenced by BellhopWoss(), BellhopWoss(), getRxTotalRanges(), isValid(), setRxTotalRanges(), and writeReceiver().

◆ total_transmitters

int woss::BellhopWoss::total_transmitters

protected

Number of transmitter

Referenced by BellhopWoss(), BellhopWoss(), getTotalTransmitters(), isValid(), setTotalTransmitters(), and writeTransmitter().

◆ transducer

std::unique_ptr<Transducer> woss::BellhopWoss::transducer

protected

Transmitter beam pattern

Referenced by BellhopWoss(), BellhopWoss(), getTransducer(), setTransducer(), writeBeamPatternFile(), writeCfgFiles(), and writeRayOptions().

◆ transducer_type

std::string woss::BellhopWoss::transducer_type

protected

◆ transform_ssp_depth_steps

int woss::BellhopWoss::transform_ssp_depth_steps

protected

transformed SSP depth steps. Set <= 0 in order to disable the feature.

Referenced by BellhopWoss(), BellhopWoss(), getTransformSSPDepthSteps(), normalizeDbSSP(), and setTransformSSPDepthSteps().

◆ tx_max_depth_offset

double woss::BellhopWoss::tx_max_depth_offset

protected

Transmitter maximum depth offset [m]

Referenced by BellhopWoss(), BellhopWoss(), checkBoundaries(), checkDepthOffsets(), getTxMaxDepthOffset(), setTxMaxDepthOffset(), and writeTransmitter().

◆ tx_min_depth_offset

double woss::BellhopWoss::tx_min_depth_offset

protected

Transmitter minimum depth offset [m]

Referenced by BellhopWoss(), BellhopWoss(), checkBoundaries(), checkDepthOffsets(), getTxMinDepthOffset(), setTxMinDepthOffset(), and writeTransmitter().

◆ use_thorpe_att

bool woss::BellhopWoss::use_thorpe_att

protected

let bellhop calculate thorpe attenuation

Referenced by BellhopWoss(), getThorpeAttFlag(), setThorpeAttFlag(), and writeNormalizedSSP().

◆ using_press_mode

bool woss::BellhopWoss::using_press_mode

protected

Referenced by BellhopWoss(), BellhopWoss(), getAvgPressure(), initResReader(), setBhMode(), and usingPressMode().

◆ using_ssp_file

bool woss::BellhopWoss::using_ssp_file

protected

Referenced by BellhopWoss(), BellhopWoss(), usingSSPFile(), and writeNormalizedSSP().

◆ using_time_arrival_mode

bool woss::BellhopWoss::using_time_arrival_mode

protected

Referenced by BellhopWoss(), BellhopWoss(), initResReader(), setBhMode(), and usingTimeArrMode().

◆ WOSS_BELLHOP_BIN_NAME

const char* woss::BellhopWoss::WOSS_BELLHOP_BIN_NAME = "bellhop.exe"

inlinestaticconstexpr

bellhop binary name

Referenced by BellhopWoss(), WossBellhopScript::doConfig(), WossBellhopTest::doConfig(), and WossUnitTest::testBellhopCreator().

◆ WOSS_BELLHOPCUDA_BIN_PATH

const char* woss::BellhopWoss::WOSS_BELLHOPCUDA_BIN_PATH = "bellhopcuda"

inlinestaticconstexpr

bellhopcuda binary path

◆ WOSS_BELLHOPCXX_BIN_NAME

const char* woss::BellhopWoss::WOSS_BELLHOPCXX_BIN_NAME = "bellhopcxx"

inlinestaticconstexpr

bellhopcxx binary name

Referenced by WossUnitTest::testBellhopWoss().

The documentation for this class was generated from the following files:

woss/bellhop-woss.h
woss/bellhop-woss.cpp

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BellhopWoss() [1/4]

◆ BellhopWoss() [2/4]

◆ BellhopWoss() [3/4]

◆ BellhopWoss() [4/4]

◆ ~BellhopWoss()

Member Function Documentation

◆ checkAngles()

◆ checkBoundaries()

◆ checkDepthOffsets() [1/2]

◆ checkDepthOffsets() [2/2]

◆ checkRangeOffsets()

◆ getAltimetryType()

◆ getAvgPressure()

◆ getBathymetryMethod()

◆ getBathymetryType()

◆ getBeamOptions()

◆ getBellhopArrSyntax()

◆ getBellhopBinName()

◆ getBellhopPath()

◆ getBellhopShdSyntax()

◆ getBoxDepth()

◆ getBoxRange()

◆ getMaxAngle()

◆ getMinAngle()

◆ getPressure()

◆ getRaysNumber()

◆ getRxMaxDepthOffset()

◆ getRxMaxRangeOffset()

◆ getRxMinDepthOffset()

◆ getRxMinRangeOffset()

◆ getRxTotalDepths()

◆ getRxTotalRanges()

◆ getThorpeAttFlag()

◆ getTimeArr()

◆ getTotalTransmitters()

◆ getTransducer()

◆ getTransformSSPDepthSteps()

◆ getTxMaxDepthOffset()

◆ getTxMinDepthOffset()

◆ initBox()

◆ initCfgFiles()

◆ initialize()

◆ initPressResReader()

◆ initResReader()

◆ initTimeArrResReader()

◆ isValid()

◆ isValidBhMode()

◆ normalizeDbSSP()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ removeAllCfgFiles()

◆ removeCfgFiles()

◆ resetNormalizedDbSSP()

◆ run()

◆ setAltimetryType()

◆ setBathymetryMethod()

◆ setBathymetryType()

◆ setBeamOptions()

◆ setBeamPatternParam()

◆ setBellhopArrSyntax()

◆ setBellhopBinName()

◆ setBellhopPath()

◆ setBellhopShdSyntax()

◆ setBhMode()

◆ setBoxDepth()

◆ setBoxRange()

◆ setMaxAngle()

◆ setMinAngle()

◆ setRaysNumber()

◆ setRxMaxDepthOffset()

◆ setRxMaxRangeOffset()

◆ setRxMinDepthOffset()

◆ setRxMinRangeOffset()
