Private Member Functions | |
| virtual void | doConfig () override |
| virtual void | doInit () override |
| virtual void | doRun () override |
Private Attributes | |
| vector< CoordZ > | tx_coordz_vector |
| vector< CoordZ > | rx_coordz_vector |
| CoordZPairVect | coordz_pair_vector |
| vector< double > | frequencies_vector |
| string | db_path |
| string | res_path |
| bool | skip_single_tests = false |
Additional Inherited Members | |
| Protected Member Functions inherited from woss::WossTest | |
| void | config () |
| void | init () |
| Protected Attributes inherited from woss::WossTest | |
| bool | debug |
| debug flag | |
| std::unique_ptr< SSP > | ssp_proto |
| SSP prototype which will be plugged into the WOSS framework. | |
| std::unique_ptr< Sediment > | sediment_proto |
| Sediment prototype which will be plugged into the WOSS framework. | |
| std::unique_ptr< Pressure > | pressure_proto |
| Pressure prototype which will be plugged into the WOSS framework. | |
| std::unique_ptr< TimeArr > | time_arr_proto |
| TimeArr prototype which will be plugged into the WOSS framework. | |
| std::unique_ptr< Transducer > | transducer_proto |
| Transducer prototype which will be plugged into the WOSS framework. | |
| std::unique_ptr< AltimBretschneider > | altim_bret_proto |
| AltimBretschneider prototype which will be plugged into the WOSS framework. | |
| std::unique_ptr< Location > | location_proto |
| Location prototype which will be plugged into the WOSS framework. | |
| int | woss_random_gen_stream |
| random generator used by the WOSS framework. | |
| std::unique_ptr< RandomGenerator > | random_gen_proto |
| RandomGenerator prototype which will be plugged into the WOSS framework. | |
| std::unique_ptr< TimeReference > | time_ref_proto |
| TimeReference prototype which will be plugged into the WOSS framework. | |
| DefHandler & | def_handler |
| Definition Handler object allocated by the helper. | |
| bool | res_db_creator_debug |
| enable/disable the debug prints of the woss results database creator. | |
| bool | res_db_debug |
| enable/disable the debug prints of the woss result databases. | |
| bool | res_db_use_binary |
| set up the woss result database format: binary or textual. | |
| bool | res_db_use_time_arr |
| set up the woss result databases data format: power delay profile. | |
| bool | res_db_use_pressure |
| set up the woss result databases data format: single pressure tap. | |
| double | res_db_space_sampling |
| set up the woss result database 2D spatial sampling | |
| std::string | res_db_file_path |
| set up the woss result database file path | |
| std::string | res_db_file_name |
| set up the woss result database file name (without path) | |
| std::shared_ptr< ResPressureBinDbCreator > | res_db_creator_press_bin |
| the helper will automatically allocate the desired result database creator based on current configuration. | |
| std::shared_ptr< ResPressureTxtDbCreator > | res_db_creator_press_txt |
| the helper will automatically allocate the desired result database creator based on current configuration. | |
| std::shared_ptr< ResTimeArrBinDbCreator > | res_db_creator_time_arr_bin |
| the helper will automatically allocate the desired result database creator based on current configuration. | |
| std::shared_ptr< ResTimeArrTxtDbCreator > | res_db_creator_time_arr_txt |
| the helper will automatically allocate the desired result database creator based on current configuration. | |
| DECK41DbType | sedim_deck41_db_type |
| DECK41 db data format type. | |
| bool | sedim_db_creator_debug |
| enable/disable the debug prints of the woss sediment database creator. | |
| bool | sedim_db_debug |
| enable/disable the debug prints of the woss sediment database. | |
| std::string | sedim_db_coord_file_path |
| setup the path of the sediment database indexed by geographical coordinates with decimal degrees resolution | |
| std::string | sedim_db_marsden_file_path |
| setup the path of the sediment database indexed by geographical coordinates with marsden square resolution | |
| std::string | sedim_db_marsden_one_file_path |
| setup the path of the sediment database indexed by geographical coordinates with marsden one square resolution | |
| std::shared_ptr< SedimDeck41DbCreator > | sedim_db_creator |
| the helper will automatically allocate the woss sediment database creator | |
| bool | ssp_db_creator_debug |
| enable/disable the debug prints of the woss SSP database creator. | |
| bool | ssp_db_debug |
| enable/disable the debug prints of the woss SSP database. | |
| std::string | ssp_db_file_path |
| setup the path of the woss monthly SSP database indexed by geographical coordinates | |
| WOADbType | ssp_woa_db_type |
| WOA SSP Db Type. | |
| std::shared_ptr< SspWoa2005DbCreator > | ssp_db_creator |
| the helper will automatically allocate the woss sediment database creator | |
| bool | bathy_db_creator_debug |
| enable/disable the debug prints of the woss Bathymetry database creator. | |
| bool | bathy_db_debug |
| enable/disable the debug prints of the woss Bathymetry database (GEBCO). | |
| GEBCO_BATHY_TYPE | bathy_db_gebco_format |
| setup the the GEBCO database format | |
| std::string | bathy_db_file_path |
| setup the path of the woss GEBCO database | |
| std::shared_ptr< BathyGebcoDbCreator > | bathy_db_creator |
| the helper will automatically allocate the woss GEBCO bathymetry db creator | |
| bool | woss_db_manager_debug |
| enable/disable the debug prints of the woss DB manager object. | |
| std::shared_ptr< WossDbManager > | woss_db_manager |
| the helper will automatically allocate the woss DB manager | |
| bool | woss_creator_debug |
| enable/disable the debug prints of the woss creator. | |
| bool | woss_debug |
| enable/disable the debug prints of all woss objects | |
| bool | woss_clear_work_dir |
| woss object configuration: clear the temporary files created by the underlying channel simulator | |
| double | evolution_time_quantum |
| woss object configuration: evolution time quantum | |
| int | total_runs |
| woss object configuration: total number of channel simulator runs | |
| double | frequency_step |
| woss object configuration: number of frequency steps | |
| double | total_range_steps |
| woss object configuration: tx - rx range sampling in meters | |
| double | tx_min_depth_offset |
| woss object configuration: transmitter min offset in meters | |
| double | tx_max_depth_offset |
| woss object configuration: transmitter max offset in meters | |
| int | total_transmitters |
| woss object configuration: total number of transmitting sources | |
| int | total_rx_depths |
| woss object configuration: receiver depth sampling | |
| double | rx_min_depth_offset |
| woss object configuration: receiver min depth offset in meters | |
| double | rx_max_depth_offset |
| woss object configuration: receiver max depth offset in meters | |
| int | total_rx_ranges |
| woss object configuration: receiver range sampling | |
| double | rx_min_range_offset |
| woss object configuration: receiver min range offset in meters | |
| double | rx_max_range_offset |
| woss object configuration: receiver max range offset in meters | |
| double | total_rays |
| woss object configuration: total number of rays (0 = automatic) | |
| double | min_angle |
| woss object configuration: minimum vertical angle in decimal degrees | |
| double | max_angle |
| woss object configuration: maximum vertical angle in decimal degrees | |
| bool | use_thorpe_att |
| woss object configuration: use thorpe attenuation in channel computation | |
| double | ssp_depth_precision |
| woss object configuration: SSP depth precision in meters | |
| double | normalized_ssp_depth_steps |
| woss object configuration: SSP depth quantization steps | |
| std::string | work_dir_path |
| woss object configuration: path of the temporary directory | |
| std::string | bellhop_path |
| woss object configuration: path of the Bellhop executable | |
| std::string | bellhop_bin_name |
| woss object configuration: Bellhop binary name | |
| std::string | bellhop_mode |
| woss object configuration: Bellhop mode string | |
| std::string | bellhop_beam_options |
| woss object configuration: Bellhop beam option string | |
| std::string | bellhop_bathy_type |
| woss object configuration: Bellhop bathymetry type string | |
| std::string | bellhop_bathy_method |
| woss object configuration: Bathymetry write method string | |
| std::string | bellhop_altim_type |
| woss object configuration: Bellhop Altimetry type string | |
| BellhopArrSyntax | bellhop_arr_syntax |
| woss object configration: Bellhop Arr file syntax to be used during .arr file parsing | |
| BellhopShdSyntax | bellhop_shd_syntax |
| woss object configration: Bellhop Shd file syntax to be used during .shd file parsing | |
| SimTime | sim_time |
| woss object configuration: woss simulation times (start and end sim times) | |
| std::shared_ptr< BellhopCreator > | bellhop_creator |
| the helper will automatically allocate the woss creator | |
| double | box_depth |
| woss object configuration: maximum depth to trace rays to; deeper rays will be ignored | |
| double | box_range |
| woss object configuration: maximum range to trace rats to; longer rays will be ignored | |
| bool | woss_manager_debug |
| enable/disable the debug prints of the woss manager. | |
| bool | time_evolution_active |
| enable/disable the time evolution feature. | |
| unsigned int | concurrent_threads |
| number of concurrent threads (0 = auto). | |
| double | woss_manager_space_sampling |
| woss manager space sampling in meters | |
| bool | woss_manager_use_multithread |
| enable/disable the multithread feature | |
| bool | woss_manager_use_thread_pool |
| enable/disable woss::ThreadPool usage | |
| std::shared_ptr< WossManagerSimple< WossManagerResDb > > | woss_manager_simple |
| the helper will automatically allocate the desired woss manager based on current configuration. | |
| std::shared_ptr< WossManagerSimple< WossManagerResDbMT > > | woss_manager_multi |
| the helper will automatically allocate the desired woss manaeger based on current configuration. | |
| bool | woss_transducer_handler_debug |
| enable/disable the debug prints of the woss transducer handler. | |
| std::shared_ptr< TransducerHandler > | woss_transducer_handler |
| the helper will automatically allocate the woss Transducer handler. | |
| bool | woss_controller_debug |
| enable/disable the debug prints of the woss conteroller | |
| std::shared_ptr< WossController > | woss_controller |
| the helper will automatically allocate the woss controller. | |
| bool | initialized |
| initialization complete flag. | |
Constructor & Destructor Documentation
◆ WossBellhopTest()
| WossBellhopTest::WossBellhopTest | ( | ) |
References db_path, frequencies_vector, res_path, rx_coordz_vector, tx_coordz_vector, and woss::WossTest::WossTest().
◆ ~WossBellhopTest()
|
overridevirtualdefault |
Member Function Documentation
◆ doConfig()
|
overrideprivatevirtual |
Virtual function that allows the derived class to perform its custom configuration phase
Implements woss::WossTest.
References woss::BELLHOP_CREATOR_ARR_FILE_SYNTAX_2, woss::BELLHOP_CREATOR_SHD_FILE_SYNTAX_1, coordz_pair_vector, db_path, woss::DECK41_DB_V2_TYPE, frequencies_vector, woss::GEBCO_2D_15_SECONDS_BATHY_TYPE, res_path, rx_coordz_vector, woss::WossTest::setBathyDbFilePath(), woss::WossTest::setBathyDbGebcoFormat(), woss::WossTest::setResDbCreatorDebug(), woss::WossTest::setResDbDebug(), woss::WossTest::setResDbFileName(), woss::WossTest::setResDbFilePath(), woss::WossTest::setResDbUseBinary(), woss::WossTest::setResDbUsePressure(), woss::WossTest::setResDbUseTimeArr(), woss::WossTest::setSedimDbCoordFilePath(), woss::WossTest::setSedimDbMarsdenFilePath(), woss::WossTest::setSedimDbMarsdenOneFilePath(), woss::WossTest::setSedimDeck41DbType(), woss::WossTest::setSspDbFilePath(), woss::WossTest::setSspWoaDbType(), woss::WossTest::setWossBellhopAltimType(), woss::WossTest::setWossBellhopArraySyntax(), woss::WossTest::setWossBellhopBathyMethod(), woss::WossTest::setWossBellhopBathyType(), woss::WossTest::setWossBellhopBeamOptions(), woss::WossTest::setWossBellhopBinName(), woss::WossTest::setWossBellhopMode(), woss::WossTest::setWossBellhopShdSyntax(), woss::WossTest::setWossBoxDepth(), woss::WossTest::setWossBoxRange(), woss::WossTest::setWossClearWorkDir(), woss::WossTest::setWossCreatorDebug(), woss::WossTest::setWossDbManagerDebug(), woss::WossTest::setWossDebug(), woss::WossTest::setWossEvolutionTimeQuantum(), woss::WossTest::setWossFrequencyStep(), woss::WossTest::setWossManagerDebug(), woss::WossTest::setWossManagerSpaceSampling(), woss::WossTest::setWossManagerThreads(), woss::WossTest::setWossManagerTimeEvoActive(), woss::WossTest::setWossManagerUseMultiThread(), woss::WossTest::setWossManagerUseThreadPool(), woss::WossTest::setWossMaxAngle(), woss::WossTest::setWossMinAngle(), woss::WossTest::setWossNormalizedSspDepthSteps(), woss::WossTest::setWossRandomGenStream(), woss::WossTest::setWossRxMaxDepthOffset(), woss::WossTest::setWossRxMaxRangeOffset(), woss::WossTest::setWossRxMinDepthOffset(), woss::WossTest::setWossRxMinRangeOffset(), woss::WossTest::setWossSimTime(), woss::WossTest::setWossSspDepthPrecision(), woss::WossTest::setWossTestDebug(), woss::WossTest::setWossTotalRangeSteps(), woss::WossTest::setWossTotalRays(), woss::WossTest::setWossTotalRuns(), woss::WossTest::setWossTotalRxDepths(), woss::WossTest::setWossTotalRxRanges(), woss::WossTest::setWossTotalTransmitters(), woss::WossTest::setWossTxMaxDepthOffset(), woss::WossTest::setWossTxMinDepthOffset(), woss::WossTest::setWossUseThorpeAtt(), woss::WossTest::setWossWorkDirPath(), skip_single_tests, tx_coordz_vector, woss::WOA_DB_TYPE_2013, and woss::BellhopWoss::WOSS_BELLHOP_BIN_NAME.
◆ doInit()
|
overrideprivatevirtual |
Virtual function that allows the derived class to perform its custom initialization phase
Implements woss::WossTest.
References db_path, and woss::WossTest::woss_db_manager.

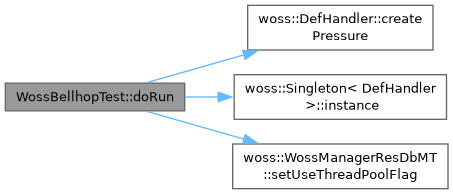

◆ doRun()
|
overrideprivatevirtual |
Virtual function that allows the derived class to perform its custom run phase
Implements woss::WossTest.
References woss::WossTest::bellhop_creator, coordz_pair_vector, woss::DefHandler::createPressure(), woss::WossTest::debug, frequencies_vector, woss::Singleton< DefHandler >::instance(), res_path, rx_coordz_vector, woss::WossManagerResDbMT::setUseThreadPoolFlag(), skip_single_tests, tx_coordz_vector, woss::WossTest::woss_controller, woss::WOSS_ERROR_BAD_FORMAT, woss::WOSS_ERROR_INVALID_PARAM, woss::WOSS_ERROR_OUT_OF_MEMORY, and woss::WOSS_ERROR_OUT_OF_RANGE_PARAM.
◆ setRxCoordZVector()
|
inline |
References rx_coordz_vector.
◆ setTxCoordZVector()
|
inline |
References tx_coordz_vector.
Member Data Documentation
◆ coordz_pair_vector
|
private |
Referenced by doConfig(), and doRun().
◆ db_path
|
private |
Referenced by doConfig(), doInit(), and WossBellhopTest().
◆ frequencies_vector
|
private |
Referenced by doConfig(), doRun(), and WossBellhopTest().
◆ res_path
|
private |
Referenced by doConfig(), doRun(), and WossBellhopTest().
◆ rx_coordz_vector
|
private |
Referenced by doConfig(), doRun(), setRxCoordZVector(), and WossBellhopTest().
◆ skip_single_tests
|
private |
Referenced by doConfig(), and doRun().
◆ tx_coordz_vector
|
private |
Referenced by doConfig(), doRun(), setTxCoordZVector(), and WossBellhopTest().
The documentation for this class was generated from the following file:
- tests/woss-bellhop-test.cpp
